GG 235871
DYNAMITE SUPPLY UNIT, EXTRUDER, SST, 190

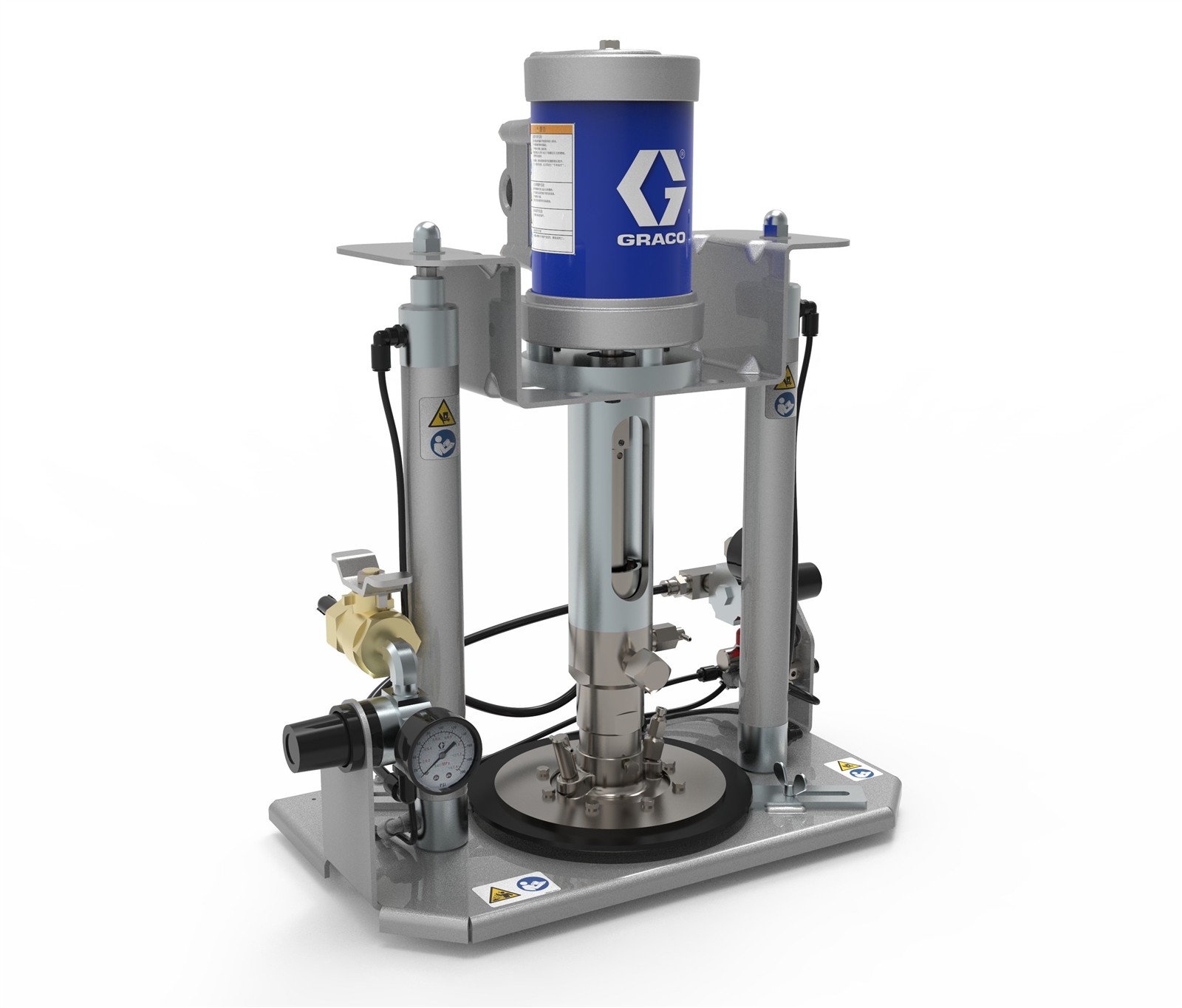

Graco 235871 DynaMite 190 Pump Single Component Mini-Extruder for 1 Quart to 1 Gallon pails
The Dynamite 190 is ideal for pumping low to medium viscosity materials from small containers.
Application: The Dynamite 190 is ideal for pumping low to medium viscosity materials from small containers.
- Features and Benefits
Extrudes viscous material from their original 1 quart (0.95 L) or 1 gallon (3.79 L) pails
Compact and lightweight
Built tough for rugged conditions
- Typical Applications
Dispensing viscous fluids and pastes
Manual or automatic valve applications
Small manufacturing workcells
Industrial workbench applications
- Typical Fluids Handled
Adhesives
Thermal pastes
Potting compounds
Heatsink compounds
Encapsulants
Sealants
Grease
Inks
Colorants
- Model: DynaMite
- Series: 190
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient
- Control Options: Standard
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material Container Volume (gal): 1
- Material Container Volume (l): 3.79
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Pressure (bar): 83
- Maximum Fluid Pressure (kPa): 8300
- Maximum Fluid Pressure (MPa): 140
- Maximum Fluid Pressure (psi): 0
- Maximum Fluid Pressure (bar): 83
- Maximum Fluid Pressure (kPa): 8300
- Maximum Fluid Pressure (MPa): 140
- Maximum Fluid Pressure (psi): 0
- Maximum Operating Temperature ( degree C): 60
- Maximum Operating Temperature ( degree F): 140
- Maximum Working Pressure (bar): 83
- Maximum Working Pressure (kPa): 8300
- Maximum Working Pressure (MPa): 8.3
- Maximum Working Pressure (psi): 1200
- Number of Wipers: Single Ring
- Ram Post Diameter (mm): 172
