GG 24W352
ENDURA-FLO PUMP, 4:1 AODD, 350, NPT, STD

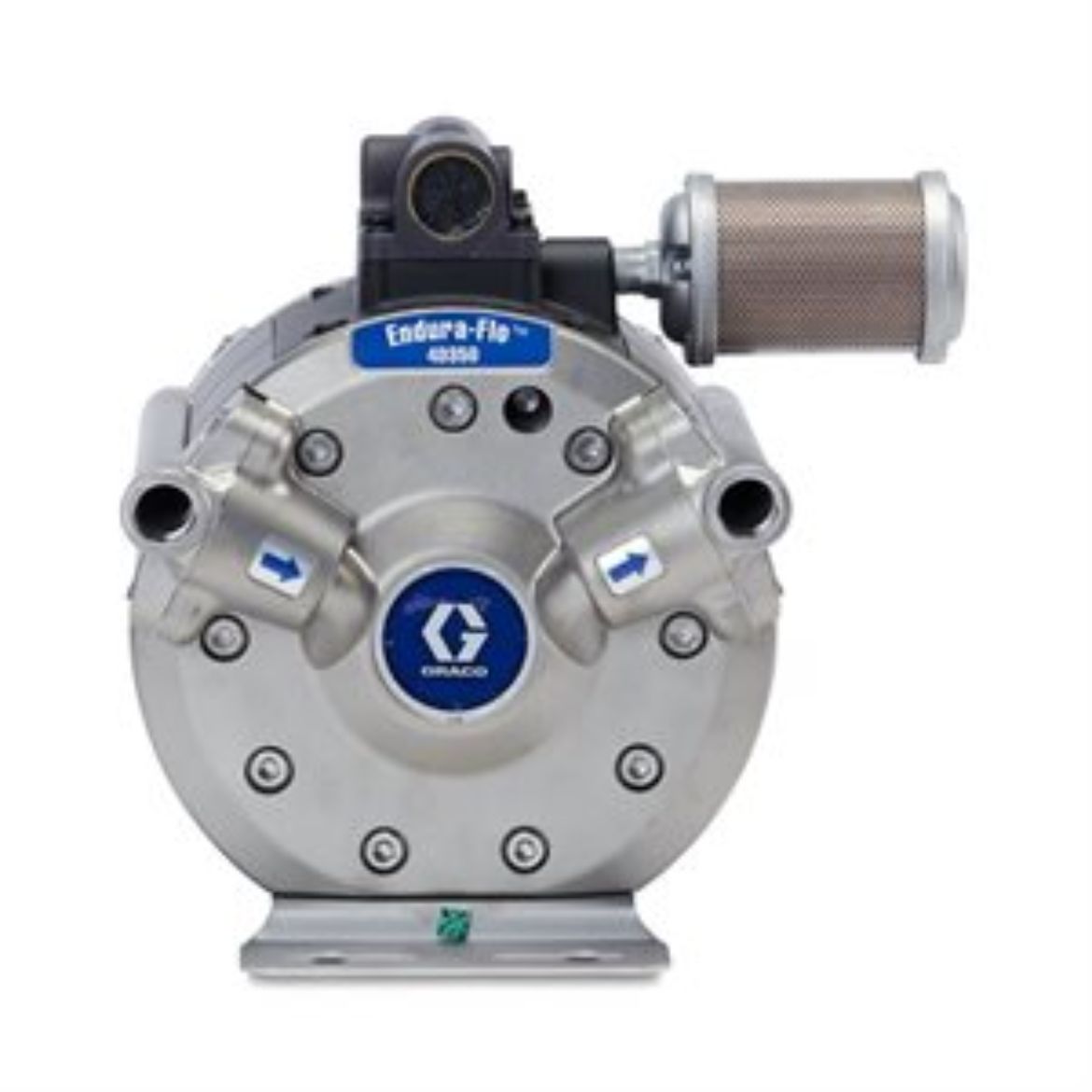

Graco 24W352 Endura-Flo 4D350, 4:1 Air Operated Diaphragm Pump, 350cc, NPT
The Endura-Flo 4D offers the industry's highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.
- Endure-Flo diaphragms last longer against extreme operating conditions
- Easy access to critical components for fast online maintenance
- Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
- Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
- Model: Endura-Flo
- Series: 4D350
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set
- Connection Type: Threaded
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Type: NPT
- Material: Stainless Steel
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 5.5
- Maximum Flow Rate (L/min): 20.8
- Maximum Fluid Pressure (bar): 28
- Maximum Fluid Pressure (kPa): 2800
- Maximum Fluid Pressure (MPa): 2.8
- Maximum Fluid Pressure (psi): 400
- Maximum Fluid Pressure (bar): 28
- Maximum Fluid Pressure (kPa): 2800
- Maximum Fluid Pressure (MPa): 2.8
- Maximum Fluid Pressure (psi): 400
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Overall Height (in): 14.39
