GG 234237
GUN, SPRAY, UNDERCOAT

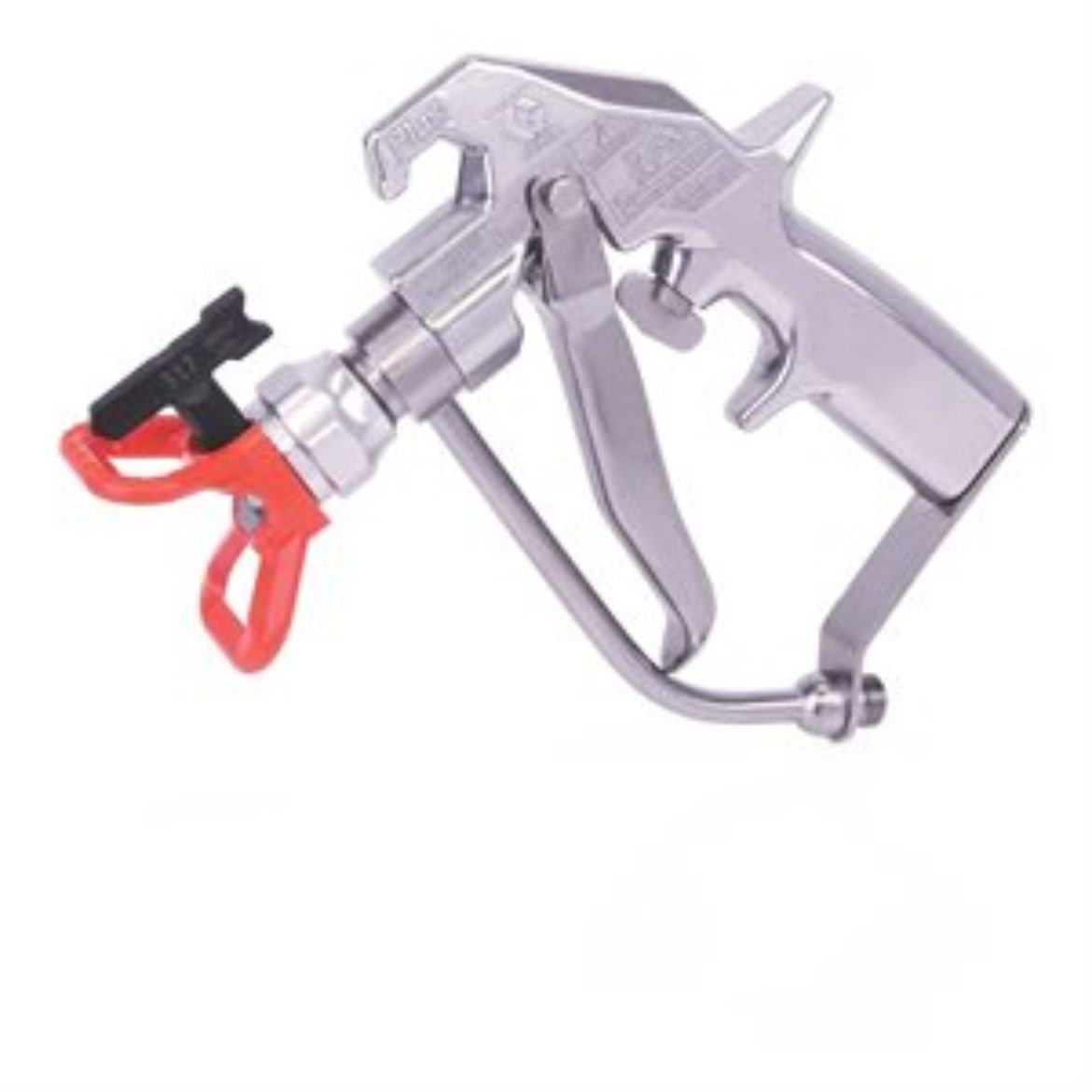

Graco 234237 4-Finger Silver Gun with Tip Guard/Tip - 4,500 psi (310 bar) x 3/8 NPT(f) Inlet
Application: Ideal for undercoating and rust-proofing application in medium-sized shops, municipal garages and higher-volume in-plant applications.
- Up to 18,000 psi (1,242 bar)
- Must order 155570 adapter and 239663 straight swivel to accommodate gun to 1/4 in (mbe) hose.
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Compatible Material: Undercoating, Rustproofing
- Component A Inlet Size (cm): 0.635
- Component A Inlet Size (in): 1/4
- Component A Inlet Size (mm): 6.35
- Component A Inlet Thread Type: NPSM
- Fluid Orifice Size (cm): 0.043
- Fluid Orifice Size (in): 0.017
- Fluid Orifice Size (mm): 0.43
- For Use With: Undercoating and Rustproofing
- Gun Activation: Manual
- Gun Type: Airless Gun
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 50
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 50
- Maximum Fluid Temperature (°F): 120
