GG 243700
REGULATOR, HTD, 230V

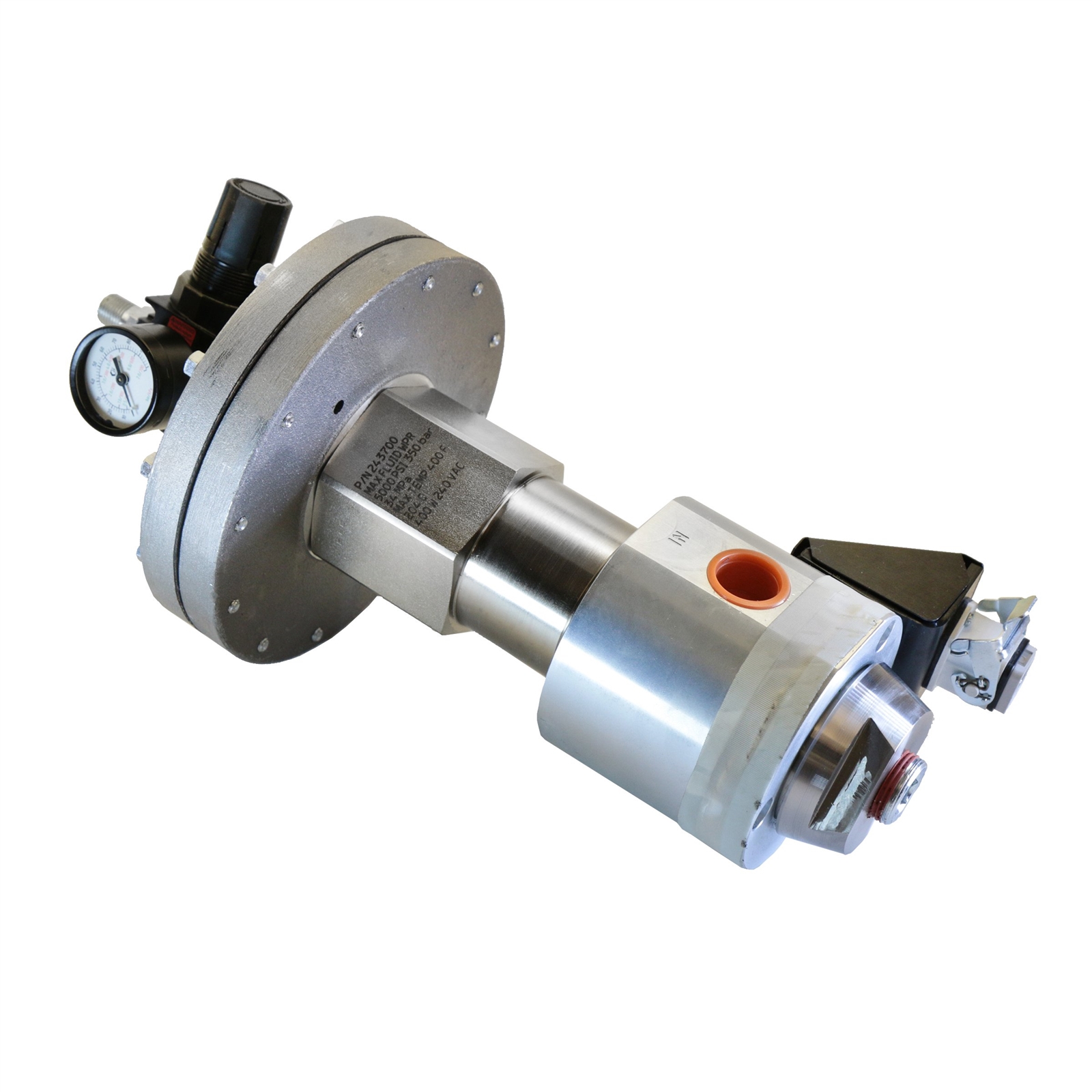

Graco 243700 230 V Heated Fluid Pressure Regulator
Application: These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
- Application: Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Infusion, Metering, Regulating
- Flow Control Type: Regulation
- Gauge Port Size (cm): 1.905
- Gauge Port Size (in): 3/4
- Gauge Port Size (mm): 19.05
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Maximum Regulated Pressure (bar): 241
- Maximum Regulated Pressure (kPa): 24100
- Maximum Regulated Pressure (MPa): 24.1
- Maximum Regulated Pressure (psi): 3500
- Maximum Viscosity (cP): 80000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34.4
- Maximum Working Pressure (psi): 5000
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kPa): 1700
- Minimum Regulated Pressure (MPa): 1.7
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
