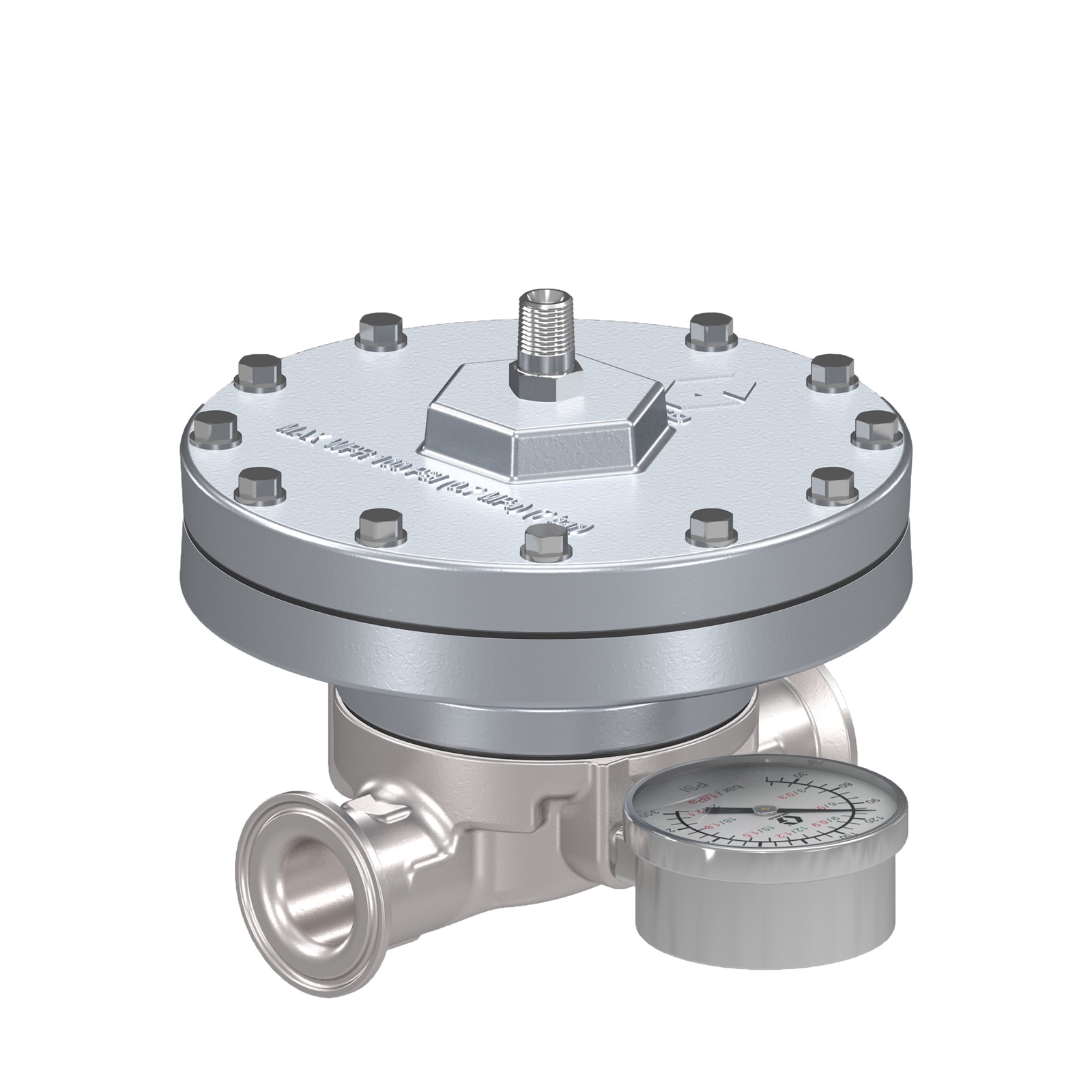

GG 25R487
REGULATOR, BP, AIRPILOT, LOW-FLOW
Graco 25R487 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear
- Ultralife series ceramic coated parts resist wear and increase service life
- Low profile, compact design and backwards compatibility mean easy installation and replacement
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Inlet Size (cm): 3.8
- Inlet Size (in): 1.5
- Inlet Size (mm): 38
- Inlet Thread Type: Sanitary Flange
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 10
- Maximum Flow Rate (L/min): 38
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 17.6
- Maximum Regulated Pressure (kg/cm²): 17.6
- Maximum Regulated Pressure (kPa): 1724
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21.1
- Maximum Working Pressure (kg/cm²): 21.1
- Maximum Working Pressure (kPa): 2068
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 1.8
- Minimum Regulated Pressure (kg/cm²): 1.8
- Minimum Regulated Pressure (kPa): 172
- Minimum Regulated Pressure (MPa): 0.17
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.8
- Outlet Size (in): 1.5
- Outlet Size (mm): 38
- Outlet Thread Type: Sanitary Flange
