GG 25T477
REGULATOR, BACK PRESS, MP, 20:1

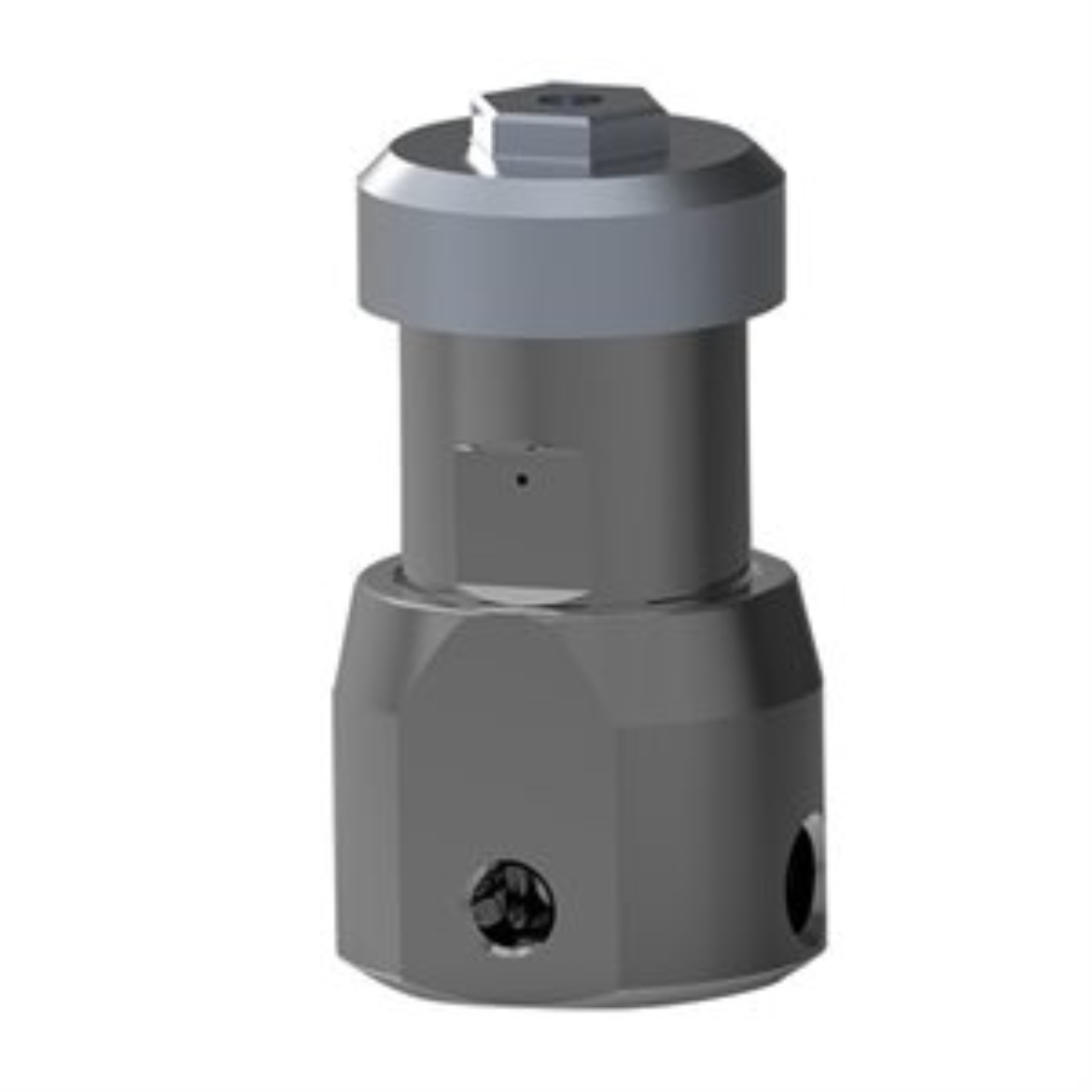

Graco 25T477 Medium Pressure Fluid Back Pressure Regulator, 2000 Max psi, 5 gpm Max flow rate, SST, Pneumatic
Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
- Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
- Interface with Graco's Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Inlet Size (cm): 0.95
- Inlet Size (in): 0.375
- Inlet Size (mm): 9.5
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm 2): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature ( degree C): 50
- Maximum Operating Temperature ( degree F): 122
- Maximum Regulated Pressure (bar): 138
- Maximum Regulated Pressure (kg/cm 2): 138
- Maximum Regulated Pressure (kPa): 13800
- Maximum Regulated Pressure (psi): 2000
- Maximum Viscosity (cP): 250
- Maximum Working Pressure (bar): 211
- Maximum Working Pressure (kg/cm 2): 211
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (psi): 3000
- Minimum Operating Temperature ( degree C): 0
- Minimum Operating Temperature ( degree F): 32
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kg/cm 2): 17
- Minimum Regulated Pressure (kPa): 1720
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 0.95
- Outlet Size (in): 0.375
- Outlet Size (mm): 9.5
- Outlet Thread Type: NPT
