B/P Regulator,1/4in,CS,1000-3000 psi

GG 206819

VALVE, BACK PRESSURE

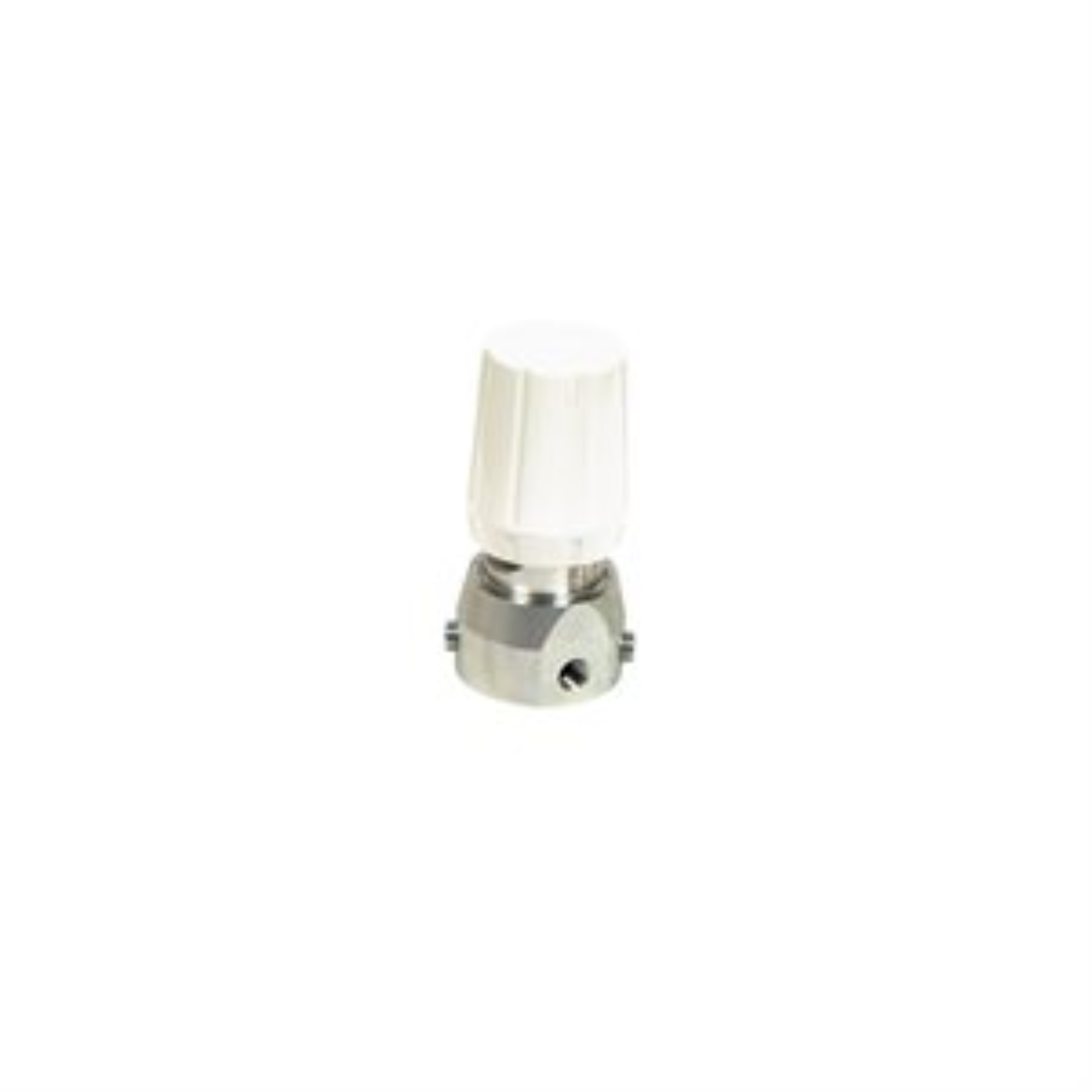

Graco 206819 Back Pressure Fluid Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f)

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne

  materials

• Laser-marked indication lines for easy pressure adjustment

  and process control

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 70
• Minimum Regulated Pressure (kPa): 7000
• Minimum Regulated Pressure (MPa): 7
• Minimum Regulated Pressure (psi): 1000

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Type: NPT
