GG 206019
REGULATOR, PRESS, BACK

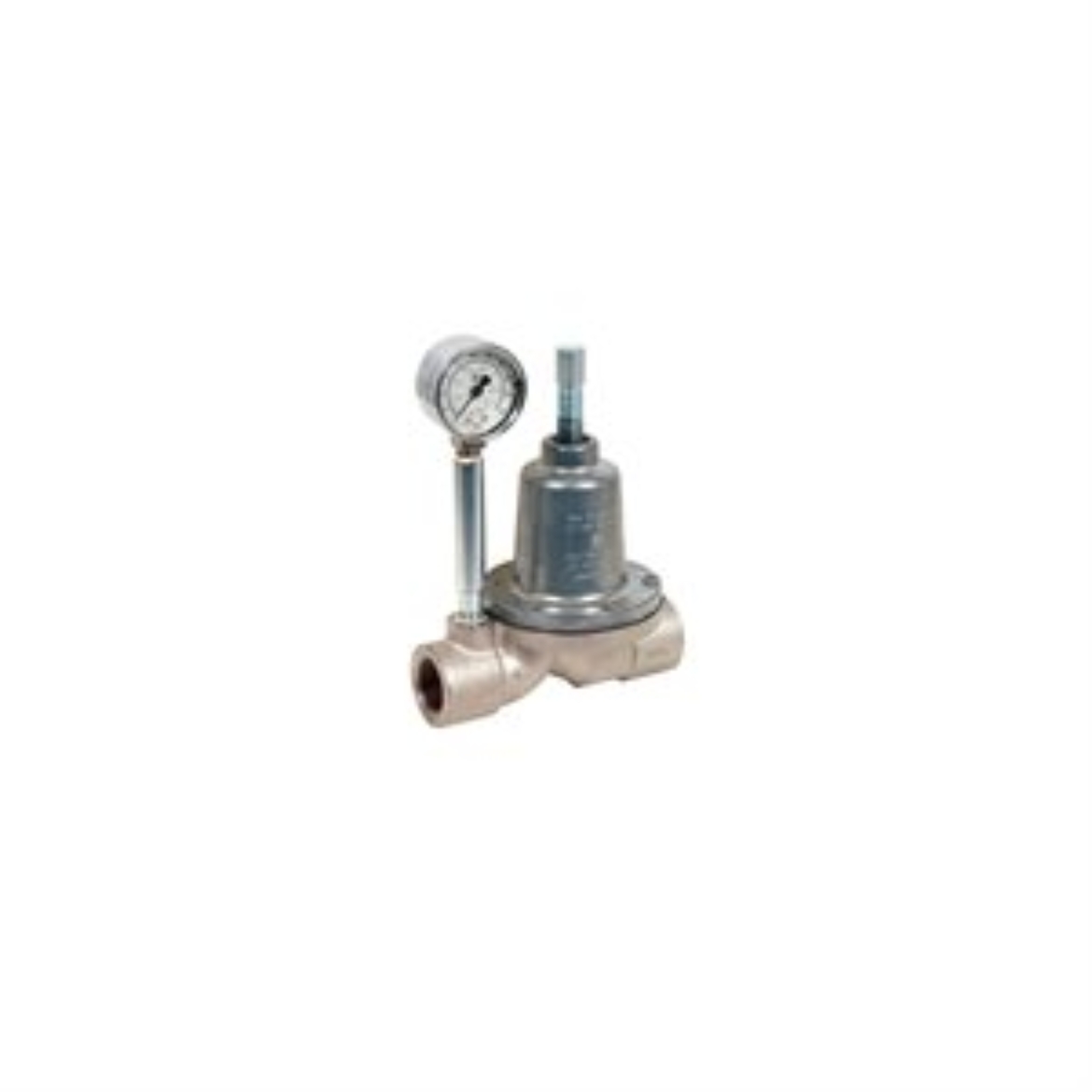

Graco 206019 Low Pressure Fluid Back Pressure Regulator, 180 psi (12 bar) max pressure, AL wetted parts, manual, 1(f) inlet, 1(f) outlet with gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Electroless nickel plated aluminum housing with smooth flow orifices
- Tungsten and carbide materials to resist wear
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Compatible Material: Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Includes: Gauge
- Inlet Size (cm): 2.54
- Inlet Size (in): 1
- Inlet Size (mm): 25.4
- Maximum Flow Rate (GPM): 6
- Maximum Flow Rate (L/min): 22.7
- Maximum Regulated Pressure (bar): 12.4
- Maximum Regulated Pressure (kPa): 1240
- Maximum Regulated Pressure (psi): 180
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 0
- Minimum Regulated Pressure (kPa): 0
- Minimum Regulated Pressure (MPa): 0
- Minimum Regulated Pressure (psi): 0
- Outlet Size (cm): 2.54
- Outlet Size (in): 1
- Outlet Size (mm): 25.4
- Outlet Thread Type: NPT
