Air Motors

IR M007-216-037

IR M007-37

IR M007-53-000

IR M007-580

IR M007-A13

IR M007-N40

IR M007-R40

IR M007RHR188BS5

IR M007RVR021AR4

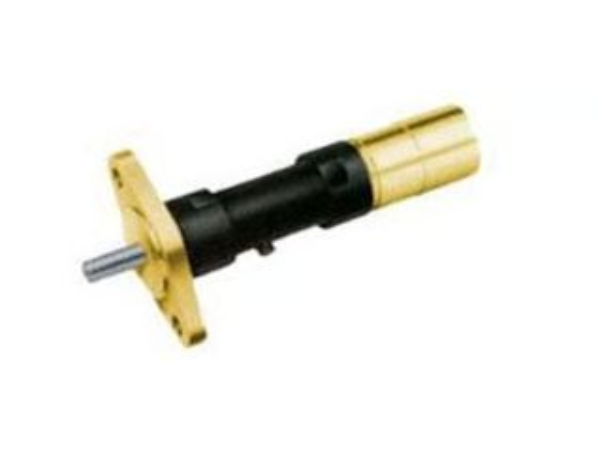

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 855 RPM, 0.64 HP, 16.5 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/2
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 21:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 855
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 12
• Max Torque (in-lb): 146
• Max Torque (nm): 16.5
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 3.5
• Rated Power (hp): 0.64
• Rated Power (kW): 0.48
• Reversible: Reversible

• Speed at Max Power (rpm): 425
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 9.2
• Starting Torque (nm): 12.5

• Warranty: 1-year

IR M007RVR044AR4

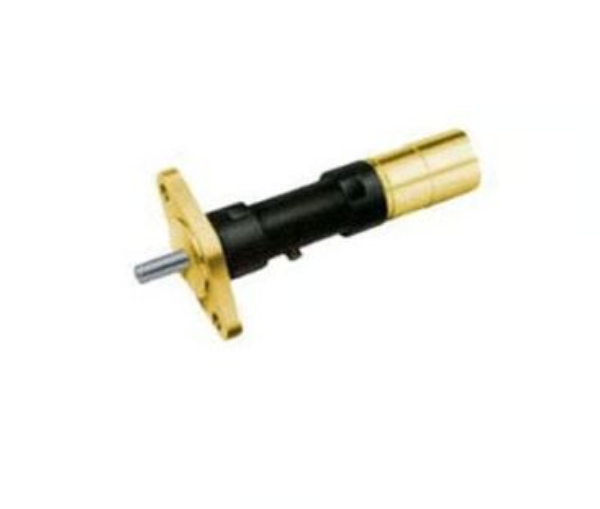

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 420 RPM, 0.64 HP, 33.6 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/2
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 44:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 420
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 25
• Max Torque (in-lb): 297
• Max Torque (nm): 33.6
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 3.5
• Rated Power (hp): 0.64
• Rated Power (kW): 0.48
• Reversible: Reversible

• Speed at Max Power (rpm): 210
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 19
• Starting Torque (nm): 25.2

• Warranty: 1-year

IR M007RVR086BR6

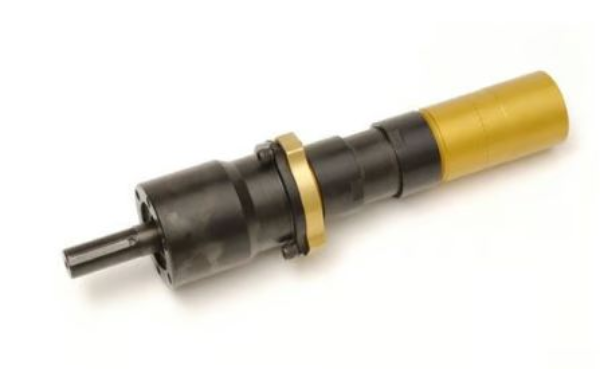

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 215 RPM, 0.64 HP, 66.3 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 86:1
• Gear Reduction: Triple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 215
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 49
• Max Torque (in-lb): 587
• Max Torque (nm): 66.3
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 7.13
• Rated Power (hp): 0.64
• Rated Power (kW): 0.48
• Reversible: Reversible

• Speed at Max Power (rpm): 107
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 37
• Starting Torque (nm): 49.8

• Warranty: 1-year

IR M007RVR188BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 94 RPM, 0.61 HP, 138 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 188:1
• Gear Reduction: Quadruple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 94
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 102
• Max Torque (in-lb): 1221
• Max Torque (nm): 138
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 7.38
• Rated Power (hp): 0.61
• Rated Power (kW): 0.46
• Reversible: Reversible

• Speed at Max Power (rpm): 47
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 77
• Starting Torque (nm): 104

• Warranty: 1-year

IR M007RVS374BR6

IR M0V075AA

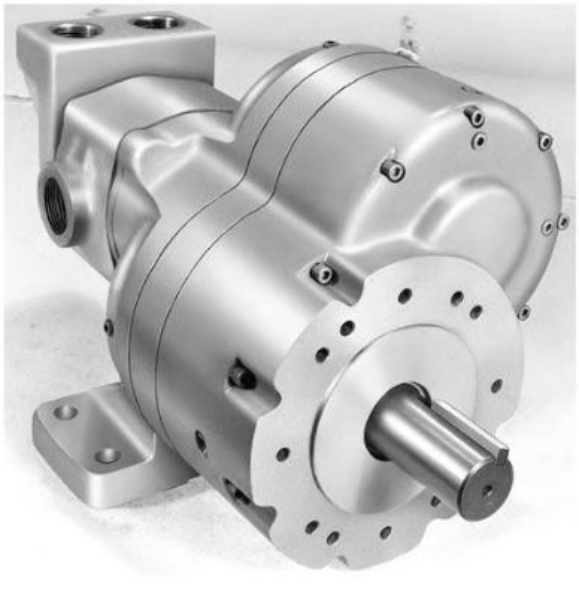

Direct Drive Air Motor, 1-3/8" Keyed Shaft, 5600 RPM, 10.5 HP, 40.7 NM, Reversible

• Air Consumption at Max HP (scfm): 260
• Air Inlet: 1-1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-3/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel

• Max Free Speed (rpm): 5600
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 360
• Max Torque (nm): 40.7
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Foot and Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 64
• Rated Power (hp): 10.5
• Rated Power (kW): 7.8
• Reversible: Reversible

• Speed at Max Power (rpm): 2600
• Starting Torque (ft-lb): 22
• Starting Torque (nm): 30.5

• Warranty: 1-year

IR MVA008-22

IR MVA034-610

IR MVA034A

Direct Drive Air Motor, 7/8" Keyed Shaft, 6250 RPM, 4.15 HP, 17.4 NM, Reversible

• Air Consumption at Max HP (scfm): 181
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Drive Size (in): 7/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel

• Max Free Speed (rpm): 6250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 154
• Max Torque (nm): 17.4
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Foot

• Number of Mounting Holes: 4
• Power Source: Air Powered

• Product Weight (lb): 16.5
• Rated Power (hp): 4.15
• Rated Power (kW): 3.09
• Reversible: Reversible

• Speed at Max Power (rpm): 3000
• Starting Torque (ft-lb): 8.3
• Starting Torque (nm): 11.3

• Warranty: 1-year

IR R4800-323

IR R4800-40

IR R4800-407

IR R4800-42-6

IR R4800-510

IR R4800-98

IR R4800U-53

IR R4801U-10
