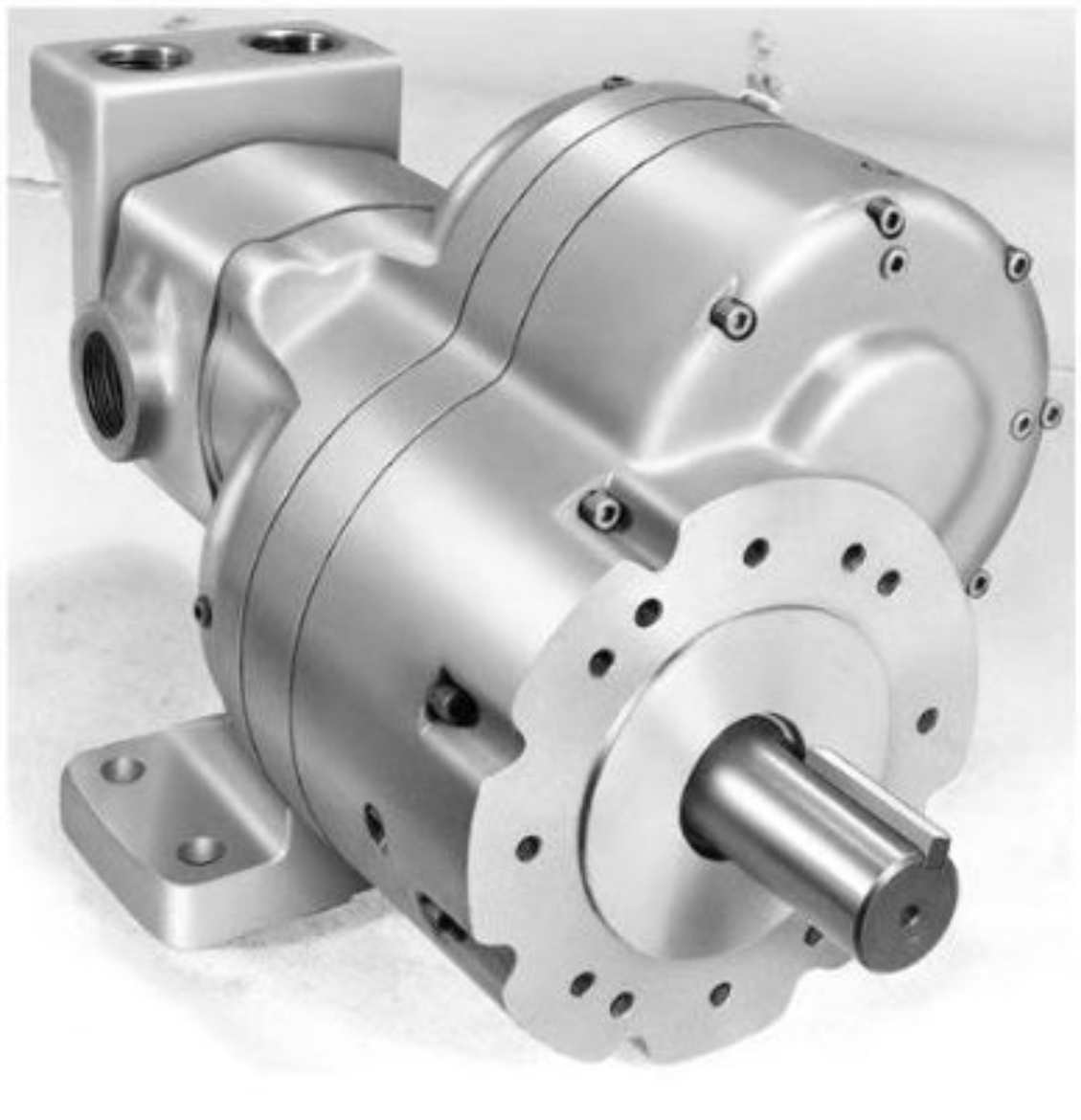

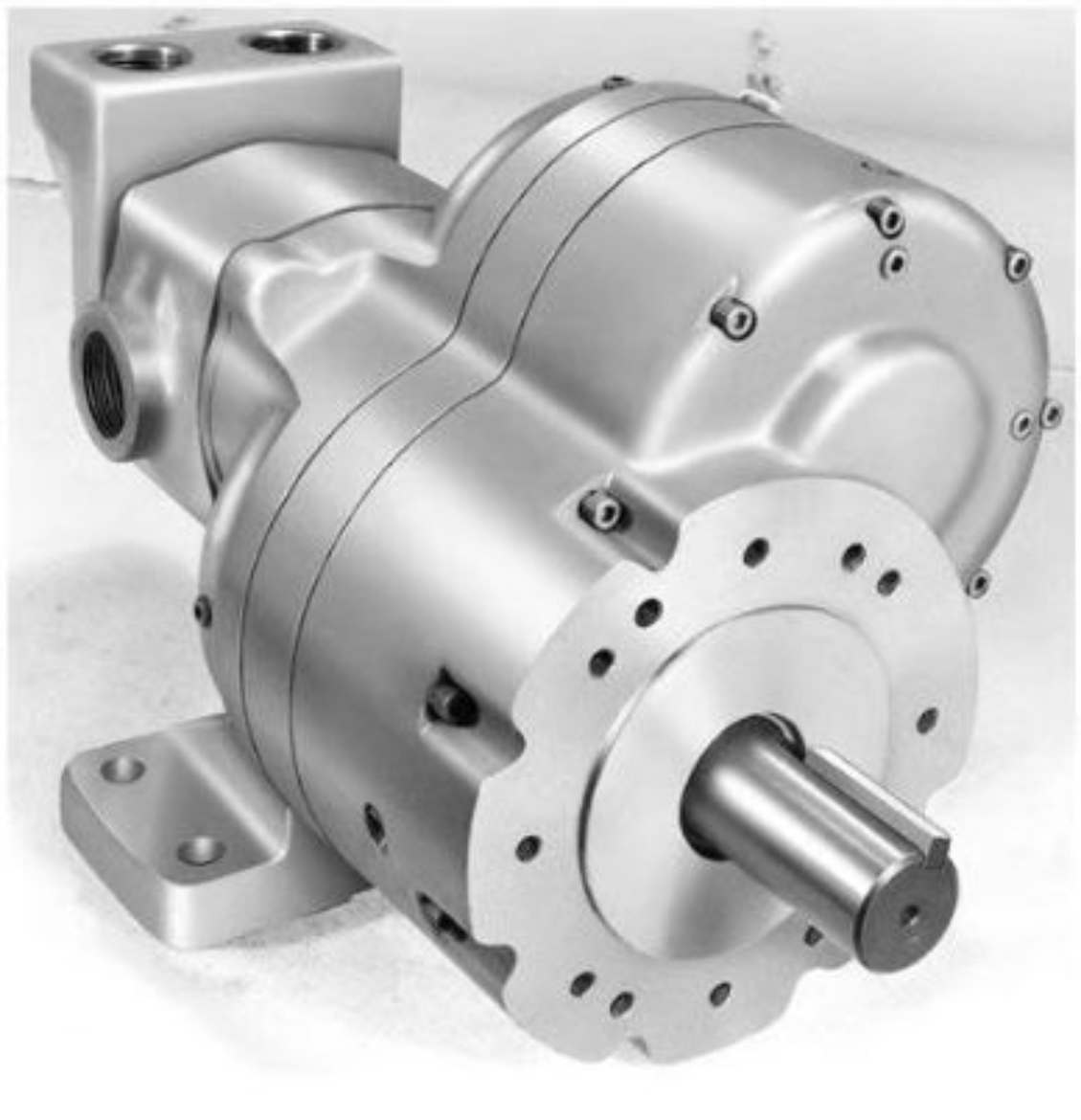

IR 92RA008
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1296 RPM, 8.15 HP, 148 NM, Reversible
Air Consumption at Max HP (scfm): 230
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 1296
Max Pressure (bar): 6.2
Max Torque (ft-lb): 109
Max Torque (in-lb): 1310
Max Torque (nm): 148
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 620
Starting Torque (ft-lb): 80
Starting Torque (nm): 109
Warranty: 1-year
