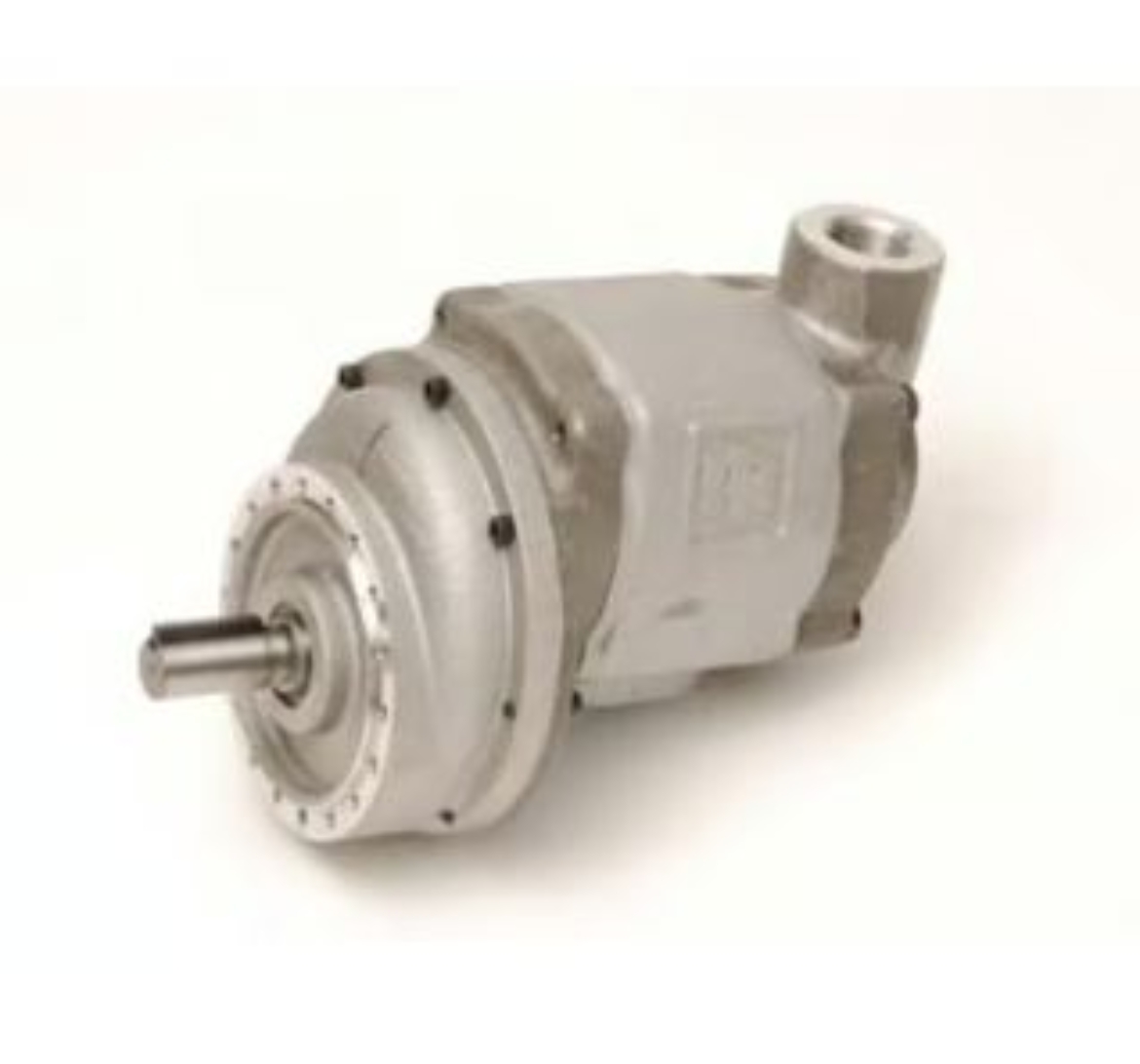

Air Motor

IR 992RM1

Spur Gear Air Motor, 7/8" Keyed Shaft, 3600 RPM, 8.15 HP, 52.9 NM, Reversible

• Air Consumption at Max HP (scfm): 230
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 7/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 3600
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 39
• Max Torque (in-lb): 468
• Max Torque (nm): 52.9
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Face

• Number of Mounting Holes: 18
• Power Source: Air Powered

• Product Weight (lb): 24.25
• Rated Power (hp): 8.15
• Rated Power (kW): 6.08
• Reversible: Reversible

• Speed at Max Power (rpm): 1730
• Starting Torque (ft-lb): 29
• Starting Torque (nm): 38.9

• Warranty: 1-year
