Air Motors

IR M002-12

IR M002-137

IR M002-216-044

IR M002-271

IR M002-80

IR M002-8-021

IR M002RHR021AR3

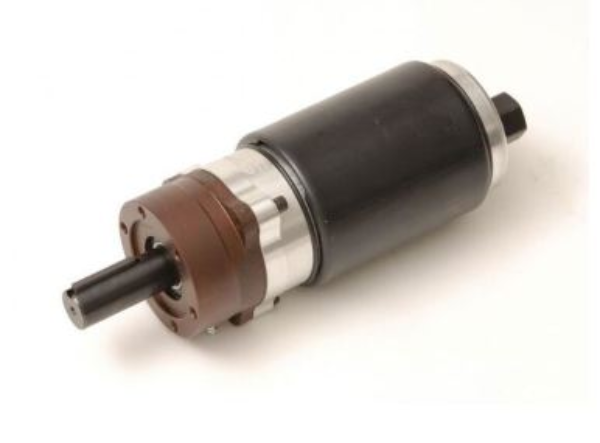

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 1165 RPM, 0.19 HP, 3.9 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 11.8
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 21:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 1165
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2.9
• Max Torque (in-lb): 35
• Max Torque (nm): 3.9
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 1.13
• Rated Power (hp): 0.19
• Rated Power (kW): 0.14
• Reversible: Non-reversible

• Speed at Max Power (rpm): 555
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 2.2
• Starting Torque (nm): 2.93

• Warranty: 1-year

IR M002RVR000AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 23000 RPM, 0.2 HP, 0.24 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 9.8
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 23000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.2
• Max Torque (in-lb): 2.1
• Max Torque (nm): 0.24
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 1
• Rated Power (hp): 0.2
• Rated Power (kW): 0.15
• Reversible: Reversible

• Speed at Max Power (rpm): 11500
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 0.1
• Starting Torque (nm): 0.18

• Warranty: 1-year

IR M002RVR013BR3

IR M002RVR044AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 485 RPM, 0.14 HP, 7.16 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 9.6
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 44:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 485
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 5.3
• Max Torque (in-lb): 63
• Max Torque (nm): 7.16
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 1.13
• Rated Power (hp): 0.14
• Rated Power (kW): 0.1
• Reversible: Reversible

• Speed at Max Power (rpm): 240
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 4.0
• Starting Torque (nm): 5.37

• Warranty: 1-year

IR M002RVR159BR3

IR M002RVS021AS3

IR M004-108-000

IR M004-108-011

IR M004-108-033

IR M004-11

IR M004-237

IR M004-A680

IR M004LHR050AR3

IR M004RHR004AT3

Inline Multi-Vane Air Motor, 3/8" -24 Thd Shaft, 4450 RPM, 0.47 HP, 2.63 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 19.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 3/8" -24 Thread

• Drive Size (in): 3/8
• Drive Type: Threaded

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 4:1
• Gear Reduction: Single
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 4450
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1.9
• Max Torque (in-lb): 23
• Max Torque (nm): 2.63
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.19
• Rated Power (hp): 0.47
• Rated Power (kW): 0.35
• Reversible: Non-reversible

• Speed at Max Power (rpm): 2470
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 1.5
• Starting Torque (nm): 1.98

• Warranty: 1-year

IR M004RHR006AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 2680 RPM, 0.47 HP, 4.37 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 19.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 6:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 2680
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 3.2
• Max Torque (in-lb): 39
• Max Torque (nm): 4.37
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.19
• Rated Power (hp): 0.47
• Rated Power (kW): 0.35
• Reversible: Non-reversible

• Speed at Max Power (rpm): 1490
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 2.4
• Starting Torque (nm): 3.28

• Warranty: 1-year

IR M004RVR050AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 280 RPM, 0.31 HP, 22.4 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 17.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 50:1
• Gear Reduction: Triple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 280
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 17
• Max Torque (in-lb): 198
• Max Torque (nm): 22.4
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.69
• Rated Power (hp): 0.31
• Rated Power (kW): 0.23
• Reversible: Reversible

• Speed at Max Power (rpm): 140
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 12
• Starting Torque (nm): 16.7

• Warranty: 1-year

IR M004RVR167BR3

IR M007-108-000

IR M007-111
