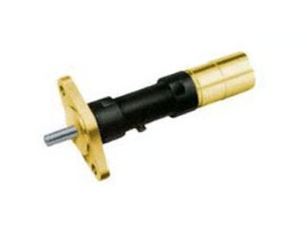

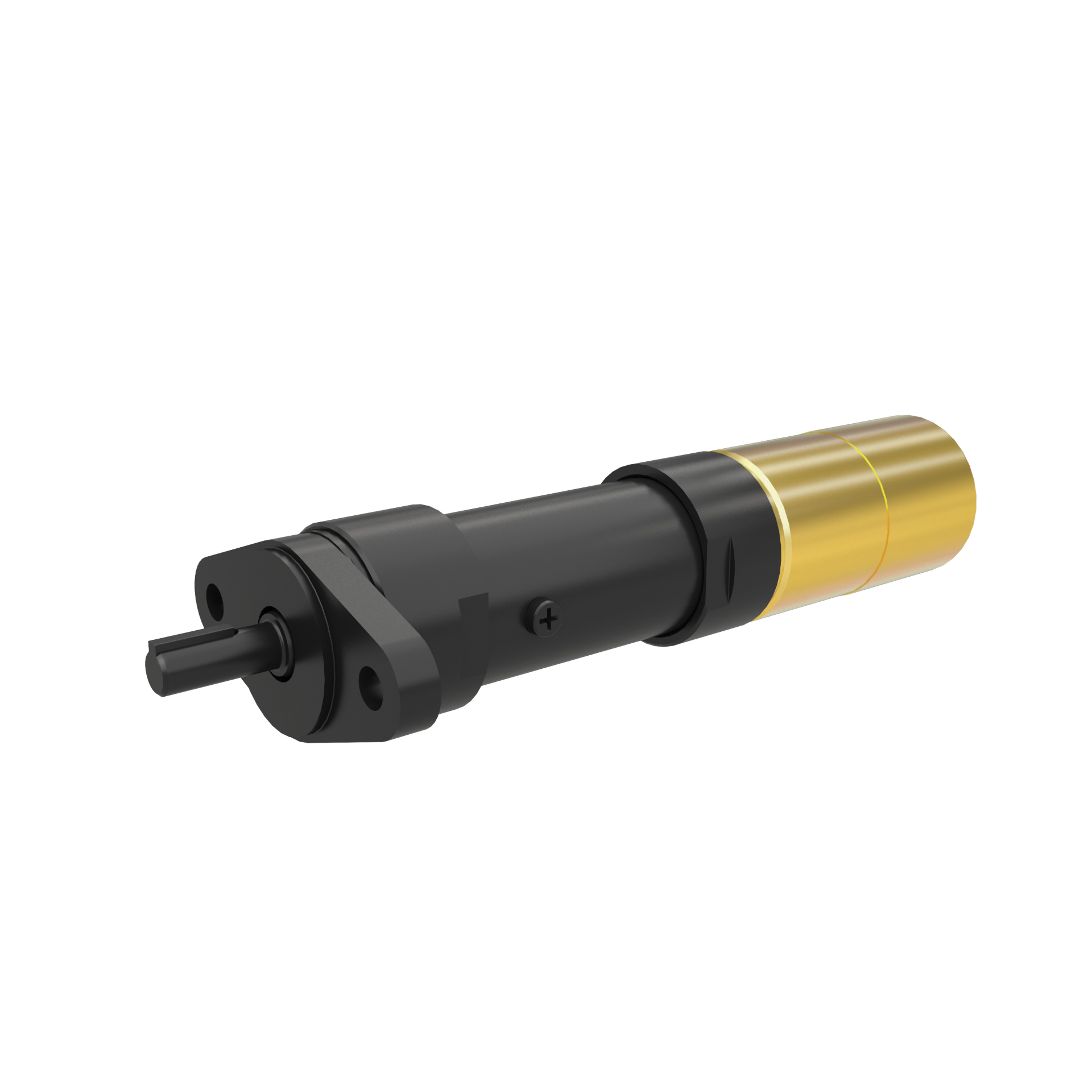

Motor

IR M002RHR021AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 1165 RPM, 0.19 HP, 3.9 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 11.8
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 21:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 1165
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2.9
• Max Torque (in-lb): 35
• Max Torque (nm): 3.9
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 1.13
• Rated Power (hp): 0.19
• Rated Power (kW): 0.14
• Reversible: Non-reversible

• Speed at Max Power (rpm): 555
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 2.2
• Starting Torque (nm): 2.93

• Warranty: 1-year
