Motor

IR M002RVR044AR3

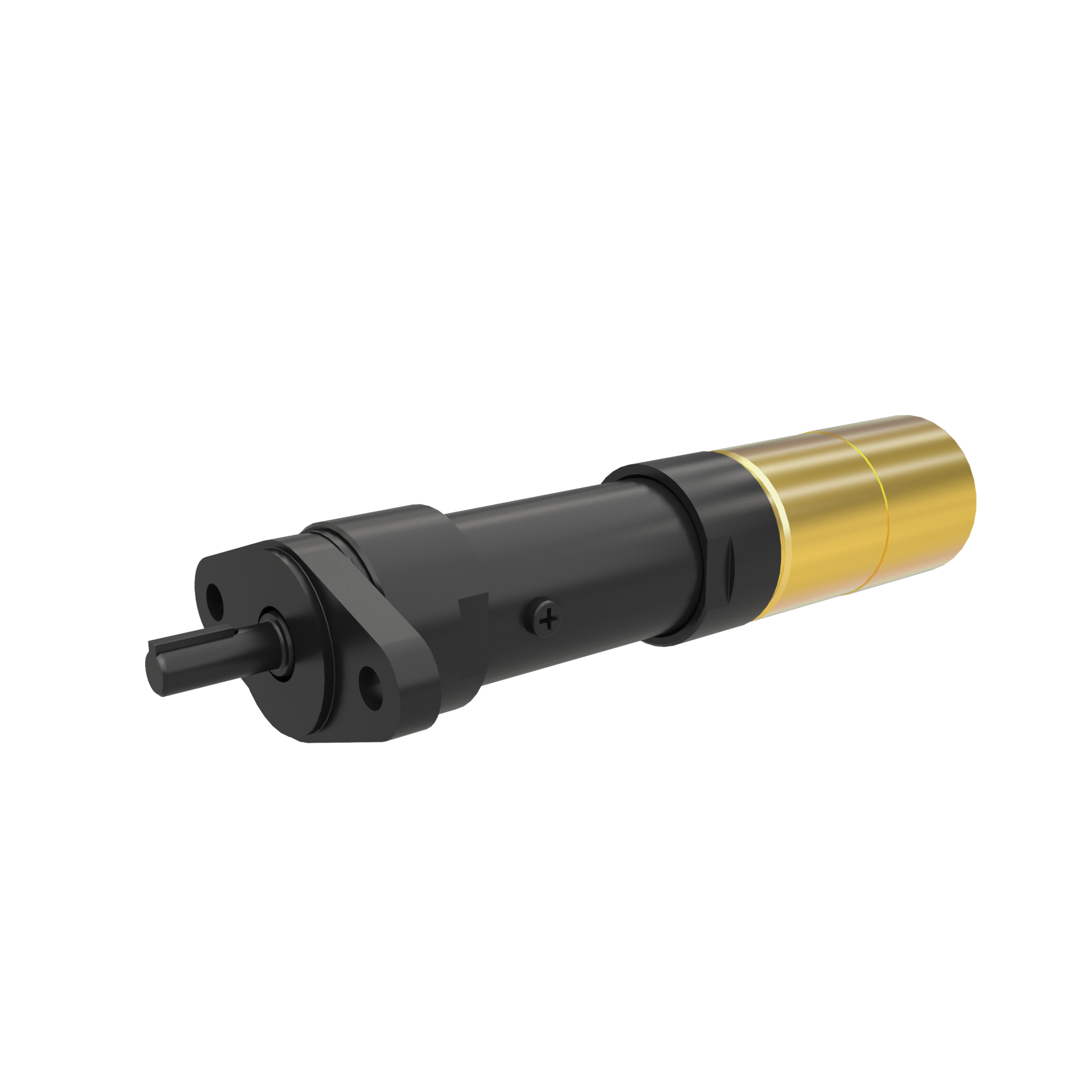

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 485 RPM, 0.14 HP, 7.16 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 9.6
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 44:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 485
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 5.3
• Max Torque (in-lb): 63
• Max Torque (nm): 7.16
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 1.13
• Rated Power (hp): 0.14
• Rated Power (kW): 0.1
• Reversible: Reversible

• Speed at Max Power (rpm): 240
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 4.0
• Starting Torque (nm): 5.37

• Warranty: 1-year
