Valves and Cylinders

GG 16N244

GG 244557

VALVE, AIR ASSY

Graco 244557 Air Valve for 60 and 85 kV Electrostatic Gun

GG 114363

GG 17J564

GG 183049

CYLINDER, PUMP

Graco 183049 Chrome Pump Cylinder 750cc

UC CVH2-80

GG 117356

GG 121108

GG 242056

PRO-SHOT VALVE, GREASE, 1/4-18 NPT, W/ADP

Graco 242056 Pro-Shot Dispense Valve - 1/4 NPT Inlet With Coupler and Extension

For heavy-duty applications, this non-metered dispense valve is designed to perform in heavy equipment shops, fleet maintenance shops, and municipal garages.

• Pressure-assisted trigger for ease of operation
• Easy top adjustment with locking nut
• Rugged design to withstand harsh environments
• Includes coupler and extension

• Model: Pro-Shot

• Compatible Material: Grease

• Extension Type: Rigid

• Includes: Coupler
• Inlet Size (cm): 0.64
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 552
• Maximum Working Pressure (kPa): 55200
• Maximum Working Pressure (psi): 8000

• Outlet Thread Gender: Female
• Outlet Thread Type: NPT

• Power Type: Manual

GG 080268

GG 080270

GG 244559

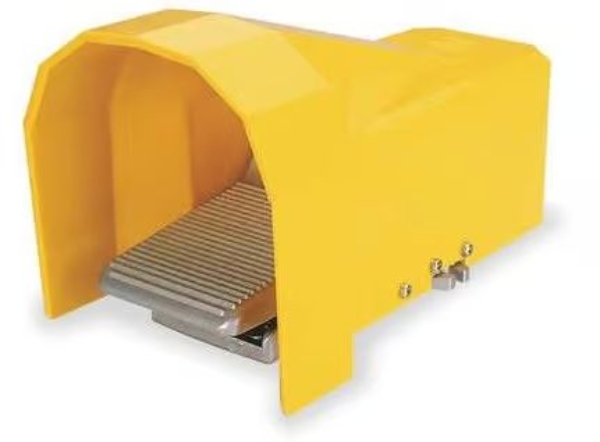

AA M212TM

GG 168182

UC CVH2-150

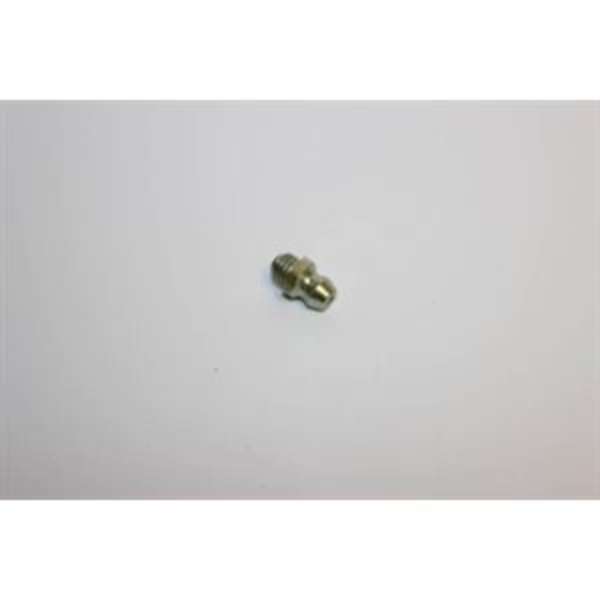

GG 100846

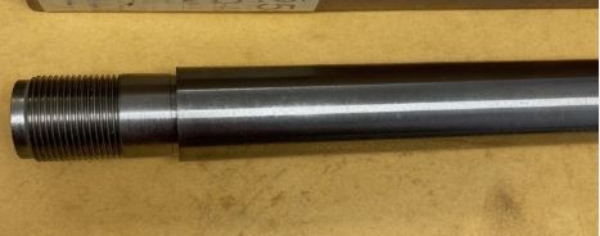

GG 166235

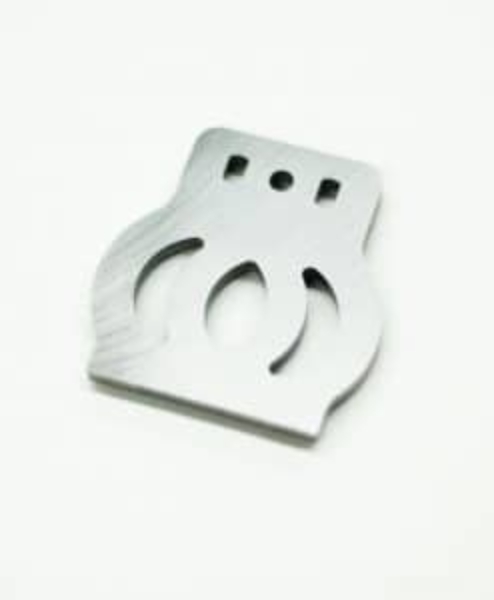

GG 188615

GG 244558

AA 203-C

GG 15B565

GG 16X305

GG 217102

VALVE, INTAKE

Graco 217102 Intake Valve for Displacement Pump 215956, Series C

• Color: Grey

GG 244593

GG 25M404

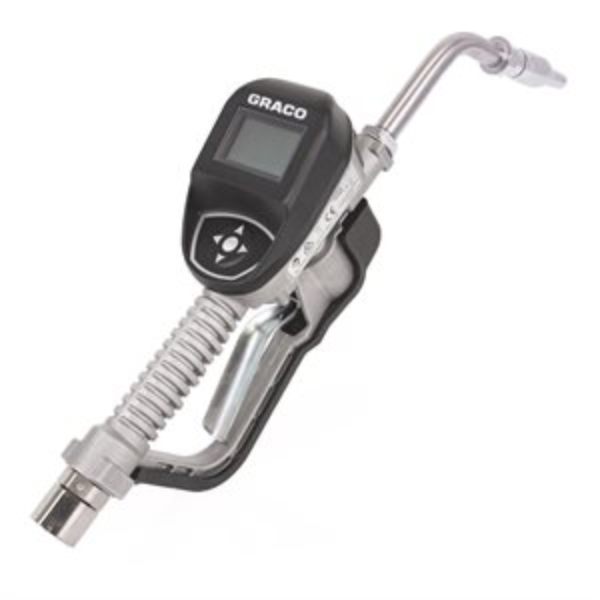

SD SERIES SDM8 VALVE, 1/2NPT, RIGID, OIL

Graco 25M404 SDM8 Series Electronic Manual Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

• Large, Intuitive Display - high-contrast display for low and bright light conditions
• Long valve life - cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Ergonomic - four-finger trigger and easy-to-use button pad reduce worker fatigue
• Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life - uses 4 AA easy-to-replace batteries

• Model: SDM8

• Compatible Material: Oil, ATF

• Dispense Type: Manual

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Rigid Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Recorded Dispense: 9999

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): plus/minus 00.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature ( degree C): -16
• Minimum Operating Temperature ( degree F): 4

• Nozzle Type: Oil Automatic Quick-Close

• Outlet Thread Type: Straight Thread O-Ring Boss

• Overall Height (cm): 14.6
• Overall Height (in): 5.75
• Overall Height (mm): 146
• Overall Length (cm): 33
• Overall Length (in): 13
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Recommended Environment: Indoor
