Valves and Cylinders

GG 244593

GG 25M404

SD SERIES SDM8 VALVE, 1/2NPT, RIGID, OIL

Graco 25M404 SDM8 Series Electronic Manual Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

• Large, Intuitive Display - high-contrast display for low and bright light conditions
• Long valve life - cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Ergonomic - four-finger trigger and easy-to-use button pad reduce worker fatigue
• Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life - uses 4 AA easy-to-replace batteries

• Model: SDM8

• Compatible Material: Oil, ATF

• Dispense Type: Manual

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Rigid Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Recorded Dispense: 9999

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): plus/minus 00.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature ( degree C): -16
• Minimum Operating Temperature ( degree F): 4

• Nozzle Type: Oil Automatic Quick-Close

• Outlet Thread Type: Straight Thread O-Ring Boss

• Overall Height (cm): 14.6
• Overall Height (in): 5.75
• Overall Height (mm): 146
• Overall Length (cm): 33
• Overall Length (in): 13
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Recommended Environment: Indoor

GG 15B204

GG 15T725

GG 965766

ULTRA-LITE 1K VALVE, UL, MACHINE MOUNT

Graco 965766 1k Ultra-Lite Stainless Steel Machine Mount Valve

Precision Dispense Valve for Quality Bead Dispensing

• Lightweight and compact
• Designed for long service
• SST wetted parts

• Model: Ultra-Lite
• Series: 1K

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Compatible Material: Sealants, Adhesives

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gun Activation: Automatic

• Maximum Viscosity (cP): 1000000

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm 2): 281.2
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Mount Hole Thread Gender: Female
• Mount Hole Thread Type: Standard

AA A422SS-000-N

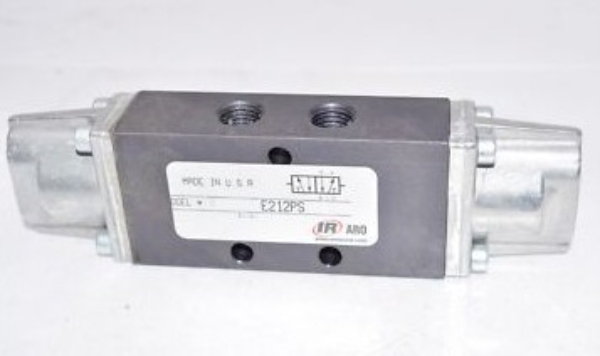

AA E212PS

GG 158359

GG 15B223

GG 184461

CYLINDER, PUMP

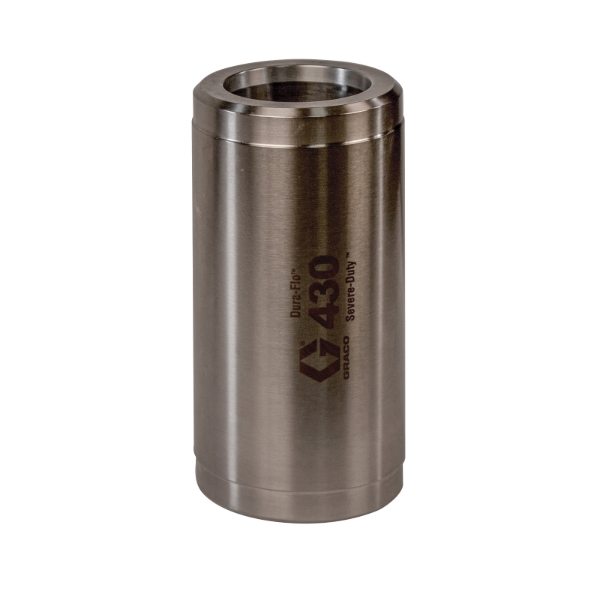

Graco 184461 Dura-Flo 1800 (430 cc) Lowers Cylinder, carbon steel and stainless steel

GG 214037

GG 244909

ENDURE VALVE, HTD, 240V, 400 DG F

Graco 244909 Endure Valve, 240V Electric Heat Model, temperatures to 400 degree F (204c)

The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.

• Dual seal design
• Air operated with spring-assisted closing
• Used in heat-only applications
• Replaces 243694, 243696 hot melt valves where operating temperature is between 200 degree and 400 degree F (95c and 204c)

• Model: EnDure

• Air Inlet Size (in): 1/8
• Air Inlet Thread Type: NPT

• Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt, Hot Melt
• Application: Bonding, Sealing, Gasketing

• Compatible Material: Sealants, Adhesives

• Component Type: Single Component

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 5/8
• Fluid Outlet Thread Gender: Male

• Gun Activation: Automatic

• Includes: Heater Cartridge

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kg/cm 2): 246.1
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (psi): 3500

• Metering Valve Orifice Size (in): 1/8

• Mount Hole Size (mm): M6 x 1

• Orifice Diameter (in): 0.03

GG 26C360

SD SERIES SDP18 VALVE, FC, 3/4NPT, RIDG, OIL

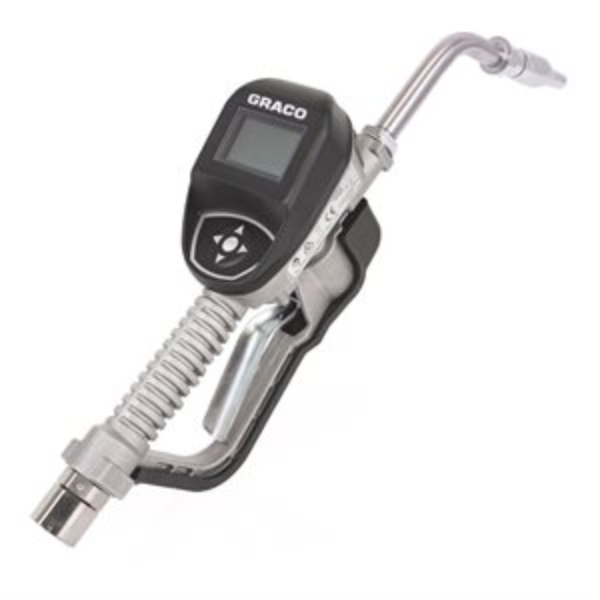

Graco 26C360 SDP18 Series Electronic Preset Oil/Antifreeze Meter - Rigid Extension - 3/4 in. Inlet

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

• Upgradeable - SD Preset meters are compatible with PULSE FC fluid control system
• Large, Intuitive Display - high-contrast display for low and bright light conditions
• Long valve life - cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Reliable - time-tested Graco engineering
• Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life - uses 4 AA easy-to-replace batteries

• Model: SDP18

• Compatible Material: Oil, Antifreeze, ATF, Gear Oil

• Dispense Type: Preset

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Rigid Extension
• Inlet Size (cm): 1.91
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 18
• Maximum Flow Rate (L/min): 68

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Recorded Dispense: 9999

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): plus/minus 00.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature ( degree C): -16
• Minimum Operating Temperature ( degree F): 4

• Nozzle Type: Manual

• Outlet Thread Type: Straight Thread O-Ring Boss

• Overall Height (cm): 14.6
• Overall Height (in): 5.75
• Overall Height (mm): 146
• Overall Length (cm): 33
• Overall Length (in): 13
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Product Type: Meter

• Recommended Environment: Indoor

UC SGF-6

AA ANAQK-ABBAB-010

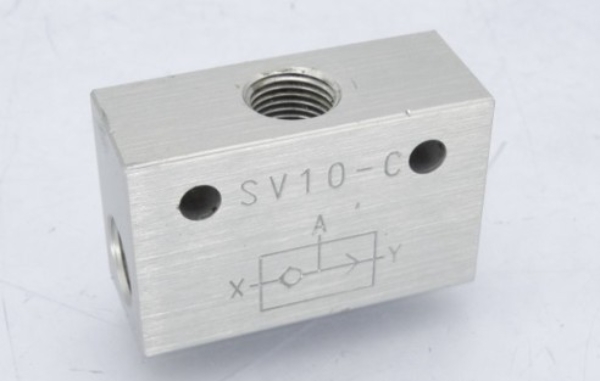

AA SV10-C

GG 02/1210-00/99N

GG 15K419

GG 166368

CYLINDER, PUMP

Graco 166368 Cylinder for Displacement Pump 247599, Series A

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

GG 184003

CYLINDER, PUMP

Graco 184003 Stainless Steel/Chrome Pump Cylinder 580cc

GG 245143

GG 247712

SDV15 VALVE, RIGID EXT

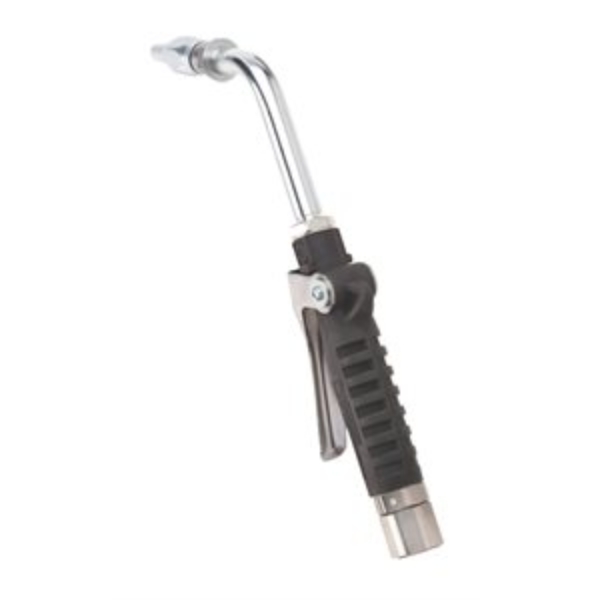

Graco 247712 SDV15 Series Oil Control Valve - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).

• Lock-on/Lock-off trigger allows hands free operation
• Sturdy cast body designed for use in tough environments
• Inlet 1/2 in. NPT with swivel

• Model: SDV15

• Compatible Material: Oil

• Dispense Type: Manual

• Display Type: N/A

• Extension Type: Rigid

• Includes: Nozzle, Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature ( degree C): -40
• Minimum Operating Temperature ( degree F): -40

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Gender: Female
• Outlet Thread Type: Straight Thread O-Ring Boss

• Recommended Environment: Indoor, Outdoor

GG 965786

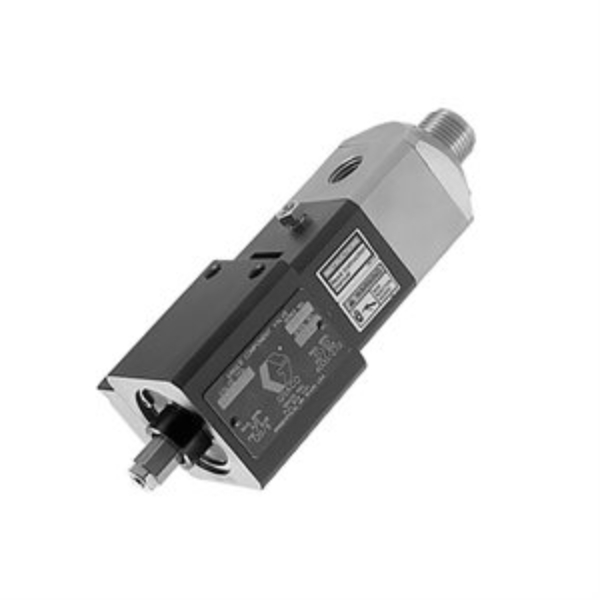

ULTRA-LITE 1K VALVE, UL, MACHINE MOUNT

Graco 965786 1k Ultra-Lite Aluminum Machine Mount Valve

Precision Dispense Valve for Quality Bead Dispensing

• Lightweight and compact
• Designed for long service
• Aluminum wetted parts

• Model: Ultra-Lite
• Series: 1K

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gun Activation: Automatic

• Maximum Viscosity (cP): 1000000

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm 2): 281.2
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (psi): 4000

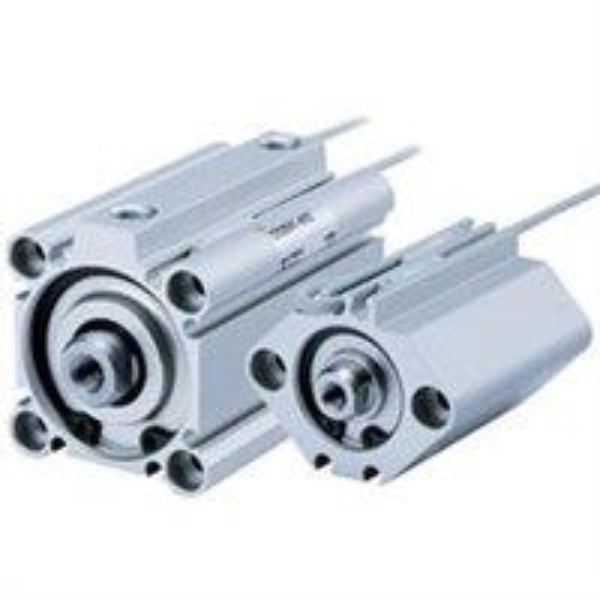

SMC CDQ2A50TN-25DFZ-P3DWAL

EP CST-471
