Valve, SDM8, 1/2NPT, Rigid, Oil

GG 25M404

SD SERIES SDM8 VALVE, 1/2NPT, RIGID, OIL

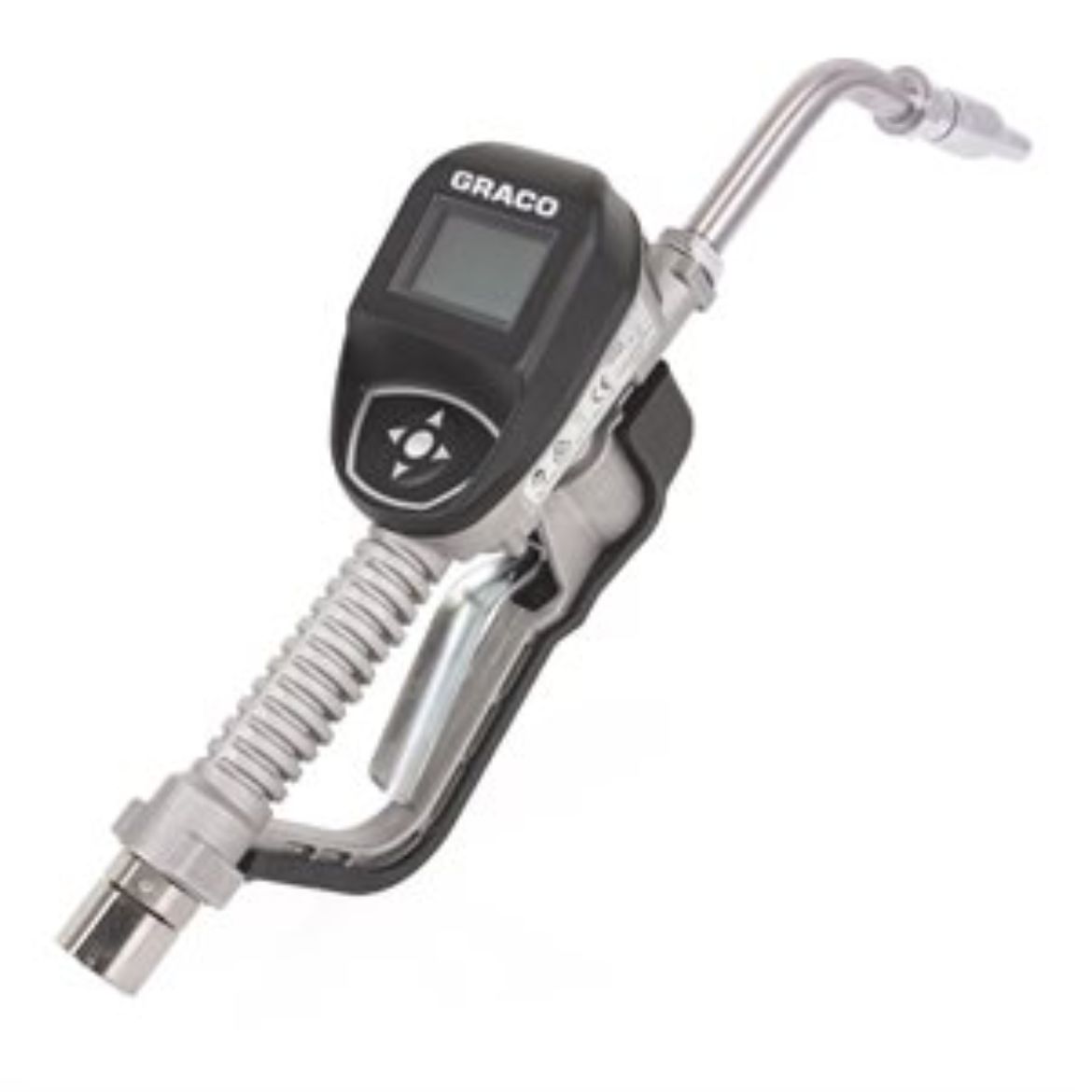

Graco 25M404 SDM8 Series Electronic Manual Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

• Large, Intuitive Display—high-contrast display for low and bright light conditions
• Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
• Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life—uses 4 AA easy-to-replace batteries

• Model: SDM8

• Compatible Material: Oil, ATF

• Dispense Type: Manual

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Rigid Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30

• Maximum Operating Temperature (°C): 70
• Maximum Operating Temperature (°F): 158

• Maximum Recorded Dispense: 9999

• Maximum Storage Temperature (°C): 70
• Maximum Storage Temperature (°F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): ±0.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature (°C): -16
• Minimum Operating Temperature (°F): 4

• Nozzle Type: Oil Automatic Quick-Close

• Outlet Thread Type: Straight Thread O-Ring Boss

• Overall Height (cm): 14.6
• Overall Height (in): 5.75
• Overall Height (mm): 146
• Overall Length (cm): 33
• Overall Length (in): 13
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Recommended Environment: Indoor
