Valves and Cylinders

GG 245143

GG 247712

SDV15 VALVE, RIGID EXT

Graco 247712 SDV15 Series Oil Control Valve - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).

• Lock-on/Lock-off trigger allows hands free operation
• Sturdy cast body designed for use in tough environments
• Inlet 1/2 in. NPT with swivel

• Model: SDV15

• Compatible Material: Oil

• Dispense Type: Manual

• Display Type: N/A

• Extension Type: Rigid

• Includes: Nozzle, Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature (°C): -40
• Minimum Operating Temperature (°F): -40

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Gender: Female
• Outlet Thread Type: Straight Thread O-Ring Boss

• Recommended Environment: Indoor, Outdoor

GG 965786

ULTRA-LITE 1K VALVE, UL, MACHINE MOUNT

Graco 965786 1k Ultra-Lite Aluminum Machine Mount Valve

Precision Dispense Valve for Quality Bead Dispensing

• Lightweight and compact
• Designed for long service
• Aluminum wetted parts

• Model: Ultra-Lite
• Series: 1K

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gun Activation: Automatic

• Maximum Viscosity (cP): 1000000

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm²): 281.2
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (psi): 4000

SMC CDQ2A50TN-25DFZ-P3DWAL

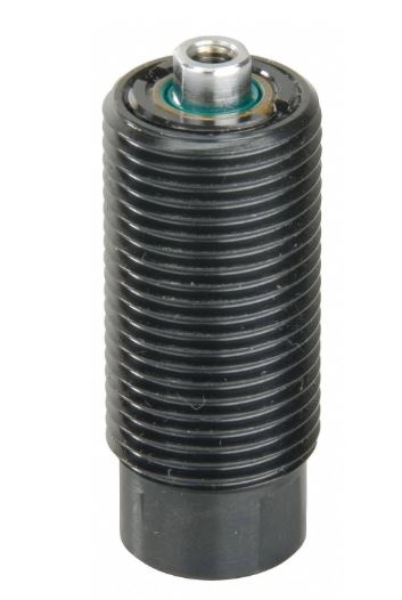

EP CST-471

GG 02/1210-00/99N

GG 080006

GG 15E014

GG 15K419

GG 16C101

GG 16C490

GG 16P316

GG 26C384

SD SERIES SDP8 VALVE, FC, 1/2NPT, RIGD, OIL

Graco 26C384 SDP8 Series Electronic Preset Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

• Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
• Large, Intuitive Display—high-contrast display for low and bright light conditions
• Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Reliable—time-tested Graco engineering
• Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life—uses 4 AA easy-to-replace batteries

• Model: SDP8

• Compatible Material: Oil, ATF

• Dispense Type: Preset

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Rigid Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30

• Maximum Operating Temperature (°C): 70
• Maximum Operating Temperature (°F): 158

• Maximum Recorded Dispense: 9999

• Maximum Storage Temperature (°C): 70
• Maximum Storage Temperature (°F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): ±0.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature (°C): -16
• Minimum Operating Temperature (°F): 4

• Nozzle Type: Oil Automatic Quick-Close

• Outlet Thread Type: Straight Thread O-Ring Boss

• Overall Height (cm): 14.6
• Overall Height (in): 5.75
• Overall Height (mm): 146
• Overall Length (cm): 33
• Overall Length (in): 13
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Product Type: Meter

• Recommended Environment: Indoor

GG 104632

GG 114243

GG 120900

GG 181947

GG 218964

VALVE, COLOR CHANGER

Graco 218964 SST Bare Valve for Color Changer Valve Assembly

UC NB-M2

GG 101759

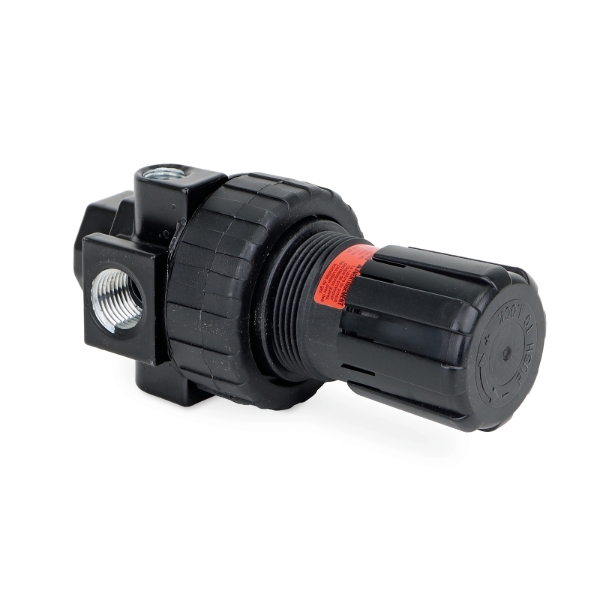

GG 104266

REGULATOR, AIR W PSI 250

Graco 104266 Air Regulator, 1/2(f) inlet/outlet, 0-250 psi (0-17 bar), zinc plated

• Multiple outlets for connecting equipment, gauges, or ball valves
• Accurate adjustment of air pressure for process control

• Air Inlet Size (cm): 1.27
• Air Inlet Size (in): 1/2
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• For Use With: Monark, President Lube Ranger
• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Handle Type: Tee

• Includes: Regulator Only

• Maximum Air Flow Rate (SCFM): 90
• Maximum Air Inlet Pressure (bar): 21
• Maximum Air Inlet Pressure (kPa): 2100
• Maximum Air Inlet Pressure (MPa): 2.1
• Maximum Air Inlet Pressure (psi): 300

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Regulated Pressure (bar): 17.5
• Maximum Regulated Pressure (kPa): 1800
• Maximum Regulated Pressure (MPa): 1.75
• Maximum Regulated Pressure (psi): 250

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 1.27
• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT

GG 113896

VALVE, CONTROL

GG 15K420

GG 164111

GG 183048

CYLINDER, PUMP

Graco 183048 Chrome Pump Cylinder 1500cc
