Valves and Cylinders

GG 210659

GG 235992

GG 238635

GG 247721

XDV20 VALVE, FLEX

Graco 247721 XDV20 Series Control Valve - Flexible Extension - 1/2 in. (13 mm) Inlet - NPT

For standard and heavy-duty applications, both indoor and outdoor, the XDV20 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 20 gpm (75.7 lpm).

• Lock-on/Lock-off trigger allows hands free operation
• Sturdy cast body designed for use in tough environments
• Inlet 1/2 in. NPT with swivel

• Model: XDV20

• Compatible Material: Oil, Antifreeze

• Dispense Type: Manual

• Display Type: N/A

• Extension Type: Flexible

• Includes: Nozzle, Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kg/cm²): 105.46
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature (°C): -40
• Minimum Operating Temperature (°F): -40

• Outlet Size (cm): 2.2225
• Outlet Size (in): 7/8
• Outlet Size (mm): 22.225
• Outlet Thread Gender: Female
• Outlet Thread Type: Straight Thread O-Ring

• Recommended Environment: Indoor, Outdoor

AA 214-C

AM SC3000

GG 02/0715-00/50

GG 110025

GG 118432

GG 118433

GG 15K442

GG 242055

PRO-SHOT VALVE, GREASE, 1/4-18 NPT

Graco 242055 Pro-Shotâ„¢ Dispense Valve - 1/4 NPT Inlet Without Coupler or Extension

For heavy-duty applications, this non-metered dispense valve is designed to perform in heavy equipment shops, fleet maintenance shops, and municipal garages.

• Pressure-assisted trigger for ease of operation
• Easy top adjustment with locking nut
• Rugged design to withstand harsh environments
• Without coupler or extension

• Model: Pro-Shot

• Compatible Material: Grease

• Extension Type: Rigid

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 552
• Maximum Working Pressure (kPa): 55200
• Maximum Working Pressure (psi): 8000

• Outlet Thread Gender: Female
• Outlet Thread Type: NPT

• Power Type: Manual

GG 247824

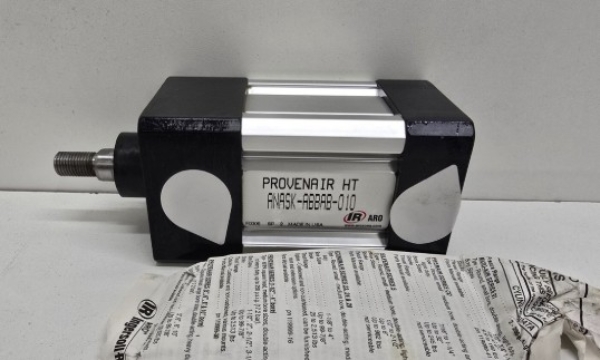

AA ANASK-ABBAB-010

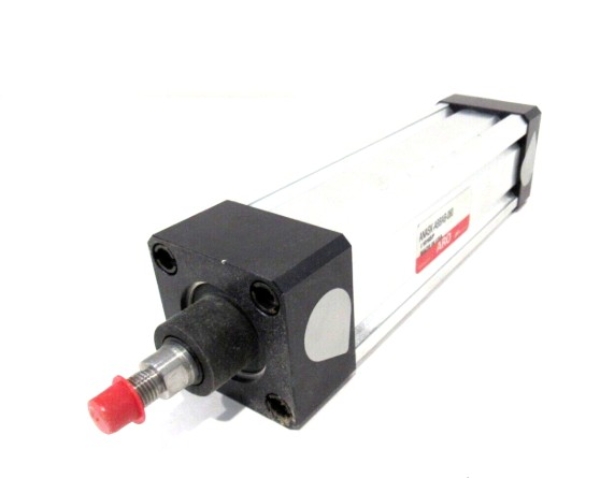

AA ANASK-ABBAB-060

GG 116473

GG 15A142

GG 16C100

GG 16P812

GG 210658

GG 224807

GG 245374

GG 24B156

UC PC/S2F-16

UC SGF-8
