GG 96G058
G3 STANDARD PUMP, G-ACNC-160A00-LD000000

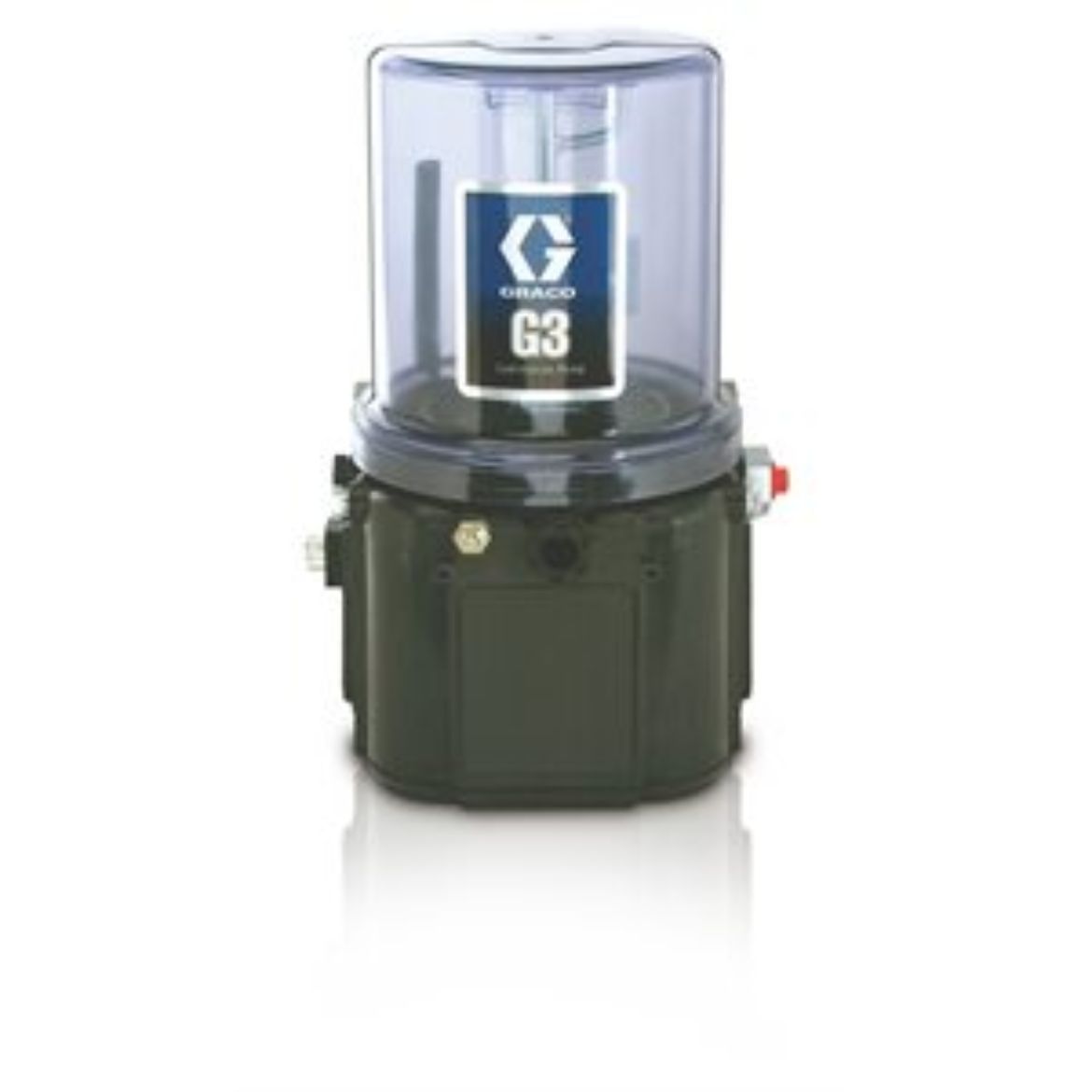

Graco 96G058 G3™ Standard Grease Lubrication Pump, 90-240 VAC, 16 Liter, External Low Level, DIN
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
- No internal controller–use with separate or existing machine control for a low cost solution
- Capable of sending a low level signal to your external controller or PLC
- Model: G3
- Series: Standard
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive, Single Line Parallel
- Control Options: Standard
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPSF
- Includes: Wiper Arm, External Low Level
- Maximum Fill Inlet Pressure (bar): 344.7
- Maximum Fill Inlet Pressure (kPa): 34470
- Maximum Fill Inlet Pressure (psi): 5000
- Maximum Run Time (min): 30
- Maximum Voltage (V ac): 264
- Maximum Working Pressure (bar): 351.6
- Maximum Working Pressure (kPa): 35160
- Maximum Working Pressure (MPa): 35.1
- Maximum Working Pressure (psi): 5100
- Minimum Voltage (V ac): 88
- Number of Pump Elements: Up to 3
- Overall Depth (cm): 25.4
- Overall Depth (in): 10
- Overall Depth (mm): 254
- Overall Height (cm): 69.9
- Overall Height (in): 27.5
- Overall Height (mm): 699
- Overall Width (cm): 23.5
- Overall Width (in): 9.25
- Overall Width (mm): 235
- Power Connection Type: DIN
