Impacts

IR 2115PTI-K425

Socket Retainer Kit for Ingersoll Rand 2115PTIMAX 3/8" Pin Drive

Product Application and Uses: For use with Ingersoll Rand 2115PTIMAX 3/8" Pin Retainer Air Impact Wrench

For Use With

• 2115PTIMAX

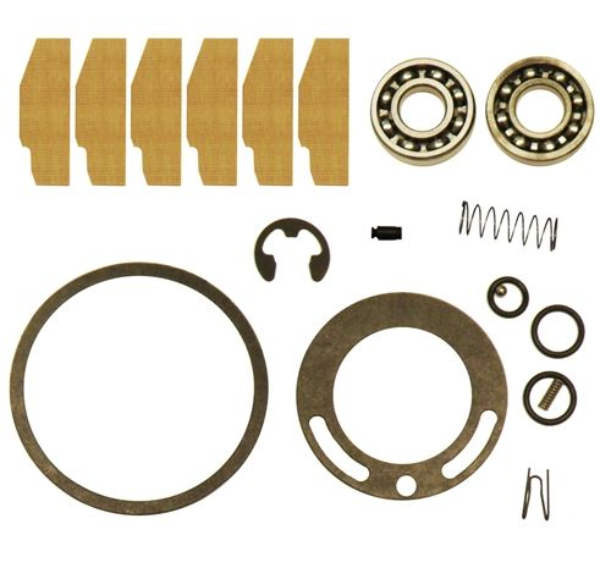

IR 2131-TK2

Tune-up Kit for Ingersoll Rand 2131 Series Impact Wrench

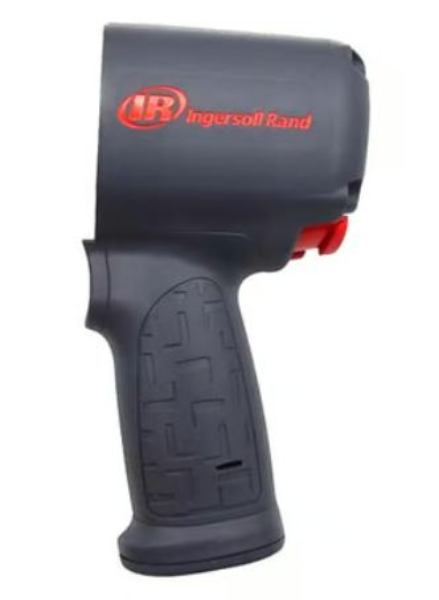

IR 2135-A40

HOUSING ASSEMBLY

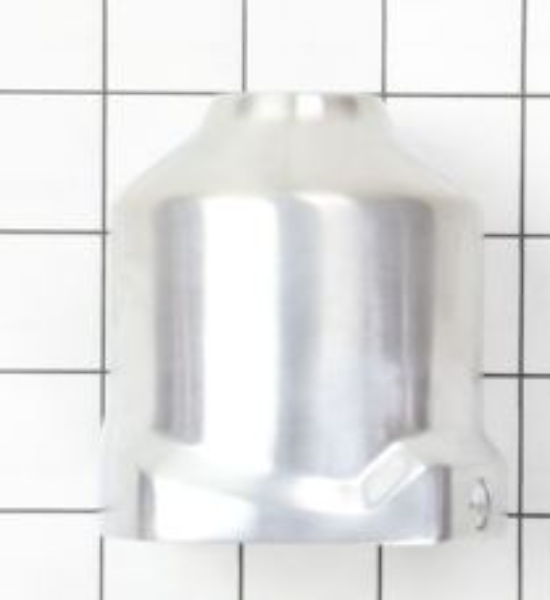

IR 2135QI-D727A

HAMMER CASE ASSEMBLY

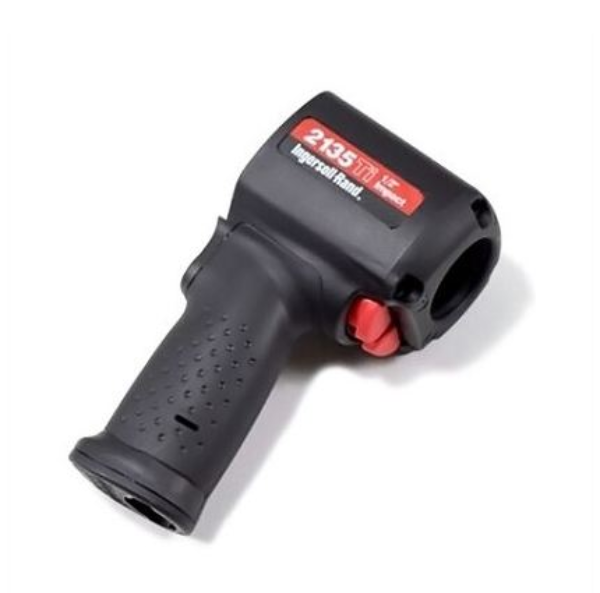

IR 2135QTI-A40

HOUSING ASSEMBLY

IR 2135QXPA

1/2" Air Impact Wrench, Quiet, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

Features And Benefits

• Impact Power: Punish the toughest bolts with 1100 ft.-lbs. of nut-busting torque powered by a finely tuned motor and twin-hammer impact mechanism.
• Lightweight: At only 4 lbs., the 2135QXPA is as light as it is powerful so your hand tires less, letting you get more work done.
• Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 86.0 / 97.0
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.7 / 101.7
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 11000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1100
Nut-busting/Breakaway Torque (in-lb): 13196
Nut-busting/Breakaway Torque (nm): 1491
Power Source: Air Powered
Product Length (in): 7.5
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 700
Recommended Forward Torque Range (in-lb): 8399
Recommended Forward Torque Range (nm): 949
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Special Features: Quiet Tool
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.3
Warranty: 1-year

Similar IR

• 2235TIMAX
• 2235QTIMAX
• 2235QTIMAX-2
• 2135QXPA-2
• 2115QXPA
• 2236QTIMAX

IR 2146Q2MAX

1" Air Impact Wrench, Quiet, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

The 2146MAX Series Impact Wrenches – including the 2146Q2MAX, is the most powerful 1′′ impact in its class. Available in ¾′′ (2146Q1MAX) drive and extended anvil pistol grip configurations, these tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less – the 2146MAX Series helps you do what you do best.

Features And Benefits

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand’s Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 8.0 lbs
• 1" Drive Square for larger socket sizes
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 396
Blows per Min: 1075
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.3 /105.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1453
Max Torque (in-lb): 17436
Max Torque (nm): 1970
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 24003
Nut-busting/Breakaway Torque (nm): 2712
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 250
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 8.2
Product Weight (lb): 8
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 200-900
Recommended Forward Torque Range (in-lb): 2390-10798
Recommended Forward Torque Range (nm): 270-1220
Recommended Reverse Torque (ft-lb): 199-1003
Recommended Reverse Torque (nm): 270-1360
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.73
Side to Center Distance (mm): 44
Special Features: Quiet, Air Pressure Gauge, Cold Forged Twin Hammers, Hard Anodized Wear Plates
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA, EAC
Vanes: 6
Vibration Level (m/s2): 8.4
Warranty: 2-year

Similar IR

• 2146Q1MAX
• 2146Q1MAX-3
• 2146Q1MAX-6
• 2925RBP1TI
• W8191-K2
• 2175MAX

Supersedes

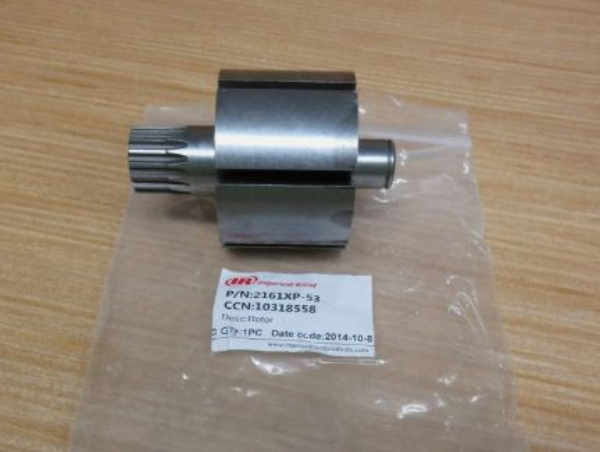

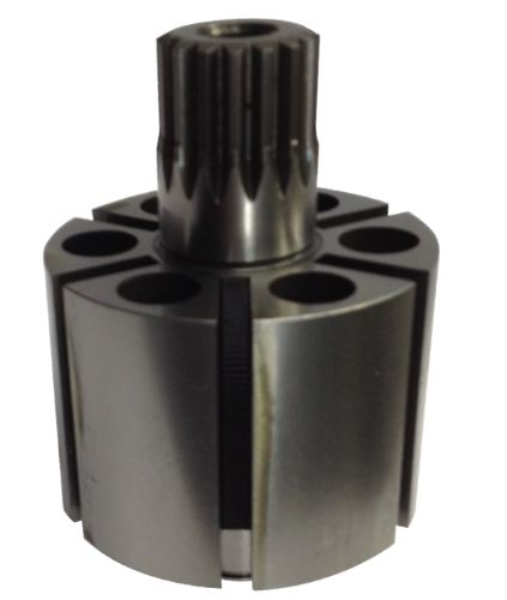

IR 2161XP-53

ROTOR

IR 2235-283

Motor Gasket for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

IR 231HA-2

1/2" Air Impact Wrench, 2" Ext Anvil, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

The 231HA Series is the ideal impact wrench for any job you take it to, from facility maintenance and industrial work to vehicle repair and tire work. Tough and durable with a powerful vane motor, this impact wrench won’t let you down.

Features And Benefits

• Durability: This impact wrench is tough enough to handle harsh environments, repeated drops and run-ins with any number of chemicals.
• Access: Pressure-fed lubrication system. Handle exhaust directs air away from user.
• Power Regulation: Adjustable power regulation in forward and reverse.
• Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Easy to Service: Easy to service two-piece construction.
• Comfort: Contoured handle for comfort and control.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 22
Air Consumption @ Load (l/min): 623
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 4.2
Average Air Consumption (l/min): 119
Blows per Min: 1150
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.0 / 105.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 172.1
Product Length (in): 9.1
Product Width (in): 2.75
Product Height (in): 7.9
Product Weight (lb): 6.1
Recommended Forward Torque Range (ft-lb): 25-300
Recommended Forward Torque Range (in-lb): 301-3602
Recommended Forward Torque Range (nm): 34-407
Recommended Reverse Torque (ft-lb): 25-350
Recommended Reverse Torque (nm): 34-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 231HA

IR 259

3/4" Air Impact Wrench, 1050 ft-lb Torque, Friction Ring Retainer, Pistol

The 259 Series impact wrench is great for jobs in vehicle repair and heavy truck markets. Backed by Ingersoll Rand’s strong reputation of developing industry-leading tools, the 259 Series can be counted on for durable and consistent power at a great value.

Features And Benefits

• LIGHT WEIGHT: With the 259 Series’ aluminum hammer case and powerful vane motor, this impact wrench offers a great power-to-weight ratio.
• RELIABILITY: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• ERGONOMIC: The aluminum hammer case and pistol grip make the 259 Series easy to hold, while the power regulator offers deeper control during use.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life
• Handle-vented exhaust directs air away from the operator
• Silenced exhaust reduces tool noise while using this pneumatic impact wrench
• Feather-touch trigger provides maximum speed control
• Ergonomically designed small-handle grip helps reduce operator fatigue during extended use of this pneumatic air wrench
• Optimized for the vehicle repair industry and heavy trucks
• Non-biased motor delivers 1,050 ft-lb of maximum torque in both forward and reverse
• 1-year warranty

Includes: Bare Tool
Product Application and Uses: Vehicle Repair And Heavy Truck Markets
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 30
Air Consumption @ Load (l/min): 850
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 227
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.5 / 107.5
Hammer Case: Aluminum
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Rocking Dog
Impacting Sound Pressure/Power Db(A): 91.6 / 102.6
Max Bolt Diameter (in): 7/8
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1050
Max Torque (in-lb): 12603
Max Torque (nm): 1424
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 2
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.3
Product Length (in): 8.6
Product Width (in): 3.2
Product Height (in): 8.5
Product Weight (lb): 8.8
Recommended Forward Torque Range (ft-lb): 201-800
Recommended Forward Torque Range (in-lb): 2407-9603
Recommended Forward Torque Range (nm): 272-1085
Retainer Type: Friction Ring
Side to Center Distance (in): 1.6
Side to Center Distance (mm): 41
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.4
Warranty: 1-year

Similar IR

• 236
• 261

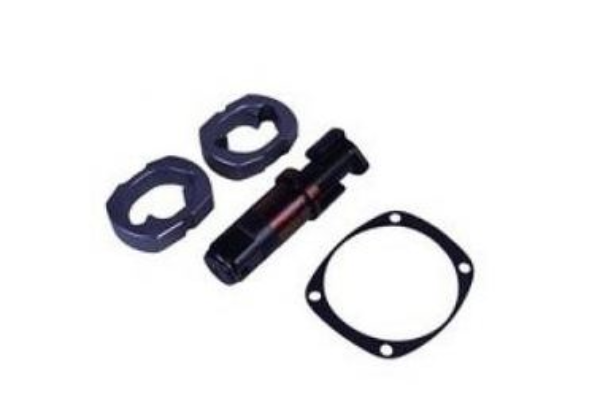

IR 259-THK1

Hammer Kit Service Part for Ingersoll Rand 259 Impact Wrench

For Use With

• 259G

IR 2705-TK3

Tune-up Kit for Ingersoll Rand 2705 Series Impact Wrenches

Includes: Bearings, Spring, O-Rings, Gaskets, Pin, Ball, Retainers, Vane pack

For Use With

• 2705P1

IR 285B

1" Air Impact Wrench, Heavy Duty, 1475 ft-lb Torque, Friction Ring -Thru-hole Retainer, D-handle Inside Trigger

The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 13.2
Product Width (in): 9.1
Product Height (in): 7.2
Product Weight (lb): 24.6
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring and Thru-hole
Sound Pressure/Power Db(A): 107/118
Speed Setting: Variable Speed
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 16.5
Vibration Uncertainy K* (m/s2): 3.4
Warranty: 1-year

Similar IR

• 280
• 2850MAX
• 2925B2TI
• 3940B2TI
• 2940B2
• W9491-K4E
• W9491-K2E
• 2850MAX-6

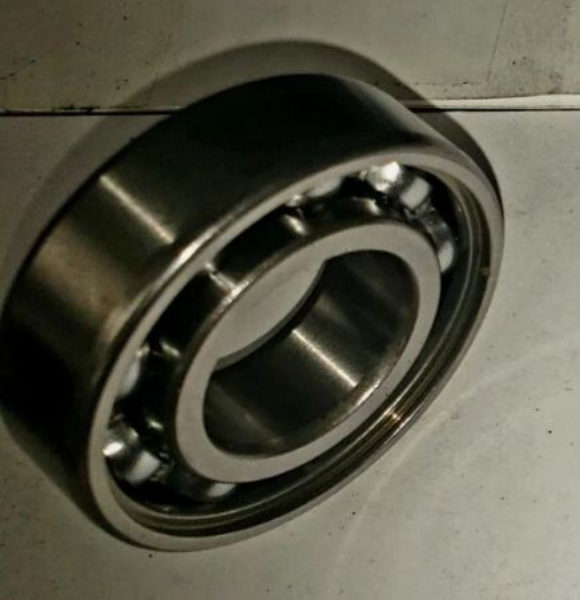

IR 285B-24

REAR ROTOR BEARING

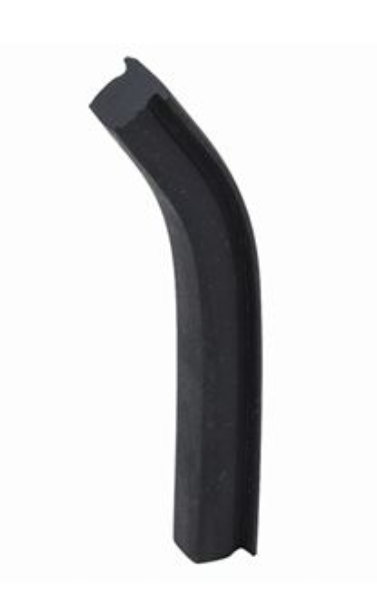

IR 285B-438

SLOT COVER

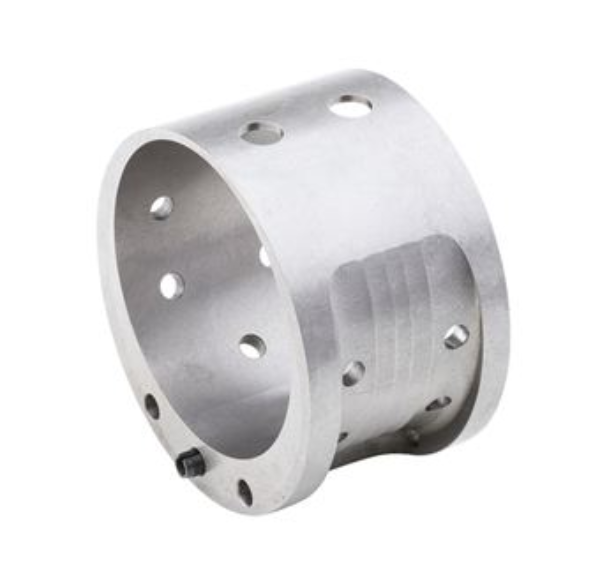

IR 285B-A3

CYLINDER ASSEMBLY

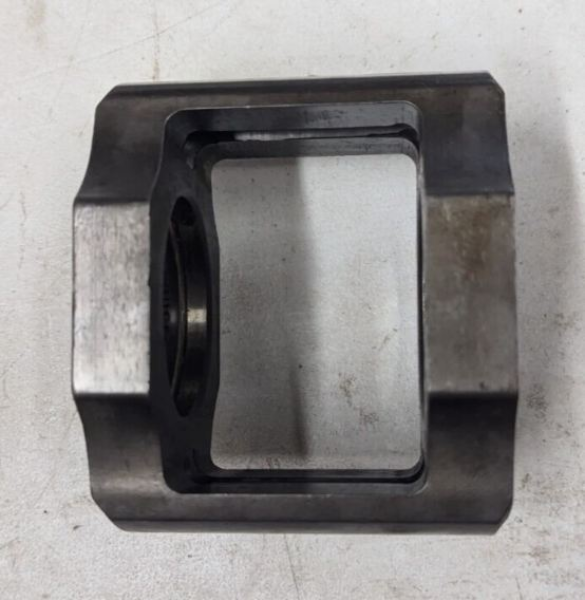

IR 2910-A703

FRAME

IR 2925RB2TI

1" Air Impact Wrench, 1500 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features And Benefits

• Titanium hammer case makes impact wrench both lightweight and durable.
• Twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler.

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 900
Color: Black
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
End Plates: Bronze
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Free Speed (rpm): 6500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Reverse Bias
Power Source: Air Powered
Product Length (in): 13.3
Product Height (in): 10.9
Product Weight (lb): 15.2
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vibration Level (m/s2): 9.8
Vibration Uncertainy K* (m/s2): 1.3
Warranty: 1-year

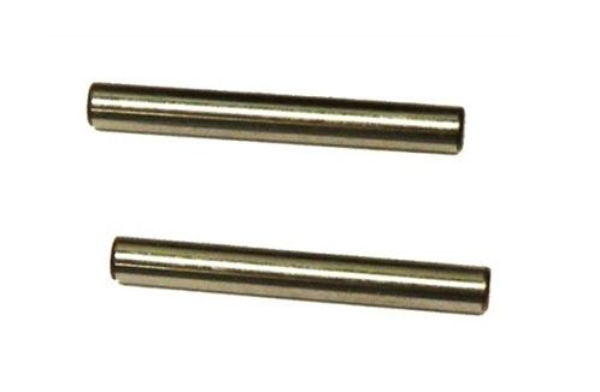

IR 2934-704

Hammer Pin

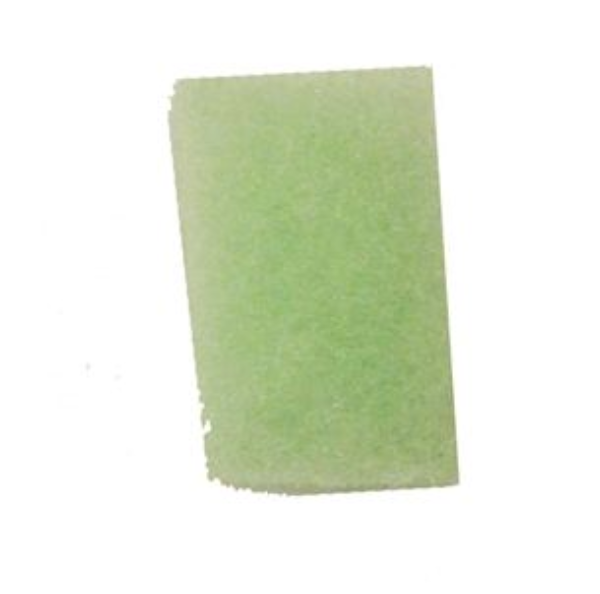

IR 2940P-311

Silencer Service Part for Ingersoll Rand Power Tools

IR 2950-53

ROTOR

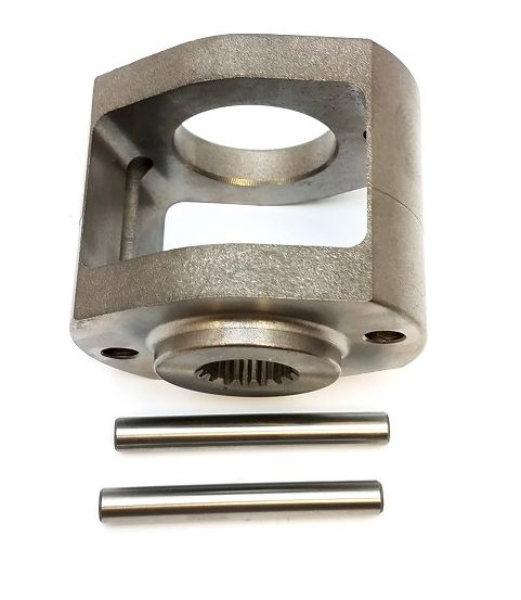

IR 2950-A703

FRAME

IR 2955B2

1-1/2" Air Impact Wrench, Heavy Duty, 4500 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle Inside Trigger

This powerful and innovative 1-1/2” square drive Impact Wrench delivers durability at an unmatched economic value. The 2955 Series delivers a competition leading 4,500 ft-lb of Max Reverse torque powered by Ingersoll Rand’s finely tuned cold forged twin-hammer impact mechanism. The innovative auxiliary handle allows the tool to be configured for the operator or application. The handle is fully adjustable to any orientation around the hammer case body allowing the tool to reach into confined bolt locations or fit to the most user-friendly position, reducing operator fatigue. Cold forged twin hammers, steel endplates and steel housing deliver unmatched durability in the most rugged applications. The 2955 Series is engineered with Ingersoll Rand’s legendary impact mechanism that makes maintenance simple for long life and low total cost of ownership. The 2955 Series is proudly assembled in our Southern Pines, NC facility with domestic and globally sourced components ensuring quality and fast, dependable delivery.

Features And Benefits

• 4,500 Ft-lbs of torque for tough applications, neutral bias air motor
• 360 Degree side-handle for added versatility when working on pipe flange applications
• Steel hammer case housing and aluminum handle provides durable design for industrial environments
• Cold Forged Twin Hammer mechanism
• Steel Endplates provide wear resistance
• 6-vane motor with optimized air flow
• Assembled in the USA of domestic and global components ensures quality, and fast delivery

Includes: Bare Tool
Product Application and Uses: Oil and Gas Repair and Maintenance, Dredging Companies, Mining Equipment Repair and Maintenance, Foundry Shops, River Dams, Hydro and Thermal Power Plants
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 95
Air Consumption @ Load (l/min): 2690
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.2 / 109.2
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 103.3 / 114.3
Max Bolt Diameter (in): 1 1/2
Max Free Speed (rpm): 3300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4500
Max Torque (in-lb): 53990
Max Torque (nm): 6100
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Width (in): 5.3
Product Height (in): 8.1
Product Weight (lb): 35.3
Recommended Forward Torque Range (ft-lb): 1601-3762
Recommended Forward Torque Range (in-lb): 19206-45139
Recommended Forward Torque Range (nm): 2170-5100
Recommended Reverse Torque (ft-lb): 1601-3762
Recommended Reverse Torque (nm): 2170-5100
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 2.7
Side to Center Distance (mm): 69
Special Features: 360 degree adjustable handle
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18
Warranty: 1-year

Similar IR

• 3955B2TI
• W9491
• 3940B2TI

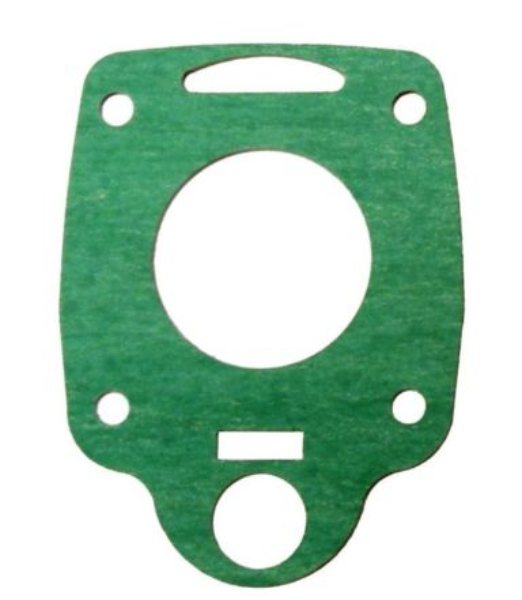

IR 295A-283

BACKHEAD GASKET
