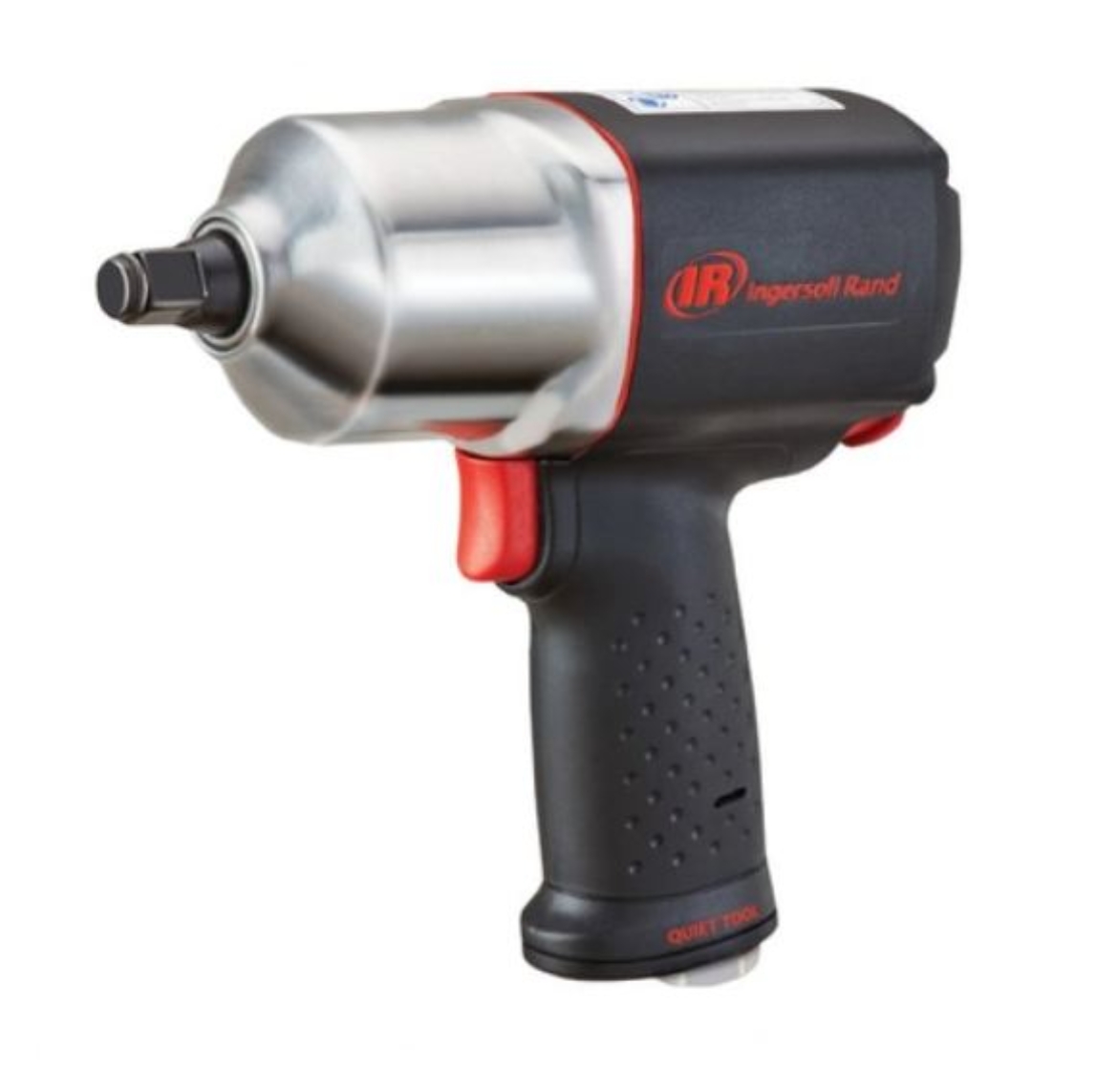

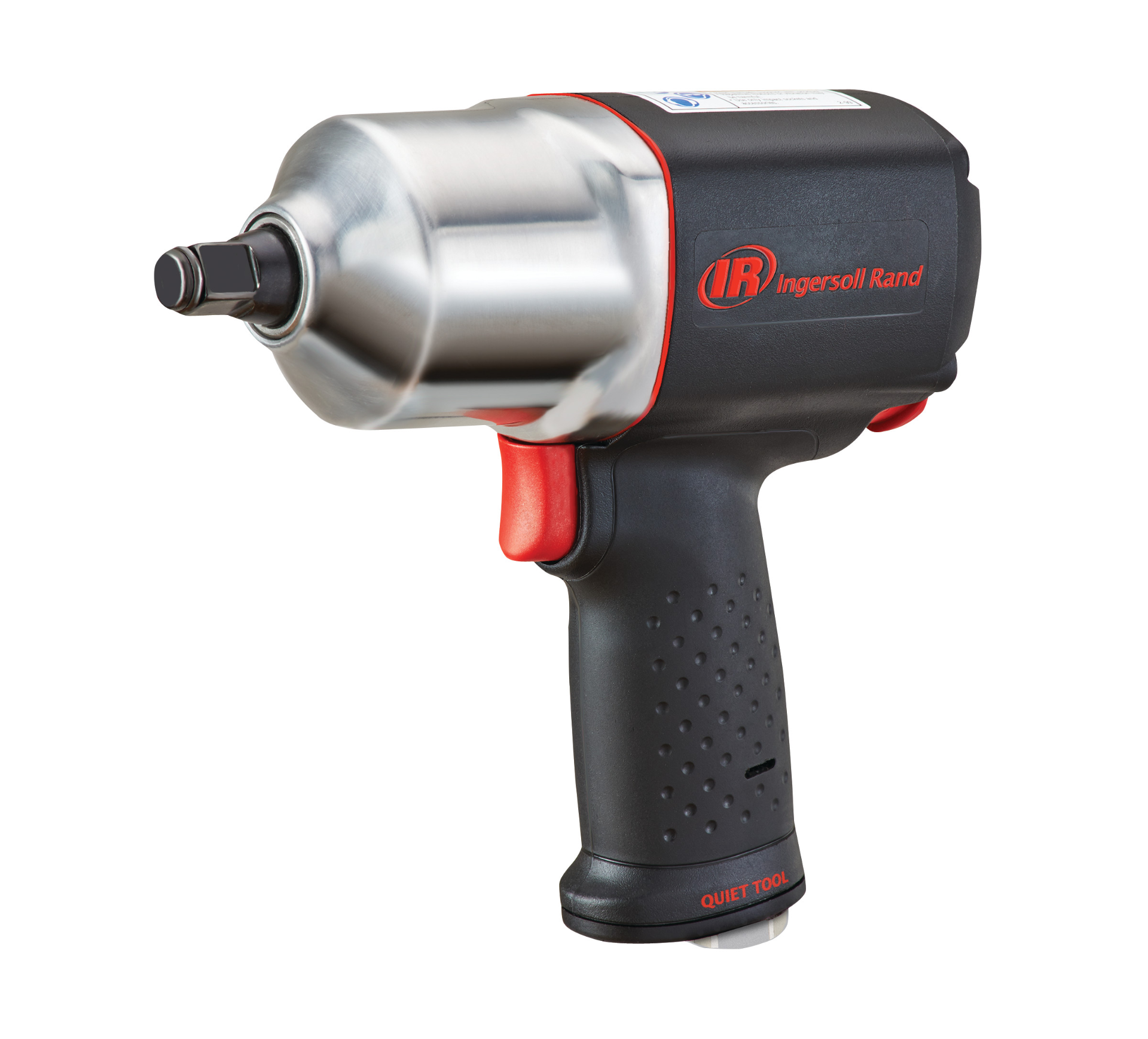

IR 2135QXPA
1/2" Air Impact Wrench, Quiet, 1100 ft-lb Torque, Friction Ring Retainer, Pistol
The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.
Features And Benefits
- Impact Power: Punish the toughest bolts with 1100 ft.-lbs. of nut-busting torque powered by a finely tuned motor and twin-hammer impact mechanism.
- Lightweight: At only 4 lbs., the 2135QXPA is as light as it is powerful so your hand tires less, letting you get more work done.
- Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 86.0 / 97.0
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.7 / 101.7
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 11000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1100
Nut-busting/Breakaway Torque (in-lb): 13196
Nut-busting/Breakaway Torque (nm): 1491
Power Source: Air Powered
Product Length (in): 7.5
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 700
Recommended Forward Torque Range (in-lb): 8399
Recommended Forward Torque Range (nm): 949
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Special Features: Quiet Tool
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.3
Warranty: 1-year
