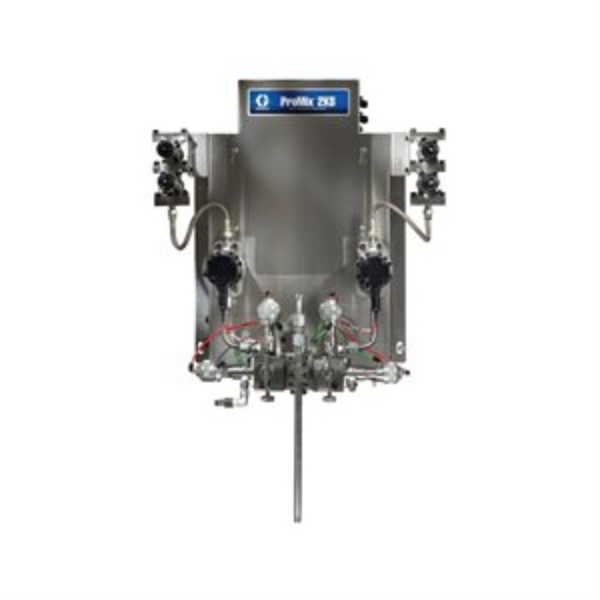

GRACO INC. S10595
PROMIX 2KS PROPORTIONER MANUAL
GG MD1311
PROMIX 2KS PROPORTIONER MANUAL
ProMix 2KS Manual Wall Panel System, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 2 catalysts LP, and 1 Air Flow Switch Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting
PROMIX 2KS PROPORTIONER, MANUAL
GG MD1301
PROMIX 2KS PROPORTIONER, MANUAL
Graco MD1301 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 1 catalyst, and 1 Air Flow Switch
Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.
- Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
- Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
- Intrinsically safe fluid panels easily integrate into hazardous areas
- Advanced web interface provides consolidated system management and reporting
- Model: ProMix
- Series: 2KS
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Applicator Type: Manual
- Component Type: Two Component
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Air/Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Material Type: Two Component
- Maximum Flow Rate (cc/min): 3790
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.79
- Maximum Fluid Viscosity (cP): 3000
- Maximum Fluid Viscosity (cP): 3000
- Maximum Mix Ratio: 50:1
- Maximum Number of Colors: Up to 12
- Maximum Working Pressure (bar): 275.8
- Maximum Working Pressure (kPa): 27580
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
- Measuring Type: Meter
- Meter Type: G3000
- Minimum Flow Rate (cc/min): 75
- Minimum Flow Rate (GPM): 0.02
- Minimum Flow Rate (L/min): 0.075
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: 7 Valves
- Number of Colors: 7
- Number of Resin Colors: 7
- Power Source: Electric
- Proportioner Type: Manual
- Proportioning Type: Manual Electronic
PROMIX 2KS PROPORTIONER MANUAL
GG MD1302
PROMIX 2KS PROPORTIONER MANUAL
ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 1 catalyst, and 2 Air Flow Switches Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting
PROMIX 2KS PROPORTIONER MANUAL
GG MD1303
PROMIX 2KS PROPORTIONER MANUAL
Graco MD1303 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 7 Colors LP, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box
Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.
- Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
- Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
- Intrinsically safe fluid panels easily integrate into hazardous areas
- Advanced web interface provides consolidated system management and reporting
- Model: ProMix
- Series: 2KS
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Applicator Type: Manual
- Component Type: Two Component
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Air/Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Material Type: Two Component
- Maximum Flow Rate (cc/min): 3790
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.79
- Maximum Fluid Viscosity (cP): 3000
- Maximum Fluid Viscosity (cP): 3000
- Maximum Mix Ratio: 50:1
- Maximum Number of Colors: Up to 12
- Maximum Working Pressure (bar): 275.8
- Maximum Working Pressure (kPa): 27580
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
- Measuring Type: Meter
- Meter Type: G3000
- Minimum Flow Rate (cc/min): 75
- Minimum Flow Rate (GPM): 0.02
- Minimum Flow Rate (L/min): 0.075
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: 7 Valves
- Number of Colors: 7
- Number of Resin Colors: 7
- Power Source: Electric
- Proportioner Type: Manual
- Proportioning Type: Manual Electronic
Control, Air, Integrated, Locking
GG NXT011
CONTROL, AIR, INTEGRATED, LOCKING
Graco NXT011 Integrated Air Controls for NXT Model 2200, 3400, and 6500 Air Motors
- Compatible Material: Solventborne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
VALVE, ASSY, MOTOR, STANDARD
GG NXT107
VALVE, ASSY, MOTOR, STANDARD
Graco NXT107 NXT Air Motor Valve – Fits All Three Sizes
Kit, Repair, Soft Seal NXT 6500
GG NXT600
Kit, Repair, Soft Seal NXT 6500
Graco NXT600 NXT Model 6500 Air Motor Repair Kit
DURA-FLO PUMP, 3400/1000
GG P06DCK
DURA-FLO PUMP, 3400/1000
Graco P06DCK Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, CS, UHM with Leather Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, De-Icing Exhaust Motor, UHMW / Leather Packings
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 43
- Maximum Working Pressure (kPa): 4300
- Maximum Working Pressure (MPa): 4.3
- Maximum Working Pressure (psi): 620
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 6:1
DURA-FLO PUMP, 3400/1000
GG P06DSG
DURA-FLO PUMP, 3400/1000
Graco P06DSG Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, SST, PTFE/PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, PTFE / PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 43
- Maximum Working Pressure (kPa): 4300
- Maximum Working Pressure (MPa): 4.3
- Maximum Working Pressure (psi): 620
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 6:1
DURA-FLO PUMP, 3400/1000
GG P06ECK
DURA-FLO PUMP, 3400/1000
Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, DataTrak, CS, UHM with Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
Dura-Flo NXT 2-Ball Piston Pump, 10:1, De-Icing Exhaust Motor, DataTrak, CS, UHM W/Leather Packings
GG P10ECK
Dura-Flo NXT 2-Ball Piston Pump, 10:1, De-Icing Exhaust Motor, DataTrak, CS, UHM W/Leather Packings
DURA-FLO PUMP, 3400/1000
GG P06LCK
DURA-FLO PUMP, 3400/1000
Graco P06LCK Dura-Flo NXT 2-Ball Piston Pump, 6:1, Low Noise Exhaust Motor, CS, UHM with Leather Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, Low Noise Exhaust Motor, UHMW / Leather Packings
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 43
- Maximum Working Pressure (kPa): 4300
- Maximum Working Pressure (MPa): 4.3
- Maximum Working Pressure (psi): 620
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 6:1
DURA-FLO PUMP, 6500/580
GG P23DSA
DURA-FLO PUMP, 6500/580
Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
XTREME PUMP, 3400/290, NF
GG P25LC1
XTREME PUMP, 3400/290, NF
Graco P25LC1 Xtreme NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust, CS
Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Xtreme
- Series: 2-Ball
- Air Inlet Size (in): 3/4
- Air Inlet Size (mm): 19.05
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, Low Noise Exhaust Motor
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 262
- Maximum Working Pressure (kPa): 26200
- Maximum Working Pressure (MPa): 26.2
- Maximum Working Pressure (psi): 3800
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1

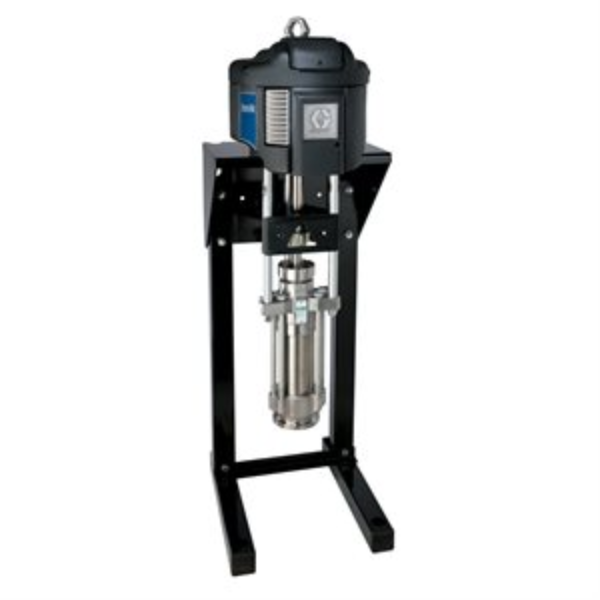

DURA-FLO PUMP, 3400/290
GG P25LSE
DURA-FLO PUMP, 3400/290
Graco P25LSE Dura-Flo NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 314
- Maximum Working Pressure (kPa): 31400
- Maximum Working Pressure (MPa): 31.4
- Maximum Working Pressure (psi): 4550
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1
DURA-FLO PUMP, 3400/580
GG P12ESA
DURA-FLO PUMP, 3400/580
Dura-Flo NXT 2-Ball Piston Pump, 12:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 6500/580
GG P23ESA
DURA-FLO PUMP, 6500/580
Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/430
GG P15ESB
DURA-FLO PUMP, 3400/430
Dura-Flo NXT 2-Ball Piston Pump, 15:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/290
GG P25MSE
DURA-FLO PUMP, 3400/290
Graco P25MSE Dura-Flo NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust Motor, DataTrak, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 328
- Maximum Working Pressure (kPa): 32800
- Maximum Working Pressure (MPa): 32.8
- Maximum Working Pressure (psi): 4750
- Motor Type: Low Noise NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1
DURA-FLO PUMP, 6500/1000
GG P10LCK
DURA-FLO PUMP, 6500/1000
Graco P10LCK Dura-Flo NXT 2-Ball Piston Pump, 10:1, Low Noise Exhaust Motor, CS, UHM with Leather Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, Low Noise Exhaust Motor, UHMW / Leather Packings
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 82
- Maximum Working Pressure (kPa): 8200
- Maximum Working Pressure (MPa): 8.2
- Maximum Working Pressure (psi): 1190
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 10:1
CHECK-MATE PUMP, 20:1 70 0/060 SS SD
GG P20LSS
CHECK-MATE PUMP, 20:1 70 0/060 SS SD
Graco P20LSS 20:1 - 60cc Check-Mate Pump with NXT 700 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 700 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
- 60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Washer Lock (6), Screw
- Material: Stainless Steel
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Power Type: Pneumatic
- Pump Ratio: 20:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
XTREME PUMP, 3400/290, NF
GG P25DC1
XTREME PUMP, 3400/290, NF
Xtreme NXT 2-Ball Piston Pump, 25:1, De-Icing Exhaust Motor, CSGraco's Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 6500/580
GG P22LSM
DURA-FLO PUMP, 6500/580
21:1 - 580cc Dura-Flo Pump with NXT6500 Air Motor, MaxLife Stainless Steel ConstructionGraco’s Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership costNXT Air Motor
- Modular design for easier maintenance
- Rugged body armor won’t rust or dent
- Highest technology air motor on the market
- Low Noise exhaust style
Modular Air Valve
- De-icing controls standard
- Up to 50% quieter than previous models
- Modular air valve - reduces stalling, easy-to-repair
Optional Integrated Air Controls
- Lockable easy-turn regulator
- Front-mounted for convenient access
- Compact and modular
- Built-in filtration
Optional DataTrak™ Control
- Runaway protection
- Pump diagnostics
- Material usage
DURA-FLO PUMP, 3400/580
GG P12DSA
DURA-FLO PUMP, 3400/580
Dura-Flo NXT 2-Ball Piston Pump, 12:1, De-Icing Exhaust Motor, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
CHECK-MATE PUMP, 14:1 3400/500 CS SD
GG P14LCS
CHECK-MATE PUMP, 14:1 3400/500 CS SD
Graco P14LCS 14:1 - 500cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 500cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Collar Coupling, Nut Coupling
- Material: Carbon Steel
- Maximum Working Pressure (bar): 98
- Maximum Working Pressure (kPa): 9800
- Maximum Working Pressure (MPa): 9.8
- Maximum Working Pressure (psi): 1400
- Power Type: Pneumatic
- Pump Ratio: 14:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
DURA-FLO PUMP, 6500/580
GG P23MCD
DURA-FLO PUMP, 6500/580
Graco P23MCD Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, DataTrak, CS, 3 PTFE / 2 Leather Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 3 PTFE/2 Leather Packings
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 9.2
- Maximum Flow Rate (L/min): 34.83
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 23:1
DURA-FLO PUMP, 6500/580
GG P23LSA
DURA-FLO PUMP, 6500/580
Graco P23LSA Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 3 UHMWPE/2 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 9.2
- Maximum Flow Rate (L/min): 34.83
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 23:1
DURA-FLO PUMP, 3400/580
GG P12LSA
DURA-FLO PUMP, 3400/580
Dura-Flo NXT 2-Ball Piston Pump, 12:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/430
GG P15CSS
DURA-FLO PUMP, 3400/430
Graco P15CSS 15:1 - 430cc Dura-Flo Pump with NXT 34000 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
- Model: Dura-Flo
XTREME PUMP, 3400/290, NF, AC
GG P25DC3
XTREME PUMP, 3400/290, NF, AC
Graco P25DC3 Xtreme NXT 2-Ball Piston Pump, 25:1, De-Icing Exhaust Motor, CS, Air Controls
Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Xtreme
- Series: 2-Ball
- Air Inlet Size (in): 3/4
- Air Inlet Size (mm): 19.05
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, De-Icing Exhaust Motor, Air Controls
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 209
- Maximum Working Pressure (kPa): 20900
- Maximum Working Pressure (MPa): 20.9
- Maximum Working Pressure (psi): 3030
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1
DURA-FLO PUMP, 3400/580
GG P12LCD
DURA-FLO PUMP, 3400/580
Dura-Flo NXT 2-Ball Piston Pump, 12:1, Low Noise Exhaust Motor, CS, 3 PTFE / 2 Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
REACTOR E-10HP SYSTEM, CMPLT, 230V(NA)
GG P2T900
REACTOR E-10HP SYSTEM, CMPLT, 230V(NA)
Graco P2T900 Reactor E-10 HP Proportioner Package, Probler P2 Gun, North American Cord Adapter, 230 V, 1PH
The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. It&prime, s a smart, affordable investment that will help your business grow.
Application: Entry-level system for pure and hybrid polyurea coatings.- Digital heat controls
Allows you to enter the exact temperatures you need
Uses the same circuit boards as a standard Reactor
- Single knob motor operation
Intuitive, easy to use
- Insulated tanks
Double-wall insulated to retain heat
Smooth interior lining for easy cleaning
Improved seal design on lid for better moisture control
- Boost heat
Directs unused power from the motor circuit to additional heater rods
Additional heater power brings material to desired temperatures faster during recirculation mode
- Robust hybrid heater
More power, faster material heating means more uptime
- Motor
Offers 50% more power than the Reactor E-10
Provides improved spray performance with reduced pressure drop
- Quick knockdown lower pumps
Easy disassembly and maintenance
- Temperature gauges in Y-strainers
Provides accurate tank temperature readings
- Portable
Fits through standard doorways
Plugs into standard 120V or 230V outlets
Rugged wheels for extreme jobsites
No need for generator
- Wide tank opening
Easy material loading and easy to clean
- Model: Reactor
- Series: E-10hp
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: Quick-Disconnect Pin
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Thread Type: NPSM
- Amperage (A): 15
- Application: Protective Coatings
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: Probler P2
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: Proportioner, Probler P2 Gun, Unheated Hose, North American Cord Adapter
- Material Application: Polyurea
- Maximum Flow Rate (cc/min): 3790
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.79
- Maximum Fluid Temperature (°C): 77
- Maximum Fluid Temperature (°F): 170
- Maximum Fluid Temperature (°C): 77
- Maximum Fluid Temperature (°F): 170
- Maximum Mix Ratio: 1:1
XTREME PUMP, 2200/290, NF
GG P16DC1
XTREME PUMP, 2200/290, NF
Graco P16DC1 Xtreme NXT 2-Ball Piston Pump, 16:1, De-Icing Exhaust Motor, CS
Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Xtreme
- Series: 2-Ball
- Air Inlet Size (in): 3/4
- Air Inlet Size (mm): 19.05
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, De-Icing Exhaust Motor
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1520
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 16:1
CHECK-MATE PUMP, 20:1 700/060 LW NS CS SD
GG P20LCS
CHECK-MATE PUMP, 20:1 700/060 LW NS CS SD
Graco P20LCS 20:1 - 60cc Check-Mate Pump with NXT 700 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 700 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
- 60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Washer Lock (6), Screw
- Material: Carbon Steel
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Power Type: Pneumatic
- Pump Ratio: 20:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
DURA-FLO PUMP, 3400/220
GG P30DSE
DURA-FLO PUMP, 3400/220
Graco P30DSE Dura-Flo NXT 2-Ball Piston Pump, 30:1, De-Icing Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3.4
- Maximum Flow Rate (L/min): 12.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1520
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 30:1
DURA-FLO PUMP, 3400/220
GG P30LSE
DURA-FLO PUMP, 3400/220
Dura-Flo NXT 2-Ball Piston Pump, 30:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/220
GG P30LSS
DURA-FLO PUMP, 3400/220
Graco P30LSS 30:1 - 220cc Dura-Flo Pump with NXT 3400 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- NXT 3400 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 220cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 219
- Maximum Working Pressure (kPa): 21900
- Maximum Working Pressure (MPa): 21.9
- Maximum Working Pressure (psi): 3170
- Power Type: Pneumatic
- Pump Ratio: 30:1
Improves structural integrity
- Optional DataTrak™ Control
DURA-FLO PUMP, 6500/430
GG P32ESB
DURA-FLO PUMP, 6500/430
Dura-Flo NXT 2-Ball Piston Pump, 32:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/220
GG P30MSE
DURA-FLO PUMP, 3400/220
Graco P30MSE Dura-Flo NXT 2-Ball Piston Pump, 30:1, Low Noise Exhaust Motor, DataTrak, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3.4
- Maximum Flow Rate (L/min): 12.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1520
- Motor Type: Low Noise NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 30:1
DURA-FLO PUMP, 6500/430
GG P32LCD
DURA-FLO PUMP, 6500/430
Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, CS, 3 PTFE / 2 Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 6500/430
GG P32LSB
DURA-FLO PUMP, 6500/430
Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 Tuffstack PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 6500/430
GG P32MSB
DURA-FLO PUMP, 6500/430
Graco P32MSB Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 Tuff-Stack Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 6.9
- Maximum Flow Rate (L/min): 26.12
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 32:1
DURA-FLO PUMP, 6500/430
GG P32LSS
DURA-FLO PUMP, 6500/430
Graco P32LSS 32:1 - 430cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 209
- Maximum Working Pressure (kPa): 20900
- Maximum Working Pressure (MPa): 20.9
- Maximum Working Pressure (psi): 3030
- Power Type: Pneumatic
- Pump Ratio: 32:1
Improves structural integrity
- Optional DataTrak™ Control
CHECK-MATE PUMP 36:1 3400/200 CS SD
GG P36LCS
CHECK-MATE PUMP 36:1 3400/200 CS SD
Graco P36LCS 36:1 - 200cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover, Clip, Coupler
- Material: Carbon Steel
- Maximum Working Pressure (bar): 248
- Maximum Working Pressure (kPa): 24800
- Maximum Working Pressure (MPa): 24.8
- Maximum Working Pressure (psi): 3600
- Power Type: Pneumatic
- Pump Ratio: 36:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
CHECK-MATE PUMP, 38:1 1200/060 CS SD
GG P38LCS
CHECK-MATE PUMP, 38:1 1200/060 CS SD
Graco P38LCS 38:1 - 60cc Check-Mate Pump with NXT 1200 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 1200 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
- 60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Washer (6), Screw
- Material: Carbon Steel
- Maximum Working Pressure (bar): 262
- Maximum Working Pressure (kPa): 26200
- Maximum Working Pressure (MPa): 26.2
- Maximum Working Pressure (psi): 3800
- Power Type: Pneumatic
- Pump Ratio: 38:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
DURA-FLO PUMP, 3400/180
GG P40DSE
DURA-FLO PUMP, 3400/180
Graco P40DSE Dura-Flo NXT 2-Ball Piston Pump, 40:1, De-Icing Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.98
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 40:1
CHECK-MATE PUMP, 40:1 2200/100 CS SD
GG P40LCS
CHECK-MATE PUMP, 40:1 2200/100 CS SD
Graco P40LCS 40:1 - 100cc Check-Mate Pump with NXT 2200 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 2200 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 100cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump
- Material: Carbon Steel
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (MPa): 28
- Maximum Working Pressure (psi): 4000
- Power Type: Pneumatic
- Pump Ratio: 40:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction
GG P45CSS
45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction
DURA-FLO PUMP, 6500/290
GG P45LSE
DURA-FLO PUMP, 6500/290
Graco P45LSE Dura-Flo NXT 2-Ball Piston Pump, 45:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 45:1
DURA-FLO PUMP, 6500/290
GG P45LSS
DURA-FLO PUMP, 6500/290
Graco P45LSS 45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- NXT 6500 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 290cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 314
- Maximum Working Pressure (kPa): 31400
- Maximum Working Pressure (MPa): 31.4
- Maximum Working Pressure (psi): 4550
- Power Type: Pneumatic
- Pump Ratio: 45:1
Improves structural integrity
- Optional DataTrak™ Control
DURA-FLO PUMP, 3400/145
GG P46DSH
DURA-FLO PUMP, 3400/145
Dura-Flo NXT 2-Ball Piston Pump, 46:1, De-Icing Exhaust Motor, SST, PTFE/Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty Carbon Steel Construction
GG P47LCS
DURA-FLO PUMP,20650/430
Graco P47LCS 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer
- XL 1000 Air Motor
- Low Noise
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
- 430cc Dura-Flo Lower
- Severe Duty coatings on rods and cylinder Extends production time
Standard Threaded Coupler -
Replaceable 1 1/2" -11 1/2 NPT Male Outlet Fitting
- Reduces repair costs
Replaceable Seat
- Minimizes service costs
Cast Outlet and Inlet Housing
- Improves structural integrity
DURA-FLO PUMP, 20650/430
GG P47LSM
DURA-FLO PUMP, 20650/430
Graco P47LSM 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, MaxLife Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- XL 1000 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
MaxLife coatings on rods and cylinder maximizes wear life
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 324
- Maximum Working Pressure (kPa): 32400
- Maximum Working Pressure (MPa): 32.4
- Maximum Working Pressure (psi): 4700
- Power Type: Pneumatic
- Pump Ratio: 47:1
Improves structural integrity
- Optional DataTrak™ Control
KIT, OVERHAUL, CS, GL-33
GG 24W913
KIT, OVERHAUL, CS, GL-33
GL-33™ and GL-42™ Injectors and Accessories - GL33 Overhaul Kit, Carbon Steel For use with GL-33 and GL-42 Injectors.GL33 overhaul kit, carbon steel
Position Sensor Kit for E-Flo DC Motors
GG 24W920
Position Sensor Kit for E-Flo DC Motors
GH130 Hydraulic Airless Sprayer
GG 24W923
GH 130 SPRAYER, STD
Graco 24W923 GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer
The GH 130 Convertible is the clear choice for entry level contractors who demand maximum power in a small package. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
- Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filter design won't collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Rugged, Durable Cart Design
- Thick chrome over welded steel withstands rugged environments
- Full pneumatic wheels absorb impacts and vibrations
- Retractable handle doubles as coiled hose storage
- Tilts on its nose for service in the field
- Electric Motor Capability
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds - without tools
- Electric motor kit sold separately
- Ready to Work
Includes everything you need to get spraying:- Contractor Airless Spray Gun
- RAC X SwitchTips and Guard
- 50 feet of BlueMax II Airless Hose
- Model: GH
- Series: 130
- Product Series: Standard
- Compatible Electric Motor Kits: 288473, 288474 (CSA)
- Compatible Material: Acrylics, Paint, Primer
- Compatible Replacement Pump: 24B748
- Convertible: Yes
- Engine Brand: Honda
- Engine Size (HP): 4
- Features: Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Type: MNPT
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 3.75
- Fluid Outlet Thread Type: FNPT
- Frame Configuration: Cart
- Includes: Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
- Maximum Flow Rate (GPM): 1.30
- Maximum Flow Rate (L/min): 4.9
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 92
- Maximum Sound Pressure Level (dB(A)): 88
- Maximum Tip Size (in): 0.037
- Maximum Tip Size 1 Gun - Electric Motor (in): 0.031
- Maximum Tip Size 2 Guns - Electric Motor (in): 0.017
- Maximum Tip Size Gun 1 (in): 0.037
- Maximum Tip Size Gun 2 (in): 0.023
- Maximum Working Pressure (bar): 228
- Maximum Working Pressure (kPa): 2
GH 230 SPRAYER, STD
GG 24W929
GH 230 SPRAYER, STD
Graco 24W929 GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer
The GH 230 Convertible is the most versatile sprayer for the professional contractor looking for workhorse hydraulic performance for large commercial and residential construction jobs. Superior versatility with the ability to change out the pump lower and convert to electric power without tools.
Application: Graco GH Standard Series sprayers deliver durability and performance for spraying heavier materials in demanding applications. This sprayer is capable of handling elastomerics, block fillers, gypsum, and dry fall.- Endurance Chromex Piston Pump
Lasts 2X longer than the next leading brand
QuikChange pump design allows you to swap the pump easily on the job
Faster cleaning with the QuikAccess intake foot valve
- High-Efficiency Hydraulic Motor
Rock-solid performance time after time keeps you up and running
Faster, more responsive changeover
O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
Fewer moving parts mean less maintenance and longer life
- High-Capacity Cooling System
Innovative design allows the pump to run cooler and more efficiently
Hydraulic reservoir is tapered on the bottom
Provides easier and more thorough fluid changes
Cooling fins on reservoir deflect heat away from sprayer
- Easy Out Pump Filter
Easy maintenance & less clogging
Exclusive inside-out filter design won&prime, t collapse to ensure a quality finish
Vertical design for less mess
- Heavy-Duty Prime Valve
Maintenance-free design withstands high-pressure dumping
- Rugged, Durable Cart Design
Thick chrome over welded steel withstands rugged environments
Full pneumatic wheels absorb impacts and vibrations
Retractable handle doubles as coiled hose storage
Tilts on its nose for service in the field
- Electric Motor Capability
Indoor and outdoor use
Quickly swap the gas engine for an electric motor in seconds – without tools
Electric motor kit sold separately
- Ready to Work
Includes everything you need to get spraying:Silver Plus Airless Spray Gun
RAC X SwitchTips and Guard
50 feet of BlueMax II Airless Hose
- Model: GH
- Series: 230
- Product Series: Standard
- Compatible Electric Motor Kits: 248949, 248950 (CSA)
- Compatible Material: Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
- Compatible Replacement Pump: 24W997
- Convertible: Yes
- Engine Brand: Honda
- Engine Size (HP): 6.5
- Features: Endurance Chromex Pump, High-Capacit
ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, ADV
GG 24W350
ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, ADV
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, BSPP, DataTrak The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges DataTrek option prevents runaway and tracks material usage
Quick Disconnect Solenoid Kit
GG 24X038
KIT, SOLENOID
Graco 24X038 Quick Disconnect Solenoid Kit
KIT INCLUDES: SOLENOID, QUICK DISCONNECT [QTY. 1], LUBRICANT, GREASE, 3GRAM [QTY. 1], FITTING, M6 PUSH-2-CON, M7 [QTY. 1], FITTING, TUBE, UNEQUAL 3/8 TO 1/4 [QTY. 1], TUBE, POLYURETHANE, RD [QTY. 1]
Seal Repair Kit, Upper and Lower, T2
GG 24X056
Seal Repair Kit, Upper and Lower, T2
LSR F4-55 SYSTEM, 55GAL/55GAL, CASTERS
GG 24X167
LSR F4-55 SYSTEM, 55GAL/55GAL, CASTERS
1:1 Ratio 55 gal (200 liter) F4 Fluid Automation System with CastersIn the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.
Ideal for manufacturing in the following industries: medical, infant care, consumer products, automotive, industrial parts, wearables.Precise ratio control, minimal material waste
- The F4-55 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.
- The result: More precise mixing, a better end product and less wasted material.
Easier operation with Graco Control Architecture
- The Graco Fluid Automation F4-55 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools
Better Color Control
- Mix two additive streams at ratios ranging from 0.5 to 6%
Easy Set-up and Operation
- Proprietary Graco Control Architecture (GCA) is user friendly, providing easier operation and troubleshooting
Maintains Material Integrity
- Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material
Cleanroom Convenience
- A smaller footprint and casters (optional on F4-55) allow for system movement and maintenance
LSR F4-5 SYSTEM, 5GAL/5GAL
GG 24X160
LSR F4-5 SYSTEM, 5GAL/5GAL
Graco 24X160 1:1 Ratio 5 gal (20 liter) F4 Fluid Automation System with Casters
In the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-5.
Application: Ideal for manufacturing in the following industries: medical, infant care, consumer products, automotive, industrial parts, wearables.- Precise ratio control, minimal material waste
- Easier operation with Graco Control Architecture
- Better Color Control
- Maintains Material Integrity
- Cleanroom Convenience
A smaller footprint and casters (optional on F4-5) allow for system movement and maintenance
- Model: LSR
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 4
- Applicator Type: Automatic
- Frequency (Hz): 50/60
- Maximum Flow Rate (kg/min): 2.3
- Maximum Flow Rate (lb/min): 5
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Minimum Flow Rate (GPM): 10
Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material
- Cleanroom Convenience
Mix two additive streams at ratios ranging from 0.5 to 6%
- Maintains Material Integrity
The Graco Fluid Automation F4-5 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools
- Better Color Control
The F4-5 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.
The result: More precise mixing, a better end product and less wasted material.
- Easier operation with Graco Control Architecture
LSR F4-55-5 SYSTEM, LSR55-5GAL/55-5GAL, CSTERS
GG 24X166
LSR F4-55-5 SYSTEM, LSR55-5GAL/55-5GAL, CSTERS
Graco 24X166 1:1 Ratio 5 gal (20 liter) F4 Fluid Automation System with Casters
In the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.
Application: Ideal for manufacturing in the following industries: medical, infant care, consumer products, automotive, industrial parts, wearables.- Precise ratio control, minimal material waste
- Easier operation with Graco Control Architecture
- Better Color Control
- Maintains Material Integrity
- Cleanroom Convenience
A smaller footprint and casters (optional on F4-55) allow for system movement and maintenance
- Model: LSR
- Air Inlet Size (cm): 1.27
- Air Inlet Size (in): 1/2
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 4
- Applicator Type: Automatic
- Frequency (Hz): 50/60
- Maximum Flow Rate (kg/min): 2.27
- Maximum Flow Rate (lb/min): 5
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Minimum Flow Rate (GPM): 10
Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material
- Cleanroom Convenience
Mix two additive streams at ratios ranging from 0.5 to 6%
- Maintains Material Integrity
The Graco Fluid Automation F4-55 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools
- Better Color Control
The F4-55 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.
The result: More precise mixing, a better end product and less wasted material.
- Easier operation with Graco Control Architecture
LSR F4-55 SYSTEM, 55GAL/55GAL
GG 24X169
LSR F4-55 SYSTEM, 55GAL/55GAL
1:1 Ratio 55 gal (200 liter) F4-55 Fluid Automation SystemIn the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.
Ideal for manufacturing in the following industries: medical, infant care, consumer products, automotive, industrial parts, wearables.Precise ratio control, minimal material waste
- The F4-55 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.
- The result: More precise mixing, a better end product and less wasted material.
Easier operation with Graco Control Architecture
- The Graco Fluid Automation F4-55 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools
Better Color Control
- Mix two additive streams at ratios ranging from 0.5 to 6%
Easy Set-up and Operation
- Proprietary Graco Control Architecture (GCA) is user friendly, providing easier operation and troubleshooting
Maintains Material Integrity
- Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material
Cleanroom Convenience
- A smaller footprint and casters (optional on F4-55) allow for system movement and maintenance
KIT, REPLACEMENT, PP, POP-UP HEA
GG 24X764
KIT, REPLACEMENT, PP, POP-UP HEA
This item is no longer available. Please contact Graco Customer Service for replacement options.
HEAD, MOLSA, 100-1.04MM/4-.041IN
GG 24X663
HEAD, MOLSA, 100-1.04MM/4-.041IN
MOLSA Head, 4 inches (100 mm) wide, 0.041 inch (1.04 mm) orifice diameterMulti-Orifice Linear Stream Applicator (MOLSA) gives you faster cycle rates, more accurate dispensing and longer production life compared to competitive offerings.
Ideal for applying liquid applied sound deadener (LASD) using the Graco 1K Ultra-Lite dispense valve.
Port Plug Model
4.00 inches (102 mm) wide
0.041 inch (1.04 mm) orifice diameter
