GG P22LSM
DURA-FLO PUMP, 6500/580

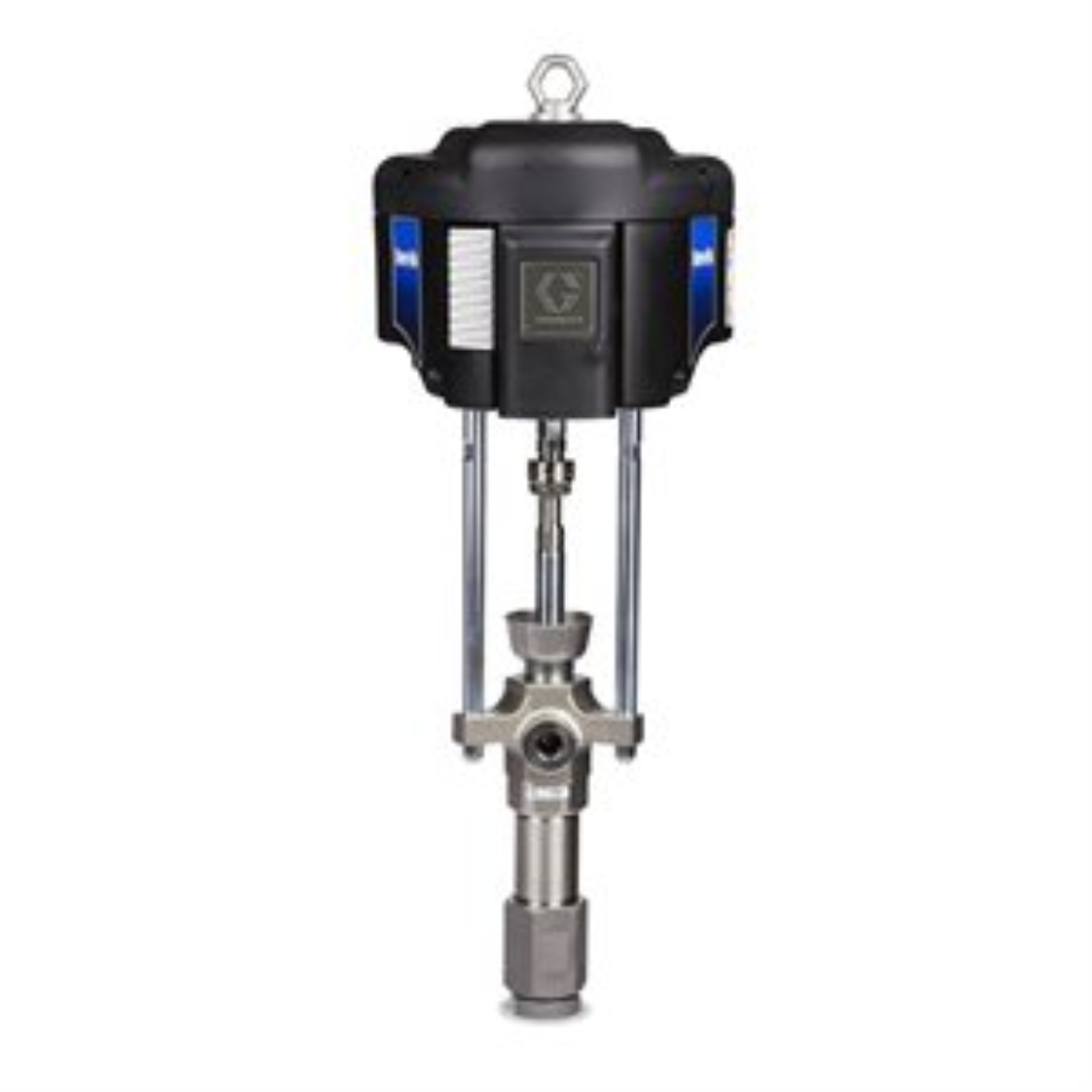

Graco P22LSM 21:1 - 580cc Dura-Flo Pump with NXT6500 Air Motor, MaxLife Stainless Steel Construction
Graco's Xtreme and Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Modular Air Valve
De-icing controls standard
Up to 50% quieter than previous models
Modular air valve - reduces stalling, easy-to-repair
- Optional Integrated Air Controls
Lockable easy-turn regulator
Front-mounted for convenient access
Compact and modular
Built-in filtration
- Optional DataTrak Control
Runaway protection
Pump diagnostics
Material usage
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 157
- Maximum Working Pressure (kPa): 15700
- Maximum Working Pressure (MPa): 15.7
- Maximum Working Pressure (psi): 2270
