Gh 230 Sprayer, Std

GG 24W929

GH 230 SPRAYER, STD

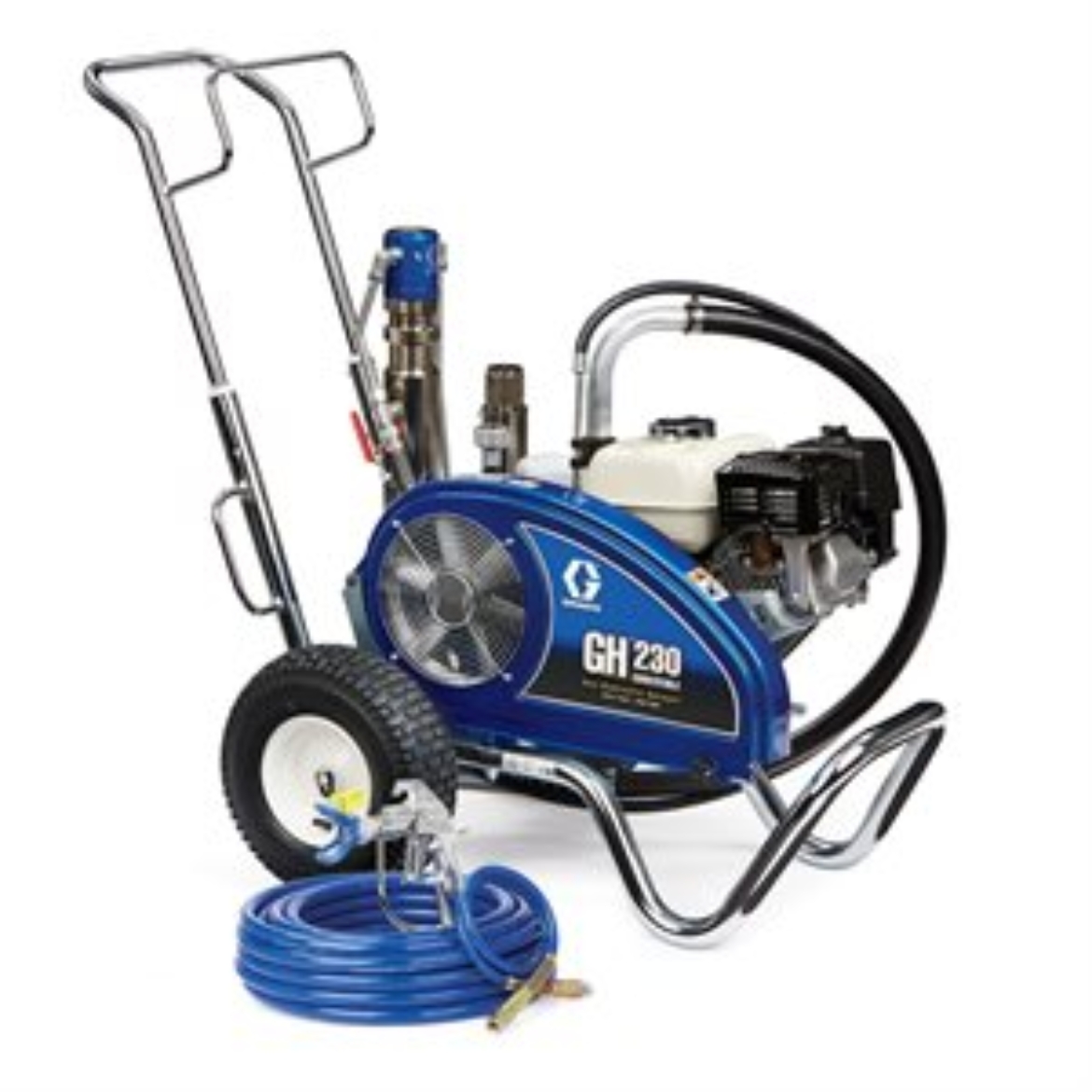

Graco 24W929 GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer

The GH 230 Convertible is the most versatile sprayer for the professional contractor looking for workhorse hydraulic performance for large commercial and residential construction jobs. Superior versatility with the ability to change out the pump lower and convert to electric power without tools.

• Endurance Chromex Piston Pump


  Lasts 2X longer than the next leading brand

  QuikChange pump design allows you to swap the pump easily on the job

  Faster cleaning with the QuikAccess intake foot valve

• High-Efficiency Hydraulic Motor


  Rock-solid performance time after time keeps you up and running

  Faster, more responsive changeover

  O-ring sealed fittings and form-fitted hydraulic lines prevent leaks

  Fewer moving parts mean less maintenance and longer life

• High-Capacity Cooling System


  Innovative design allows the pump to run cooler and more efficiently

  Hydraulic reservoir is tapered on the bottom

  Provides easier and more thorough fluid changes

  Cooling fins on reservoir deflect heat away from sprayer

• Easy Out Pump Filter


  Easy maintenance & less clogging

  Exclusive inside-out filter design wont collapse to ensure a quality finish

  Vertical design for less mess

• Heavy-Duty Prime Valve


  Maintenance-free design withstands high-pressure dumping

• Rugged, Durable Cart Design


  Thick chrome over welded steel withstands rugged environments

  Full pneumatic wheels absorb impacts and vibrations

  Retractable handle doubles as coiled hose storage

  Tilts on its nose for service in the field

• Electric Motor Capability


  Indoor and outdoor use

  Quickly swap the gas engine for an electric motor in seconds - without tools

  Electric motor kit sold separately

• Ready to Work
  Includes everything you need to get spraying:

  Silver Plus Airless Spray Gun

  RAC X SwitchTips and Guard

  50 feet of BlueMax II Airless Hose

• Model: GH
• Series: 230
• Product Series: Standard

• Compatible Electric Motor Kits: 248949, 248950 (CSA)
• Compatible Material: Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
• Compatible Replacement Pump: 24W997

• Convertible: Yes

• Engine Brand: Honda
• Engine Size (HP): 6.5

• Features: Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible

• Fluid Inlet Size (in): 1-5/16
• Fluid Inlet Size (mm): 33.34
• Fluid Inlet Thread Type: UN-2A

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 3.75
• Fluid Outlet Thread Type: FNPT

• Frame Configuration: Cart

• Includes: Silver Plus Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz

• Maximum Flow Rate (GPM): 2.35
• Maximum Flow Rate (L/min): 8.9

• Maximum Hose Length (ft): 300
• Maximum Hose Length (m): <
