Dura-Flo Pump,6500/580

GG P23MCD

DURA-FLO PUMP, 6500/580

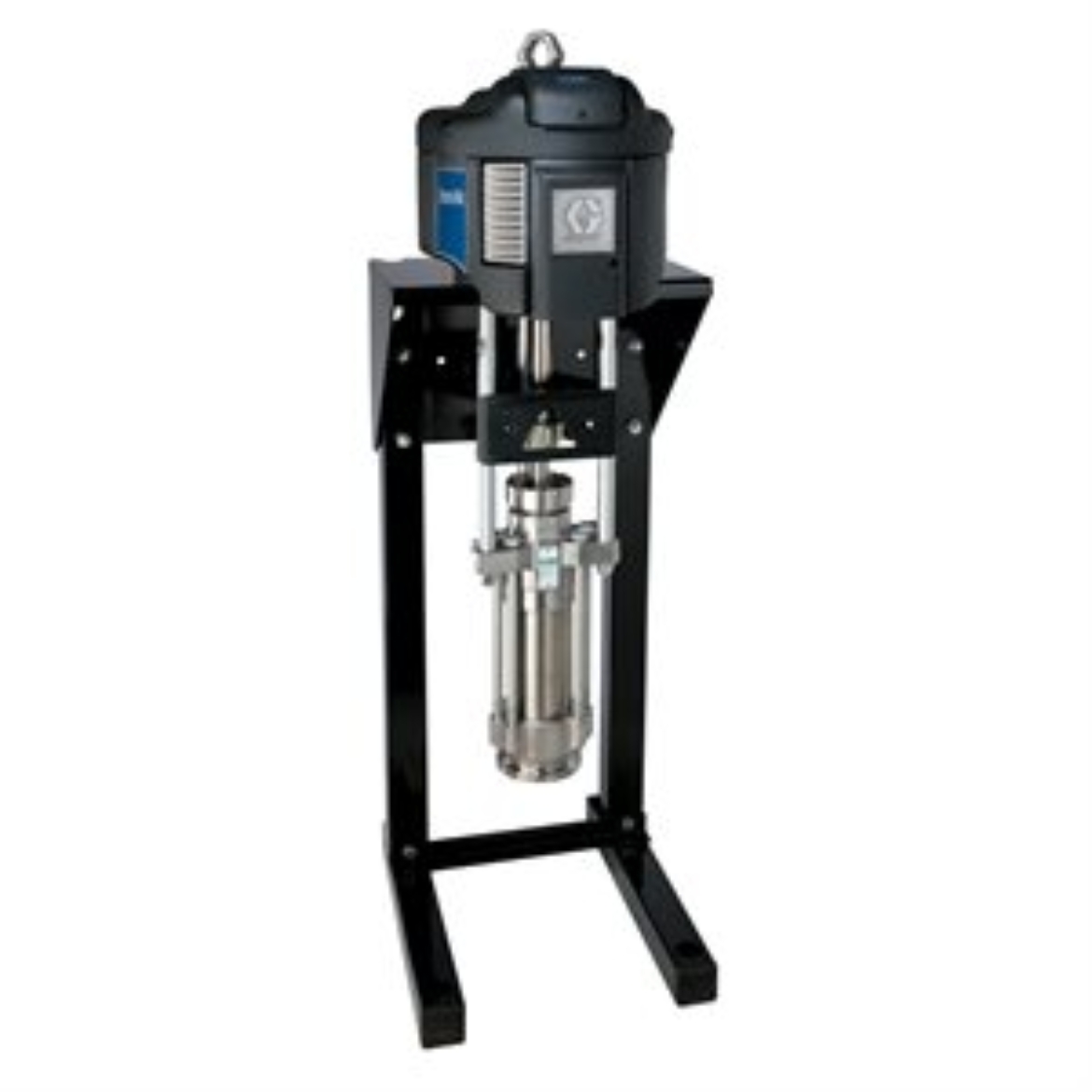

Graco P23MCD Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, DataTrak, CS, 3 PTFE / 2 Leather Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Carbon Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 3 PTFE/2 Leather Packings

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 9.2
• Maximum Flow Rate (L/min): 34.83

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 164
• Maximum Working Pressure (kPa): 16400
• Maximum Working Pressure (MPa): 16.4
• Maximum Working Pressure (psi): 2380

• Motor Type: Low Noise NXT with DataTrak

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 23:1
