GRACO INC. S10595

GG 269719

CONTRACTOR FLAT TIP, SPRAY 719

Graco 269719 Contractor Flat Tip, 719

The 719 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.019 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 35
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 406

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 14
• Minimum Fan Width (mm): 356

• Orifice Diameter (in): 0.019

• Pattern Size (in): 14 to 16
• Pattern Size (mm): 355.6 to 406.4

GG 269513

CONTRACTOR FLAT TIP, SPRAY

Graco 269513 Contractor Flat Tip, 513

The 513 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.013 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.18
• Maximum Flow Rate (L/min): 0.68

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.013

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG 269725

CONTRACTOR FLAT TIP, SPRAY

Graco 269725 Contractor Flat Tip, 725

The 725 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.025 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 35
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 406

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.54

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 14
• Minimum Fan Width (mm): 356

• Orifice Diameter (in): 0.025

• Pattern Size (in): 14 to 16
• Pattern Size (mm): 355.6 to 406.4

GG 269819

CONTRACTOR FLAT TIP, SPRAY 819

Graco 269819 Contractor Flat Tip, 819

The 819 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.019 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.019

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG 269721

CONTRACTOR FLAT TIP, SPRAY 721

Graco 269721 Contractor Flat Tip, 721

The 721 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.021 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 35
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 406

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 14
• Minimum Fan Width (mm): 356

• Orifice Diameter (in): 0.021

• Pattern Size (in): 14 to 16
• Pattern Size (mm): 355.6 to 406.4

GG 269827

CONTRACTOR FLAT TIP, SPRAY

Graco 269827 Contractor Flat Tip, 827

The 827 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.027 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.74
• Maximum Flow Rate (L/min): 2.80

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.027

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG 269815

CONTRACTOR FLAT TIP, SPRAY 815

Graco 269815 Contractor Flat Tip, 815

The 815 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.015 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.24
• Maximum Flow Rate (L/min): 0.91

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.015

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG 269821

CONTRACTOR FLAT TIP, SPRAY 821

Graco 269821 Contractor Flat Tip, 821

The 821 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.021 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.021

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG 269925

CONTRACTOR FLAT TIP, SPRAY

Graco 269925 Contractor Flat Tip, 925

The 925 Contractor Flat Tip produces an 18 to 20 inch (46 to 51 cm) fan and has a 0.025 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 45
• Maximum Fan Width (in): 18
• Maximum Fan Width (mm): 508

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.54

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 18
• Minimum Fan Width (mm): 457

• Orifice Diameter (in): 0.025

• Pattern Size (in): 18 to 20
• Pattern Size (mm): 457.2 to 508

GG 269831

CONTRACTOR FLAT TIP, SPRAY 831

Graco 269831 Contractor Flat Tip, 831

The 831 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.031 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 1.03
• Maximum Flow Rate (L/min): 3.90

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.031

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG 26A029

GG 26A078

GG 26A079

GG 26A083

GG 26A119

METER,GEAR, ASSY, G3000A

Graco 26A119 G3000A High Pressure Fluid Meters, 0.02 to 1.0 gpm (75 to 3800 cc/min) flow range

GG 26A118

BODY,GEARMETER, G3000A

GG 26A129

PANEL, FLUID, OIL/LUBRICANT

Graco 26A129 ProDispense Fluid Panel Kit, Oil Meter, 10 wt oil to #2 grease

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for oil and lubricant applications.

• Oil meter dispenses 10 wt oil to #2 grease.

• Model: ProDispense

• For Use With: Oil and gear lube applications

GG 26A123

KIT,CONTROL,AIR,PD2K

GG 26A130

PANEL, FLUID, WATER/ANTIFREEZE

Graco 26A130 ProDispense Fluid Panel Kit, Water Meter, light viscosity, average resolution

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for water and antifreeze applications.

• Turbine meter is compatible with water and antifreeze.

• Model: ProDispense

GG 26A134

KIT, FCM, FLUIDCTRL, PRODISPENSE

Graco 26A134 ProDispense Fluid Control Module

Fluid Control Module (FCM) expands the base ProDispense system by 2 fluid panels.

• A mounting plate makes attachment to the fluid panel easy.
• Up to 3 modules can be used on each system.
• Additional FCM is required only if more than 2 fluid panels need to be controlled.

• Model: ProDispense

• For Use With: ProDispense Electronic Fluid Dispense and Meter System

• Includes: Mounting plate

GG 26A133

GG 26A187

GG 26A131

PANEL, FLUID, GREASE/PAINT, G3000

Graco 26A131 ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for grease and paint applications.

• Model: ProDispense

• Air Inlet Size (in): 5/32
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: Push

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• For Use With: G3000 meter

• Maximum Air Pressure (bar): 7.03

• Maximum Air Pressure (kPa): 703
• Maximum Air Pressure (psi): 102

• Maximum Flow Rate (cc/min): 3800

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (psi): 3000

• Minimum Flow Rate (GPM): 0.02

GG 26A169

GG 26A165

PANEL, FLUID, SOLVENT

Graco 26A165 ProDispense Fluid Panel Kit, Solvent Meter, light viscosity, high accuracy

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for solvent applications.

• Use S3000 meter with solvents and clear light viscosity materials.

• Model: ProDispense

• For Use With: S3000 meter

GG 26A246

GG 26A304

T3 PUMP, TRANSFER, 3:1

Graco 26A304 T3 Supply Pump (Stainless Steel): 3:1 Fluid to Air Ratio

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco's proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump - using less air pressure to provide the same fluid pressure required.

• Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
• More quiet - Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
• Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air-motor.

• Model: T3
• Series: Stainless Steel

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Foam, Polyurea

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fluid Supply Kit, Air Hose Kit

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (MPa): 0.69
• Maximum Air Inlet Pressure (psi): 100

• Maximum Working Pressure (bar): 21.7
• Maximum Working Pressure (kPa): 2170
• Maximum Working Pressure (MPa): 2.2
• Maximum Working Pressure (psi): 315

• Package Options: Bare

• Pump Ratio: 3:1

GG 26A312

GG 26A247

GG 26A153

GG 26A132

PANEL, FLUID, GREASE/PAINT, HELIC

Graco 26A132 ProDispense Fluid Panel Kit, Helical Meter, wide viscosity, high accuracy

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for high viscosity applications.

• HG6000 Helical Gear meter

• Model: ProDispense

• For Use With: HG6000 meter

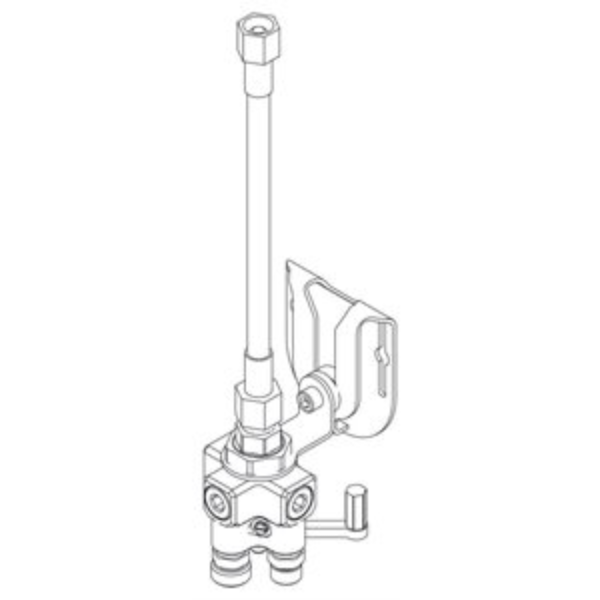

GG 26A225

KIT, MIX MANIFOLD, HP

Graco 26A225 ProMix PD2K High Pressure Mix at the Belt Manifold Kit

Mix Manifold Kits

• Model: ProMix
• Series: PD2K

• Maximum Working Pressure (bar): 105
• Maximum Working Pressure (kPa): 10500
• Maximum Working Pressure (MPa): 10.5
• Maximum Working Pressure (psi): 1500

GG 26A349

GG 26A357

GG 26A355

KIT,VALVE,DISPENSE,HP

GG 26A358

KIT, MIX MANIFOLD, LP

Graco 26A358 ProMix PD2K Low Pressure Mix at the Belt Manifold Kit

Mix Manifold Kits

• Model: ProMix
• Series: PD2K

GG 26A362

KIT, LP, SOLVENT VALVE

Graco 26A362 Low Pressure Non-Circulating Solvent Compatible Valve, 100 psi (7 bar) Max Air Pressure, 300 psi (21 bar) Max Fluid Pressure

• Channels: 4

GG 26A379

GG 26A378

KIT,REBUILD,MIX MANIFOLD

GG 26A381

GG 26A385

GG 26A460

GG 26A781

GG 26A468

GG 26A560

GG 26A470

GG 26A824

GG 26A476

GG 26A704

KIT,INLET REGULATOR,EFR,SS

KIT INCLUDES: REGULATOR, STAINLESS STEEL [QTY. 1], FITTING, ADAPTER, STRAIGHT SWIVEL [QTY. 1], NIPPLE, SST. [QTY. 1]

GG 26A807

GG 26A386

GG 26A464

GG 123969

GG 124490

GG 124926

GG 157129

GG 158262

GG 158920

GG 159704

GG 15A006

GG 15A008

GG 15A033

GG 15A038

GG 15A051

GG 15A173

GG 15A239

GG 15A289

GG 15A552

GG 15A804

GG 15A808

GG 15A851

GG 15A978

GG 15B075

GG 15B134

GG 15B138

GG 15B280

GG 15B378

GG 15B593

GG 15B611

GG 15B817

GG 15B844

GG 15C162

GG 15C375

GG 15C377

GG 15C588

GG 15C765

GG 15D187

GG 15D264

GG 15D310

GG 15D336

GG 15D389

GG 15D547

GG 15D638

GG 15D983

GG 15D982

GG 15E083

GG 15E137

GG 15E114

GG 15E374

GG 15E802
