    REACTOR E-10 SPRAYER, HP, 230V

    Manufacturer: GRACO INC. S10595

    GG 24R900

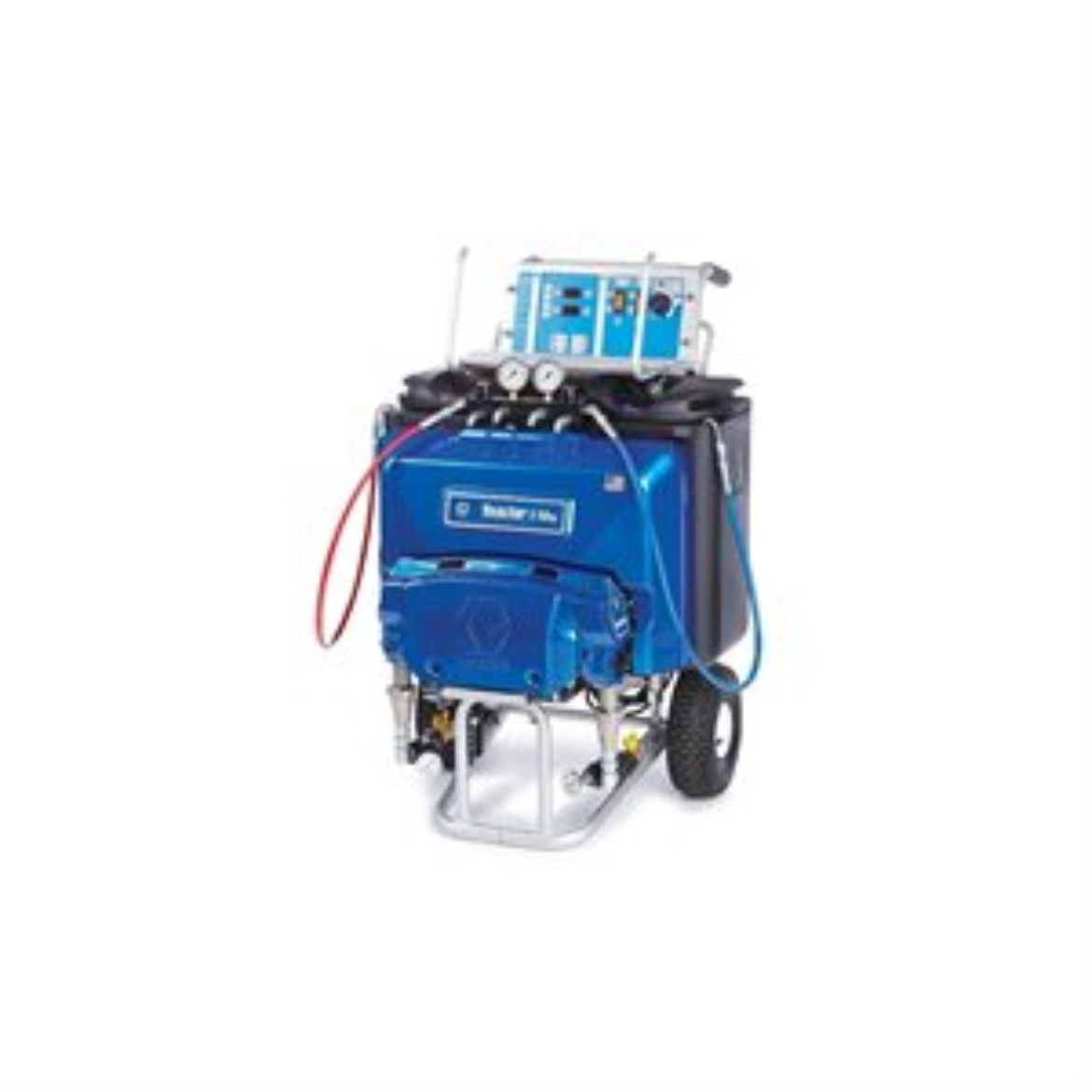

    REACTOR E-10 SPRAYER, HP, 230V

    Graco 24R900 230 V Reactor E-10HP Sprayer

    If you&prime, d like to add polyurea projects to your lineup, the Reactor E-10hp High Pressure Proportioner is a smart, affordable investment that can help your business grow. The Reactor E-10hp provides the high pressure power and performance you need to spray polyurea coatings. It&prime, s lightweight and portable – and runs on residential power so you don’t need to invest in a generator. With the system’s innovative boost heat and insulated tanks, material heats up fast so you’re up and running sooner. In fact, you&prime, re ready to spray in 20 minutes, compared to over an hour startup time on a standard Reactor E-10.

    Application: Entry-level system for pure and hybrid polyurea coatings.
    • Digital heat controls

      Allows you to enter the exact temperatures you need

      Uses the same circuit boards as a standard Reactor

    • Motor

      Offers 50% more power than the Reactor E-10

      Provides improved spray performance with reduced pressure drop

    • Low Level Sensors

      Indicates when material is low (1 gal/3.8 L remaining)

      No contact with materials - prevents buildup

    • Insulated Tanks

      Double-wall insulated to retain heat

      Smooth interior lining for easy cleaning

      Improved seal design on lid for better moisture control

    • Quick knockdown Lower Pumps

      Easy disassembly and maintenance

    • Robust Hybrid Heater

      More power, faster material handling means more uptime

    • Temperature Guages in Y-strainers

      Provides accurate tank temperature readings


    • Model: Reactor
    • Series: E-10hp
    • Amperage (A): 15
    • Application: Protective Coatings
    • Base Inlet Size (cm): 0.635
    • Base Inlet Size (in): 1/4
    • Base Inlet Size (mm): 6.35
    • Catalyst Inlet Size (cm): 0.635
    • Catalyst Inlet Size (in): 1/4
    • Catalyst Inlet Size (mm): 6.35
    • Compatible Material: Plural Components
    • Frequency (Hz): 50/60
    • Gun Type: No Gun
    • Includes: Proportioner, (2) Heaters
    • Maximum Flow Rate (cc/min): 3790
    • Maximum Flow Rate (GPM): 1
    • Maximum Flow Rate (L/min): 3.79
    • Maximum Working Pressure (bar): 172
    • Maximum Working Pressure (kPa): 17200
    • Maximum Working Pressure (MPa): 17.2
    • Maximum Working Pressure (psi): 2500
    • Overall Depth (cm): 91.4
    • Overall Depth (in): 36
    • Overall Depth (mm): 914
    • Overall Height (cm): 116.8
    • Overall Height (in): 46
    • Overall Height (mm): 1168
    • Overall Width (cm): 73.7
    • Overall Width (in): 29
    • Overall Width (mm): 737
    • Power Source: Electric
    • Pressure Type: Low Pressure
    SKU: GG 24R900
    Availability:
    Price: $30,120.00
