GRACO INC. S10595

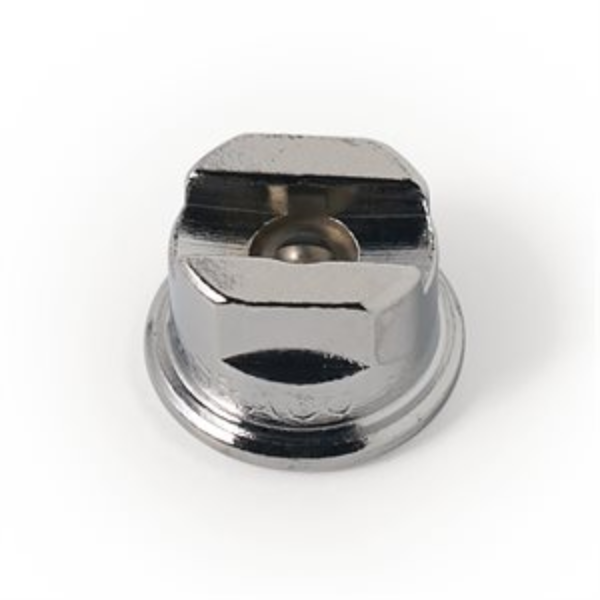

SILVER FLAT TIP, SPRAY TC
GG 163109
SILVER FLAT TIP, SPRAY TC
Graco 163109 Silver Flat Tip, 109
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 109 Silver Flat Tip has a 0.009 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.087
- Maximum Flow Rate (L/min): 0.33
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.009
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
SILVER FLAT TIP, SPRAY TC
GG 163113
SILVER FLAT TIP, SPRAY TC
Graco 163113 Silver Flat Tip, 113
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 113 Silver Flat Tip has a 0.013 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.013
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
SILVER FLAT TIP, SPRAY TC
GG 163111
SILVER FLAT TIP, SPRAY TC
Graco 163111 Silver Flat Tip, 111
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 111 Silver Flat Tip has a 0.011 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.13
- Maximum Flow Rate (L/min): 0.49
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.011
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
SILVER FLAT TIP, SPRAY TC
GG 163115
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 115 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 115 Silver Flat Tip has a 0.015 inch orifice and produces a 2 to 4 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
TIP, SPRAY TC
GG 163117
TIP, SPRAY TC
Graco 163117 Silver Flat Tip, 117
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 117 Silver Flat Tip has a 0.017 inch orifice and produces a 2 to 4 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.017
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6

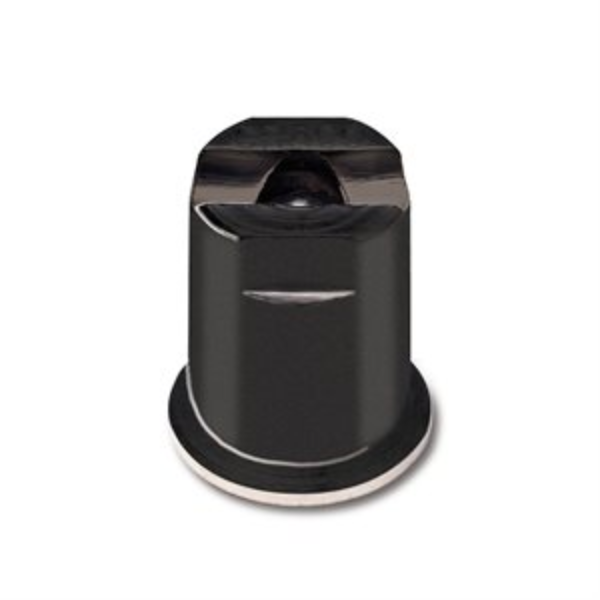

FF FLAT TIP, SPRAY TC
GG 163208
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 208 The 208 Fine Finish Flat Tip produces a 4 to 6 inch fan pattern and a 0.008 inch orifice.
FF FLAT TIP, SPRAY
GG 163210
FF FLAT TIP, SPRAY
Graco 163210 Fine Finish Flat Tip, 210
The 210 Fine Finish Flat Tip produces a 4 to 6 inch fan pattern and a 0.010 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.11
- Maximum Flow Rate (L/min): 0.42
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.010
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163213
SILVER FLAT TIP, SPRAY TC
Graco 163213 Silver Flat Tip, 213
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 213 Silver Flat Tip has a 0.013 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.013
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163219
SILVER FLAT TIP, SPRAY TC
Graco 163219 Silver Flat Tip, 219
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 219 Silver Flat Tip has a 0.019 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.39
- Maximum Flow Rate (L/min): 1.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.019
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163221
SILVER FLAT TIP, SPRAY TC
Graco 163221 Silver Flat Tip, 221
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 221 Silver Flat Tip has a 0.021 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.021
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163223
SILVER FLAT TIP, SPRAY TC
Graco 163223 Silver Flat Tip, 223
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 223 Silver Flat Tip has a 0.023 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.023
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163225
SILVER FLAT TIP, SPRAY TC
Graco 163225 Silver Flat Tip, 225
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 225 Silver Flat Tip has a 0.025 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.025
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163311
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 311 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 311 Silver Flat Tip has a 0.011 inch orifice and produces a 6 to 8 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163312
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 312 The 312 Fine Finish Flat Tip produces a 6 to 8 inch fan pattern and a 0.012 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163315
SILVER FLAT TIP, SPRAY TC
Graco 163315 Silver Flat Tip, 315
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 315 Silver Flat Tip has a 0.015 inch orifice and produces a 6 to 8 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 15
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.015
- Pattern Size (in): 6 to 8
- Pattern Size (mm): 152.4 to 203.2
SILVER FLAT TIP, SPRAY TC
GG 163313
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 313 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 313 Silver Flat Tip has a 0.013 inch orifice and produces a 6 to 8 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163317
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 317 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 317 Silver Flat Tip has a 0.017 inch orifice and produces a 6 to 8 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163316
FF FLAT TIP, SPRAY TC
Graco 163316 Fine Finish Flat Tip, 316
The 316 Fine Finish Flat Tip produces a 6 to 8 inch fan pattern and a 0.016 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 20.3
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.27
- Maximum Flow Rate (L/min): 1.02
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.016
- Pattern Size (in): 6 to 8
- Pattern Size (mm): 152.4 to 203.2
SILVER FLAT TIP, SPRAY TC
GG 163323
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 323 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 323 Silver Flat Tip has a 0.023 inch orifice and produces a 6 to 8 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163409
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 409 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 409 Silver Flat Tip has a 0.009 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163408
FF FLAT TIP, SPRAY TC
Graco 163408 Fine Finish Flat Tip, 408
The 408 Fine Finish Flat Tip produces an 8 to 10 inch fan pattern and a 0.008 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.069
- Maximum Flow Rate (L/min): 0.26
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.008
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
SILVER FLAT TIP, SPRAY TC
GG 163411
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 411 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 411 Silver Flat Tip has a 0.011 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163414
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 414 The 414 Fine Finish Flat Tip produces an 8 to 10 inch fan pattern and a 0.014 inch orifice.
FF FLAT TIP, SPRAY TC
GG 163412
FF FLAT TIP, SPRAY TC
Graco 163412 Fine Finish Flat Tip, 412
The 412 Fine Finish Flat Tip produces an 8 to 10 inch fan pattern and a 0.012 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.15
- Maximum Flow Rate (L/min): 0.57
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.012
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
SILVER FLAT TIP, SPRAY
GG 163413
SILVER FLAT TIP, SPRAY
Graco 163413 Silver Flat Tip, 413
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 413 Silver Flat Tip has a 0.013 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.013
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
FF FLAT TIP, SPRAY TC
GG 163416
FF FLAT TIP, SPRAY TC
Graco 163416 Fine Finish Flat Tip, 416
The 416 Fine Finish Flat Tip produces an 8 to 10 inch fan pattern and a 0.016 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.27
- Maximum Flow Rate (L/min): 1.02
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.016
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
SILVER FLAT TIP, SPRAY TC
GG 163415
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 415 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 415 Silver Flat Tip has a 0.015 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163418
FF FLAT TIP, SPRAY TC
Graco 163418 Fine Finish Flat Tip, 418
The 418 Fine Finish Flat Tip produces an 8 to 10 inch fan pattern and a 0.018 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.35
- Maximum Flow Rate (L/min): 1.32
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.018
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
SILVER FLAT TIP, SPRAY TC
GG 163419
SILVER FLAT TIP, SPRAY TC
Graco 163419 Silver Flat Tip, 419
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 419 Silver Flat Tip has a 0.019 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.39
- Maximum Flow Rate (L/min): 1.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.019
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
SILVER FLAT TIP, SPRAY TC
GG 163417
SILVER FLAT TIP, SPRAY TC
Graco 163417 Silver Flat Tip, 417
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 417 Silver Flat Tip has a 0.017 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.017
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
FF FLAT TIP, SPRAY TC
GG 163420
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 420 The 420 Fine Finish Flat Tip produces an 8 to 10 inch fan pattern and a 0.020 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163511
SILVER FLAT TIP, SPRAY TC
Graco 163511 Silver Flat Tip, 511
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 511 Silver Flat Tip has a 0.011 inch orifice and produces a 10 to 12 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.13
- Maximum Flow Rate (L/min): 0.49
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.011
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC
GG 163515
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 515 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 515 Silver Flat Tip has a 0.015 inch orifice and produces a 10 to 12 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAYTC
GG 163514
FF FLAT TIP, SPRAYTC
Graco 163514 Fine Finish Flat Tip, 514
The 514 Fine Finish Flat Tip produces a 10 to 12 inch fan pattern and a 0.014 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.21
- Maximum Flow Rate (L/min): 0.79
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.014
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
Silver Flate Tip, Spray TC
GG 163517
Silver Flate Tip, Spray TC
Silver Flat Tip, 517 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 517 Silver Flat Tip has a 0.017 inch orifice and produces a 10 to 12 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163516
FF FLAT TIP, SPRAY TC
Graco 163516 Fine Finish Flat Tip, 516
The 516 Fine Finish Flat Tip produces a 10 to 12 inch fan pattern and a 0.016 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.27
- Maximum Flow Rate (L/min): 1.02
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.016
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY, TC
GG 163519
SILVER FLAT TIP, SPRAY, TC
Silver Flat Tip, 519 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 519 Silver Flat Tip has a 0.019 inch orifice and produces a 10 to 12 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163521
SILVER FLAT TIP, SPRAY TC
Graco 163521 Silver Flat Tip, 521
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 521 Silver Flat Tip has a 0.021 inch orifice and produces a 10 to 12 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.021
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC
GG 163523
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 523 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 523 Silver Flat Tip has a 0.023 inch orifice and produces a 10 to 12 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163525
SILVER FLAT TIP, SPRAY TC
Graco 163525 Silver Flat Tip, 525
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 525 Silver Flat Tip has a 0.025 inch orifice and produces a 10 to 12 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.025
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC
GG 163527
SILVER FLAT TIP, SPRAY TC
Graco 163527 Silver Flat Tip, 527
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 527 Silver Flat Tip has a 0.027 inch orifice and produces a 10 to 12 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.78
- Maximum Flow Rate (L/min): 2.95
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.027
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC, FF
GG 163535
SILVER FLAT TIP, SPRAY TC, FF
Graco 163535 Silver Flat Tip, 535
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 535 Silver Flat Tip has a 0.035 inch orifice and produces a 10 to 12 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.035
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC
GG 163609
SILVER FLAT TIP, SPRAY TC
Graco 163609 Silver Flat Tip, 609
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 609 Silver Flat Tip has a 0.009 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.087
- Maximum Flow Rate (L/min): 0.33
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.009
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
FF FLAT TIP, SPRAY TC
GG 163610
FF FLAT TIP, SPRAY TC
Graco 163610 Fine Finish Flat Tip, 610
The 610 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.010 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.11
- Maximum Flow Rate (L/min): 0.42
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.010
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163611
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 611 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 611 Silver Flat Tip has a 0.011 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163612
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 612 The 612 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.012 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163613
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 613 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 613 Silver Flat Tip has a 0.013 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163614
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 614 The 614 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.014 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163615
SILVER FLAT TIP, SPRAY TC
Graco 163615 Silver Flat Tip, 615
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 615 Silver Flat Tip has a 0.015 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.015
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163617
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 617 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 617 Silver Flat Tip has a 0.017 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163620
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 620 The 620 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.020 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163627
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 627 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 627 Silver Flat Tip has a 0.027 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163624
FF FLAT TIP, SPRAY TC
Graco 163624 Fine Finish Flat Tip, 624
The 624 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.024 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.62
- Maximum Flow Rate (L/min): 2.35
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.024
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163713
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 713 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 713 Silver Flat Tip has a 0.013 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF Flat Tip, Spray TC
GG 163626
FF Flat Tip, Spray TC
Graco 163626 Fine Finish Flat Tip, 626
The 626 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.026 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.73
- Maximum Flow Rate (L/min): 2.76
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.026
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
FF FLAT TIP, SPRAY TC
GG 163618
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 618 The 618 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.018 inch orifice.
FF FLAT TIP, SPRAY TC
GG 163622
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 622 The 622 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.022 inch orifice. FF FLAT TIP, SPRAY TC
GG 163712
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 712 The 712 Fine Finish Flat Tip produces a 14 to 16 inch fan pattern and a 0.012 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163655
SILVER FLAT TIP, SPRAY TC
Graco 163655 Silver Flat Tip, 655
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 655 Silver Flat Tip has a 0.055 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 3.25
- Maximum Flow Rate (L/min): 12.30
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.055
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163719
SILVER FLAT TIP, SPRAY TC
Graco 163719 Silver Flat Tip, 719
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 719 Silver Flat Tip has a 0.019 inch orifice and produces a 14 to 16 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 35
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.39
- Maximum Flow Rate (L/min): 1.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.019
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
SILVER FLAT TIP, SPRAY TC
GG 163723
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 723 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 723 Silver Flat Tip has a 0.023 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog. FF FLAT TIP, SPRAY TC
GG 163716
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 716 The 716 Fine Finish Flat Tip produces a 14 to 16 inch fan pattern and a 0.016 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163731
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 731 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 731 Silver Flat Tip has a 0.031 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163733
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 733 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 733 Silver Flat Tip has a 0.033 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163735
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 735 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 735 Silver Flat Tip has a 0.035 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163711
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 711 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 711 Silver Flat Tip has a 0.011 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163815
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 815 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 815 Silver Flat Tip has a 0.015 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
Silver Flat Tip, Spray TC
GG 163721
Silver Flat Tip, Spray TC
Graco 163721 Silver Flat Tip, 721
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 721 Silver Flat Tip has a 0.021 inch orifice and produces a 14 to 16 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 35
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.021
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
SILVER FLAT TIP, SPRAY TC
GG 163821
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 821 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 821 Silver Flat Tip has a 0.021 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163629
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 629 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 629 Silver Flat Tip has a 0.029 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163621
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 621 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 621 Silver Flat Tip has a 0.021 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163823
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 823 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 823 Silver Flat Tip has a 0.023 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163824
FF FLAT TIP, SPRAY TC
Graco 163824 Fine Finish Flat Tip, 824
The 824 Fine Finish Flat Tip produces a 16 to 18 inch fan pattern and a 0.024 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 45.7
- Maximum Fan Width (in): 16
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 0.62
- Maximum Flow Rate (L/min): 2.35
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.024
- Pattern Size (in): 16 to 18
- Pattern Size (mm): 406.4 to 457.2
SILVER FLAT TIP, SPRAY TC
GG 163625
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 625 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 625 Silver Flat Tip has a 0.025 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163671
SILVER FLAT TIP, SPRAY TC
Graco 163671 Silver Flat Tip, 671
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 671 Silver Flat Tip has a 0.071 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 5.41
- Maximum Flow Rate (L/min): 20.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.071
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163633
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 633 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 633 Silver Flat Tip has a 0.033 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog. SILVER FLAT TIP, SPRAY TC
GG 163839
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 839 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 839 Silver Flat Tip has a 0.039 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog. SILVER FLAT TIP, SPRAY TC
GG 163835
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 835 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 835 Silver Flat Tip has a 0.035 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog. SILVER FLAT TIP, SPRAY TC
GG 163833
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 833 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 833 Silver Flat Tip has a 0.033 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163915
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 915 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 915 Silver Flat Tip has a 0.015 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163619
SILVER FLAT TIP, SPRAY TC
Graco 163619 Silver Flat Tip, 619
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 619 Silver Flat Tip has a 0.019 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.39
- Maximum Flow Rate (L/min): 1.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.019
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163635
SILVER FLAT TIP, SPRAY TC
Graco 163635 Silver Flat Tip, 635
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 635 Silver Flat Tip has a 0.035 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.035
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163919
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 919 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 919 Silver Flat Tip has a 0.019 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163819
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 819 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 819 Silver Flat Tip has a 0.019 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163623
SILVER FLAT TIP, SPRAY TC
Graco 163623 Silver Flat Tip, 623
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 623 Silver Flat Tip has a 0.023 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.023
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
SILVER FLAT TIP, SPRAY TC
GG 163715
SILVER FLAT TIP, SPRAY TC
Graco 163715 Silver Flat Tip, 715
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 715 Silver Flat Tip has a 0.015 inch orifice and produces a 14 to 16 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 35
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.015
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
SILVER FLAT TIP, SPRAY TC
GG 163817
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 817 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 817 Silver Flat Tip has a 0.017 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163917
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 917 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 917 Silver Flat Tip has a 0.017 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163923
SILVER FLAT TIP, SPRAY TC
Graco 163923 Silver Flat Tip, 923
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 923 Silver Flat Tip has a 0.023 inch orifice and produces a 18 to 20 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 45
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 508
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 18
- Minimum Fan Width (mm): 457
- Orifice Diameter (in): 0.023
- Pattern Size (in): 18 to 20
- Pattern Size (mm): 457.2 to 508
FF FLAT TIP, SPRAY TC
GG 163714
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 714 The 714 Fine Finish Flat Tip produces a 14 to 16 inch fan pattern and a 0.014 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163921
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 921 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 921 Silver Flat Tip has a 0.021 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163832
FF FLAT TIP, SPRAY TC
Graco 163832 Fine Finish Flat Tip, 832
The 832 Fine Finish Flat Tip produces a 16 to 18 inch fan pattern and a 0.032 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 45.7
- Maximum Fan Width (in): 16
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 1.10
- Maximum Flow Rate (L/min): 4.16
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.032
- Pattern Size (in): 16 to 18
- Pattern Size (mm): 406.4 to 457.2
SILVER FLAT TIP, SPRAY TC
GG 163925
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 925 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 925 Silver Flat Tip has a 0.025 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog. SILVER FLAT TIP, SPRAY TC
GG 163929
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 929 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 929 Silver Flat Tip has a 0.029 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
Silver Flat Tip, Spray TC
GG 163931
Silver Flat Tip, Spray TC
Silver Flat Tip, 931 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 931 Silver Flat Tip has a 0.031 inch orifice and produces a 18 to 20 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163933
SILVER FLAT TIP, SPRAY TC
Graco 163933 Silver Flat Tip, 933
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 933 Silver Flat Tip has a 0.033 inch orifice and produces a 18 to 20 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 45
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 508
- Maximum Flow Rate (GPM): 1.17
- Maximum Flow Rate (L/min): 4.43
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 18
- Minimum Fan Width (mm): 457
- Orifice Diameter (in): 0.033
- Pattern Size (in): 18 to 20
- Pattern Size (mm): 457.2 to 508
