GG 163413
SILVER FLAT TIP, SPRAY

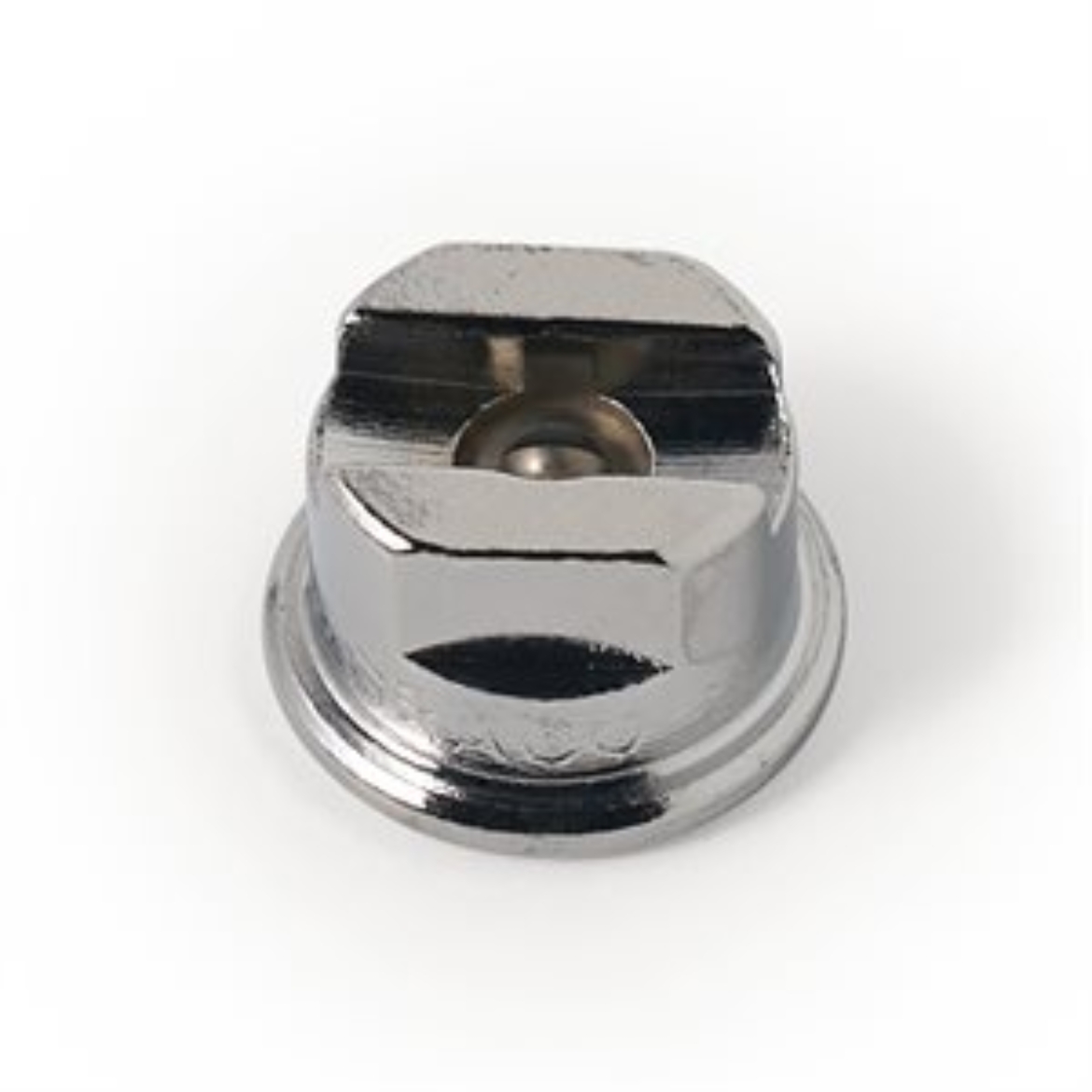

Graco 163413 Silver Flat Tip, 413
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 413 Silver Flat Tip has a 0.013 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.013
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
