GB Tip, Spray TC

GG 163225

SILVER FLAT TIP, SPRAY TC

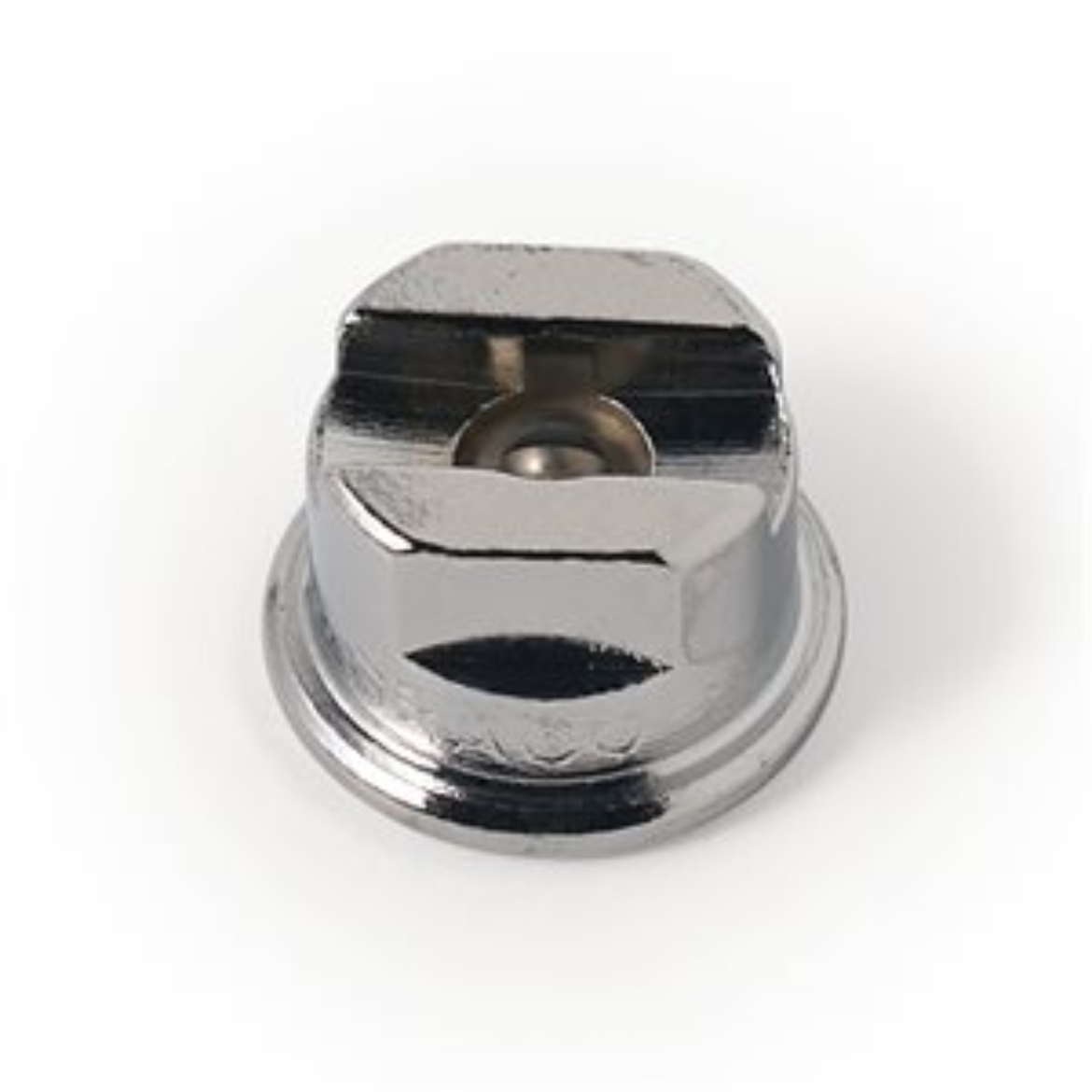

Graco 163225 Silver Flat Tip, 225

Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 225 Silver Flat Tip has a 0.025 inch orifice and produces a 4 to 6 inch fan.

• Model: Silver
• Series: Flat Tip

• Maximum Fan Width (cm): 10
• Maximum Fan Width (in): 4
• Maximum Fan Width (mm): 152

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.54

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 4
• Minimum Fan Width (mm): 102

• Orifice Diameter (in): 0.025

• Pattern Size (in): 4 to 6
• Pattern Size (mm): 101.6 to 152.4
