Silver Tip

GG 163609

SILVER FLAT TIP, SPRAY TC

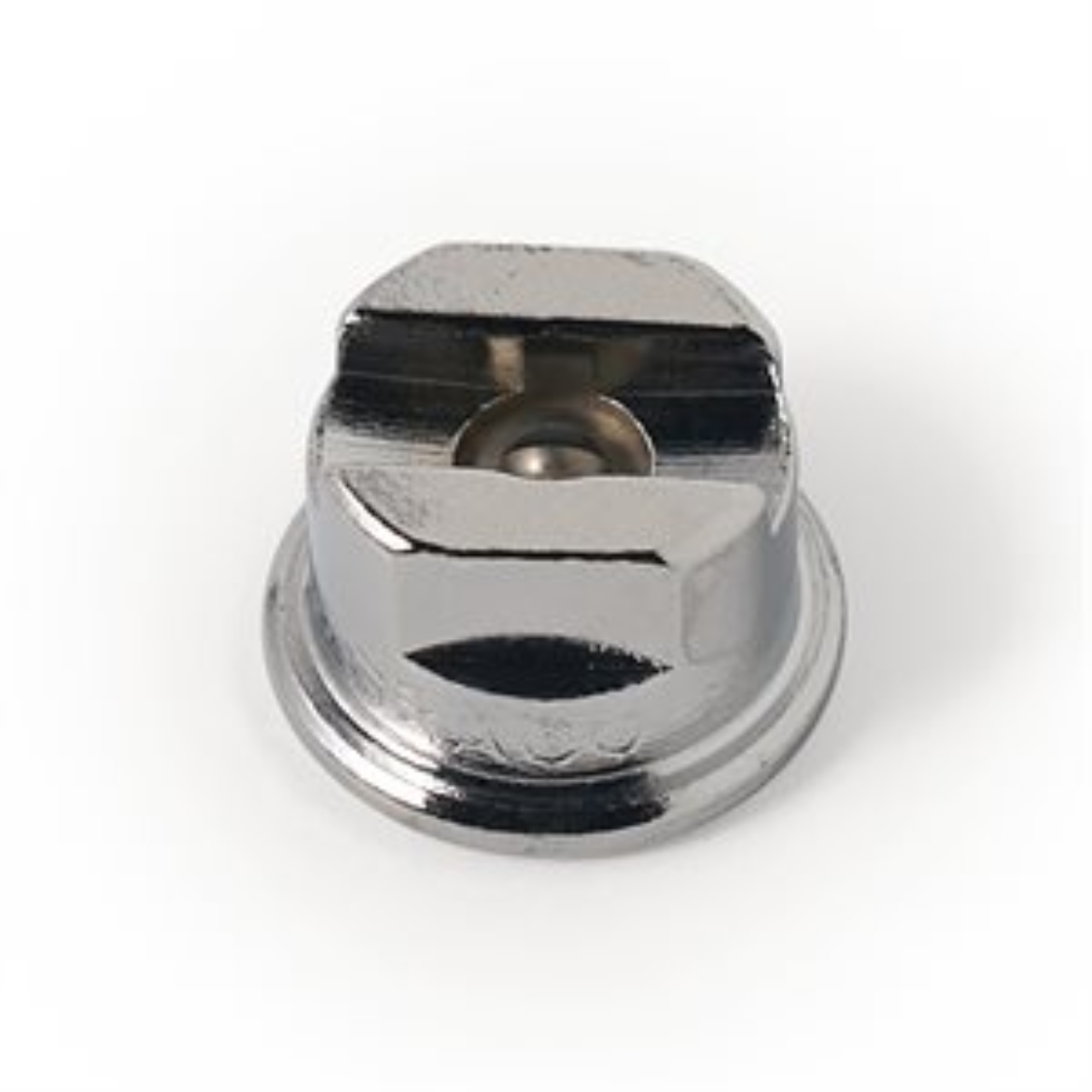

Graco 163609 Silver Flat Tip, 609

Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 609 Silver Flat Tip has a 0.009 inch orifice and produces a 12 to 14 inch fan.

• Model: Silver
• Series: Flat Tip

• Maximum Fan Width (cm): 30
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 0.087
• Maximum Flow Rate (L/min): 0.33

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.009

• Pattern Size (in): 12 to 14
• Pattern Size (mm): 304.8 to 355.6
