GB Tip, Spray RC, FF

GG 163535

SILVER FLAT TIP, SPRAY TC, FF

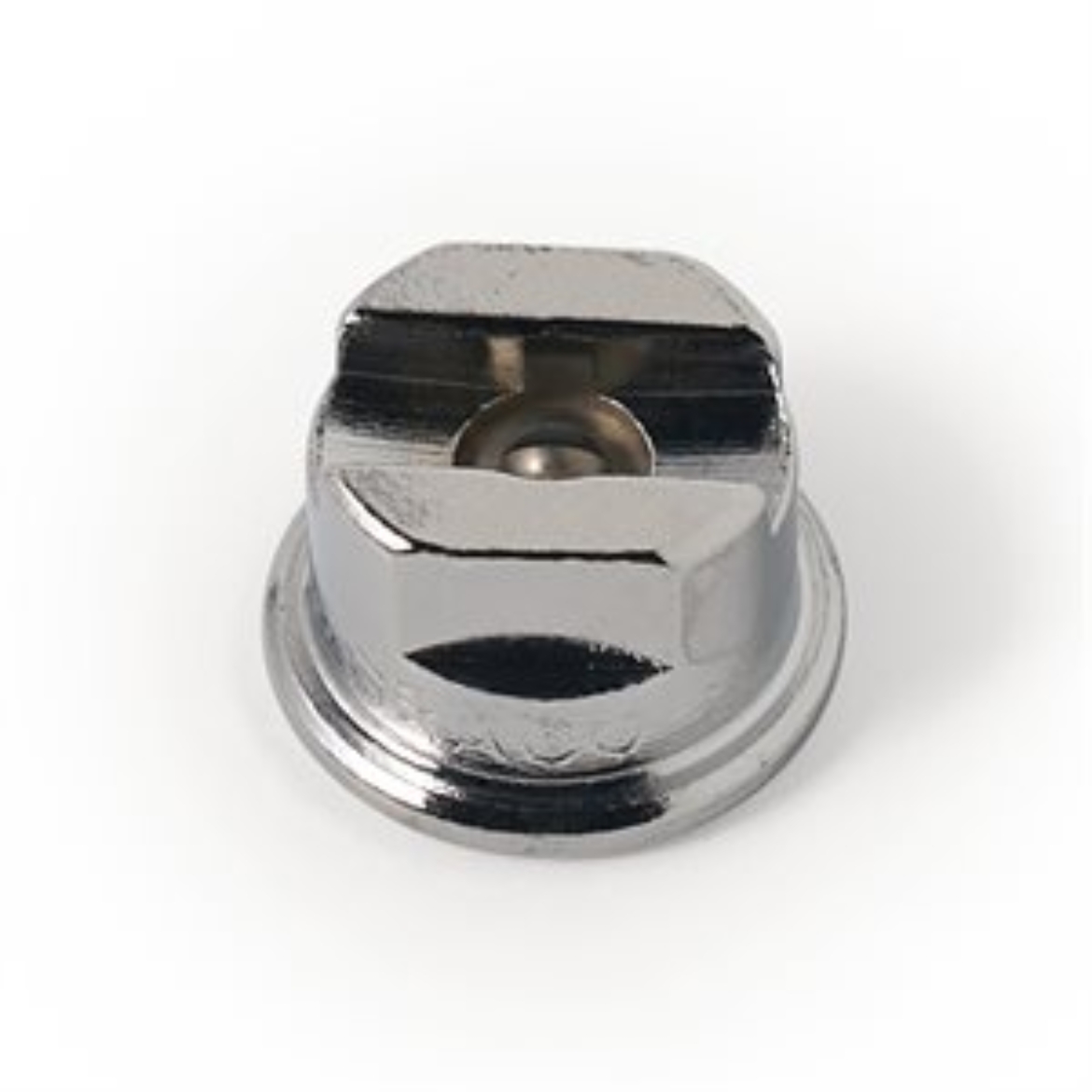

Graco 163535 Silver Flat Tip, 535

Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 535 Silver Flat Tip has a 0.035 inch orifice and produces a 10 to 12 inch fan.

• Model: Silver
• Series: Flat Tip

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 1.31
• Maximum Flow Rate (L/min): 4.96

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.035

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8
