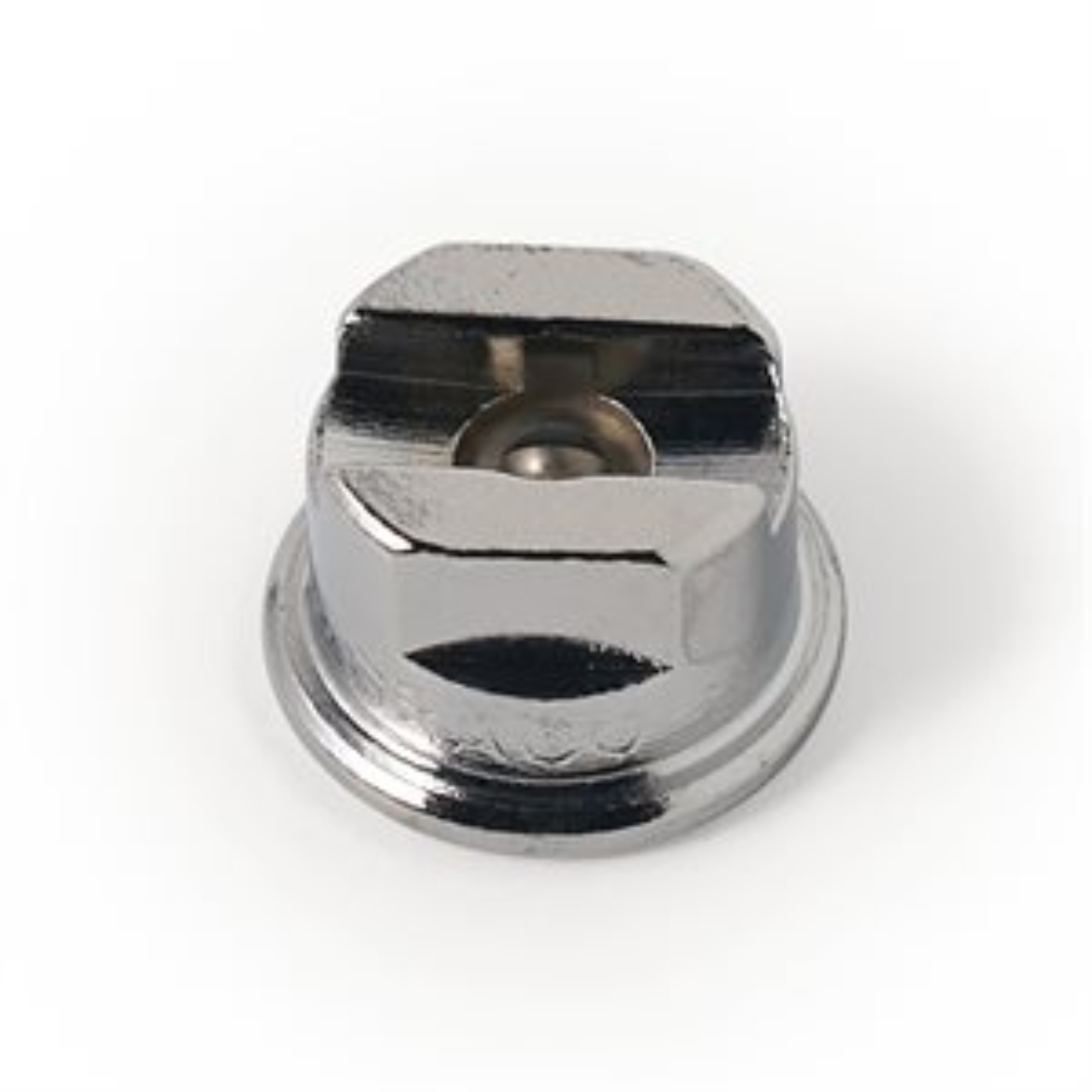

Silver Tip

GG 163523

SILVER FLAT TIP, SPRAY TC

Graco 163523 Silver Flat Tip, 523

Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 523 Silver Flat Tip has a 0.023 inch orifice and produces a 10 to 12 inch fan.

• Model: Silver
• Series: Flat Tip

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.57
• Maximum Flow Rate (L/min): 2.16

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.023

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8
