GRACO INC. S10595

GG 160621

GG 162453

GG 24E416

GG 24E419

GG 24E423

GG 24E430

GG 24E471

REGULATOR, FLUID, 2:1 RATIO

Graco 24E471 1:2 Precision Flow Fluid Pressure Regulator, 50 psi (3.4 bar) max pressure, green ratio spacer

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Working Pressure (bar): 3.5
• Maximum Working Pressure (kPa): 350
• Maximum Working Pressure (MPa): 0.4
• Maximum Working Pressure (psi): 50

• Minimum Working Pressure (bar): 0.069
• Minimum Working Pressure (kg/cm 2): 0.07
• Minimum Working Pressure (kPa): 6.9

• Minimum Working Pressure (psi): 1

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175

GG 24E446

GG 24E711

GG 24F165

KIT, HOSE, FLUID, 25FT, CS

Graco 24F165 Fluid Hose, 1/8" ID, 25 ft (7.5 m), plated steel

GG 24F224

GG 247212

FUSION MP GUN, MR3535, RTM040

Graco 247212 Round Pattern Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Orifice Size and Mix Chamber with 0.035 in (0.89 mm) Impingement Port

Whether youre spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.

• Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.102
• Fluid Orifice Size (in): 0.040
• Fluid Orifice Size (mm): 1.02

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Port Size (in): 0.035
• Impingement Port Size (mm): 0.89
• Impingement Type: Standard

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .035

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm):

GG 246947

KIT, ACCY, AIR FLTR/REG, 1/2 NPT

Graco 246947 Regulator / Filter Assembly 1/2" npt(f) (12.7 mm) for Husky 1050, 1590, 15120, 2150 and 2200 pumps

• 1/2 NPT

• 250 psi Working Pressure

• Air Inlet Size (cm): 1.27
• Air Inlet Size (in): 1/2
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Air Outlet Size (cm): 1.27
• Air Outlet Size (in): 1/2
• Air Outlet Size (mm): 12.7
• Air Outlet Thread Gender: Female
• Air Outlet Thread Type: NPT

GG 247883

GG 248212

KIT, REPAIR, PACKING, 695/795

Graco 248212 Pump Packing Repair Kit

Replace a worn or damaged pump with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility

• Graco Tech Support can further assist with troubleshooting sprayer operation

• Model: Graco

• For Use With: 695 Electric Airless Sprayer

GG 249323

GG 24A252

KIT, REPAIR,VEE, 50CC

Graco 24A252 Standard Seal Repair Kit for Merkur LW050A

GG 24A261

GG 24A576

GG 24B872

AIRPRO GUN, ASSY, EFX, LVMP, .043

Graco 24B872 AirPro EFX Auto Air Spray Gun with Manifold, LVMP, 0.043 inch (1.1 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust Knob

The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.

• Aircaps and nozzles deliver superior, precision spray performance
• Precision fluid adjustment with a micrometer-telescoping knob
• High wear components designed for abrasive materials

• Model: AirPro
• Series: EFX

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Plastic

• Compatible Material: Ceramics, Enamel, Fast-Set, High Solids, Solvent borne, Waterborne

• Component Type: Single Component

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Ultra Precision
• Fluid Orifice Size (cm): 0.11
• Fluid Orifice Size (in): 0.043
• Fluid Orifice Size (mm): 1.1

• Gun Activation: Automatic
• Gun Type: LVMP Gun
• Gun Weight (kg): 0.59
• Gun Weight (lb): 1.3

• Includes: Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate @ PSI (oz/min): 8.5

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Minimum Flow Rate @ PSI (oz/min): 0.8

• Needle Tip Material: Stainless Steel

• Overall Height (cm): 2.6
• Overall Height (in): 1
• Overall Height (mm): 25
• Overall Length (cm): 12
• Overall Length (in): 4.9
• Overall Length (mm): 124
• Overall Width (cm): 3.8
• Overall Width (in): 1
• Overall Width (mm): 25

• Purge Method: Air

GG 24C135

KIT, REPAIR

Graco 24C135 Standard Pump Repair Kit with Nylon Piston Seal, for 400 Series Glutton Pumps

GG 164846

PACKING, O-RING, 1-3/4ID X 1-15/16OD

Graco 164846 PTFE O-Ring for Stainless Steel Displacement Pump

GG 165702

GG 214852

GG 222405

VALVE, BACK PRESSURE

Graco 222405 High Pressure Fluid Back Pressure Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 70
• Maximum Regulated Pressure (kPa): 7000
• Maximum Regulated Pressure (psi): 1000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (MPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Type: NPT

GG 222559

GG 222864

KIT,REPAIR, PUMP, 8CM

Graco 222864 Pump Repair Kit for Check-Mate 800 Carbon Steel Pump- UHMWPE/PTFE Throat and Intake Packages

KIT INCLUDES: GLAND, PACKING, MALE [QTY. 1], GLAND, PACKING, FEMALE [QTY. 1], GLAND, PACKING MALE [QTY. 1], GLAND, PACKING FEMALE [QTY. 1], PACKING, VEE [QTY. 3], PACKING, VEE [QTY. 2], PACKING, VEE [QTY. 2], PACKING, VEE [QTY. 2], PACKING, O-RING [QTY. 2], PACKING, O-RING [QTY. 1], SEAL, PISTON [QTY. 1], SEAL, VALVE [QTY. 1], SEAL, (8, 10 CM) [QTY. 1]

• Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers

GG 224345

MONARK PUMP, 5:1

Graco 224345 Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, Solvent borne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.46

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Portable: Non-Portable

• Pump Ratio: 5:1

GG 224403

KIT, REPAIR

Graco 224403 Standard Repair Kit (UHMWPE/PTFE)

GG 224835

GG 226940

FAST-FLO PUMP, 1:1, CS, 55 GAL

Graco 226940 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with T&L Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG 234237

GUN, SPRAY, UNDERCOAT

Graco 234237 4-Finger Silver Gun with Tip Guard/Tip - 4,500 psi (310 bar) x 3/8 NPT(f) Inlet

• Up to 18,000 psi (1,242 bar)
• Must order 155570 adapter and 239663 straight swivel to accommodate gun to 1/4 in (mbe) hose.

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Body Material: Aluminum

• Compatible Material: Undercoating, Rustproofing
• Component A Inlet Size (cm): 0.635

• Component A Inlet Size (in): 1/4
• Component A Inlet Size (mm): 6.35
• Component A Inlet Thread Type: NPSM

• Fluid Orifice Size (cm): 0.043
• Fluid Orifice Size (in): 0.017
• Fluid Orifice Size (mm): 0.43

• For Use With: Undercoating and Rustproofing

• Gun Activation: Manual
• Gun Type: Airless Gun

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature ( degree C): 50
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature ( degree C): 50
• Maximum Fluid Temperature ( degree F): 120

GG 234268

REGULATOR, PRESS, P100-RM, NPT

Graco 234268 High Pressure Fluid Back Pressure Regulator, 2500 Max psi, 600-1500 psi Pressure Range, 10.2 GPM, SST, Spring Type, 3/8(f) x 3/8(f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 10.2
• Maximum Flow Rate (L/min): 38.6

• Maximum Regulated Pressure (bar): 100
• Maximum Regulated Pressure (kPa): 10000
• Maximum Regulated Pressure (psi): 1500

• Maximum Working Pressure (bar): 170
• Maximum Working Pressure (kPa): 17000
• Maximum Working Pressure (psi): 2500

• Minimum Regulated Pressure (bar): 40
• Minimum Regulated Pressure (kPa): 4000
• Minimum Regulated Pressure (MPa): 4
• Minimum Regulated Pressure (psi): 600

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 60/0137/89

GG 626702

GG 649117

GG 651928

GG 685971

CYLINDER, ULTRALIFE (750CC)

Graco 685971 Cylinder Pump, SST/ Ultra-Life for 750 cc 4 Ball Lowers

GG 255652

KIT, SEAL, NEOPRENE, 55 GL

KIT INCLUDES: SEAL, DRUM WIPER 55GAL NEOPRENE [QTY. 2], KIT INCLUDES: SEAL, DRUM WIPER 55 GALLON [QTY. 2],

GG 257147

GG 257622

GG 258669

GG 257666

GG 258853

RS GUN, ASM, INT MIX, GEL

Graco 258853 RS Internal Mix Gel Coat Gun with Tip

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. Its lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It's available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun's revolutionary design and industry-first features can help boost your company's bottom line.

• Makes production easier

  Simple, quick start up and shut down

  Quick tool-less blade change

  No need to adjust needle settings after maintenance

  • Improves product quality

    Lightweight cutter gives better chopping control

    Easy one-hand cutter speed control

    Superior spray pattern

    • Improves operator comfort for increased job satisfaction

      Lighter, ergonomic gun reduces fatigue

      Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear

      No problems soaking the RS Gun in solvents overnight




      • Model: RS
      • Chop Gun Type: Without Cutter
      • Compatible Material: Polyester Resin, Gel-Coat
      • For Use With: FRP System
      • Gun Type: Gel Coat
      • Gun Weight (g): 1050
      • Gun Weight (kg): 1.05
      • Gun Weight (lb): 2.32
      • Gun Weight (oz): 37.04
      • Includes: CST521 Tip
      • Maximum Air Pressure (bar): 8.6
      • Maximum Air Pressure (kg/cm 2): 8.79
      • Maximum Air Pressure (kPa): 860
      • Maximum Air Pressure (psi): 125
      • Maximum Fluid Pressure (bar): 138
      • Maximum Fluid Pressure (kg/cm 2): 141
      • Maximum Fluid Pressure (kPa): 13800
      • Maximum Fluid Pressure (psi): 2000
      • Maximum Fluid Temperature ( degree C): 38
      • Maximum Fluid Temperature ( degree F): 100
      • Maximum Fluid Pressure (bar): 138
      • Maximum Fluid Pressure (kg/cm 2): 141
      • Maximum Fluid Pressure (kPa): 13800
      • Maximum Fluid Pressure (psi): 2000
      • Maximum Fluid Temperature ( degree C): 38
      • Maximum Fluid Temperature ( degree F): 100
      • Minimum Air Flow Rate (SCFM): 12.5
      • Minimum Air Inlet Pressure (bar): 0
      • Minimum Air Inlet Pressure (kPa): 0
      • Minimum Air Inlet Pressure (psi): 0
      • Mix Type: Internal Mix

GG 25B124

GG L100CM

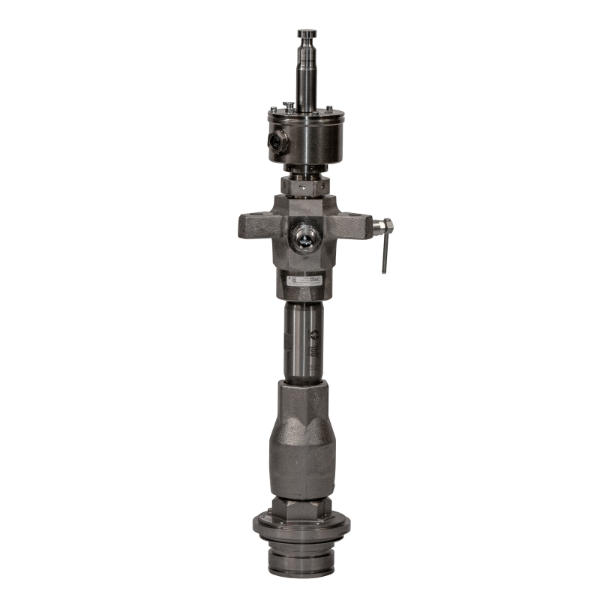

LOWER, CM100 MAXLIFE

Graco L100CM Carbon Steel MaxLife Check-Mate 100 Lower

• Model: Check-Mate

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• For Use With: Check-Mate Pump Packages

• Maximum Flow Rate (GPM): 1.6

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 100

• Maximum Pump Speed (CPM): 60

• Maximum Working Pressure (psi): 6300

GG L100S1

LOWER, CHEMICAL, 100, SST, UCUP

Graco L100S1 Z-Pump, 100 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 1.59

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 100

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG L120S1

LOWER, CHEMICAL, 120, SST, UCUP

Graco L120S1 Z-Pump, 120 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 1.90

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 120

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG L160S1

LOWER, CHEMICAL, 160, SST, UCUP

Graco L160S1 Z-Pump, 160 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 2.54

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 160

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

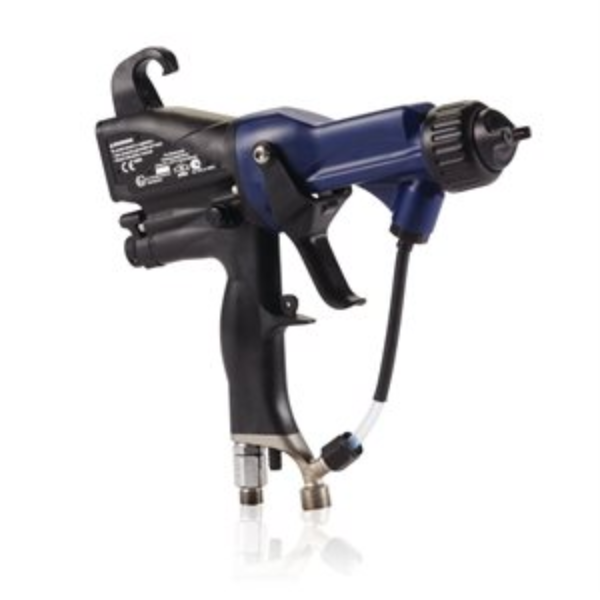

GG L60M10

PRO XP GUN, ES, 60KV, SMART

Graco L60M10 Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.055 in (1.5 mm) nozzle, smart display, standard coatings

This 60 kV electrostatic paint spray gun comes in a compact, lightweight package with smart technology.

• Smart controls help you analyze performance, adapt voltage, and troubleshoot easily.
• Built-in durability means each gun is designed to last - and made in the USA.
• High transfer efficiency equals less waste, saving you money on material.

• Model: Pro Xp
• Series: 60

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Smart

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 670
• Gun Weight (kg): 0.67
• Gun Weight (lb): 1.48
• Gun Weight (oz): 23.63

• Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 24.13
• Overall Length (in): 9.5
• Overall Length (mm): 241.3

GG LC1249

GG LCC640

GG LP519

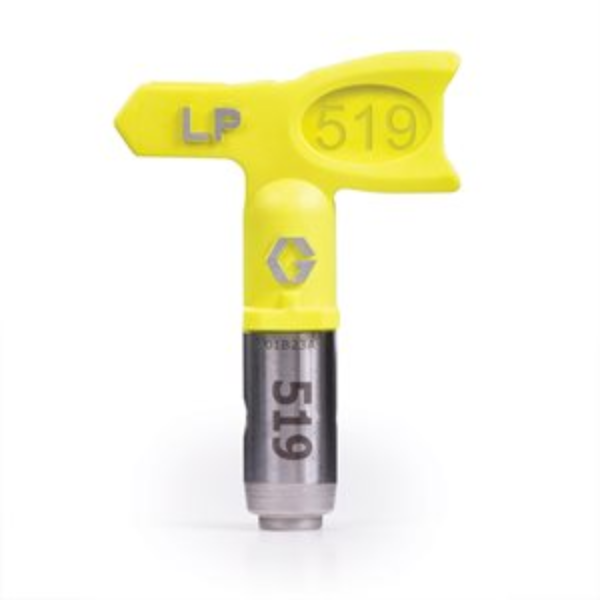

RAC X LP TIP, SPRAY, (519)

Graco LP519 Low Pressure RAC X LP SwitchTip, 519

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 519 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 10 to 12 inch fan pattern and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Less Prep & Cleanup Time

  Less mess with less overspray

  Put the paint where you want it

• Easiest Pattern Overlap

  Softer spray fan pattern

  Easy to apply any material to any surfance

  Consistent blended finish quality

• Extended Life

  Spraying at half pressure doubles tip life

  Reduced sprayer maintenance - up to 2X life

• Best Tip on the Market

  Works with any airless sprayer

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LP SwitchTip

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.019

GG LTX427

RAC X LTX TIP, SPRAY, (427)

Graco LTX427 RAC X SwitchTip, 427

The Reverse-A-Clean (RAC) 427 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.77
• Maximum Flow Rate (L/min): 2.91

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.027

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX431

RAC X LTX TIP, SPRAY, (431)

Graco LTX431 RAC X SwitchTip, 431

The Reverse-A-Clean (RAC) 431 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 1.03
• Maximum Flow Rate (L/min): 3.90

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.031

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX429

RAC X LTX TIP, SPRAY, LATEX, (429)

Graco LTX429 RAC X SwitchTip, 429

The Reverse-A-Clean (RAC) 429 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.90
• Maximum Flow Rate (L/min): 3.41

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.029

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX433

RAC X LTX TIP, SPRAY, (433)

Graco LTX433 RAC X SwitchTip, 433

The Reverse-A-Clean (RAC) 433 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.033 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 1.17
• Maximum Flow Rate (L/min): 4.43

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.033

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

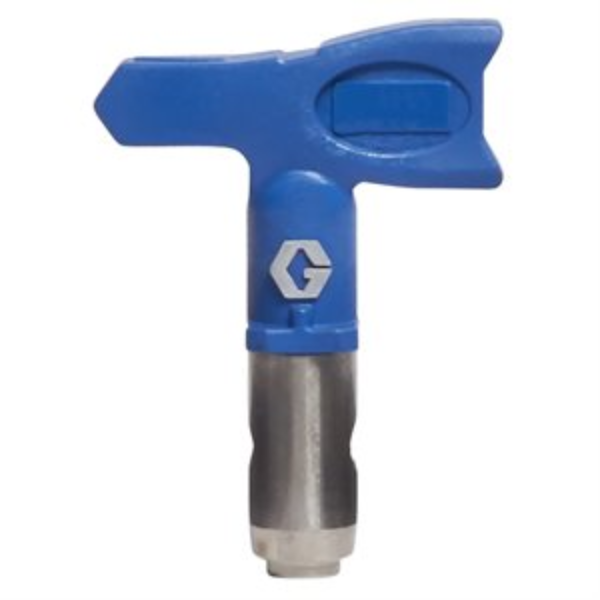

GG LTX615

RAC X LTX TIP, SPRAY, 615

Graco LTX615 RAC X SwitchTip, 615

The Reverse-A-Clean (RAC) 615 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 30
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 0.24
• Maximum Flow Rate (L/min): 0.91

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.015

• Pattern Size (in): 12 to 14
• Pattern Size (mm): 304.8 to 355.6

GG LTX435

RAC X LTX TIP, SPRAY, LATEX, (435)

Graco LTX435 RAC X SwitchTip, 435

The Reverse-A-Clean (RAC) 435 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.035 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 1.31
• Maximum Flow Rate (L/min): 4.96

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.035

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX513

RAC X LTX TIP, SPRAY, 513

Graco LTX513 RAC X SwitchTip, 513

The Reverse-A-Clean (RAC) 513 RAC X SwitchTip produces a 10 to 12 inch fan and has a 0.013 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.013

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG 25N519

KIT,DRIVER,APD20,VERTICAL

KIT INCLUDES: DRIVER, NON-HAZ, APD20, VERTICAL [QTY. 1], LABEL, WARNING [QTY. 1], BOX, JUNCTION, POWER, MOTOR, APD [QTY. 1], SCREW, SHCS M8X60 [QTY. 4 ], PLUG, PIPE HEADLES [QTY. 1], GRIP, CORD, .35-.63, 3/4 [QTY. 1], SWITCH, DISCONNECT, 40A [QTY. 1], COVER, JUCTION BOX, APD MOTOR [QTY. 1], SCREW, SOCKET, FL HD [QTY. 4 ], KNOB, DISCONNECT, PANEL, BLACK [QTY. 1], FERRULE, 16 GA TWIN WIRE [QTY. 2], LABEL, CAUTION [QTY. 1], DOCUMENT, DECLARATION [QTY. 1], LABEL, E-FLO SP [QTY. 1]

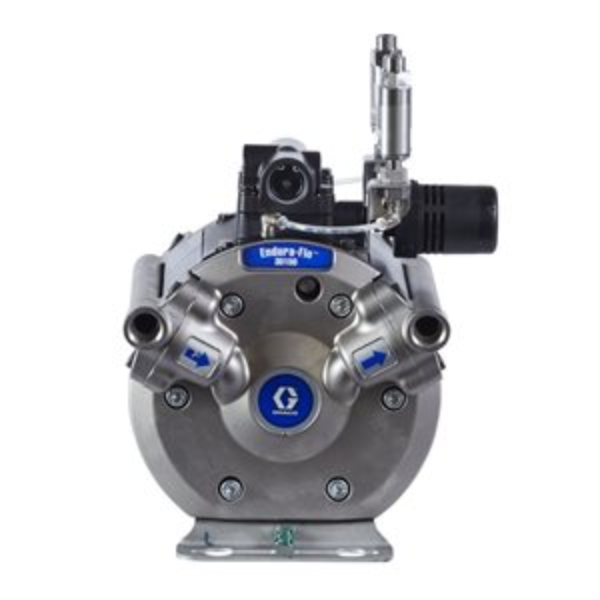

GG 25M743

ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, ADV

Graco 25M743 Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPT, DataTrak

The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
• DataTrek option prevents runaway and tracks material usage

• Model: Endura-Flo
• Series: 3D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings, DataTrak

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Power Source: Air

• Pump Ratio: 3:1

GG 25P588

FUSION PC GUN, RND, 01

Graco 25P588 Fusion ProConnect Gun with Round 01 Mix Chamber and 0.042 in (1.06 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• Eliminates the need to purchase fluid section o-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

• Model: Fusion PC
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.07

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight (g): 1338
• Gun Weight (kg): 1.3
• Gun Weight (lb): 2.95
• Gun Weight (oz): 47

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.07
• Includes: PC42RD Mix Chamber Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air

GG 24W352

ENDURA-FLO PUMP, 4:1 AODD, 350, NPT, STD

Graco 24W352 Endura-Flo 4D350, 4:1 Air Operated Diaphragm Pump, 350cc, NPT

The Endura-Flo 4D offers the industry's highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 4D350

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 5.5
• Maximum Flow Rate (L/min): 20.8

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Overall Height (in): 14.39

• Power Source: Air

• Pump Ratio: 4:1

GG 24W988

KIT, BELL ASSY TURBINE

GG 24W651

SENSOR, ASSEMBLY, G250/G3000

Graco 24W651 Electronic Sensor, G250/G3000

GG 24Y434

GG 24Y559

HUSKY SYSTEM, CART, 1050P-E, PP/PT/PTS/5B

Graco 24Y559 Husky 1050e PP Electric Operated Double Diaphragm Plastic Pump System with Cart, PTFE

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

• Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves
• Energy efficient - electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
• Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

• Model: Husky
• Series: 1050e

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Detergent, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Material: Polypropylene

• Maximum Air Pressure (bar): 5.5

• Maximum Air Pressure (kPa): 550
• Maximum Air Pressure (MPa): 0.55
• Maximum Air Pressure (psi): 80
• Maximum Amperage (A): 5.2

• Maximum Cycle Rate (CPM): 280

• Maximum Flow Rate (GPM): 42
• Maximum Flow Rate (L/min): 159

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Motor Speed (RPM): 3600

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175

• Maximum Storage Temperature ( degree C): 40
• Maximum Storage Temperature ( degree F): 104

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Motor Type: Brushless DC

• Power Rating (HP): 2.2
• Power Source: Electric

GG 24Y561

HUSKY SYSTEM, CART, 1050S-E, SS/PT/PTS/5B

Graco 24Y561 Husky 1050e SS Electric Operated Double Diaphragm Metal Pump System with Cart, PTFE

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

• Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves
• Energy efficient - electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
• Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

• Model: Husky
• Series: 1050e

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Detergent, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Stainless Steel

• Manifold Configuration: Center Port
• Material: Stainless Steel

• Maximum Air Pressure (bar): 5.5

• Maximum Air Pressure (kPa): 550
• Maximum Air Pressure (MPa): 0.55
• Maximum Air Pressure (psi): 80
• Maximum Amperage (A): 5.2

• Maximum Cycle Rate (CPM): 280

• Maximum Flow Rate (GPM): 42
• Maximum Flow Rate (L/min): 159

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Motor Speed (RPM): 3600

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175

• Maximum Storage Temperature ( degree C): 40
• Maximum Storage Temperature ( degree F): 104

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Motor Type: Brushless DC

• Power

GG 24Z084.

GG 24Z177

GG NXT102

GG NXT200

KIT, REPAIR SOFT SEAL NXT 2200

GG P57LSS

DURA-FLO PUMP, 6500/220

Graco P57LSS 57:1 - 220cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• NXT 6500 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 220cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity

  • Optional DataTrak Control

    Runaway protection

    Pump diagnostics

    Material usage




    • Model: Dura-Flo
    • Ambient/Warm Melt/Hot Melt: Ambient
    • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
    • Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
    • Fluid Inlet Size (in): 2
    • Fluid Inlet Size (mm): 50.8000
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1
    • Fluid Outlet Size (mm): 25.4000
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
    • Material: Stainless Steel
    • Maximum Working Pressure (bar): 388
    • Maximum Working Pressure (kPa): 38800
    • Maximum Working Pressure (MPa): 38.8
    • Maximum Working Pressure (psi): 5700
    • Power Type: Pneumatic
    • Pump Ratio: 57:1

GG 289246

FINEX GUN, GRACO, 2, CONV., 1.8

Graco 289246 Finex Air Spray Gravity Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Standard Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.071
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 540
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.05

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Working Pressure (bar): 6.9
• Maximum Fluid Working Pressure (MPa): 0.69
• Maximum Fluid Working Pressure (psi): 100

• Product Type: Spray Gun

GG 289255

FINEX GUN, 2, CONV, PRESS, 1.8

Graco 289255 Finex Air Spray Pressure Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.071
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 370
• Gun Weight (kg): 0.37
• Gun Weight (lb): 0.8
• Gun Weight (oz): 13.05

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Working Pressure (bar): 6.9
• Maximum Fluid Working Pressure (MPa): 0.69
• Maximum Fluid Working Pressure (psi): 100

• Product Type: Spray Gun

GG 289462

KIT,NEEDLE AND NOZZLE,.055

Graco 289462 0.055 in. Needle/Nozzle Kit- for General Metal Spray Guns

GG 289696

MODULE, GCA, CUBE, FCM

Graco 289696 GCA Fluid Control Cube Module

• Series: F4

GG C31154

GG CGMEP0

MODULE, GCA,GATEWAY,EP

Graco CGMEP0 EtherNet/IP Communications Gateway Module

GG C59752

GG CST531

GG D07030

KIT, BALL-D1/E1 SS

Graco D07030 1-inch 316 Stainless Steel Check Ball Kit

Contains 4 balls (103869) & 1 adhesive packet

GG D0B010

KIT, BALL-F1/G1 PT

Graco D0B010 1.5-inch PTFE Check Ball Kit

GG D73525

GG EC1241

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STND

Graco EC1241 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

• Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
• Minimal pulsation at changeover provides a more consistent finish
• Electric motor eliminates icing - giving you smoother pump operation and better finished product

• Model: E-Flo
• Series: DC 4-Ball

• Application: Circulation

• Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Advanced Control Input, Stand

• Input Voltage (V ac): 250

• Material: Stainless Steel

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.14

• Maximum Input Amperage (A): 20

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Working Pressure (bar): 20.7
• Maximum Working Pressure (kPa): 2070
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: AC

• Portable: Non-Portable

• Power Rating (HP): 1

GG FFLP512

RAC X FFLP TIP, SPRAY, (512)

Graco FFLP512 Fine Finish Low Pressure RAC X FF LP SwitchTip, 512

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 512 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

• Less Prep & Cleanup Time

  Less mess with less overspray

  Put the paint where you want it

• Easiest Pattern Overlap

  Softer spray fan pattern

  Easy to apply any material to any surfance

  Consistent blended finish quality

• Extended Life

  Spraying at half pressure doubles tip life

  Reduced sprayer maintenance - up to 2X life

• Best Tip on the Market

  Works with any airless sprayer

  Longest lasting Fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: FF LP SwitchTip

• Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.15
• Maximum Flow Rate (L/min): 0.57

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.012

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG FFLP516

RAC X FFLP TIP, SPRAY, (516)

Graco FFLP516 Fine Finish Low Pressure RAC X FF LP SwitchTip, 516

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 516 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.016 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

• Less Prep & Cleanup Time

  Less mess with less overspray

  Put the paint where you want it

• Easiest Pattern Overlap

  Softer spray fan pattern

  Easy to apply any material to any surfance

  Consistent blended finish quality

• Extended Life

  Spraying at half pressure doubles tip life

  Reduced sprayer maintenance - up to 2X life

• Best Tip on the Market

  Works with any airless sprayer

  Longest lasting Fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: FF LP SwitchTip

• Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.27

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.016

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG FFLP412

RAC X FFLP TIP, SPRAY, (412)

Graco FFLP412 Fine Finish Low Pressure RAC X FF LP SwitchTip, 412

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 412 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces an 8 to 10 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

• Less Prep & Cleanup Time

  Less mess with less overspray

  Put the paint where you want it

• Easiest Pattern Overlap

  Softer spray fan pattern

  Easy to apply any material to any surfance

  Consistent blended finish quality

• Extended Life

  Spraying at half pressure doubles tip life

  Reduced sprayer maintenance - up to 2X life

• Best Tip on the Market

  Works with any airless sprayer

  Longest lasting Fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: FF LP SwitchTip

• Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.15
• Maximum Flow Rate (L/min): 0.57

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.012
