Gun, AA, 5000, GF, Swivel

GG 26B511

PERFORMAA GUN, AA, 5000, GF, SWIVEL

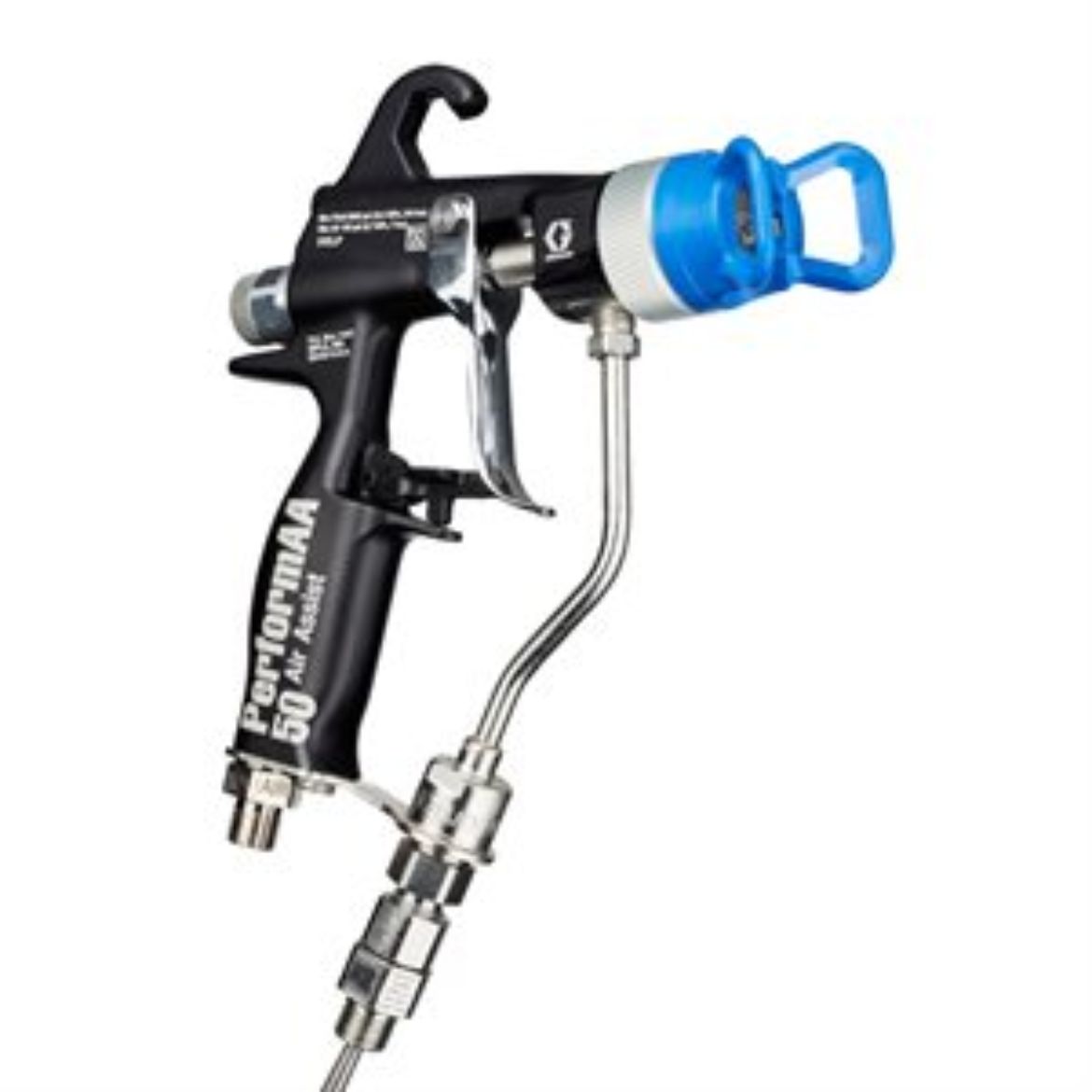

Graco 26B511 PerformAA 5000 Air Assist Gun with General Finishing air cap and fluid swivel

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 5000 psi air assist spray gun
• General finishing air cap for a wide range of materials
• Includes a low profile fluid swivel
• Clicking fan pattern adjustment knob for accurate adjustment

• Model: PerformAA 50

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
• Compatible Spray Tip: AXM, AXF

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Clicking
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 490
• Gun Weight with Tip and Guard (oz): 17.4
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 110

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 110

• Overall Height (cm): 20.8
• Overall Height (in): 8.2
• Overall Height (mm): 208
• Overall Length (cm): 17.25
• Overall Length (in): 6.8
• Overall Length (mm): 173

• Product Type: Spray Gun
