    Husky Pump,515Ac-Pp01Aac3Acptptpt0

    Manufacturer: GRACO INC. S10595

    GG D51211

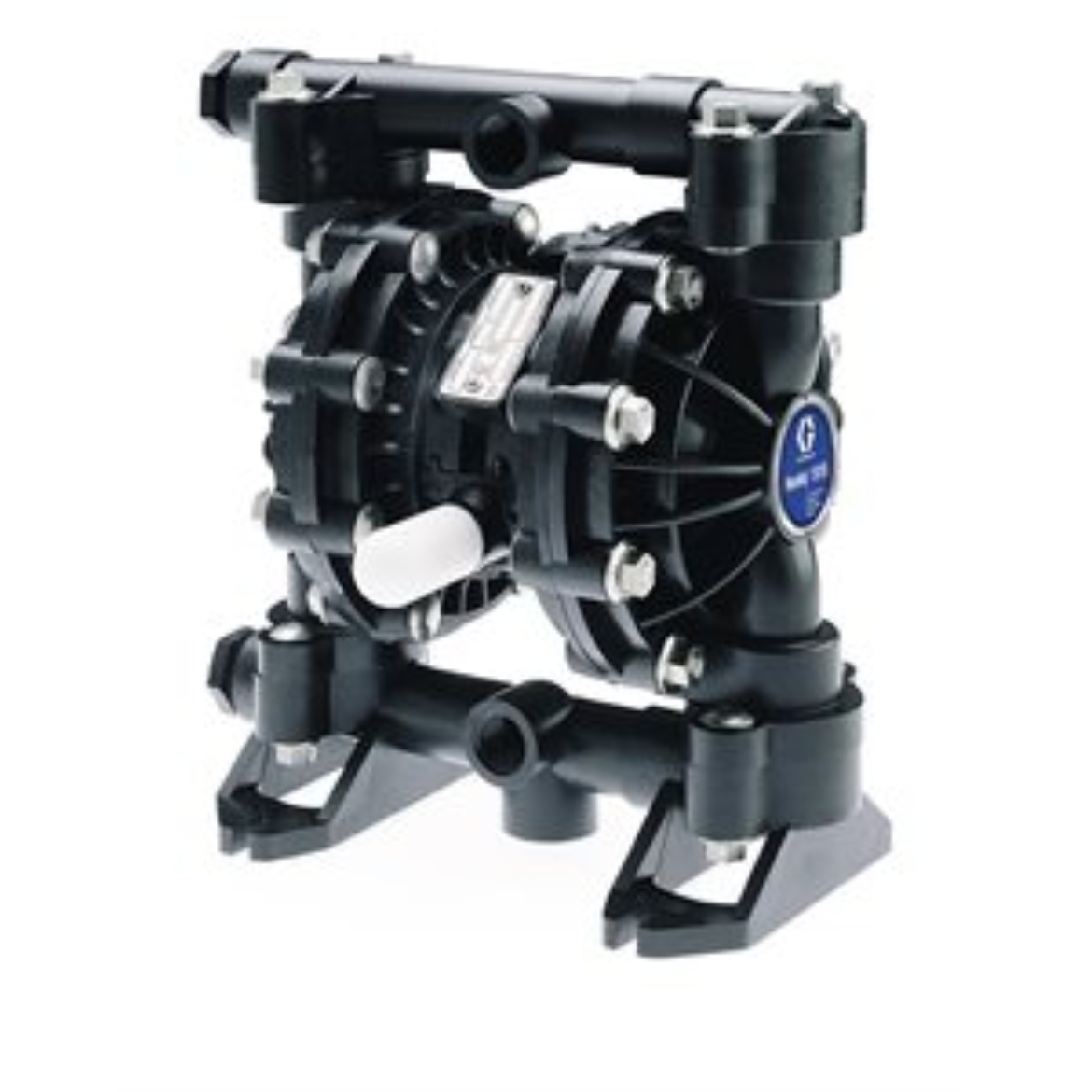

    HUSKY PUMP, 515AC-PP01AAC3ACPTPTPT0

    Graco D51211 Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm

    The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

    The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

    • Center and end porting options.
    • No mechanical seals to cause fluid leaks or failures
    • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
    • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
    • Split manifold option to pump multiple fluids without mixing
    • Delivery up to 15 gpm (56.7 lpm)
    • Easy-to-service air valve and ball checks
    • Reliable air valve for years of dependable performance


    • Model: Husky
    • Series: 515
    • Air Exhaust Port Size (in): 3/8
    • Air Exhaust Port Thread Gender: Female
    • Air Exhaust Port Thread Type: NPT
    • Air Inlet Size (in): 1/4
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Application: Industrial
    • Ball Material: PTFE
    • Center Section Material: Polypropylene
    • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
    • Connection Type: Threaded
    • Diaphragm Compatible Material: PTFE
    • Diaphragm Material: PTFE/EPDM 2-Piece
    • Fluid Inlet Size (cm): 1.27
    • Fluid Inlet Size (in): 1/2
    • Fluid Inlet Size (mm): 12.7
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (cm): 1.27
    • Fluid Outlet Size (in): 1/2
    • Fluid Outlet Size (mm): 12.7
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Fluid Section Material: Acetal
    • Manifold Configuration: Center Port
    • Manifold O-Ring Material: PTFE
    • Material: Acetal
    • Maximum Air Consumption (SCFM): 28
    • Maximum Air Pressure (bar): 7
    • Maximum Air Pressure (kPa): 700
    • Maximum Air Pressure (MPa): 0.7
    • Maximum Air Pressure (psi): 100
    • Maximum Cycle Rate (CPM): 400
    • Maximum Flow Rate (GPM): 15
    • Maximum Flow Rate (L/min): 56.8
    • Maximum Fluid Pressure (bar): 7
    • Maximum Fluid Pressure (kPa): 700
    • Maximum Fluid Pressure (MPa): 0.7
    • Maximum Fluid Pressure (psi): 100
    • Maximum Fluid Pressure (bar): 7
    • Maximum Fluid Pressure (kPa): 700
    • Maximum Fluid Pressure (MPa): 0.7
    • Maximum Fluid Pressure (psi): 100
    • Maximum Operating Temperature (°C): 82
    • Maximum Operating Temperature (°F): 180
    • Maximum Solid Size (cm): 0.2383
    • Maximum Solid Size (in): 0.09375
    • Maximum Solid Size (mm): 2.4
    • Minimum Operating Temperature (°C): 4
    • Minimum Operating Temperature (°F): 40
    • Overall Height (in): 10.63
    • Power Source: Air
    SKU: GG D51211
    Availability:
    Price: $1,370.00
