Lower, Chemical, 100, SST, UCup

GG L100S1

LOWER, CHEMICAL, 100, SST, UCUP

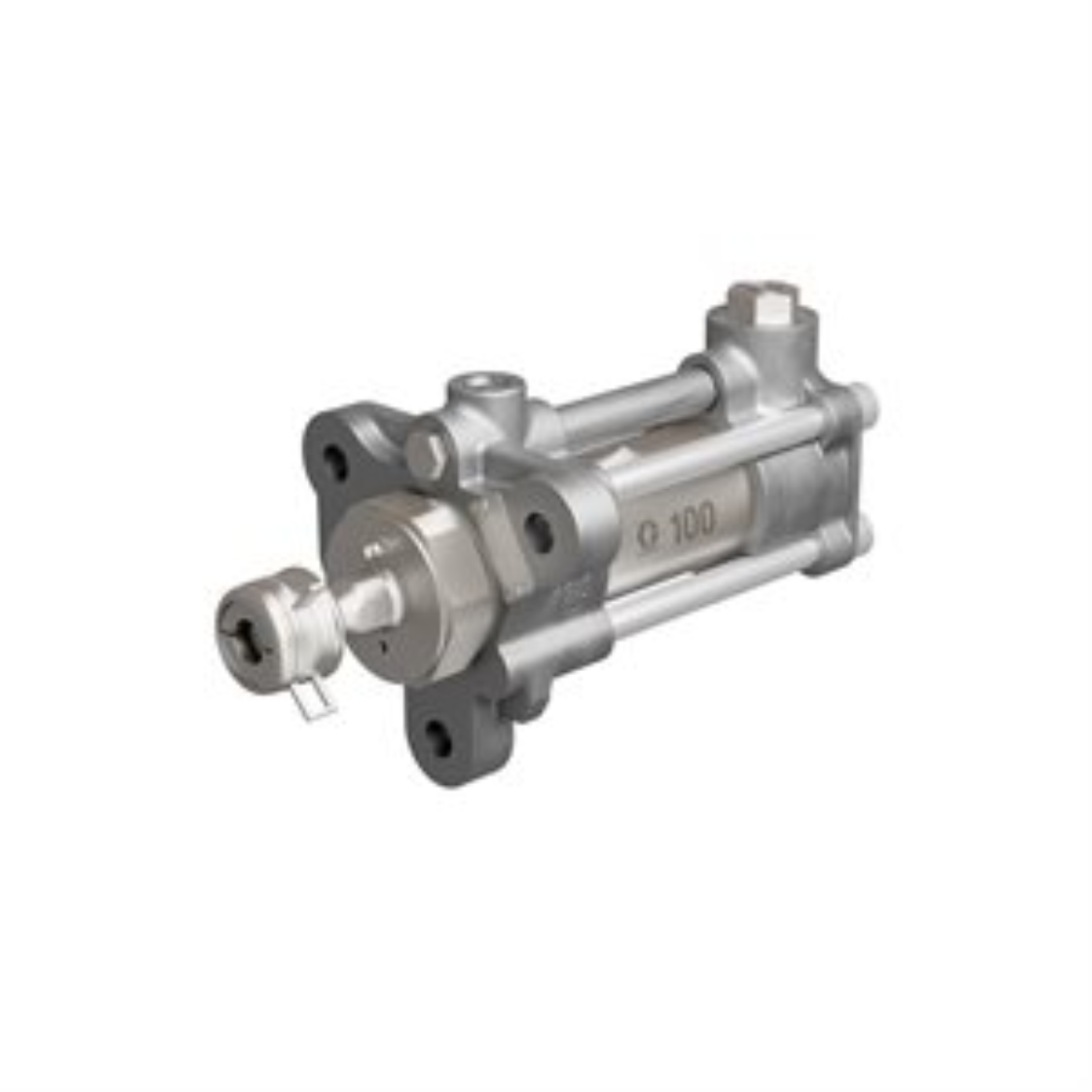

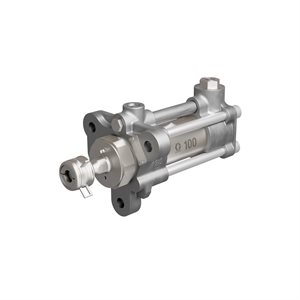

Graco L100S1 Z-Pump, 100 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 1.59

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 100

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000
