RAC X FFLP TIP, SPRAY, (512)

Manufacturer: GRACO INC. S10595

GG FFLP512

RAC X FFLP TIP, SPRAY, (512)

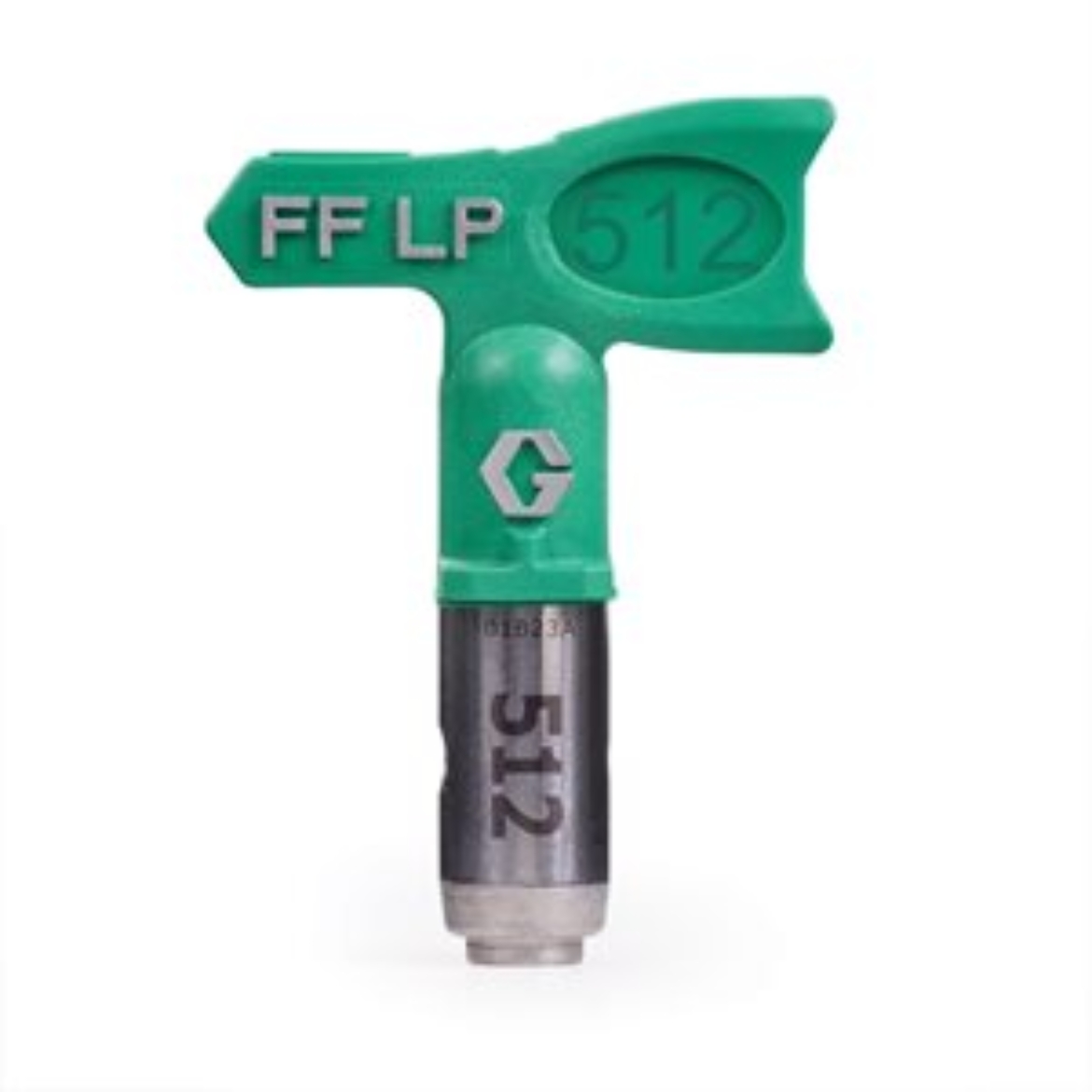

Graco FFLP512 Fine Finish Low Pressure RAC X FF LP SwitchTip, 512

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 512 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

Application: For fine finish applications
  • Less Prep & Cleanup Time

    Less mess with less overspray

    Put the paint where you want it

  • Easiest Pattern Overlap

    Softer spray fan pattern

    Easy to apply any material to any surfance

    Consistent blended finish quality

  • Extended Life

    Spraying at half pressure doubles tip life

    Reduced sprayer maintenance – up to 2X life

  • Best Tip on the Market

    Works with any airless sprayer

    Longest lasting Fan pattern

    Highest quality finish with a consistent spray pattern

  • Easy to Identify Tip Size

    Large raised tip size numbers are always legible – even when covered with paint

  • Superior Tip Design

    Locking tab ensures tip stays securely in guard

    Snaps tip in spray or reverse position

    OneSeal tip gasket installs with no tools

    Solvent seal available when using extremely hot solvents


  • Model: RAC X
  • Series: FF LP SwitchTip
  • Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
  • For Use With: RAC X HandTite Tip Guard
  • Material: Tungsten Carbide
  • Maximum Fan Width (cm): 25
  • Maximum Fan Width (in): 10
  • Maximum Fan Width (mm): 305
  • Maximum Flow Rate (GPM): 0.15
  • Maximum Flow Rate (L/min): 0.57
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 10
  • Minimum Fan Width (mm): 254
  • Orifice Diameter (in): 0.012
  • Pattern Size (in): 10 to 12
  • Pattern Size (mm): 254 to 304.8
SKU: GG FFLP512
Availability:
Price: $82.00
