Merkur System,Pump,30:1,75Cc Cart,Std

GG G30C89

MERKUR SYSTEM, PUMP, 30:1, 75CC CART, STD

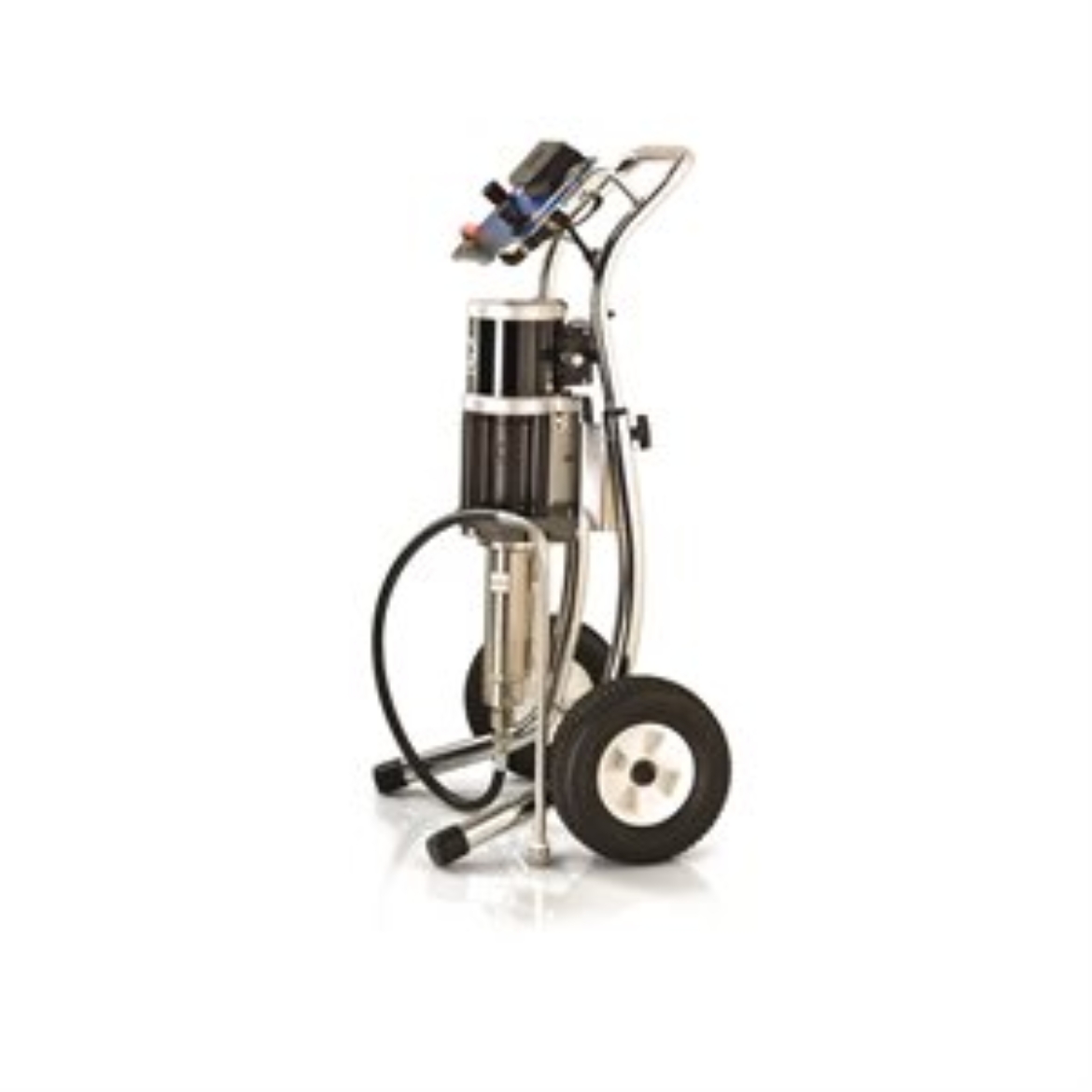

Graco G30C89 30:1 Merkur Electrostatic Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, Pro Xp85 kV Standard Gun, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: Pro Xp 85 kV Standard
• Gun Technology: Electrostatic
• Gun Type: Electrostatic

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.54

• Maximum Hose Length (cm): 762
• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6
• Maximum Hose Length (mm): 7620

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm²): 210.92
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump
