GG 289648
TRITON SPRAYER, AL, PUMP PAIL MNT, ELECTRO

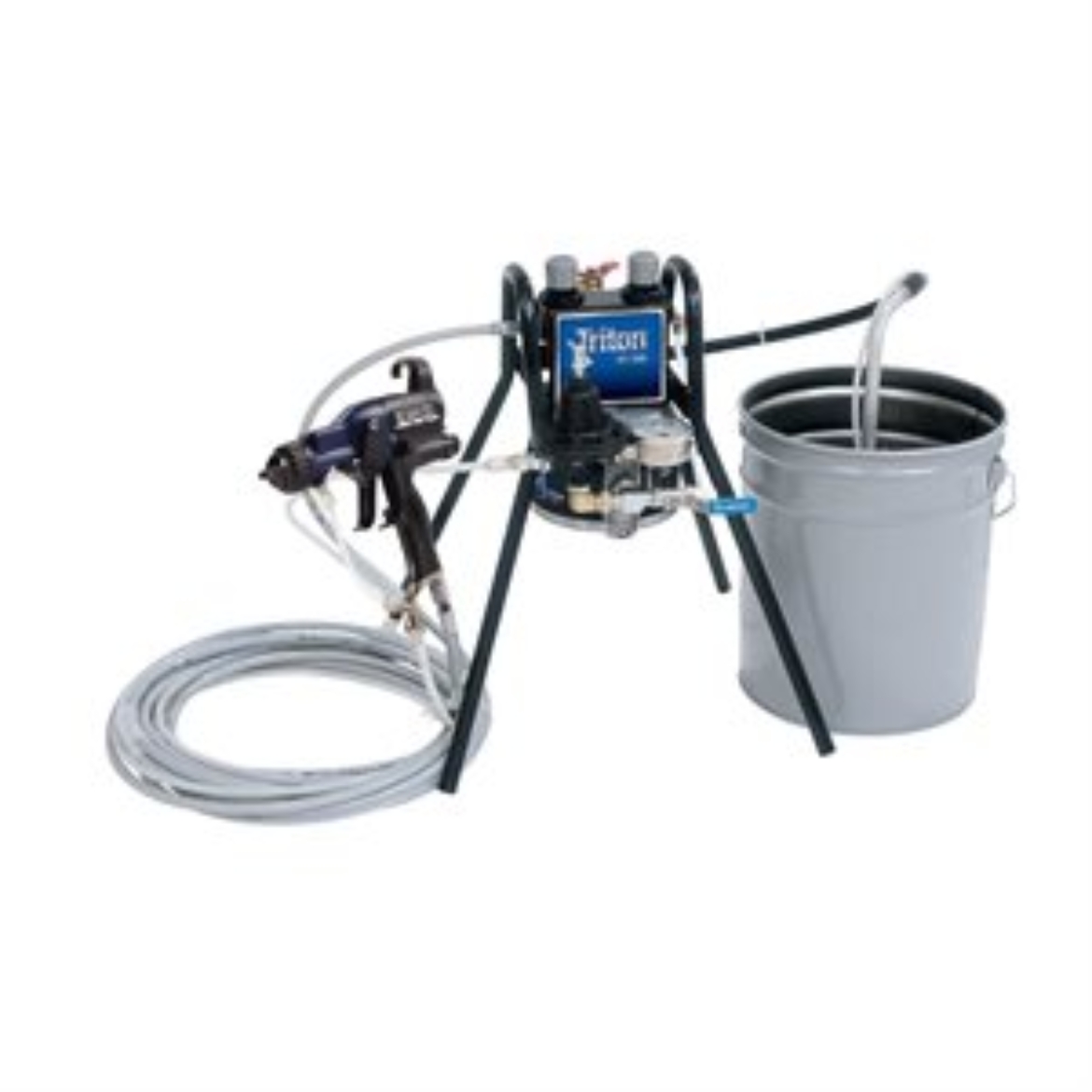

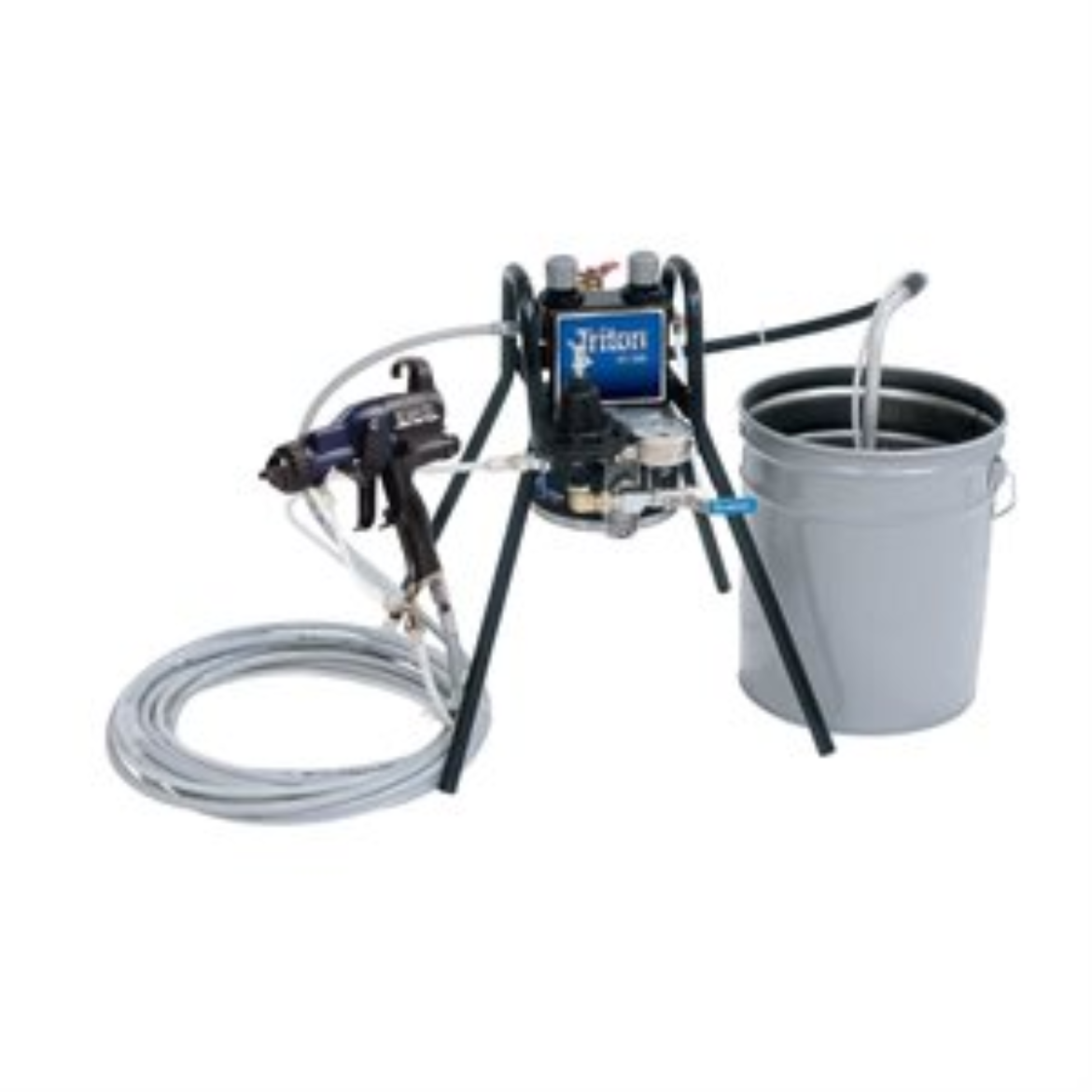

Graco 289648 Triton Alum Spray Package, Pail, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid Hoses
Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solvent borne Paints, Solvent borne, Varnish Primers
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Outlet Size (cm): 0.9525
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 9.525
- Fluid Outlet Thread Type: NPT
- Gun Included: 1
- Gun Model: Pro Xp 85 kV Standard
- Gun Technology: Electrostatic
- Gun Type: Electrostatic
- Includes: 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 8.5
- Maximum Flow Rate (L/min): 32
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Mount Location: Pail Mount
- Mount Type: Pail Mount
- Pressure Type: Low Pressure
- Product Type: Spray Package
- Pump Ratio: 1:1
- Pump Type: Pneumatic Diaphragm Pump
