Merkur System Pump 23:1 100Cc Wall Std

GG G23W09

MERKUR SYSTEM PUMP 23:1 100CC WALL STD

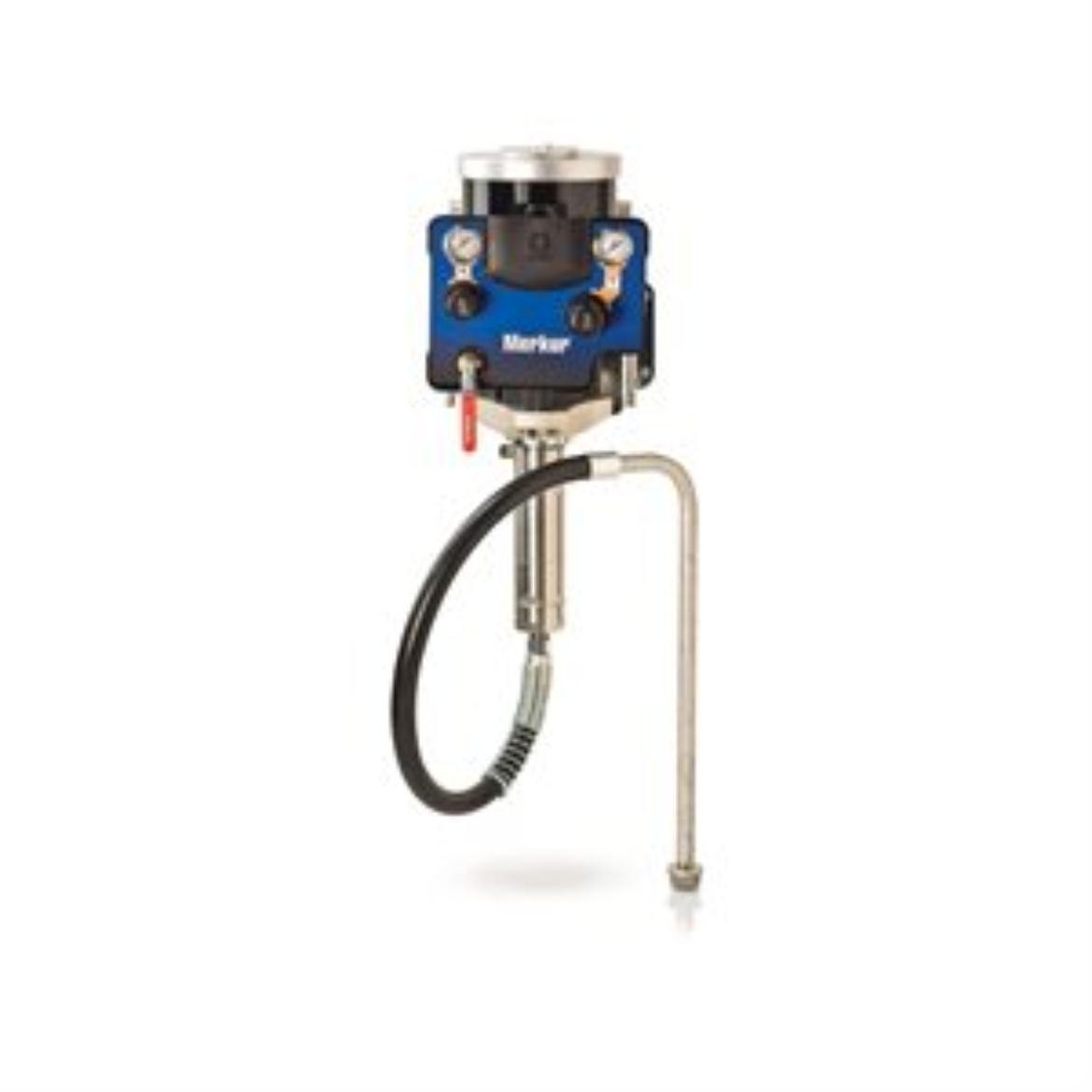

Graco G23W09 23:1 Merkur AA Package, 1.6 gpm (6 lpm) fluid flow, Wall Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 50 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.6

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (MPa): 15.9
• Maximum Working Pressure (psi): 2300

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 23:1
• Pump Type: Pneumatic Piston Pump
