Cordless Tools

AIM SPC-A27038

Signature Series Precision Clutch Cordless Tools Shut Off 3/8 Inch Dr 20-70Nm 18V

IR QXWD2PT018PQ04

1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

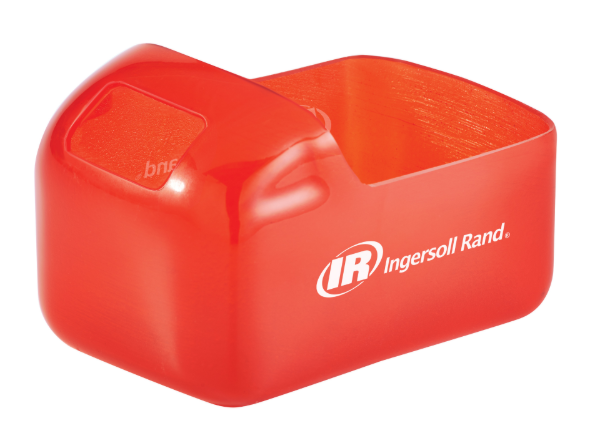

IR BL2010-BOOT

Protective Boot for Ingersoll Rand BL2010 & BL2022 IQV® Battery

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand BL2010 & BL2022
Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• BL2022
• BL2022-AP5
• BL4011
• G4911-K1
• G4911-K1-AP
• G4911-K1-CN
• G4911-K1-EU
• G4911-K1-IN
• G4911-K1-JP
• G4911-K1-KR
• W7152
• W7153
• W7153-AP
• W7153-K22
• W7153-K22-CN
• W7153-K22-IN
• W7153-K22-JP
• W7153-K22-KR
• W7153-K22-SGHK
• W7153-K22B-AN
• W7153-K22B-EU
• W7253-TL
• W8171-K2

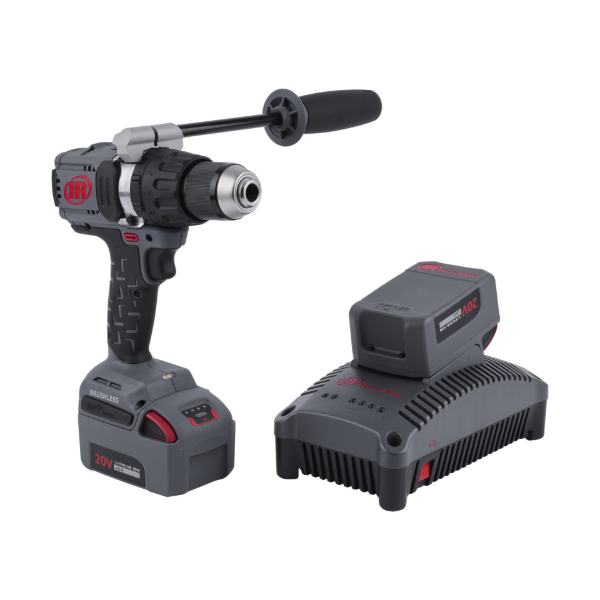

IR D5241-K22

1/2" 20V Cordless Hammer Drill 2 Battery Kit, 1100 in-lb Torque, Keyless Chuck, Pistol Grip

Features And Benefits

• Power: With the capacity of 1,100 in-lbs of torque, the D5241 IQV20™ Hammer Drill is designed with the pros in mind.
• 1/2 Inch Chuck: All-metal keyless chuck with carbide teeth ensure bits don’t slip when drilling through almost any material.
• 24-Position Clutch: Say goodbye to cam-outs and over-torqued fasteners. A 24 position clutch lets you fine-tune fastening depth, so you can work smarter, not harder.
• Brushless Motor: The combination of a powerful brushless motor means the D5241 IQV20™ Hammer Drill operates at the apex of performance in almost any application.
• High and Low Speed Options: Whether you’re drilling through wood, steel, or concrete, two speed options help you get the right level of torque, every time.
• Rubberized Design: The D5241 IQV20™ Hammer Drill's impact-resistant rubberized design helps reduce kickback, keeping you steady and safe.
• LED light: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
• Adjustable Auxiliary Handle: For high-torque applications, a removable ergonomic auxiliary arm helps keep you steady.
• IQV20™ Battery: Compatible with the entire Ingersoll Rand IQV20™ platform, giving it an extra dose of power without weighing it down.
• Kit Includes: D5241 1/2" Hammer Drill, (2) BL2022 5.0Ah Batteries, 20V Battery Charger and Auxiliary Handle.

Includes: D5241 1/2" Hammer Drill, Auxiliary Handle, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 28000
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 24
Color: Grey
Configuration/Handle Type: Pistol Grip
Configuration/Handle Type: Auxiliary Handle
Drilling Capacity in Concrete: 3/8" (10mm)
Forward Torque setting 1 (ft-lb): 60
Forward Torque setting 1 (in-lb): 717
Forward Torque setting 1 (nm): 81
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 92
Max Torque (in-lb): 1106
Max Torque (nm): 125
Motor: Brushless Motor
Nominal Drilling Capabilities (Wood Med or Frp): 1-3/8" (35mm)
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.8
Product Width (in): 3.1
Product Height (in): 8.7
Product Height (in) (with Battery): 11
Product Weight (lb): 3.5
Product Weight (lb) (with Battery): 5
Reversible: Reversible
RPM Setting 1: 500
Side to Center Distance (in): 1.6
Side to Center Distance (mm): 41
Sound Pressure/Power Db(A): 84 / 92
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

Similar IR

• D5140

Supersedes

• D5140-K2
• D5140-K1

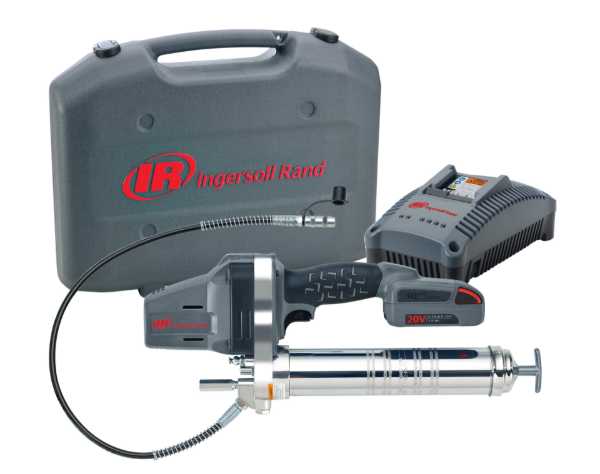

IR LUB5130-K12

IQV® 20V Cordless Grease Gun 1 Battery Kit, 14oz Canister Capacity

Ingersoll Rand's 20V cordless grease gun, the LUB5130, is powered by advanced battery technology and makes it easy for operators to grease fittings in the shop and in the field. Designed specifically for professional technicians who require tough, long-lasting, ergonomic tools, the LUB5130 has what it takes to keep your work running smoothly.

Features And Benefits

• Performance: High operating pressure and flow rate powers through clogged fittings, quickly delivering grease and reducing job time.
• Comfort: Work with greater comfort and less fatigue; lightweight design (7.2 lbs.), ergonomic handle with over-molded grip and patented soft-mount system reduces vibration for extended use. Optional shoulder strap hook for additional flexibility and support of this cordless grease gun.
• Durability: All-metal drive train is robust, durable and optimized for maximum power and efficiency. Steel-reinforced metal gears, heavy-duty motor and impact and chemical resistant housing protect against breakage in the harshest environments and withstand repeated drops and shop fluid damage.
• Productivity: Electronic shutdown and high-pressure LED indicator prevents grease spills and extends motor life of this cordless grease gun. Easy 3-way load system for maximum versatility with cartridge, bulk and manual loading into this cordless grease gun. More up-time with one battery platform that is compatible with all your IQV® 20 Series tools. The 20-volt lithium-ion battery is available in 5.0 Ah and 2.5 Ah.
• Access: Standard 30" hose improves reach, helps operators access tight spots.
• Includes: LUB5130 grease gun, BL2012 20V Max 2.5Ah Battery, 20V Battery Charger and Blow-molded Case.
• Warranty: Comes with a 3-year limited warranty.

Includes: LUB5130 grease gun, BL2012 20V Max 2.5Ah Battery, 20V Battery Charger and Blow-molded case.
Product Application and Uses: A Cordless Grease Gun is a battery powered, hand-held, power tool that stores and dispenses grease.
Air Pressure (psi): 6250
Canister Capacity (g): 0.11
Canister Capacity (oz): 14
Color: Grey
Flow Rate (g/min): 73.71
Flow Rate (oz/min): 2.6
Grease Type (NLGI): 2-4
Hose Length (ft): 2.5
Housing Material: Impact and chemical-resistant composite housing
Max Pressure (bar): 430.92
Power Source: Battery Powered
Product Weight (lb): 7.2
Vibration Level (m/s2): .2
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

IR QXBD2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

IR QXBN2PT004PQ04

1/4" Hex 20V Cordless QX Precision Screwdriver, 35 in-lb, 1500 RPM, Pistol

Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn’t have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

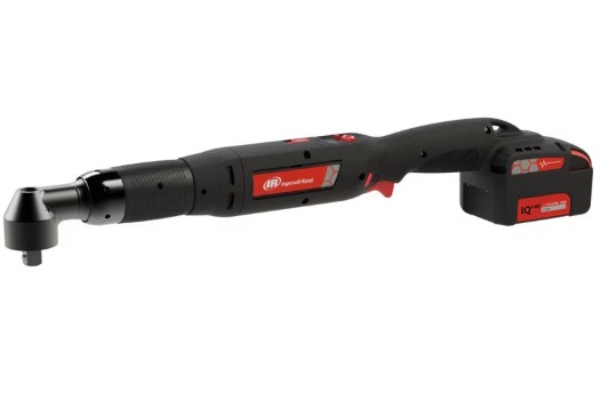

IR QXBN5AT080PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb, 375 RPM

Increase the productivity of your assembly line with the added length and improved ergonomics of the 40V High Torque Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBN models also offer users the Bluetooth connectivity option to wirelessly program the QX Connect Series™ tools using the INSIGHT Connect App.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series™ 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

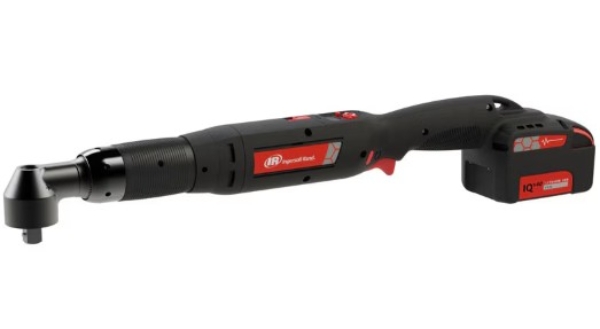

IR QXFD2AT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM, Display

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

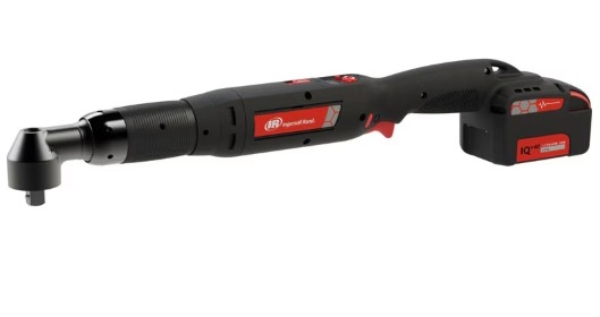

IR QXFD2AT027ES06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb Torque, 330 RPM, Display

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

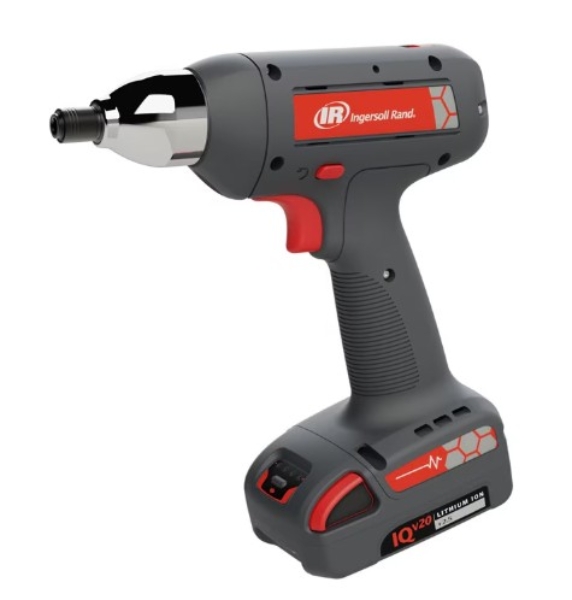

IR QXFD2PT012EQ04

1/4" Hex Quick Change 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

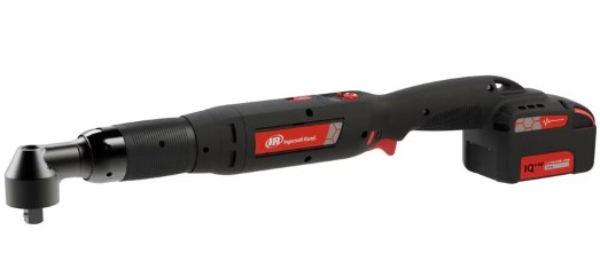

IR QXFD5AT080ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 708 in-lb, 375 RPM, Display

Designed to replace traditional clutch tools, the 40V QXFD Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. QXFD Tools comes with an Additional Display which helps on the Tool Programming and reducing setup time. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.
• Programming Methods: Through USB with Insight Connect App available on Android; ICS Software; Through On Board Tool Display/ Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

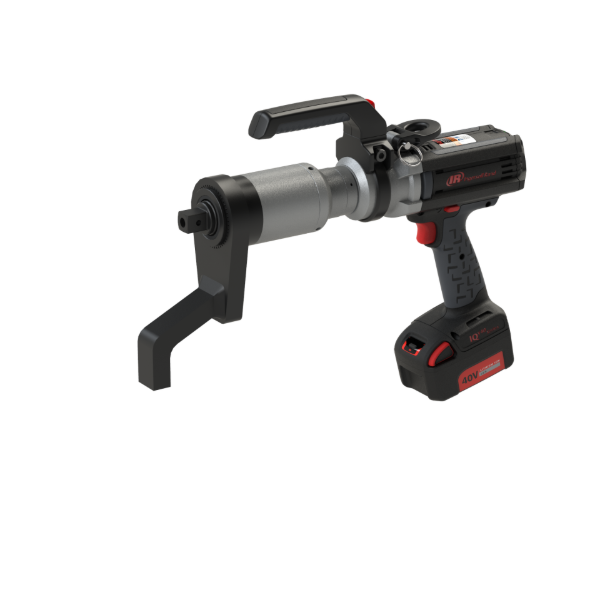

IR QXXD5PT20CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 17701 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 6.8
Max Torque (ft-lb): 1475
Max Torque (in-lb): 17701
Max Torque (nm): 2000
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 18
Product Weight (lb): 21
Product Weight (lb) (with Battery): 22.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 295-1475
Recommended Forward Torque Range (in-lb): 3540-17701
Recommended Forward Torque Range (nm): 400-2000
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

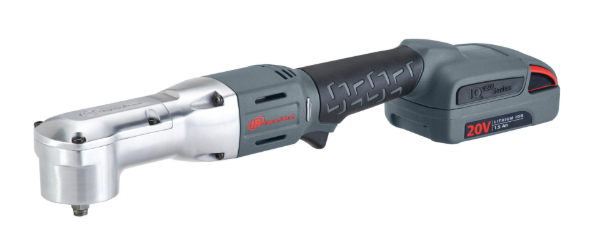

IR W5330

3/8" 20V Angle Cordless Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer, Bare Tool

The 20V Right Angle Impact Wrench’s right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done.

Features And Benefits

• Power: 180 ft-lbs. of reactionless torque in a slim, lightweight design offering the reach of a ratchet and the power of an impact.
• Durability: Designed with a steel-lined aluminum hammer case, fully-serviceable head and a super tough nylon housing, making it ready for every 6-ft. drop or shop fluid that comes its way.
• Control: The W5330 flies through bolts at speeds of 0-1850 rpm instantly. With the variable speed trigger and a conveniently located forward-reverse switch, you can keep one hand on the trigger and let the tool do the rest.
• Access: With a head only 2.2" in height and our patent-pending Inline™ battery, the W5330 goes places other impact wrenches only dream of.
• Optimized for the vehicle repair industry, fleet maintenance, body shops, general industrial use, and MRO.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3000 (BL2022)
Blows per Min: 3000 (BL2012)
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 3/8
Drive Type: Square
Free Speed Sound Pressure/Power Db(A): 85 / 96
Hammer Case: Steel-lined Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1850
Max Torque (ft-lb): 181
Max Torque (in-lb): 2168
Max Torque (nm): 245
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 15.8
Product Width (in): 2.13
Product Height (in): 2.2
Product Height (in) (with Battery): 2.2
Product Weight (lb): 3.7
Product Weight (lb) (with Battery): 5.2
Recommended Forward Torque Range (ft-lb): 181
Recommended Forward Torque Range (in-lb): 2168
Recommended Forward Torque Range (nm): 245
Retainer Type: Friction Ring
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Vibration Level (m/s2): 10
Vibration Uncertainy K* (m/s2): 6.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• W5350

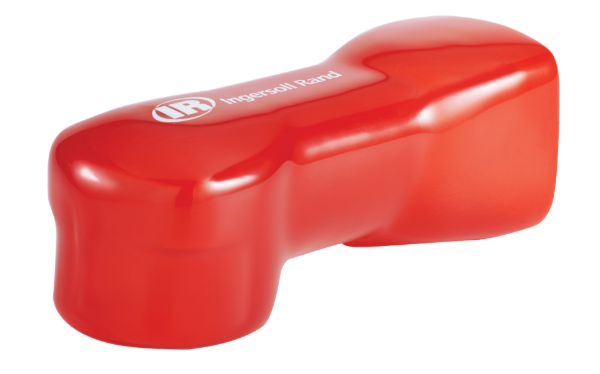

IR W5330-BOOT

Protective Boot for Ingersoll Rand W5330 & W5350 Series Cordless Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand W5330 & W5350 cordless impact wrenches
Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• W5330
• W5330-K12
• W5330-K12-EU
• W5330-K22
• W5350
• W5350-K12
• W5350-K22

IR W9491

1" 20V Cordless Impact Wrench, 2600 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle, Bare Tool

Introducing the world’s most powerful 1" cordless impact wrench: the W9491 from Ingersoll Rand. Get 2,600 ft-lbs of nut busting torque with 100% mobility from the market leader in 1” impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.

Features And Benefits

• POWER: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 2,600 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
• PRODUCTIVITY: 250 bolts per charge – tackle a full day’s worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IP56 rated for tough environmental conditions.
• SAFETY: Remove hoses & trip hazards to keep operators & technicians safe
• IQV® Power Control System includes 3 modes: MAX Power, MID, and Snug
• Brushless motor delivers durability and efficiency
• 360° adjustable D-handle: rotates fully around the tool as the job demands
• Impact and chemical-resistant housing
• Compatible with IQV® 20 Series Battery System
• 3-year limited warranty

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Inside Trigger
Anvil Length: Standard
Blows per Min: 1170 (BL2022)
Bolts per Charge (on and Off): 250
Built-in Light: No
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Fasteners per charge: 250
Forward Torque setting 1 (ft-lb): 184
Forward Torque setting 1 (in-lb): 2213
Forward Torque setting 1 (nm): 250
Forward Torque setting 2 (ft-lb): 406
Forward Torque setting 2 (in-lb): 4868
Forward Torque setting 2 (nm): 550
Forward Torque setting 3 (ft-lb): 2213
Forward Torque setting 3 (in-lb): 26552
Forward Torque setting 3 (nm): 3000
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 890
Max Torque (ft-lb): 2213
Max Torque (in-lb): 26552
Max Torque (nm): 3000
Motor: Brushless Motor
Number of Batteries Required: 2
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2600
Nut-busting/Breakaway Torque (in-lb): 31200
Nut-busting/Breakaway Torque (nm): 3525
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 94.55
Product Length (in): 20.13
Product Width (in): 6.93
Product Height (in): 8.11
Product Weight (lb): 24.3
Product Weight (lb) (with Battery): 27.5
Recommended Forward Torque Range (ft-lb): 2213
Recommended Forward Torque Range (in-lb): 26552
Recommended Forward Torque Range (nm): 3000
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 500
RPM Setting 2: 540
Sound Pressure/Power Db(A): 94.0 / 105.0
Standards/Certifications: Ul Listed, Csa Certified, IP56 rated
Tool Type: High-torque
Vibration Level (m/s2): 25.8
Vibration Uncertainy K* (m/s2): 8.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• W9691
• 2850MAX
• 285B
• W9491-K4E

IR QXFD2AT000E000

BACKCAP ASSEMBLY, 20V ANGLE, NO RADIO, DISPLAY, ETS

IR QXWD2PT008PQ04

1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

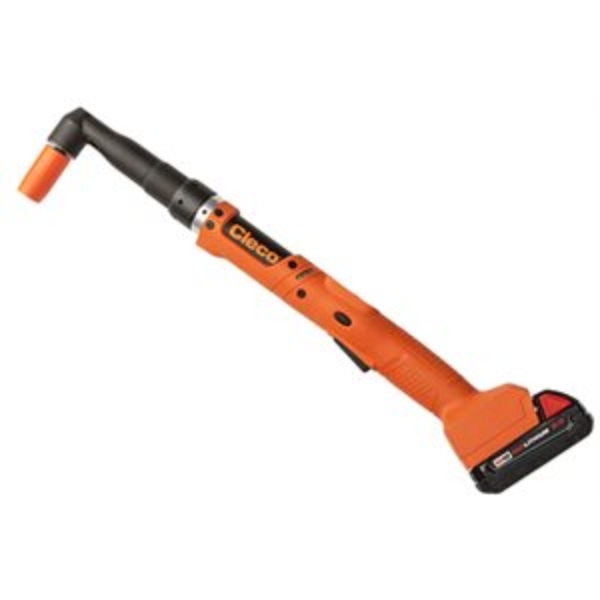

CL CLBA123

NUTRUNNER, CL AH - 12NM

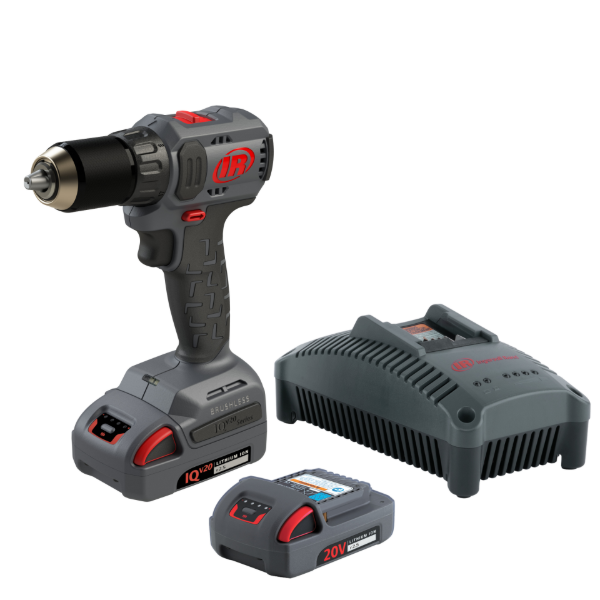

IR D3141-K22

1/2" 20V Cordless Compact Drill Driver 2 Battery Kit, 450 in-lb Torque, Keyless Chuck, Pistol Grip

The Ingersoll Rand® D3141 IQV20™ Cordless Compact Drill Driver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Weighing 3 lbs. with battery and 7" tip to tail length, it’s designed to help you access the toughest spots, from wheel hubs to heavy machinery gaskets. Kit Includes (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Features And Benefits

• Performance: A powerful brushless motor runs with up to 450 in-lbs of torque, ensuring the IQV20™ Cordless Compact Drill Driver operates at the peak of power in any application.
• Versatility: Equipped with both drill and drive modes, to help get the job done right- no matter the application.
• Precision: Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.
• Ergonomics: Powerful things come in small packages. The IQV20™ Cordless Compact Drill Driver is 7" tip to tail and weighs 3 lbs. with battery.
• Durability: Impact-resistant rubberized design helps prevent accidental damage and increases longevity. IPX6 rated protection against harmful effects of water ingress.
• Speed: Whether you're drilling through sheet metal, wood or anything in between, two speed settings help you with the right level of torque.
• Strength: A 1/2" all-metal keyless chuck with carbide teeth grips drill bits and lets you drill through tough materials with ease.
• Visibility: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
• Kit Includes: D3141 Drill Driver, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Includes: D3141 1/2" Drill Driver, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger
Product Application and Uses: Drilling, honing, reaming, hole sawing, drilling out spot welds and rivets, driving threaded fasteners in sheet metal, wood or anything in between.
Actuation/Throttle Type/Switch Type: Trigger
Adjustable Clutch: Yes
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 18
Color: Grey
Configuration/Handle Type: Pistol Grip
Handle Material: Overmolded Grip
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 37
Max Torque (in-lb): 443
Max Torque (nm): 50
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.1
Product Width (in): 3.1
Product Height (in): 8.3
Product Height (in) (with Battery): 9.1
Product Weight (lb): 2.2
Product Weight (lb) (with Battery): 3.1
Recommended Forward Torque Range (ft-lb): 37
Recommended Forward Torque Range (in-lb): 443
Recommended Forward Torque Range (nm): 50
Reversible: Reversible
RPM Setting 1: 500
Sound Pressure/Power Db(A): 73 / 81
Special Features: Compact
Speed Setting: Dual speed
Standards/Certifications: ETL, CB, CE, IPX6
Tool Type: Compact
Vibration Level (m/s2): 4.0
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• D5241-K22
• 7807R-A
• 7802RAKCEX

Supersedes

• D1130-K2

IR LUB5130-K873

HOSE

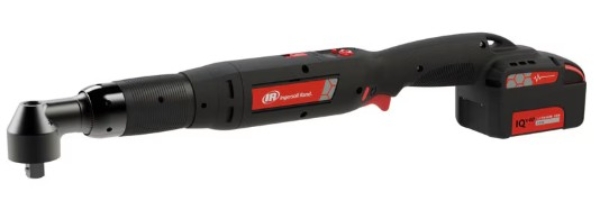

IR QXBD2AT027ES06

3/8" 20V Cordless QX Precision Fastening ETS Angle Screwdriver, 239 in-lb, 330 RPM

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

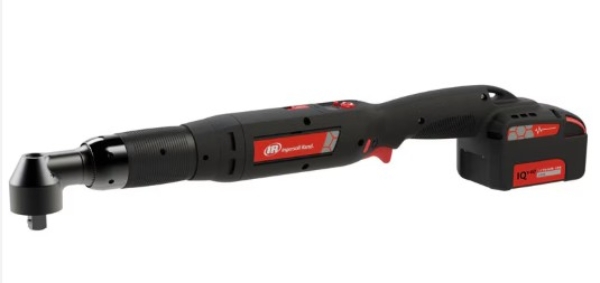

IR QXBD2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Wrench, 239 in-lb Torque, 330 RPM

Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBD models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

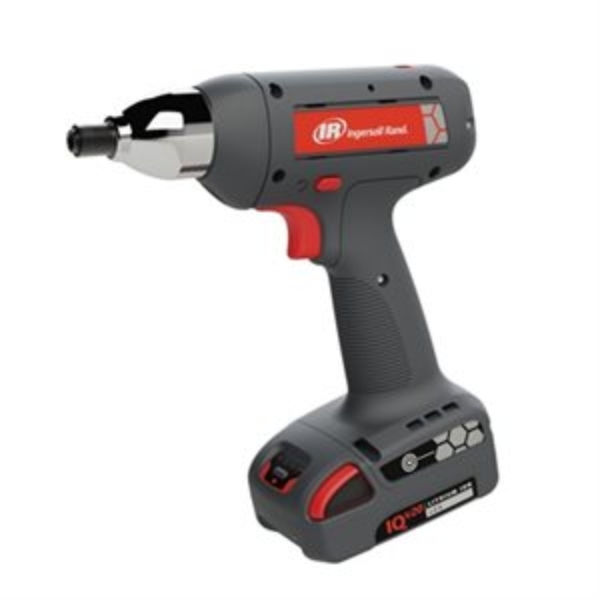

IR QXBD2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

IR QXBD2PT012PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C
