IR QXWD2PT018PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXXD5PT13CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 11950 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 11
Max Torque (ft-lb): 996
Max Torque (in-lb): 11949
Max Torque (nm): 1350
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.7
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 200-996
Recommended Forward Torque Range (in-lb): 2390-11949
Recommended Forward Torque Range (nm): 270 - 1350
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

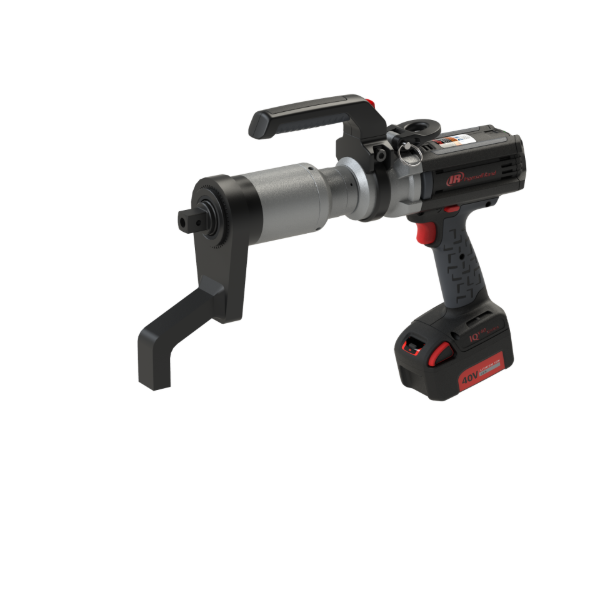

IR QXXD5PT27CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 23897 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 3.2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 5.5
Max Torque (ft-lb): 1991
Max Torque (in-lb): 23897
Max Torque (nm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.9
Product Weight (lb): 21
Product Weight (lb) (with Battery): 22.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 398-1991
Recommended Forward Torque Range (in-lb): 4779-23897
Recommended Forward Torque Range (nm): 540 - 2700
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

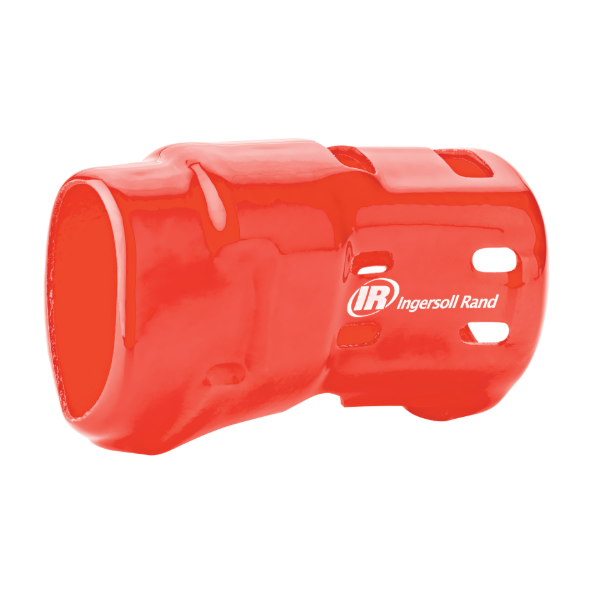

IR W5132-BOOT

Protective Boot for Ingersoll Rand W5000 Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• IQV20-K201
• W5133-K12
• W5133-K22
• W5133-K22-CN
• W5133-K22-EU
• W5133-K22-KR
• W5133P
• W5133P-C1D2
• W5133P-C1D2-K22
• W5133P-K22
• W5153-K12
• W5153-K22
• W5153-K22-AUNZ
• W5153-K22-CN
• W5153-K22-EU
• W5153-K22-JP
• W5153-K22-KR
• W5153-K22-SGHK
• W5153-K22A-EU
• W5153-K22B-EU
• W5153P
• W5153P-C1D2-K22
• W5153P-K22

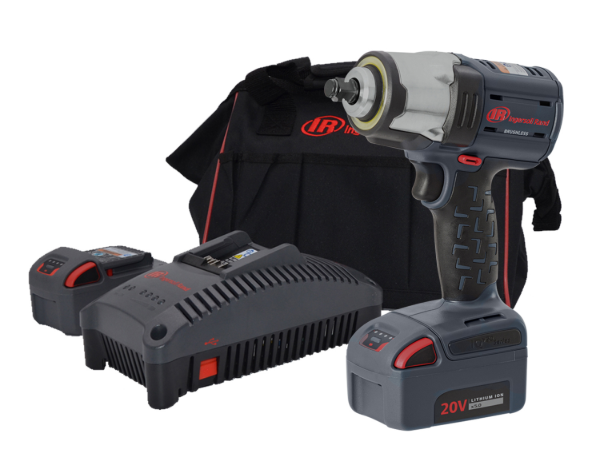

IR W5153P-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 550 ft-lb Torque, Pin Retainer, Pistol

The Ingersoll Rand W5153P impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drive train and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153P is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133P can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System
• Pin anvil ensures positive socket retention
• Kit includes 1/2" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Tool Bag

Includes: W5153P 1/2" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Tool Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85
Product Length (in): 7.2
Product Width (in): 2.8
Product H

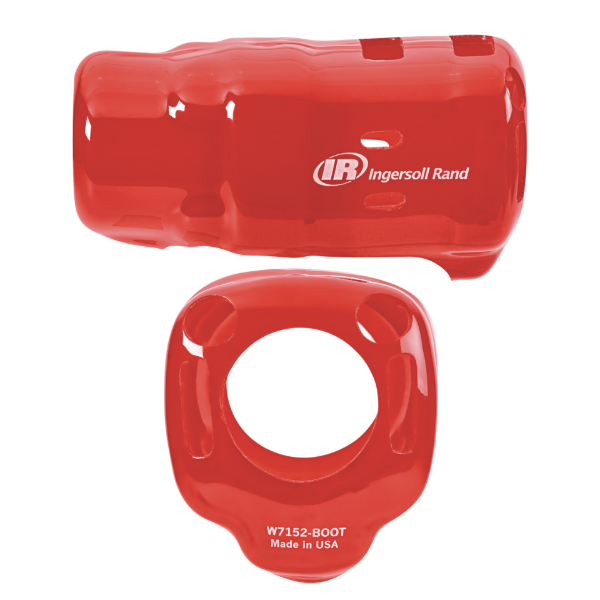

IR W7152-BOOT

Open Regulator Control Protective Boot for Ingersoll Rand W7000 Series Impact Wrench, Red

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand W7153, W7253-TL, W7152, W7252 series cordless impact wrench
Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• IQV20-K201
• W7152
• W7152-K12
• W7152-K22
• W7152P
• W7152P-K22
• W7153
• W7153-AP
• W7153-K22
• W7153-K22-CN
• W7153-K22-IN
• W7153-K22-JP
• W7153-K22-KR
• W7153-K22-SGHK
• W7153-K22B-AN
• W7153-K22B-EU
• W7172-K22
• W7172-K22B-EU
• W7252
• W7252-K22
• W7252-K22B-EU

Similar IR

• W7152-BOOTX

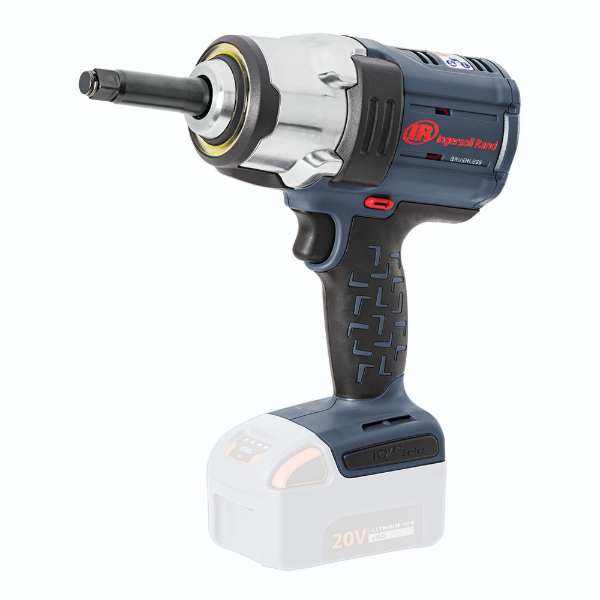

IR W7252

1/2" 20V Cordless Impact Wrench, 2" Ext Anvil, 1500 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

The W7252 is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7252 can go from MAX torque to “hand tight” in no time.

Features And Benefits

• Performance: Powerful brushless motor and finely tuned impact mechanism for best in class power-to-weight ratio. Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• Durable: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7252 from aggressive fluids, chemicals and repeated drops.
• Access: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access. The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Control: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• Variable-speed switch: (half and full power only) with electronic brake provides maximum control of the tool and increased safety-release trigger, drive stops spinning.
• Lightweight: Weighs only 7.8 lbs (with BL2022 battery).
• Compatible with IQV® 20 Series Battery System.
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Also available in the W7252-K22 Kit which includes (2) BL2022 5.0Ah Batteries, 20V battery charger and a tool bag.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners. Applications include tire changing, use with flip sockets, deep well wheels, tirelane and fleet maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 192.31
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.3
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring
RPM Setting 1: 600
RPM Se

AIM SIW-P10050

Signature Series Shut-Off Impact Cordless Tools Impact Driver Pistol W/Bail, Shut-Off 1/2" 25-100Nm

AIM SPC-P2625Q

1/4in QC.Pistol Driver, 18V Cordless

CL 47BAYSB48P3

Cordless Angle, 48NM, 5 GHz, Scan

IR QXWD2PT012PS04

1/4" 20V, Cordless QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT018EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT018ES06

3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT030PS06

3/8" 40V, Cordless Angle QX Limitless Precision Fastening, 266 in-lb, 775 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

LOB BPL-1825

Battery, 2.5 Ah

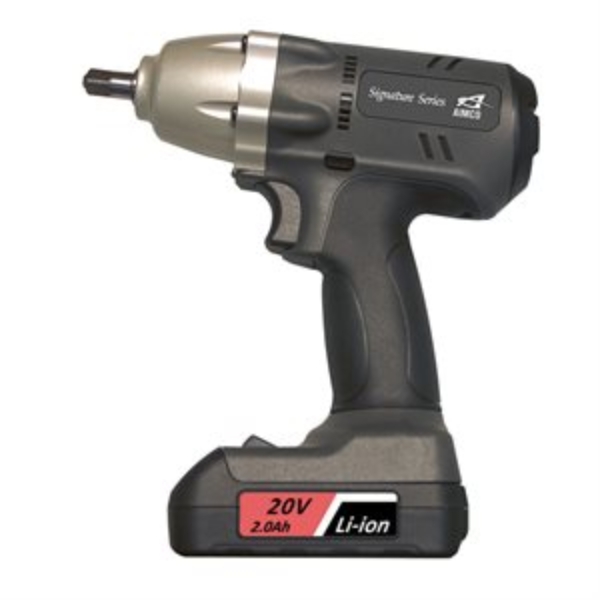

AIM SIW-P5538

Signature Series Shut-Off Impact Cordless Tools Impact Driver Pistol W/Bail Shut Off 3/8" 15-55Nm

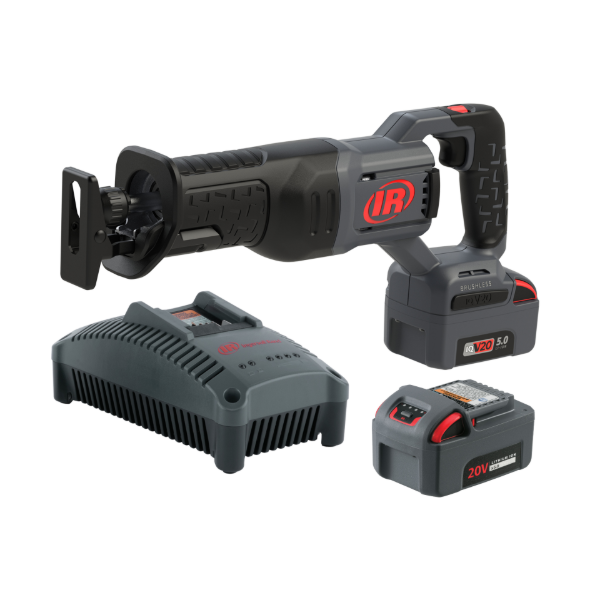

IR C5101-K22

20V Cordless Reciprocating Saw 2 Battery Kit, 1-1/4" Stroke, 3000 SPM

The Ingersoll Rand® IQV20™ Cordless Reciprocating Saw combines next-level power and speed to cut through steel 20% faster than leading competitor tools. A powerful brushless motor and premium gearing extends tool longevity without sacrificing cutting speed or stalling on the toughest of jobs. A lightweight build and Ingersoll Rand IQV20™ batteries keep you and your tools running all day long. The next generation of sawing technology is here, and it’s majorly powerful.

Features And Benefits

• SPEED: Cuts through steel pipes 20% faster than the leading cordless competitor.
• WEIGHT: 5% lighter than the leading cordless competitor at only 6.3lbs.
• PERFORMANCE: Powerful brushless motor and premium gearing extends tool life without sacrificing cutting speed; allowing the operator to power through the toughest jobs without stalling.
• DURABILITY: Resistant against over a dozen common workshop chemicals; UL IPX6 certified water-resistant.
• EASE-OF-USE: Tool-free blade clamp lets you make quick and easy changes.
• SAFETY: A trigger lock provides anti-restart protection, and a hanging hook lets you stow your tool safely.
• ADJUSTABILITY: Adjustable shoe gives you better control while you work and extends blade longevity.
• VISIBILITY: LED light helps reduce shadows so you can see your work area clearly.
• Kit Includes: (2) BL2022 5.0Ah Batteries and a 20V Battery Charger.

Includes: C5101 20V Reciprocating Saw, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals. Saw blades NOT included.
Product Application and Uses: Remote work that requires good control of the tool in tight spaces; Demolition by cutting of metals, plastics, and woods; Cutting 2” exhaust piping that 3-5” cut-off tools cannot reach (mostly under chassis and overhead applications; Cutting rusted bolts (inability to use an impact to loosen bolts and threads damaged); Cutting away damaged fenders, door framing, off a car body (quick/easy demolition) or Cutting thick frames, body panels, cross members (retrieving parts for recycling); Applications where spark free cutting is required.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Inside Trigger
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: D-Handle
Duty Rating: Maintenance Duty
Handle Location: Rear
Handle Material: Overmolded Grip
Housing Material: Nylon
Lock Mechanism: Toggle Switch
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Blades Included: 0
Number of Power Settings: Continuous
Power Source: Battery Powered
Product Length (in): 16.9
Product Width (in): 3.3
Product Height (in): 6.4
Product Weight (lb): 6.3
Product Weight (lb) (with Battery): 7.9
Sound Pressure/Power Db(A): 85.2 / 93.2
Special Features: Cuts through a steel pipe 20% faster than the leading cordless competitor*; 5% lighter than the leading cordless competitor for improved operator comfort and control*; Twice the life of the leading cordless competitor for improved durability and lower risk of unexpected tool failures like clamp breakage backed with a 3 year warranty*
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA, UL IPX-6
Stroke Length (in): 1.25
Strokes (per min): 3000
Vibration Level (m/s2): 12.1
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

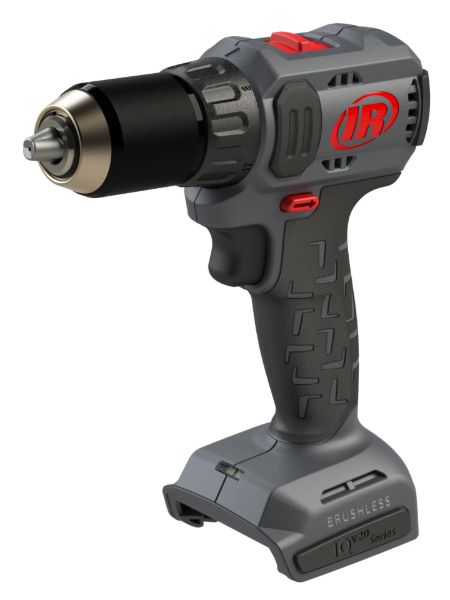

IR D3141

1/2" 20V Cordless Compact Drill Driver Bare Tool, 450 in-lb Torque, Keyless Chuck, Pistol Grip

The Ingersoll Rand® D3141 IQV20™ Cordless Compact Drill Driver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Weighing 3 lbs. with battery and 7" tip to tail length, it’s designed to help you access the toughest spots, from wheel hubs to heavy machinery gaskets. Also available in the D3141-K22 kit which includes (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Features And Benefits

• Performance: A powerful brushless motor runs with up to 450 in-lbs of torque, ensuring the IQV20™ Cordless Compact Drill Driver operates at the peak of power in any application.
• Versatility: Equipped with both drill and drive modes, to help get the job done right- no matter the application.
• Precision: Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.
• Ergonomics: Powerful things come in small packages. The IQV20™ Cordless Compact Drill Driver is 7" tip to tail and weighs 3 lbs. with battery.
• Durability: Impact-resistant rubberized design helps prevent accidental damage and increases longevity. IPX6 rated protection against harmful effects of water ingress.
• Speed: Whether you're drilling through sheet metal, wood or anything in between, two speed settings help you with the right level of torque.
• Strength: A 1/2" all-metal keyless chuck with carbide teeth grips drill bits and lets you drill through tough materials with ease.
• Visibility: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
• Also available in the D3141-K22 kit which includes the D3141 Drill Driver, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Drilling, honing, reaming, hole sawing, drilling out spot welds and rivets, driving threaded fasteners in sheet metal, wood or anything in between.
Actuation/Throttle Type/Switch Type: Trigger
Adjustable Clutch: Yes
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 18
Color: Grey
Configuration/Handle Type: Pistol Grip
Handle Material: Overmolded Grip
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 37
Max Torque (in-lb): 443
Max Torque (nm): 50
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.1
Product Width (in): 3.1
Product Height (in): 8.3
Product Height (in) (with Battery): 9.1
Product Weight (lb): 2.2
Product Weight (lb) (with Battery): 3.1
Recommended Forward Torque Range (ft-lb): 37
Recommended Forward Torque Range (in-lb): 443
Recommended Forward Torque Range (nm): 50
Reversible: Reversible
RPM Setting 1: 500
Sound Pressure/Power Db(A): 73 / 81
Special Features: Compact
Speed Setting: Dual speed
Standards/Certifications: ETL, CB, CE, IPX6
Tool Type: Compact
Vibration Level (m/s2): 4.0
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• D5241

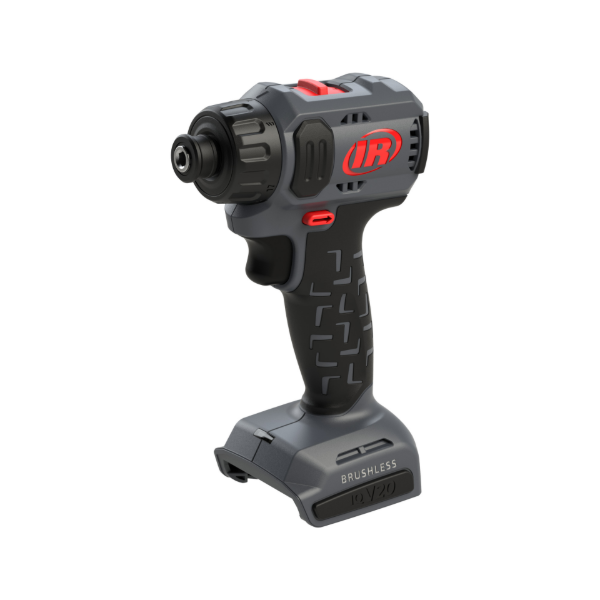

IR D3411

1/4" Hex 20V Cordless Compact Screwdriver, Quick Change Chuck, 450 in-lb Torque, Pistol Grip, Bare Tool

The Ingersoll Rand D3411 IQV20 Cordless Compact Screwdriver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Weighing under 2.7 lbs. with battery and 5" tip to tail length, it’s designed to help you access the toughest spots.

Features And Benefits

• Performance: A powerful brushless motor runs with up to 450 in-lbs of torque, ensuring the IQV20 Cordless Compact Screwdriver operates at the peak of power in any demanding application.
• Versatility: A 1/4” Hex quick change all-metal chuck grips bits and lets you drive fasteners and drill through tough materials with ease.
• Precision: Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.
• Ergonomics: Powerful things come in small packages. The IQV20 Cordless Compact Screwdriver weighs less than 2.7 lbs with 20V 2.5 Ah battery, so you can get the job done in tough-to-reach spaces with less fatigue.
• Durability: Impact-resistant rubberized design helps prevent accidental damage and increases longevity. IPX6 rated protection against harmful effects of water ingress.
• Speed: Whether you're drilling through sheet metal, wood or anything in between, two speed settings help you with the right level of torque.
• Strength: A 1/4" Hex Quick Change all-metal chuck grips drill and driver bits and lets you drill through tough materials with confidence
• Visibility: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
• Also available in the D3411-K22 kit which includes (2) BL2012 2.5Ah Batteries, and a 20V Battery Charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Drilling, honing, reaming, hole sawing, drilling out spot welds and rivets, driving threaded fasteners in sheet metal, wood or anything in between.
Actuation/Throttle Type/Switch Type: Trigger
Adjustable Clutch: Yes
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/4
Clutch Settings: 18
Clutch Type: Slip Clutch
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Type: Hex
Handle Material: Overmolded Grip
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 37
Max Torque (in-lb): 443
Max Torque (nm): 50
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 5
Product Width (in): 3.19
Product Height (in): 8.27
Product Height (in) (with Battery): 9.45
Product Weight (lb): 1.76
Product Weight (lb) (with Battery): 2.69
Recommended Forward Torque Range (ft-lb): 37
Recommended Forward Torque Range (in-lb): 443
Recommended Forward Torque Range (nm): 50
Retainer Type: Quick Change
Reversible: Reversible
RPM Setting 1: 500
Sound Pressure/Power Db(A): 73 / 81
Special Features: Compact
Speed Setting: Dual speed
Standards/Certifications: ETL, CB, CE, IPX6
Tool Type: Compact
Vibration Level (m/s2): 4
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

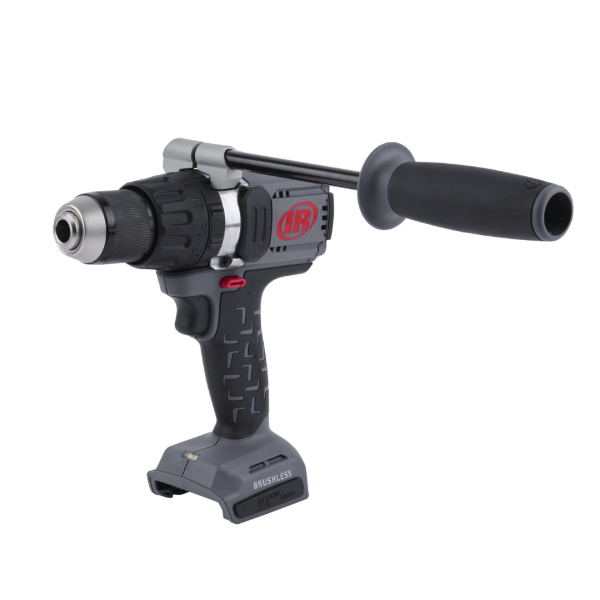

IR D5241

1/2" 20V Cordless Hammer Drill Bare Tool, 1100 in-lb Torque, Keyless Chuck, Pistol Grip

The Ingersoll Rand® D5241 IQV20™ Hammer Drill combines the ease and versatility of a cordless tool with the power and precision of our best-in-class, professional-grade portfolio. With 3 drill settings, 2 speed settings, a ½-inch chuck, and a 24-position clutch, it’s designed to give you the precise torque you need, whether you’re drilling through a thin layer of plaster or a solid cement wall. Also available in the D5241-K22 kit which includes the D5241 Hammer Drill, Auxiliary Handle, (2) BL2022 5.0Ah Batteries, and 20V Battery Charger.

Features And Benefits

• Power: With the capacity of 1,100 in-lbs of torque, the D5241 IQV20™ Hammer Drill is designed with the pros in mind.
• 1/2 Inch Chuck: All-metal keyless chuck with carbide teeth ensure bits don’t slip when drilling through almost any material.
• 24-Position Clutch: Say goodbye to cam-outs and over-torqued fasteners. A 24 position clutch lets you fine-tune fastening depth, so you can work smarter, not harder.
• Brushless Motor: The combination of a powerful brushless motor means the D5241 IQV20™ Hammer Drill operates at the apex of performance in almost any application.
• High and Low Speed Options: Whether you’re drilling through wood, steel, or concrete, two speed options help you get the right level of torque, every time.
• Rubberized Design: The D5241 IQV20™ Hammer Drill's impact-resistant rubberized design helps reduce kickback, keeping you steady and safe.
• LED light: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
• Adjustable Auxiliary Handle: For high-torque applications, a removable ergonomic auxiliary arm helps keep you steady.
• IQV20™ Battery: Compatible with the entire Ingersoll Rand IQV20™ platform, giving it an extra dose of power without weighing it down.
• Also available in the D5241-K22 kit which includes the D5241 Hammer Drill, Auxiliary Handle, (2) BL2022 5.0Ah Batteries, and 20V Battery Charger.

Includes: D5241 1/2" Hammer Drill, Auxiliary Handle and Manuals. Bare tool only; batteries and charger sold separately or with other kits.
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 28000
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 24
Color: Grey
Configuration/Handle Type: Pistol Grip
Configuration/Handle Type: Auxiliary Handle
Drilling Capacity in Concrete: 3/8" (10mm)
Forward Torque setting 1 (ft-lb): 60
Forward Torque setting 1 (in-lb): 717
Forward Torque setting 1 (nm): 81
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 92
Max Torque (in-lb): 1106
Max Torque (nm): 125
Motor: Brushless Motor
Nominal Drilling Capabilities (Wood Med or Frp): 1-3/8" (35mm)
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.8
Product Width (in): 3.1
Product Height (in): 8.7
Product Height (in) (with Battery): 11
Product Weight (lb): 3.5
Product Weight (lb) (with Battery): 5
Reversible: Reversible
RPM Setting 1: 500
Side to Center Distance (in): 1.6
Side to Center Distance (mm): 41
Sound Pressure/Power Db(A): 84 / 92
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

Similar IR

• D5140

Supersedes

• D5140

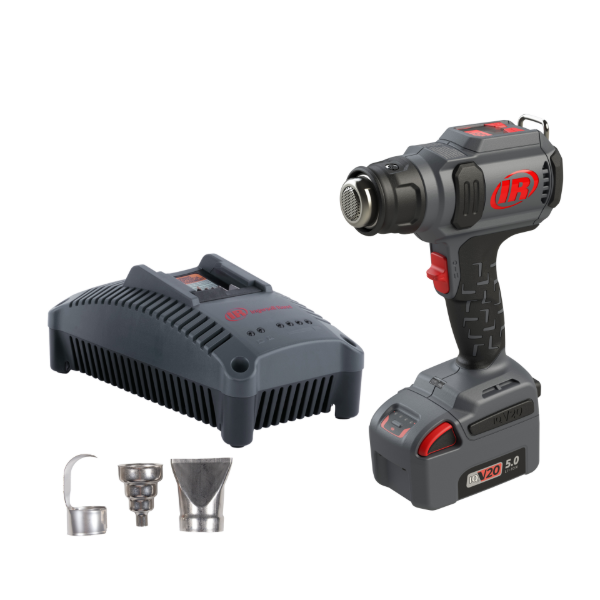

IR H3111-K1

20V Cordless Heat Gun, 1 Battery Kit

When you need heat in a hurry, the Ingersoll Rand® IQV20™ Cordless Heat Gun delivers – reaching operational temperatures up to 20% faster than the leading cordless competitors. Quickly customize to your application requirements with two airflow speeds up to 10 cfm and variable heat control settings up to 1022°F. The H3111 also features a lightweight build for comfortable all-day use and a dual speed slide switch for continuous, hands-free operation. Change attachments easily without handling hot parts with the twist nozzle ejector. Compatible with all Ingersoll Rand IQV20™ batteries, this tool enables portable productivity in a package that really brings the heat.

Features And Benefits

• Control: Dual fan speeds and adjustable temperature controls on an LCD display allows the user to better control the work piece temperature. From protecting delicate materials from excessive heating or blasting stuck on adhesives with maximum heat, the H3111 can be custom tuned to best fit your application.
• Performance: The H3111 reaches operational temperatures up to 20% faster than leading cordless competitors, reducing the time waiting for quick jobs like shrink tubing.
• Productivity: Don’t trade portability for productivity. The H3111 delivers up to 10% more continuous runtime at higher maximum temperatures and airflow than leading cordless competitors.
• Versatility: Twisting the nozzle ejector provides quick changes between attachments without handling hot parts. Each H3111 includes a flat, round, and a reflector nozzle attachment to direct heat where you need it most.
• Performance: Best in class airflow and max temperature settings increases the heat applied to your work area, ensuring the pros get their jobs done faster.
• Convenience: Cut the cord and take the H3111 anywhere with up to 20% less weight than other cordless brands.
• Convenience: Dual speed slide switch and lay flat design allows for hands free use.
• Kit Includes: (1) BL2022 5Ah Battery, 20V Battery Charger and 3 nozzles (Flat, reflector, concentrator).
• Compatibility: Compatible with all Ingersoll Rand IQV20 Batteries.

Includes: Includes: (1) BL2022 5.0Ah Battery, 20V Battery Charger and 3 nozzles (Flat, reflector, concentrator).
Product Application and Uses: Shrinking tube over electrical connections, softening adhesives and decals, soldering, melting, and drying applications.
Actuation/Throttle Type/Switch Type: Sliding Switch
Color: Grey
Configuration/Handle Type: Pistol Grip
Handle Material: Overmolded Grip
Heat Control Switch: -/+ Buttons
Housing Material: Impact and chemical-resistant composite housing
Maximum Air Flow: 10 cfm
Minimum Air Flow: 7 cfm
Motor: Brushed
Nozzle Type: Flat, reflector, concentrator
Number of Batteries Required: 1
Operating Temperature Range: 86-1022F (30-550C)
Power Source: Battery Powered
Product Length (in): 6.89
Product Width (in): 3.15
Product Height (in): 8.66
Product Height (in) (with Battery): 10.63
Product Weight (lb): 1.4
Sound Pressure/Power Db(A): 58.6 / 66.6
Standards/Certifications: ETL + CETL, NOM, CE + CB
Temperature Lock: Yes
Temperature Settings: Adjustable
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

IR IQV12-202

COMBO KIT-IQV12-202

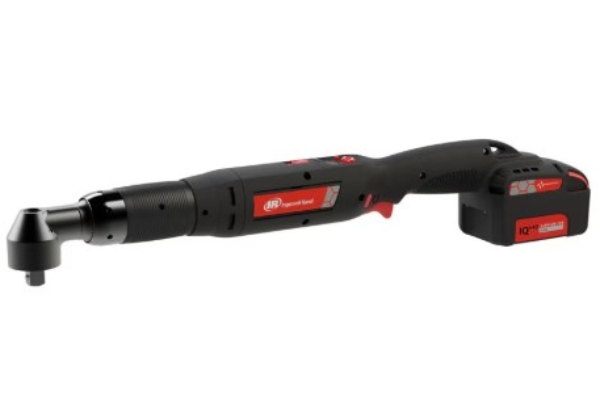

IR QXBD2AT005PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Torque Wrench, 44 in-lb Torque, 1213 RPM

Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBD models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1213
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 5
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.5
Recommended Forward Torque Range (ft-lb): 0.7-3.7
Recommended Forward Torque Range (in-lb): 8.9-44
Recommended Forward Torque Range (nm): 1.0-5
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.36
Side to Center Distance (mm): 9
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

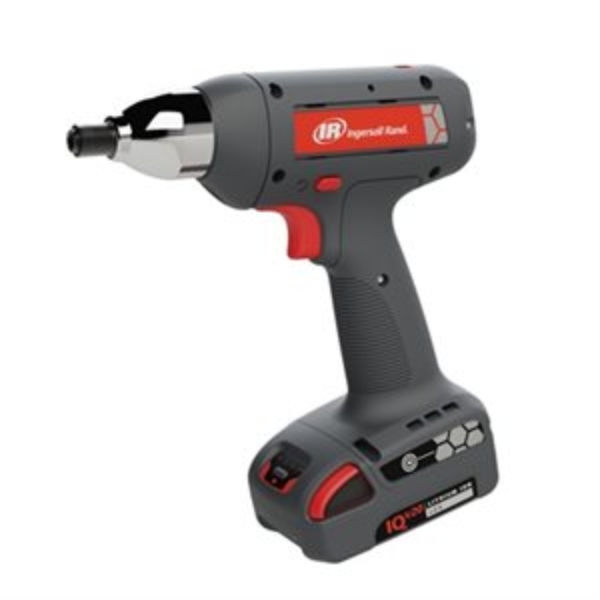

IR QXBD2PT004PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

IR QXBD2PT004PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C
