Cordless Tools

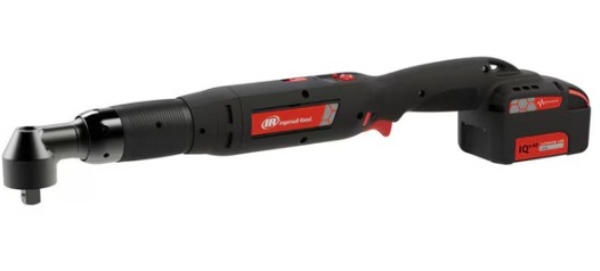

IR QXFD2AT010PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 89 in-lb Torque, 936 RPM, Display

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 936
Max Torque (ft-lb): 7.4
Max Torque (in-lb): 89
Max Torque (nm): 10
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 1.5-7.4
Recommended Forward Torque Range (in-lb): 18-89
Recommended Forward Torque Range (nm): 2-10
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXWD2PT008ES06

3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

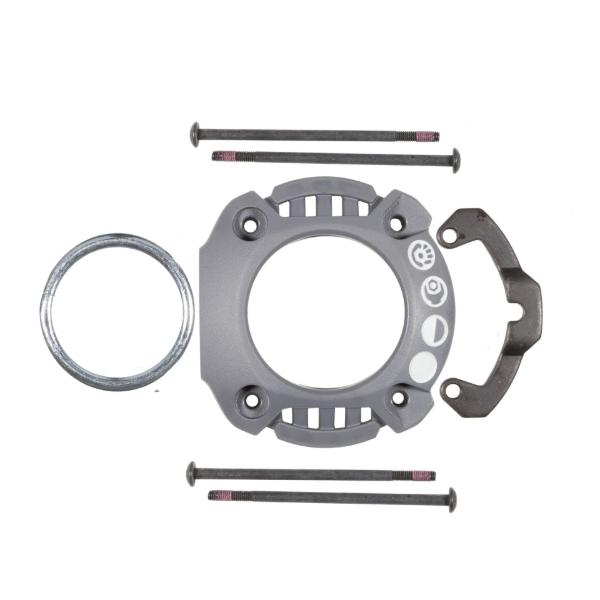

IR W7152-K365B

Hanger Kit for Ingersoll Rand Cordless Impact Wrenches

Includes: Backcap, (2) hammercase screws, (2) long hammercase screws, ring, bracket
Product Application and Uses: For use with the Ingersoll Rand DXS2 Impact Wrenches

For Use With

• IQV20-K201
• W7152-K12
• W7152-K22
• W7152P
• W7152P-K22
• W7153
• W7153-AP
• W7153-K22
• W7153-K22-CN
• W7153-K22-IN
• W7153-K22-JP
• W7153-K22-KR
• W7153-K22-SGHK
• W7153-K22B-AN
• W7153-K22B-EU
• W7172-K22
• W7252
• W7252-K22
• W7252-K22B-EU
• W7252-TL

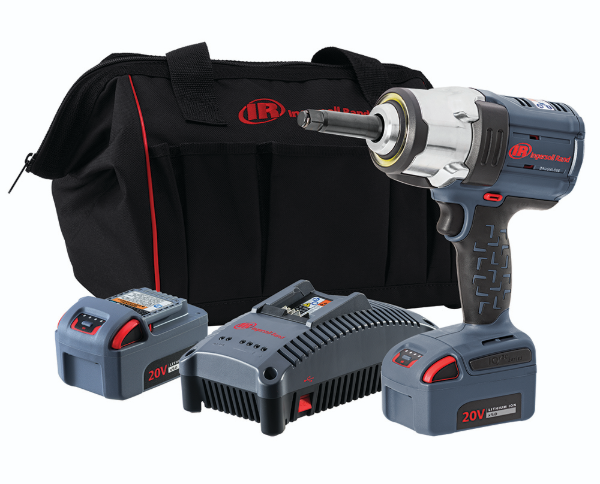

IR W7252-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 2" Ext Anvil, 1500 ft-lb Torque, Friction Ring Retainer, Pistol

Features And Benefits

• Performance: Powerful brushless motor and finely tuned impact mechanism for best in class power-to-weight ratio. Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• Durable: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7252 from aggressive fluids, chemicals and repeated drops.
• Access: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access. The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Control: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• Variable-speed switch: (half and full power only) with electronic brake provides maximum control of the tool and increased safety-release trigger, drive stops spinning.
• Lightweight: Weighs only 7.8 lbs (with BL2022 battery).
• Compatible with IQV® 20 Series Battery System.
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Kit Includes: W7252 Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag

Includes: W7252 1/2" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners. Applications include tire changing, use with flip sockets, deep well wheels, tirelane and fleet maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 192.31
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.3
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 106
Standards/Certifications: Ul Listed, Csa Certified
Tool Type: High-torque
Vibrati

IR D5140-K144

TORQUE SELECTOR COVERKIT D5140-K144

IR D5140-K93

Switch Kit D5140-K93

IR QXBD2PT012EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb, 750 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn’t have to be complicated with the QX Series™ Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

IR QXBN2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb, 1150 RPM, Pistol

Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn’t have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

IR QXFN2AT000E000

BACKCAP ASSEMBLY, 20V ANGLE, NO RADIO, NO DISPLAY, ETS

IR QXWD2AT010PS06

3/8" 20V, Cordless Angle QX Limitless Precision Fastening, 89 in-lb, 936 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 936
Max Torque (ft-lb): 7.4
Max Torque (in-lb): 89
Max Torque (nm): 10
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 1.5-7.4
Recommended Forward Torque Range (in-lb): 18-89
Recommended Forward Torque Range (nm): 2-10
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT012EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT012ES06

3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXXD2PT10CPM12

3/4" 20V Cordless Torque Wrench, Bare Tool, Bluetooth/802.15.4, Pistol

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 7
Max Torque (ft-lb): 738
Max Torque (in-lb): 8851
Max Torque (nm): 1000
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT13CPM16K2

1" 40V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.
• KIT INCLUDES: (2) 40V 2.5 Ah BL4011 Batteries and BC1161 40V Universal Charger

Includes: (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 11
Max Torque (ft-lb): 996
Max Torque (in-lb): 11949
Max Torque (nm): 1350
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 16.7
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

LOB BPL-1415

14.4 Volt Battery Pack

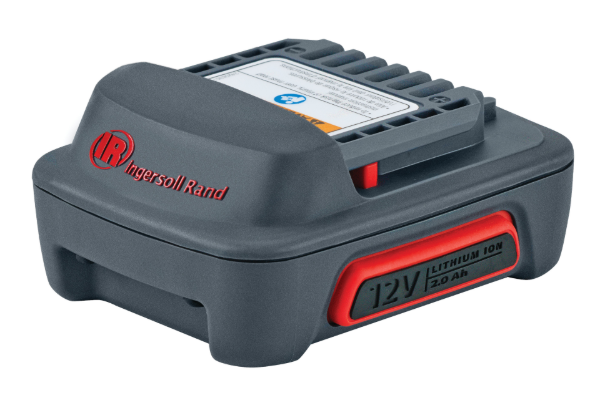

IR BL1203

IQV12 12V 2Ah Lithium-Ion Battery for Ingersoll Rand Power Tools

The BL2012 IQV® 20 Series High Capacity 2.5 Battery out performs its predecessor with up to 100% longer run time and at the same size and weight it gives you more power than ever before. The slim pack design is fully compatible with our charger and is equipped with our intelligent Battery Management System (BMS) we make sure you get more out of every volt.

Features And Benefits

• Durability: The intelligent Battery Management System allows the battery to communicate with the tool and charger to offer triple battery protection, prevent over loading over charging and over discharging for longer tool and battery life.
• Compatibility: Compatible with all IQV 12 Series tools,

Product Application and Uses: For use with any Ingersoll Rand IQV® 12 power tools
Battery Capacity (Ah): 2
Battery Capacity (Wh): 24
Color: Grey
Number of Battery Cells: 3
Power Source: Battery Powered
Product Weight (lb): 0.55
Voltage DC: 12
Warranty: 1-year
Battery Type: Tabbed

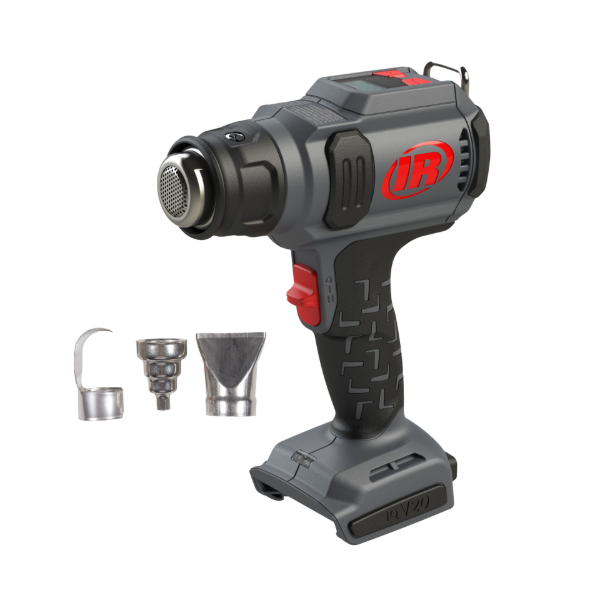

IR H3111

20V Cordless Heat Gun, Bare Tool

When you need heat in a hurry, the Ingersoll Rand® IQV20™ Cordless Heat Gun delivers – reaching operational temperatures up to 20% faster than the leading cordless competitors. Quickly customize to your application requirements with two airflow speeds up to 10 cfm and variable heat control settings up to 1022°F. The H3111 also features a lightweight build for comfortable all-day use and a dual speed slide switch for continuous, hands-free operation. Change attachments easily without handling hot parts with the twist nozzle ejector. Compatible with all Ingersoll Rand IQV20™ batteries, this tool enables portable productivity in a package that really brings the heat.

Features And Benefits

• Control: Dual fan speeds and adjustable temperature controls on an LCD display allows the user to better control the work piece temperature. From protecting delicate materials from excessive heating or blasting stuck on adhesives with maximum heat, the H3111 can be custom tuned to best fit your application.
• Performance: The H3111 reaches operational temperatures up to 20% faster than leading cordless competitors, reducing the time waiting for quick jobs like shrink tubing.
• Productivity: Don’t trade portability for productivity. The H3111 delivers up to 10% more continuous runtime at higher maximum temperatures and airflow than leading cordless competitors.
• Versatility: Twisting the nozzle ejector provides quick changes between attachments without handling hot parts. Each H3111 includes a flat, round, and a reflector nozzle attachment to direct heat where you need it most.
• Performance: Best in class airflow and max temperature settings increases the heat applied to your work area, ensuring the pros get their jobs done faster.
• Convenience: Cut the cord and take the H3111 anywhere with up to 20% less weight than other cordless brands.
• Convenience: Dual speed slide switch and lay flat design allows for hands free use.
• Compatibility: Compatible with all Ingersoll Rand IQV20 Batteries.
• Also available in the H3111-K1 which includes (1) 5Ah Battery and Charger.

Includes: Includes 3 nozzles (Flat, reflector, concentrator). Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Shrinking tube over electrical connections, softening adhesives and decals, soldering, melting, and drying applications.
Actuation/Throttle Type/Switch Type: Sliding Switch
Color: Grey
Configuration/Handle Type: Pistol Grip
Handle Material: Overmolded Grip
Heat Control Switch: -/+ Buttons
Housing Material: Impact and chemical-resistant composite housing
Maximum Air Flow: 10 cfm
Minimum Air Flow: 7 cfm
Motor: Brushed
Nozzle Type: Flat, reflector, concentrator
Number of Batteries Required: 1
Operating Temperature Range: 86-1022F (30-550C)
Power Source: Battery Powered
Product Length (in): 6.89
Product Width (in): 3.15
Product Height (in): 8.66
Product Height (in) (with Battery): 10.63
Product Weight (lb): 1.4
Sound Pressure/Power Db(A): 58.6 / 66.6
Standards/Certifications: ETL + CETL, NOM, CE + CB
Temperature Lock: Yes
Temperature Settings: Adjustable
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

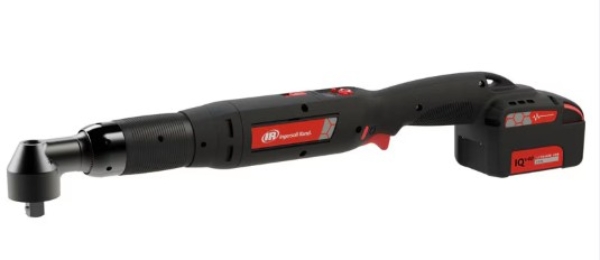

IR QXBD2AT018PS06

3/8" 20V Cordless QX Precision Fastening Angle Wrench, 159 in-lb Torque, 500 RPM

Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBD models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

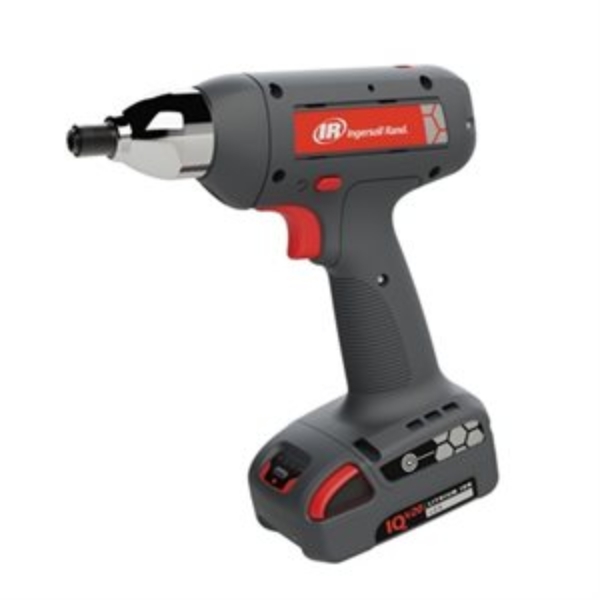

IR QXBD2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

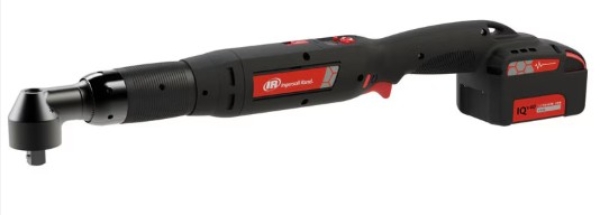

IR QXBD5AT040ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 354 in-lb, 545 RPM

Increase the productivity of your assembly line with the 40V high torque Angle wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBD models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn’t have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series™ 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 545
Max Torque (ft-lb): 30
Max Torque (in-lb): 354
Max Torque (nm): 40
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.1
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 5.9-30
Recommended Forward Torque Range (in-lb): 71-354
Recommended Forward Torque Range (nm): 8.0-40
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

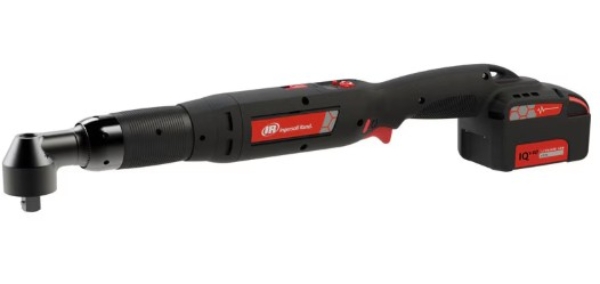

IR QXBD5AT080PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb, 375 RPM

Increase the productivity of your assembly line with the 40V high torque Angle wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBD models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series™ 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

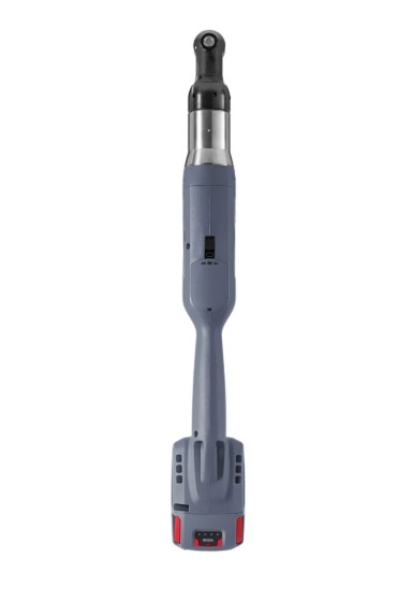

IR QXFD2AT015PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 133 in-lb Torque, 600 RPM, Display

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 600
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 2.2-11
Recommended Forward Torque Range (in-lb): 27-133
Recommended Forward Torque Range (nm): 3-15
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

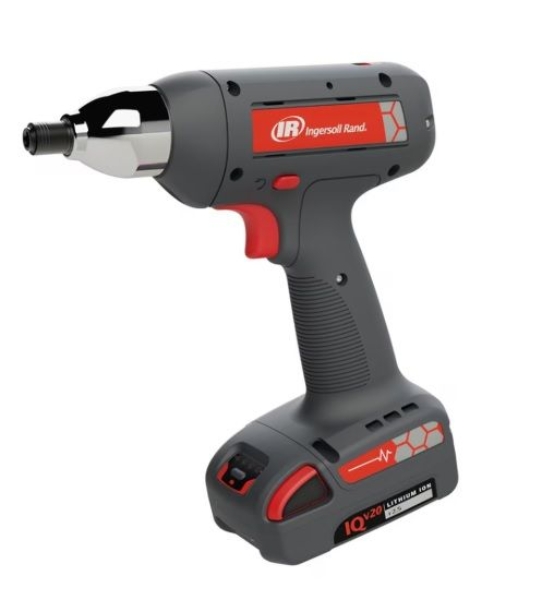

IR QXFD2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

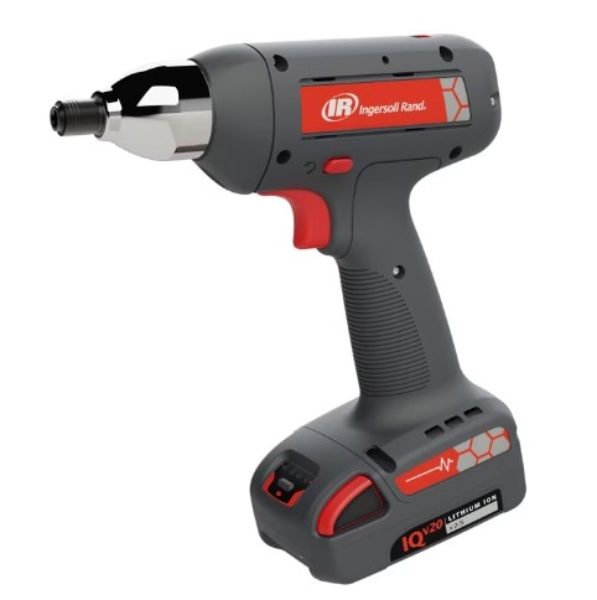

IR QXFD2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

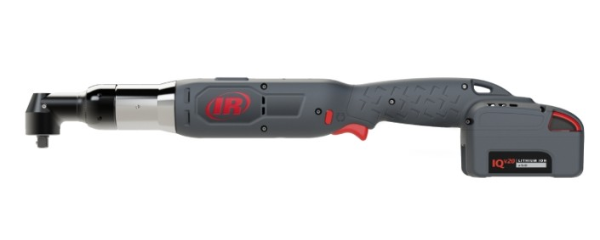

IR QXWD2AT015PS06

3/8" 20V, Cordless Angle QX Limitless Precision Fastening, 133 in-lb, 600 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 600
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 2.2-11
Recommended Forward Torque Range (in-lb): 27-133
Recommended Forward Torque Range (nm): 3-15
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth
