IR D5241-K22
1/2" 20V Cordless Hammer Drill 2 Battery Kit, 1100 in-lb Torque, Keyless Chuck, Pistol Grip
Features And Benefits
- Power: With the capacity of 1,100 in-lbs of torque, the D5241 IQV20™ Hammer Drill is designed with the pros in mind.
- 1/2 Inch Chuck: All-metal keyless chuck with carbide teeth ensure bits don’t slip when drilling through almost any material.
- 24-Position Clutch: Say goodbye to cam-outs and over-torqued fasteners. A 24 position clutch lets you fine-tune fastening depth, so you can work smarter, not harder.
- Brushless Motor: The combination of a powerful brushless motor means the D5241 IQV20™ Hammer Drill operates at the apex of performance in almost any application.
- High and Low Speed Options: Whether you’re drilling through wood, steel, or concrete, two speed options help you get the right level of torque, every time.
- Rubberized Design: The D5241 IQV20™ Hammer Drill's impact-resistant rubberized design helps reduce kickback, keeping you steady and safe.
- LED light: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
- Adjustable Auxiliary Handle: For high-torque applications, a removable ergonomic auxiliary arm helps keep you steady.
- IQV20™ Battery: Compatible with the entire Ingersoll Rand IQV20™ platform, giving it an extra dose of power without weighing it down.

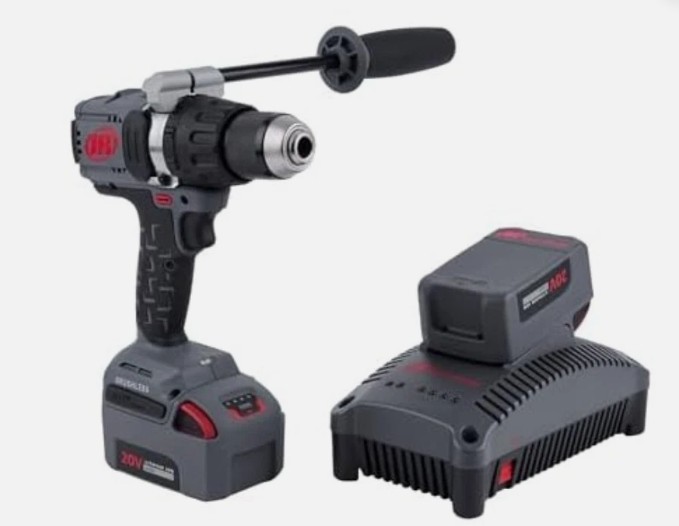

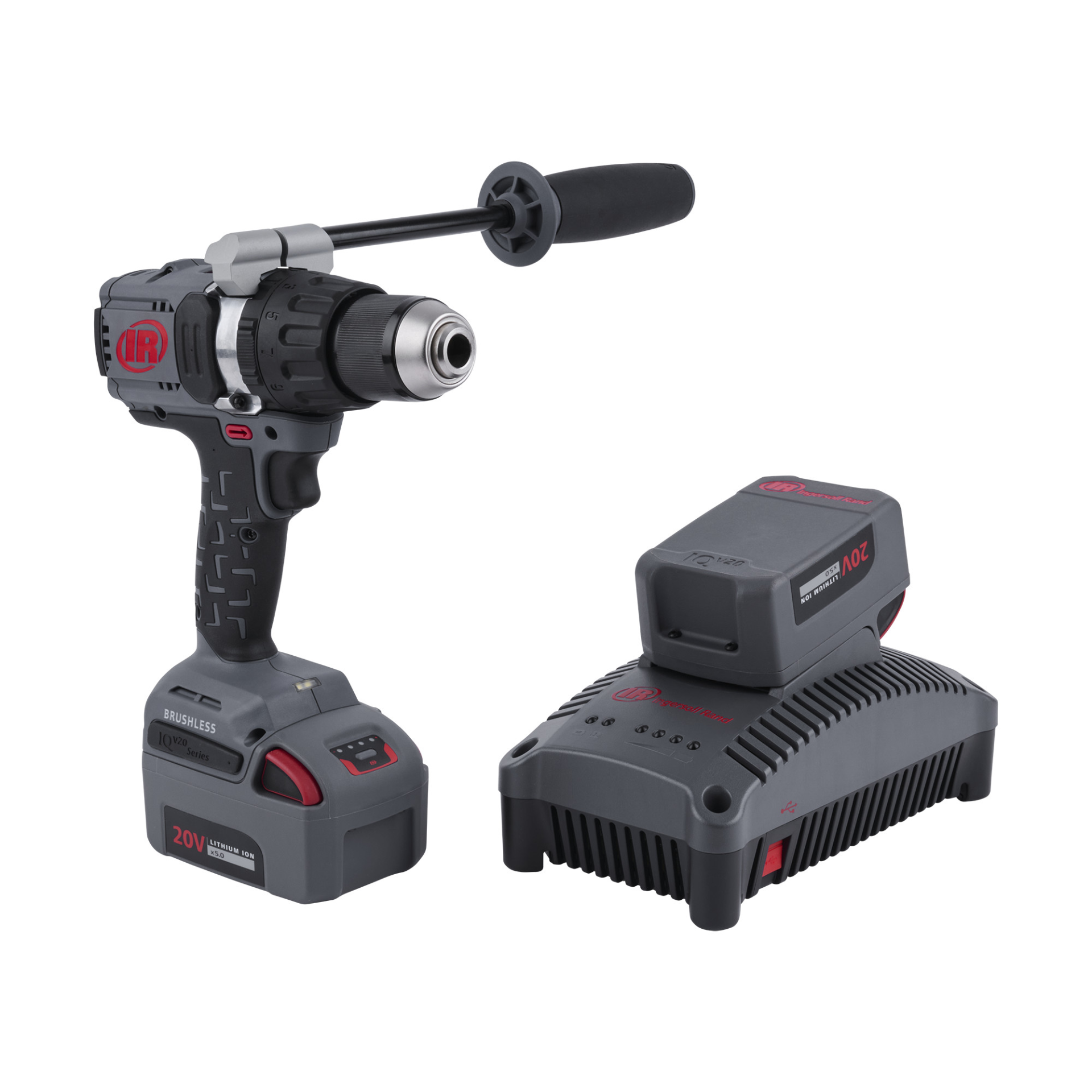

- Kit Includes: D5241 1/2" Hammer Drill, (2) BL2022 5.0Ah Batteries, 20V Battery Charger and Auxiliary Handle.
Includes: D5241 1/2" Hammer Drill, Auxiliary Handle, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 28000
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 24
Color: Grey
Configuration/Handle Type: Pistol Grip
Configuration/Handle Type: Auxiliary Handle
Drilling Capacity in Concrete: 3/8" (10mm)
Forward Torque setting 1 (ft-lb): 60
Forward Torque setting 1 (in-lb): 717
Forward Torque setting 1 (nm): 81
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 92
Max Torque (in-lb): 1106
Max Torque (nm): 125
Motor: Brushless Motor
Nominal Drilling Capabilities (Wood Med or Frp): 1-3/8" (35mm)
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.8
Product Width (in): 3.1
Product Height (in): 8.7
Product Height (in) (with Battery): 11
Product Weight (lb): 3.5
Product Weight (lb) (with Battery): 5
Reversible: Reversible
RPM Setting 1: 500
Side to Center Distance (in): 1.6
Side to Center Distance (mm): 41
Sound Pressure/Power Db(A): 84 / 92
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
