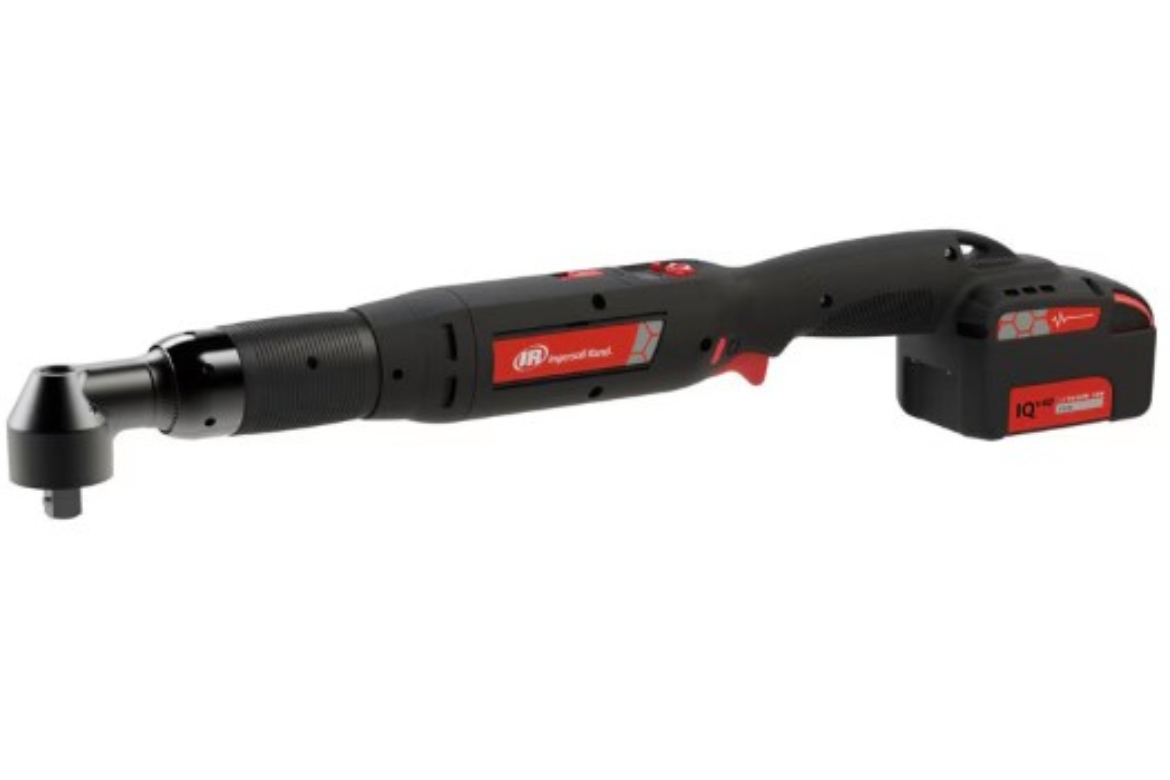

IR QXBN5AT080PS08
1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb, 375 RPM
Increase the productivity of your assembly line with the added length and improved ergonomics of the 40V High Torque Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBN models also offer users the Bluetooth connectivity option to wirelessly program the QX Connect Series™ tools using the INSIGHT Connect App.
Features And Benefits
- Comes with 32 programmable tightening configuration.
- Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app.
- Enhanced quantitative feedback – displaying the actual measured torque or angle result.
- 1,200 cycles of onboard tightening data storage.
- Configurable preventative maintenance alarms.
- Intuitive qualitative feedback using Green, Red, and Yellow indicators.
- The QX Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series™ 40V, 2.5Ah charger BC1161.
- Insight Connect Android APP LINK.
- Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software.
Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C
