Cordless Tools

IR QXFD2AT018PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM, Display

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXWD2AT018PS06

3/8" 20V, Cordless Angle QX Limitless Precision Fastening, 159 in-lb, 500 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2AT027ES06

3/8" 20V, Cordless Angle ETS QX Limitless Precision Fastening, 239 in-lb, 330 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 2.7
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXFD2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

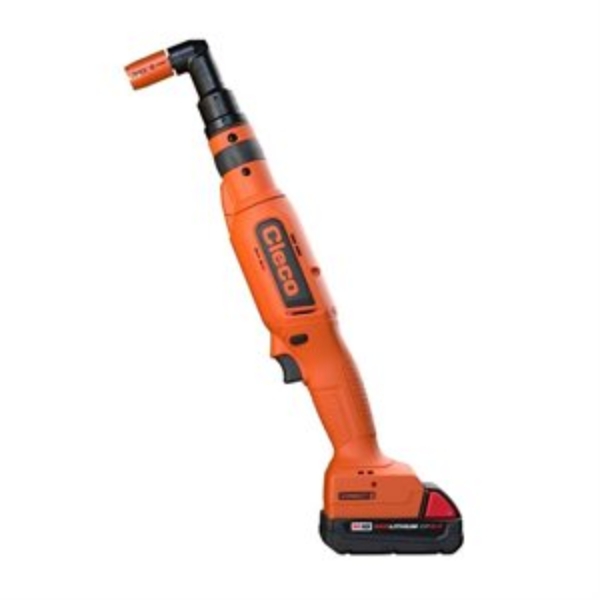

CL CLBA203

NUTRUNNER, CL AH - 20NM

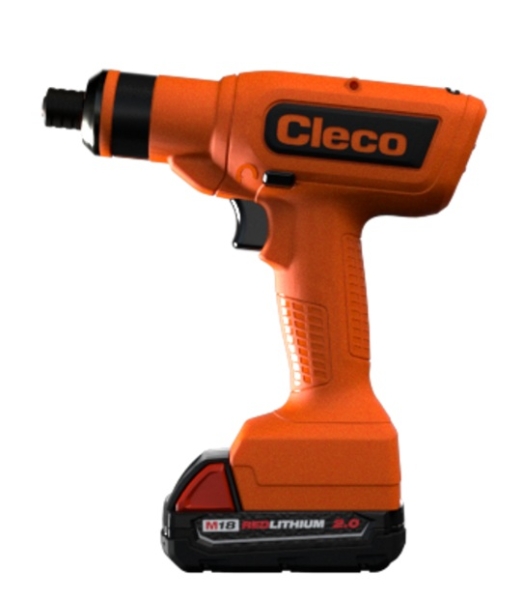

CL CLBP04Q

SCREWDRIVER, CL PISTOL - 4NM

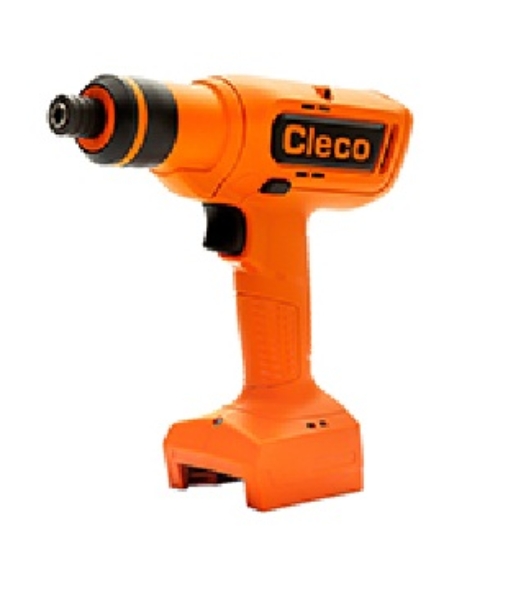

CL CLBP08Q

SCREWDRIVER, CL PISTOL - 8NM

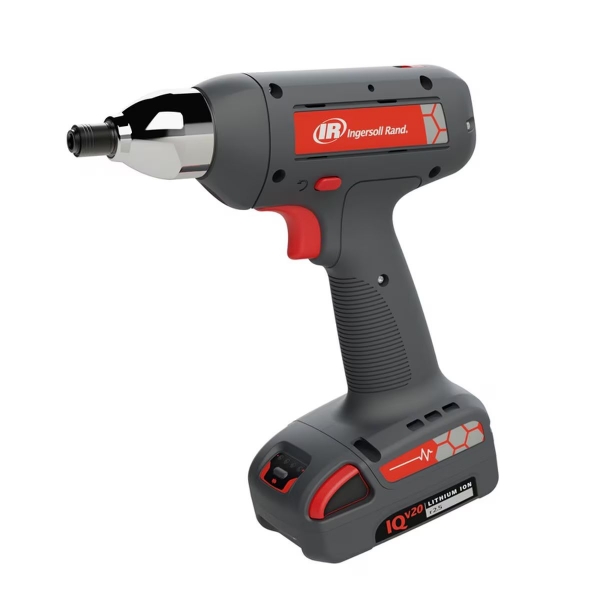

IR QXFD2PT018EQ04

1/4" Hex Quick Change 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

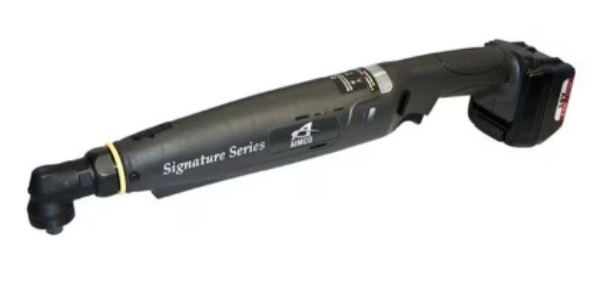

AIM SPC-A23538

Signature Series Precision Clutch Cordless Tool Shut Off 3/8" Dr 10-35Nm 18V

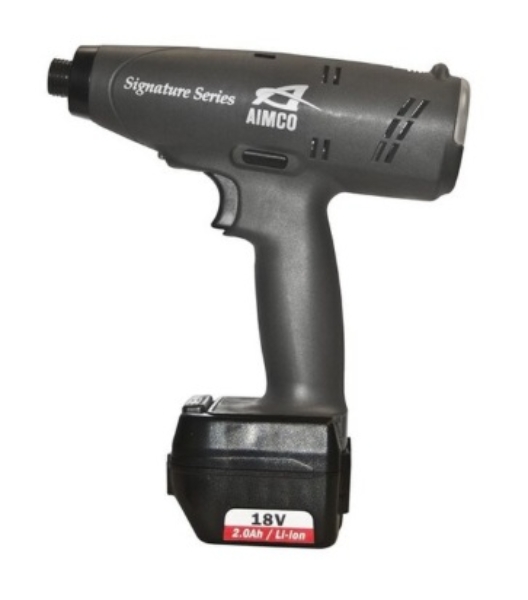

AIM SPC-P21225Q

Driver, Pistol Cordless w/Batt, Shut Off, 1/4in QC, 2 - 12nM, 18V

IR QXBD5AT080ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 708 in-lb, 375 RPM

Increase the productivity of your assembly line with the 40V high torque Angle wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBD models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn’t have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series™ 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.1
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

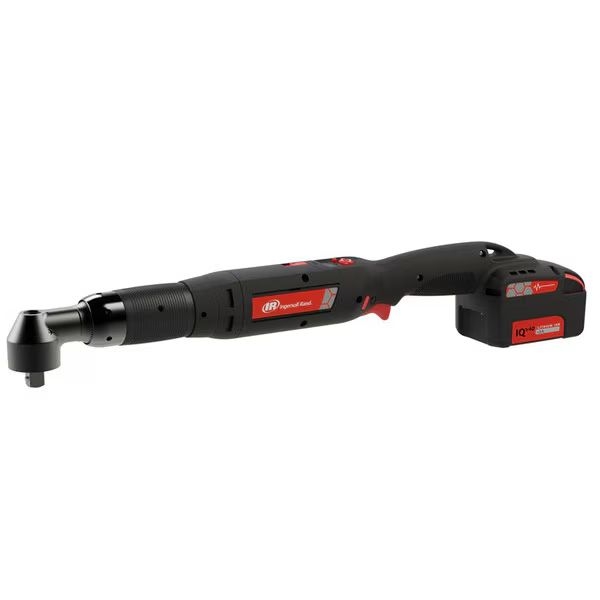

IR QXWD2AT027PS06

3/8" 20V, Cordless Angle QX Limitless Precision Fastening, 239 in-lb, 330 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

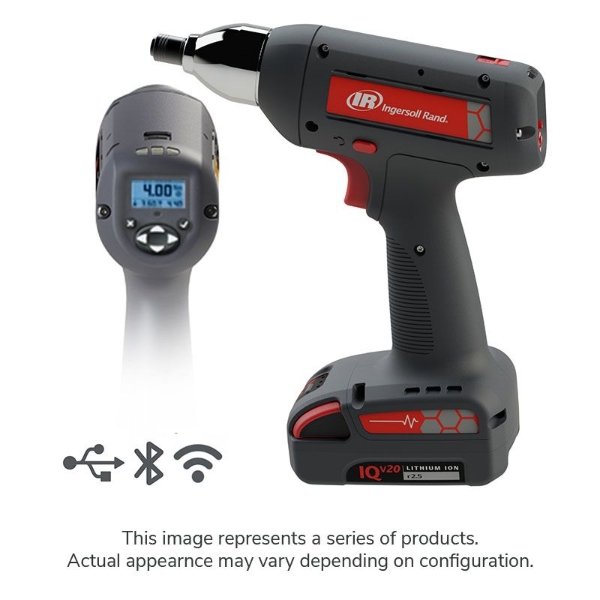

IR QXWD2PT012PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

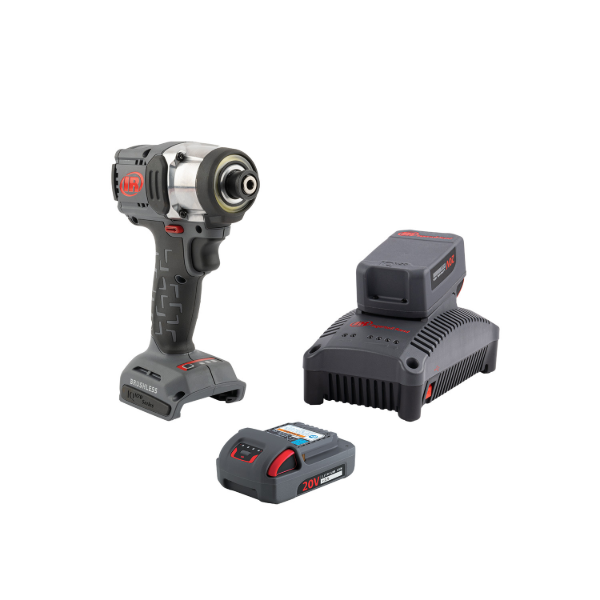

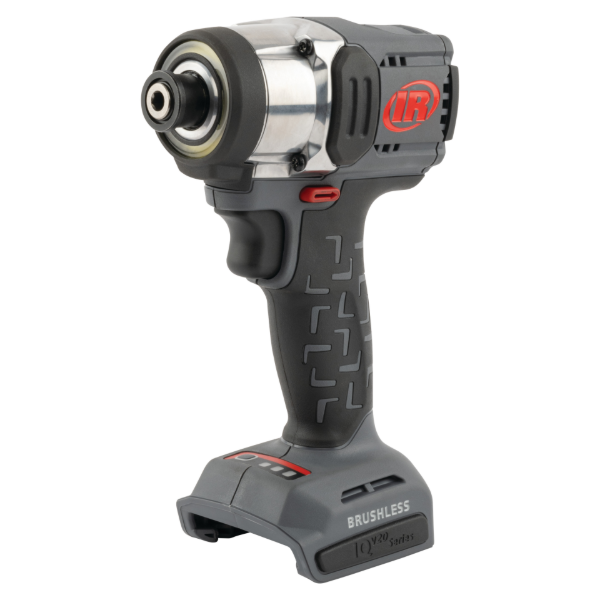

IR W3111-K22

1/4" 20V Hex Cordless Impact Driver 2 Battery Kit, 265 ft-lb Torque, Quick Change Retainer, Pistol

Features And Benefits

• PERFORMANCE: Powerful brushless motor delivers 3,180 In-lbs. fastening torque.
• COMPACT: Short 5.2” tip-to-tail length enables working in enclosed spaces.
• VERSATILE: 3 speed modes with variable speed trigger to fine-tune for application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless impact Driver works with all IQV® 20 batteries.
• KIT INCLUDES: 1/4" Impact Driver, (1) 2.5 Ah Battery (1) 5.0Ah Battery, 20V Battery Charger.

Includes: W3111 1/4" Impact Driver, (1) 2.5 Ah Battery, (1) 5.0Ah Battery, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 70
Forward Torque setting 1 (in-lb): 841
Forward Torque setting 1 (nm): 95
Forward Torque setting 2 (ft-lb): 140
Forward Torque setting 2 (in-lb): 1682
Forward Torque setting 2 (nm): 190
Forward Torque setting 3 (ft-lb): 266
Forward Torque setting 3 (in-lb): 3186
Forward Torque setting 3 (nm): 360
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 266
Max Torque (in-lb): 3186
Max Torque (nm): 360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Power Source: Battery Powered
Product Length (in): 5.2
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 266
Recommended Forward Torque Range (in-lb): 3186
Recommended Forward Torque Range (nm): 360
Retainer Type: Quick Change
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 2101XPA-QC
• W5111-K22

Supersedes

• W5111-K22
• W5111-K12

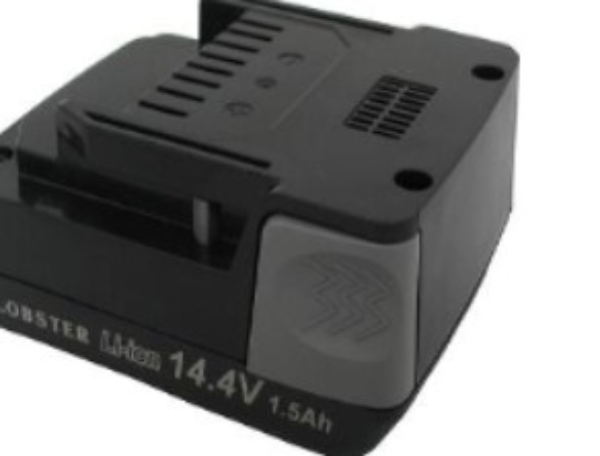

LOB BPL1415

Standard Battery, 1.5 Ah

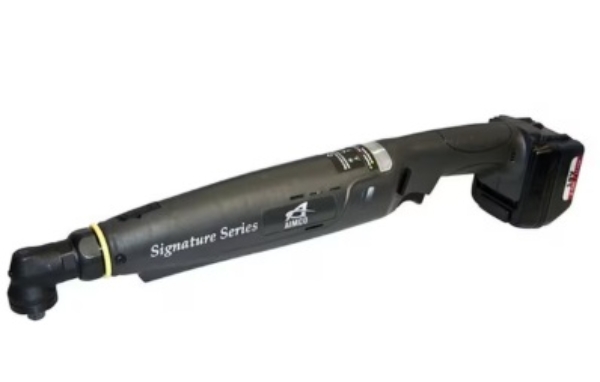

AIM SPC-A21638

Signature Series Precision Clutch Cordless Tools Shut Off 3/8" Dr 5-16Nm 18V

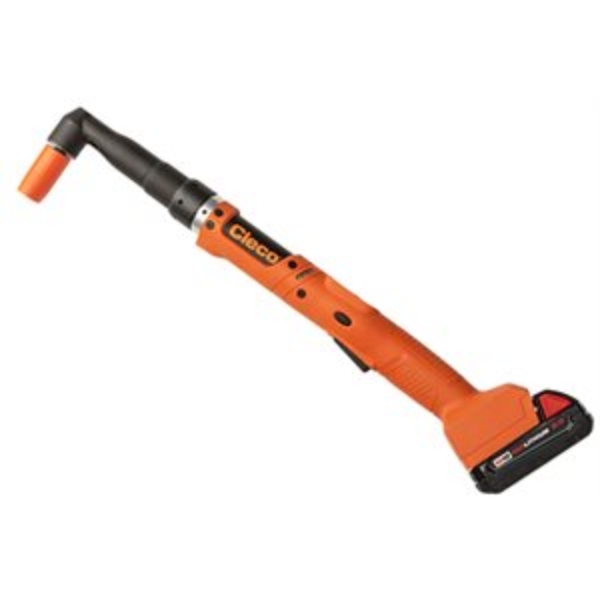

CL CLBA303

NUTRUNNER, CL AH - 30NM

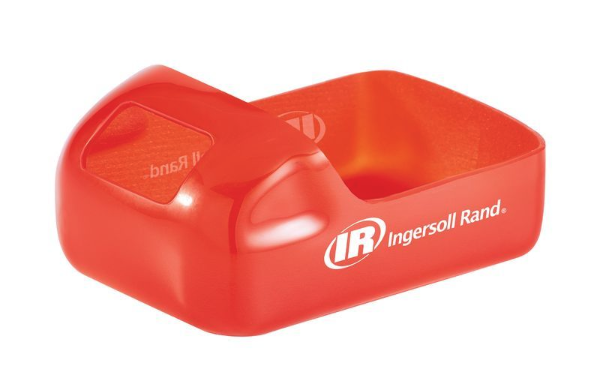

IR BL2005-BOOT

Protective Boot for Ingersoll Rand BL2005 & BL2012 IQV® Battery

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand BL2005 & BL2012 batteries.
Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• BL2012
• G4911-K1
• G4911-K1-AP
• G4911-K1-CN
• G4911-K1-EU
• G4911-K1-IN
• G4911-K1-JP
• G4911-K1-KR

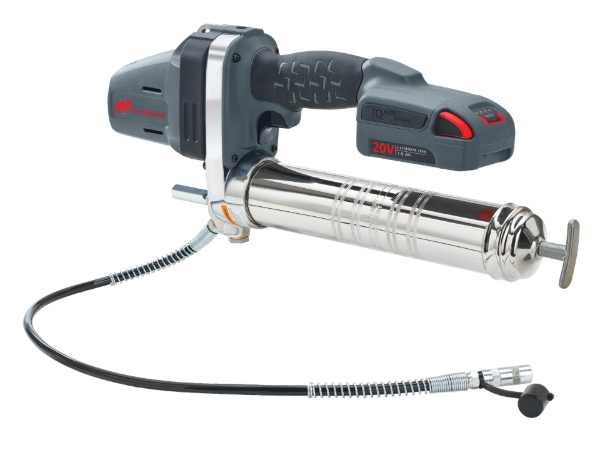

IR LUB5130

IQV® 20V Cordless Grease Gun, 14oz Canister Capacity, Bare Tool

Ingersoll Rand's 20V cordless grease gun, the LUB5130, is powered by advanced battery technology and makes it easy for operators to grease fittings in the shop and in the field. Designed specifically for professional technicians who require tough, long-lasting, ergonomic tools, the LUB5130 has what it takes to keep your work running smoothly.

Features And Benefits

• Performance: High operating pressure and flow rate powers through clogged fittings, quickly delivering grease and reducing job time.
• Comfort: Work with greater comfort and less fatigue; lightweight design (7.2 lbs.), ergonomic handle with over-molded grip and patented soft-mount system reduces vibration for extended use. Optional shoulder strap hook for additional flexibility and support of this cordless grease gun.
• Durability: All-metal drive train is robust, durable and optimized for maximum power and efficiency. Steel-reinforced metal gears, heavy-duty motor and impact and chemical resistant housing protect against breakage in the harshest environments and withstand repeated drops and shop fluid damage.
• Productivity: Electronic shutdown and high-pressure LED indicator prevents grease spills and extends motor life of this cordless grease gun. Easy 3-way load system for maximum versatility with cartridge, bulk and manual loading into this cordless grease gun. More up-time with one battery platform that is compatible with all your IQV® 20 Series tools. The 20-volt lithium-ion battery is available in 5.0 Ah and 2.5 Ah.
• Access: Standard 30" hose improves reach, helps operators access tight spots.
• Warranty: Comes with a 3-year limited warranty.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: A Cordless Grease Gun is a battery powered, hand-held, power tool that stores and dispenses grease.
Air Pressure (psi): 6250
Canister Capacity (g): 0.11
Canister Capacity (oz): 14
Color: Grey
Flow Rate (g/min): 73.71
Flow Rate (oz/min): 2.6
Grease Type (NLGI): 2-4
Hose Length (ft): 2.5
Housing Material: Impact and chemical-resistant composite housing
Max Pressure (bar): 430.92
Power Source: Battery Powered
Product Weight (lb): 7.2
Vibration Level (m/s2): .2
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

IR QXBD2PT004PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx™ Controller, Insight Connect Android App, and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: USB-C

IR QXFD2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 18
Max Torque (in-lb): 212
Max Torque (nm): 24
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): -
Recommended Forward Torque Range (in-lb): -
Recommended Forward Torque Range (nm): 4.8 – 24
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

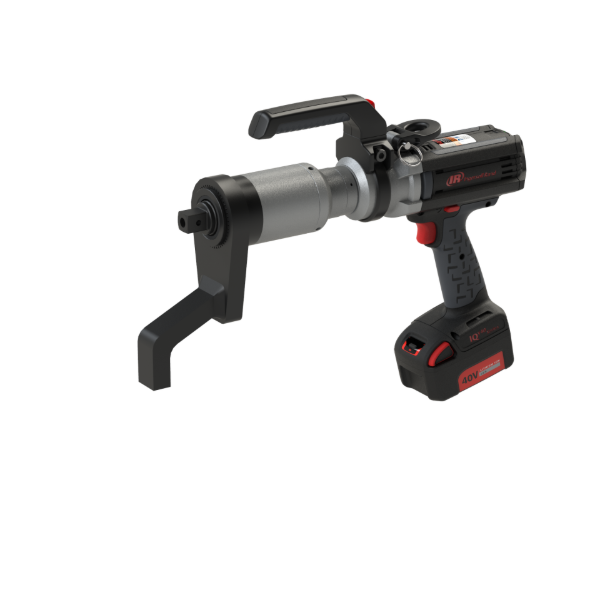

IR QXXD5PT10CPM12

3/4" 40V Cordless Torque Wrench, Bare Tool, 8851 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 15
Max Torque (ft-lb): 738
Max Torque (in-lb): 8851
Max Torque (nm): 1000
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.7
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 148-738
Recommended Forward Torque Range (in-lb): 1770-8851
Recommended Forward Torque Range (nm): 200 - 1000
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT500PM12

3/4" 40V Cordless Torque Wrench, Bare Tool, 4425 in-lb Torque, Bluetooth/802.15.4, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 27
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 15.5
Product Weight (lb): 13.9
Product Weight (lb) (with Battery): 15.4
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 74-369
Recommended Forward Torque Range (in-lb): 885-4425
Recommended Forward Torque Range (nm): 100 - 500
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR W3111

1/4" 20V Hex Cordless Impact Driver, 265 ft-lb Torque, Quick Change Retainer, Compact, Pistol, Bare Tool

Features And Benefits

• PERFORMANCE: Powerful brushless motor delivers 3,180 In-lbs. fastening torque and 2800 rpm.
• COMPACT: Short 5.2” tip-to-tail length enables working in enclosed spaces.
• VERSATILE: 3 speed modes with variable speed trigger to fine-tune for application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless Impact Driver works with all IQV® 20 batteries.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 70
Forward Torque setting 1 (in-lb): 841
Forward Torque setting 1 (nm): 95
Forward Torque setting 2 (ft-lb): 140
Forward Torque setting 2 (in-lb): 1682
Forward Torque setting 2 (nm): 190
Forward Torque setting 3 (ft-lb): 266
Forward Torque setting 3 (in-lb): 3186
Forward Torque setting 3 (nm): 360
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 266
Max Torque (in-lb): 3186
Max Torque (nm): 360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Power Source: Battery Powered
Product Length (in): 5.2
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 266
Recommended Forward Torque Range (in-lb): 3186
Recommended Forward Torque Range (nm): 360
Retainer Type: Quick Change
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 2101XPA-QC
• W5111

Supersedes

• W5111
• W5110
• W1110
