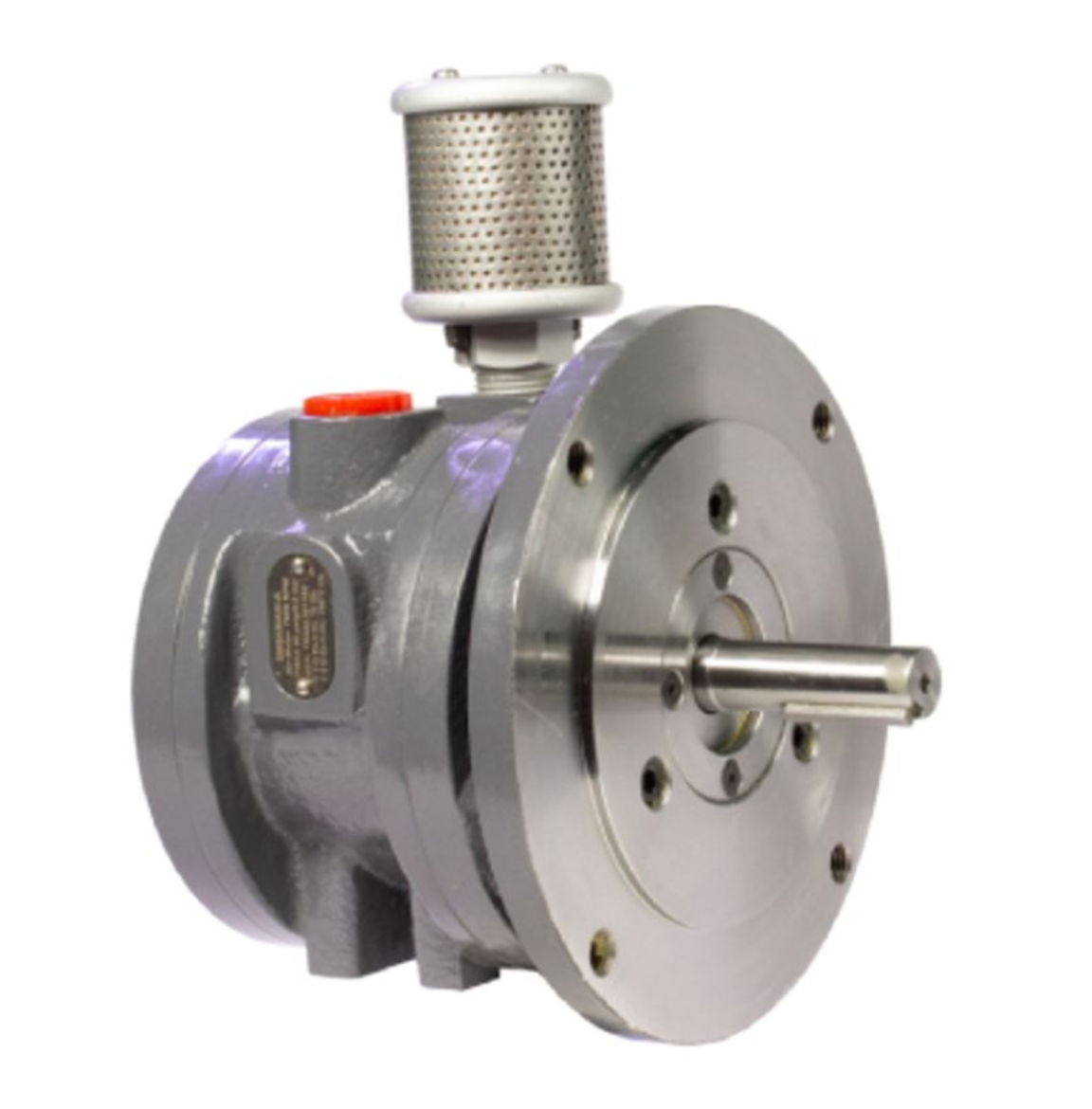

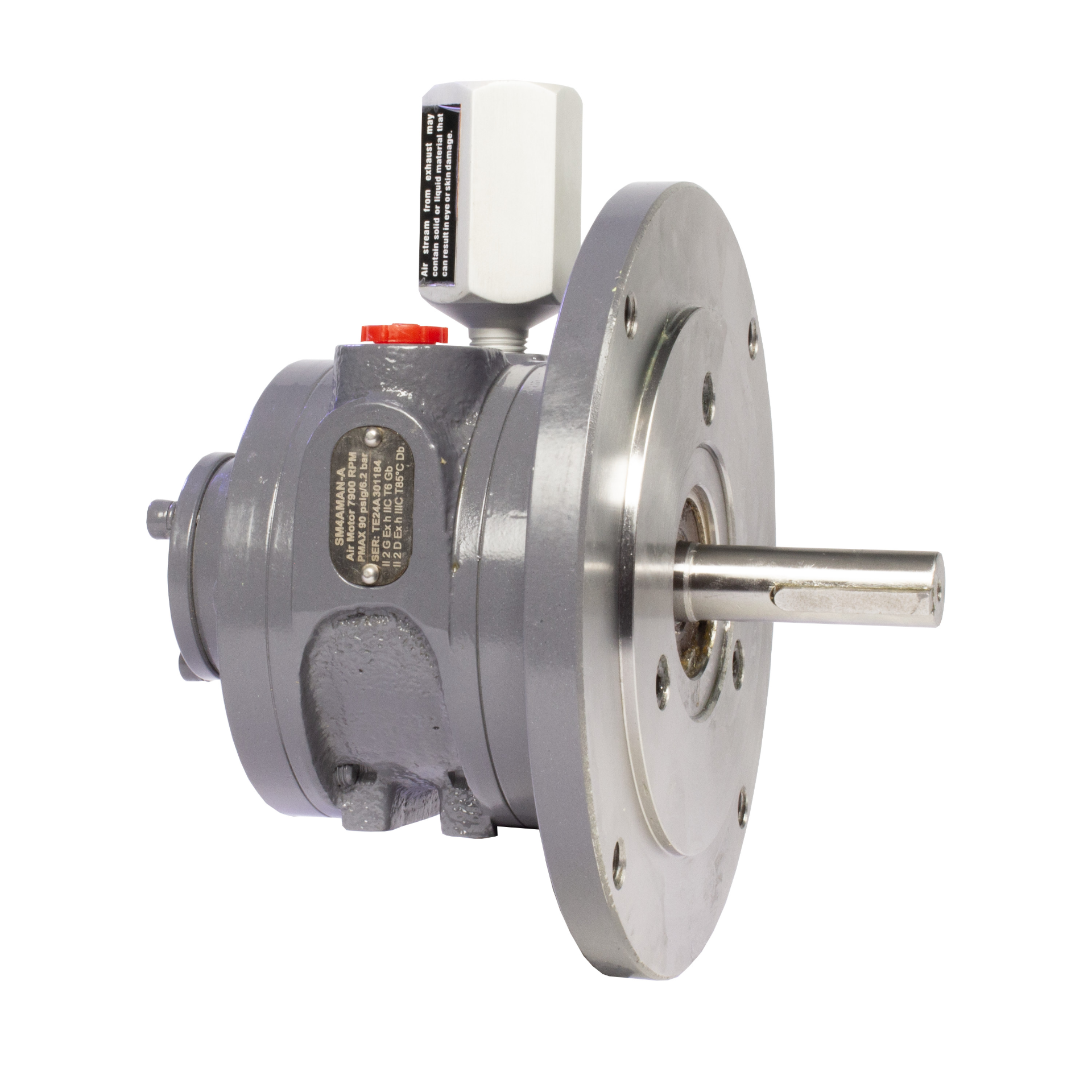

IR SM4AMAN-A
Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 1.5HP, 2.6ft-lb, 7900 RPM, NEMA
Description: The Ingersoll Rand SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.
Features And Benefits:
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses:
Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
- Air Consumption at Max HP (scfm): 67
- Air Inlet: 1/2" -14 NPT
- Air Pressure (psi): 90
- Drive Length (in): 1.94
- Drive Size (in): 5/8
- Drive Type: Round Keyed
- Finish: Black Oxide
- Gear Ratio: 1:1
- Gear Reduction: Direct Drive
- Gear Train: Gearless
- Housing Material: Steel
- Keyaway Length (in): 1.31
- Max Free Speed (rpm): 7900
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 4.1
- Max Torque (in-lb): 50
- Max Torque (nm): 5.6
- Motor: Rotary Vane
- Motor: In line
- Motor: Direct Drive
- Mounting Type: NEMA
- Operating Temperature Range: 33.8F to 104F
- Power Source: Air Powered
- Product Length (in): 6.56
- Product Width (in): 3.9
- Product Height (in): 7
- Product Weight (lb): 11.22
- Rated Power (hp): 1.5
- Rated Power (kW): 1.1
- Reversible: Reversible
- Standards/Certifications: ATEX and CE certified
- Starting Torque (ft-lb): 2.6
- Starting Torque (nm): 3.5
- Parts: MRV015B-010-RP-A
- Parts: SM4AMAN-005-A
