Air Motors

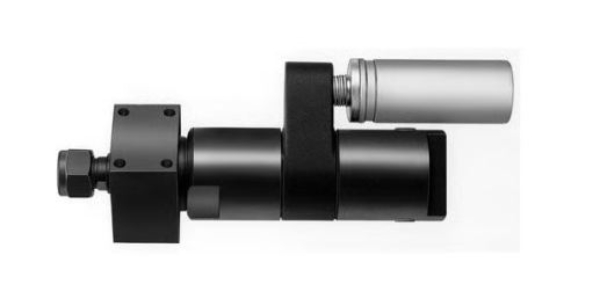

AA 8231-4B

AA 8274-6A

ASC 4AM-NRV-22B

BB 193042

BB 31-456

BB 31-502

BB 41-4455

CL 936256

DD KK-5074

DD QMS-428

GG 207546

GG 208356

GG M07LN0

GG N34DT0

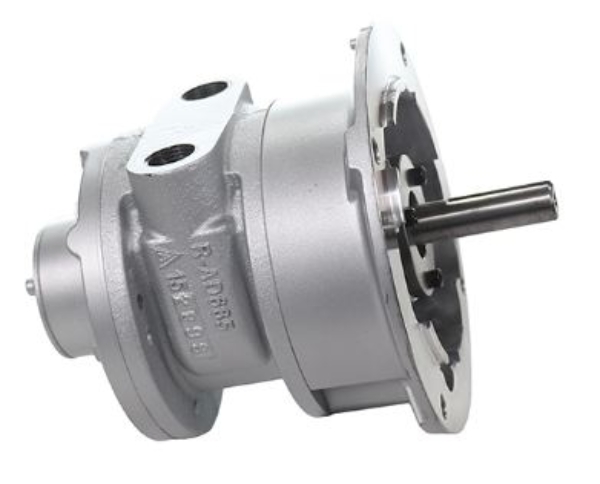

GS 6AM-NRV-11A

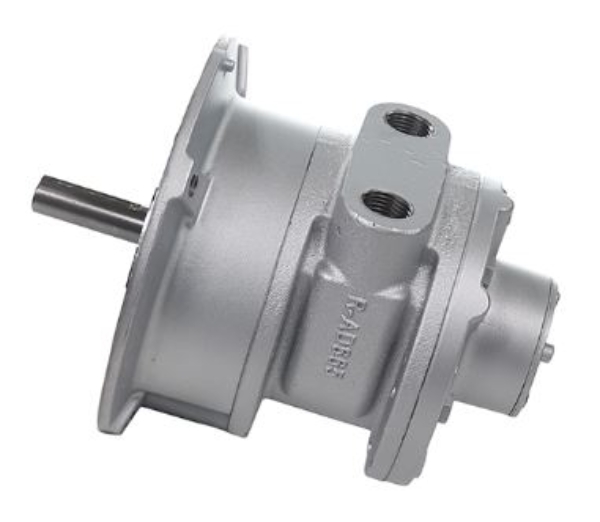

GS 6AM-NRV-22A

IR 150LF-11A

IR 7802A-A37

IR 7811-99

IR 8231-9B

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 475 RPM, 0.5 HP, 26.2 NM, Reversible

• Air Consumption at Max HP (scfm): 41
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 38.1:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 475
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 19
• Max Torque (in-lb): 232
• Max Torque (nm): 26.2
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 2.98
• Rated Power (hp): 0.5
• Rated Power (kW): 0.37
• Reversible: Reversible

• Sound Level dB(A): 80
• Speed at Max Power (rpm): 240

• Torque Output @ Max HP (ft-lb): 11
• Torque Output @ Max HP (nm): 14.9
• Warranty: 1-year

• Parts: 37896

IR M004-108-006

IR M007-12

IR M007RVR275BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 64 RPM, 0.61 HP, 201 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

Product Application and Uses:

Limited to 224 lb-ft (304) Nm

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 275:1
• Gear Reduction: Quadruple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 64
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 148
• Max Torque (in-lb): 1779
• Max Torque (nm): 201
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 7.38
• Rated Power (hp): 0.61
• Rated Power (kW): 0.46
• Reversible: Reversible

• Speed at Max Power (rpm): 32
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 111
• Starting Torque (nm): 151

• Warranty: 1-year

IR M007-SERIES / M007RHRO27BT3

IR SS800-TK2
